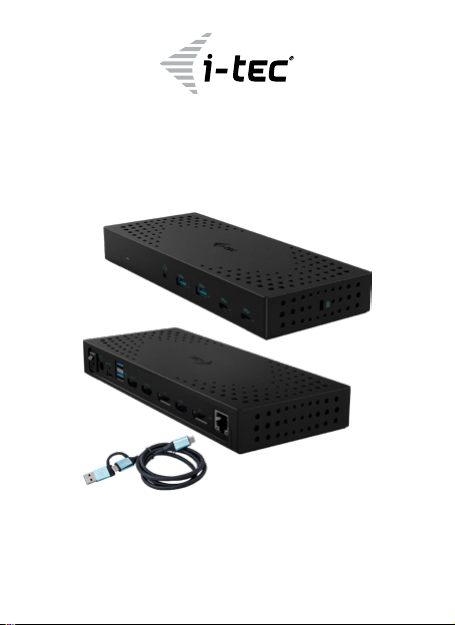

Itec CATRIPLE4KDOCKPD2 Manual de usuario

i-tec USB 3.0 / USB-C / Thunderbolt

3x 4K Docking Station Gen 2

+ Power Delivery 100W

P/N: CATRIPLE4KDOCKPD2

User guide • Gebrauchsanweisung • Mode d’emploi

Manual de instrucciones • Manuale • Uživatelská příručka

Instrukcje obsługi • Užívateľská príručka

• Vartotojo vadovas Handleiding

Quick Start

ENGLISH

EN Please read the entire instruction manual carefully. Detailed

manual is available on our website www.i-tec.cz/en/ in the tab

„Manuals, drivers“. In case of any issues, please contact our technical

support at: [email protected]

DE Bitte lesen Sie das gesamte Handbuch sorgfältig durch. Die

ausführliche Gebrauchsanweisung ist auch auf unserer Webseite

www.i-tec.cz/de/ unter „Benutzerhandbücher, Treiber“ bei diesem

Produkt zu finden.

Wenn Sie Probleme haben, kontaktieren Sie bitte

unser Support-Team unter: support@itecproduct.com

FR Veuillez lire attentivement le manuel dans son intégralité. Un

manuel détaillé est disponible sur notre site www.i-tec.cz/fr/ sous

l'onglet "Manuels, pilotes". Si vous avez des problèmes, veuillez

contacter notre équipe support à [email protected]

ES Por favor, lea atentamente todo el manual. El manual detallado

está disponible en nuestro sitio web, www.i-tec.cz/es/ bajo la

pestaña "Manuales y controladores" de este producto. Si tiene algún

problema, póngase en contacto con nuestro equipo de soporte en

[email protected]

IT Leggere attentamente tutto il Libretto d’uso. Il Libretto d’uso è a

disposizione anche sulla scheda “Manuali e strumenti” del nostro

sito web: www.i-tec.cz/it/. In caso di problemi rivolgersi al supporto

tecnico: [email protected]

CZ Prosíme o pečlivé přečtení celého manuálu. Podrobný manuál je

k dispozici na našem webu www.i-tec.cz v záložce „Manuály,

ovladače“ u tohoto produktu. V případě problémů se můžete

obrátit na naši technickou podporu: [email protected]

PL Upewnij się, że uważnie przeczytałeś instrukcji obsługi.

Szczegółowy podręcznik

jest dostępny na naszej stronie

internetowej www.i-tec.cz/pl/ w zakładce "Instrukcje, sterowniki".

W razie jakichkolwiek problemów, skontaktuj się z naszym

serwisem pod adresem: support@itecproduct.com

CATRIPLE4KDOCKPD2

ENGLISH

SK Prosíme o dôkladné prečítanie celého manuálu. Podrobný manuál

je k dis pozícii tiež na našom webe www.i-tec.cz v záložke „Manuály,

ovladače“ pri tomto produkte. V prípade problémov sa môžete obrátiť

na našu technickú podporu: [email protected]

LT Prašome įdėmiai perskaityti visą vadovą. Išsamų vadovą galite

rasti

mūsų svetainėje www.i-tec.cz/en/ šio produkto skyrelyje

„Manuals,

drivers“. Iškilus problemoms galite susisiekti su mūsų

technine pagalba: [email protected]

NL Wij vragen u vriendelijk om de volledige handleiding zorgvuldig

door te lezen. Een gedetailleerde handleiding van dit product is

beschikbaar op onze website www.i-tec.cz/nl/ onder het tabblad

"Handleidingen en drivers". Mochten er zich problemen voordoen

kunt u contact opnemen met ons supportcenter via

[email protected].

Quick Start

ENGLISH

CATRIPLE4KDOCKPD2

ENGLISH

ENGLISH................................................... 06–09

DEUTSCH.................................................. 10–13

FRANÇAIS.................................................14–17

ESPAÑOL...................................................18–21

ITALIANO...................................................22–25

ČESKY........................................................ 26–29

POLSKI...................................................... 30–33

SLOVENSKY.............................................. 34–37

LIETUVOS................................................. 38–41

NEDERLANDS........................................... 42–45

WEEE......................................................... 46–47

Declaration of Conformity........................48–49

FCC...................................................................50

Quick Start

ENGLISH

DESCRIPTION

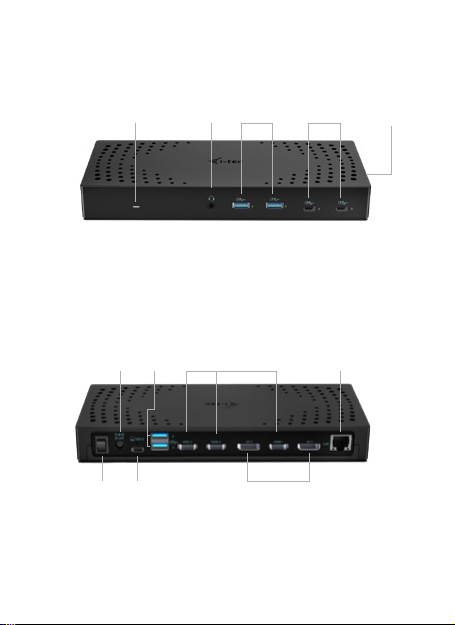

Front panel

1. Led indication

2. 1x 3.5mm combined audio connector

3. 2x USB-A 3.2 Gen 2 (10Gbps)

4. 2x USB-C 3.2 Gen 2 (10Gbps)

Side panel

5. Kensington lock support

Back panel

6. ON/OFF button

7. 1x power input (DC 20V/8A)

8. 1x USB-C port for connecting USB-C (ThunderboltTM) or USB-A devices

9. 2x USB-A 3.2 Gen 2 (10Gbps)

10. 3x HDMI

11. 2x DP

12. 1x Ethernet GLAN RJ-45 port

1 2 3 4 5

6 8

710 12

CATRIPLE4KDOCKPD2

ENGLISH

SPECIFICATIONS

• 1x USB-C port for connecting USB-C (ThunderboltTM) or USB-A devices (USB-C cable

and USB-C to USB 3.0 adapter included)

• Docking station technology: displayLink + USBC DP Alt + USB-C PD mode

• Power Delivery: 100 W

• Video ports:

- 3x HDMI

- 2x DP

• Resolution

- 1 monitor - 1x Display Port → up to 4K/60Hz

- 1 monitor - 1x HDMI 1/2 → up to 4K/60Hz

- 1 monitor - 1x HDMI 3* → up to 4K/60Hz (or up to 1440p/144Hz)

- 2 monitors - 1x Display Port/HDMI 1/2+ 1x Display Port/HDMI 1/2 → up to 2x 4K/60Hz

- 2 monitors - 1x Display Port/HDMI 1/2+ 1x HDMI 3* → up to 4K/60Hz and 4K/60Hz

- 3 monitors - 1x Display Port/HDMI 1/2+ 1x Display Port/HDMI 1/2+ 1x HDMI 3* →

up to 3x 4K/60Hz

• 4x USB-A 3.2 Gen 2 (10Gbps)

• 2x USB-C 3.2 Gen 2 (10Gbps)

• 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950)

• 1x 3.5mm combined audio connector

• MAC address cloning: yes (using i-tec Docker Pro software)

• VOL: S1, S2, S3

• Kensington lock support

• VESA mounting support

• USB-C to USB-C/USB-A cable (100 cm)

• 1x power input (DC 20V/8A)

• LED indicator

• Product dimensions: 223 x 92 x 30 mm

• Product weight: 365 g

• Package dimensions: 260 x 250 x 50 mm

* The HDMI 3 port only works when the dock is connected to a Thunderbolt™ or USB-C

port (supporting DisplayPort Alt mode).

Hardware requirements:

• Devices with a free USB-A, USB-C or Thunderbolt™ 3/4 port.

Power Delivery requirements:

• Devices with a free USB-C or Thunderbolt™3 port with “Power Delivery” support.

HDMI output requirements 3:

• Devices with a free USB-C port with “DisplayPort Alternate Mode” support or

Thunderbolt™ 3/4 port.

Quick Start

ENGLISH

Operating system:

• Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu.

If the docking station is connected via USB 3.0, charging of laptops and tablets is not

supported.

INSTALLING DRIVERS

Windows:

1. Download and run DisplayLink Cleaner:

https://synaptics.com/products/displaylink- graphics/downloads/windowsinstallation-cleaner

2. Restart the laptop

3. Download and install the DisplayLink driver:

https://synaptics.com/products/displaylink-graphics/downloads/windows-10.3-m0-public?letype=exe

4. Restart the laptop

5. Connect the docking stations

macOS:

1. Download and install DisplayLink Manager:

https://www.synaptics.com/products/displaylink-graphics/downloads/macos

2. The installation prompts you to enable Screen Recording

a. Go to APPLE tab / System Preferences / Security & Privacy / Privacy

b. Find Screen Recording in the Privacy tab

c. Click on the lock in the lower left corner

d. Enter your password

e. Check the box next to DisplayLink Manager

3. After installation, open DisplayLink Manager from Launchpad

4. Find the DisplayLink icon in the top menu bar and open it

5. Select “Start app automatically after login”

6. Connect the docking station

SAFETY INSTRUCTIONS FOR USING THE DOCKING STATION

• Do not expose to extreme temperatures and humidity.

• Use the device on at pads to avoid slipping and falling on the ground.

• Keep the drivers and manual for later use.

• Avoid straining the USB-C port or cable.

• Restart the product periodically using the ON/OFF button or by unplugging it from

the mains.

• It is recommended that you switch off the docking station at the end of the day.

In cooperation with the service department:

• Check functionality after falling into water or on the ground.

• Verify functionality when the cover is cracked.

• Complain about the device not working according to the manual.

CATRIPLE4KDOCKPD2

ENGLISH

FREQUENTLY ASKED QUESTIONS

Available on our website www-i-tec.pro under “FAQ” for this product

GLOSSARY OF TERMS

Interface / port / connector / input / slot - the place where two devices are physically

connected.

Controller - a semiconductor component (so-called chipset) in a notebook / tablet, ensur-

ing the operation of one of the ports.

Thunderbolt™ - is a fast hardware interface that allows you to connect devices (periph-

erals) to your computer via an expansion bus. Thunderbolt combines PCI-Express and

DisplayPort into a serial data interface. It allows for up to 6 additional Thunderbolt™ de-

vices, and the transfer rate for Thunderbolt™ 3/4 is up to 40Gbit/s.

USB-C / USB Type-C / USB4 / Thunderbolt™ 3/4 - is a symmetrical connector Allows

faster charging, power, dual-role (not only host but also guest), support for Alt Mode (Dis-

playPort, MHL, Thunderbolt 3, Power Delivery) and error notication via Billboard device.

USB-C Power Delivery (USB-C PD) - an optional feature of the USB-C connector.

A connector with this support can both charge and be charged, and supports loads from

10W to 240W

USB 3.2 / 3.1 / 3.0 / 2.0 - standard for USB interface / port for connecting various USB

devices. Various USB devices can be connected to the docking station or adapter using

the USB Type-A interface. The USB type B port is used to connect the docking station or

adapter to a laptop/tablet.

HDMI/Display Port - A standard for a digital graphics interface/port used to connect mon-

itors and other graphic display devices.

LAN (Local Area Network) - local area network, now the most common is the so-called

Ethernet, which reaches theoretical transfer speeds of up to 2.5 Gbit/s at the docking

station.

Audio - a term for an audio input (microphone) or output device (headphones/speakers).

Quick Start

DEUTSCH

BESCHREIBUNG

Frontplatte

1. Led-Anzeige

2. 1x 3,5 mm kombinierter Audioanschluss

3. 2x USB-A 3.2 Gen 2 (10Gbps)

4. 2x USB-C 3.2 Gen 2 (10Gbps)

Seitenwand

5. Unterstützung des Kensington-Schlosses

Rückwand

6. ON/OFF-Taste

7. 1x Stromeingang (DC 20V/8A)

8. 1x USB-C-Anschluss für den Anschluss von USB-C (ThunderboltTM)

oder USB-A-Geräten

9. 2x USB-A 3.2 Gen 2 (10Gbps)

10. 3x HDMI

11. 2x DP

12. 1x Ethernet GLAN RJ-45 port

1 2 3 4 5

6 8

710 12

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Estación de acoplamiento de Itec

Itec

Itec TB3TRAVELDOCKPD Manual de usuario

Itec

Itec C31METAL4KDOCKPD Manual de usuario

Itec

Itec C31TRIPLEDOCKPD Manual de usuario

Itec

Itec C31TRIPLEDOCKPDIT Manual de usuario

Itec

Itec MYSAFE USB 3.0 ALUBASIC MYSAFEU312 Manual de usuario

Itec

Itec CANANOTDOCKPD Manual de usuario

Itec

Itec USB-C Dual Display Manual de usuario

Itec

Itec C31TRIPLE4KDOCKPD Manual de usuario

Itec

Itec C31HDMIDPDOCKPD Manual de usuario

Itec

Itec THUNDERBOLT 2 Manual de usuario

Itec

Itec C31DUALDPDOCKPD65W Manual de usuario

Itec

Itec C31DUALDPDOCKPD100W Manual de usuario

Itec

Itec Docking Station with Video Manual de usuario

Itec

Itec CADUAL4KDOCKPD Manual de usuario

Itec

Itec U3HDMIDVIDOCK Manual de usuario

Itec

Itec C31TRAVELDOCKPD Manual de usuario

Itec

Itec C31NANODOCKPD Manual de usuario

Itec

Itec CADUA4KDOCKPDL Manual de usuario

Itec

Itec USB4DUAL4KDOCKPD Manual de usuario

Itec

Itec C31NANODOCKPROPD Manual de usuario

Itec

Itec CADUA4KDOCKPDLUK Manual de usuario

Itec

Itec C31TRAVELDOCKPD Manual de usuario

Itec

Itec CATRIPLE4KDOCKPD Manual de usuario

Itec

Itec C31FLATDOCKPDPLUS Manual de usuario

Manuales populares de Estación de acoplamiento de otras marcas

Sony

Sony Dream Machine XDR-DS12iP Manual de usuario

Acer

Acer USB Type-C Dock II Manual de usuario

ATEN

ATEN UC-2000 Manual de usuario

Xcellon

Xcellon HDD-202 Manual de usuario

Dok

Dok CR09 Manual de usuario

Philips

Philips BTM630/12 Manual de usuario

IOGear

IOGear Travel Pro GUD3C09 Manual de usuario

RKI

RKI SDM-E2 Manual de usuario

iHome

iHome iP15 Manual de usuario

VITURE ONE

VITURE ONE MOBILE DOCK Manual de usuario

Lindy

Lindy 42984 Manual de usuario

CipherLab

CipherLab 8001 Manual de usuario

Pyle

Pyle PIPDSP2 Manual de usuario

Avol

Avol AS2350 Manual de usuario

Datalogic

Datalogic JoyaTouch Manual de usuario

Philips

Philips DC190/79 Manual de usuario

Targus

Targus DOCK315EUZ Manual de usuario

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manual de usuario
