Itec CADUA4KDOCKPDL2 Manual de usuario

I-TEC USB 3.0 / USB-C /

THUNDERBOLTTM 3

DUAL DISPLAY DOCKING STATION

GEN2 + POWER DELIVERY 100W

2x HDMI, 2x DP, 4x USB 3.0,

2x USB-C Gen2+ Power Delivery

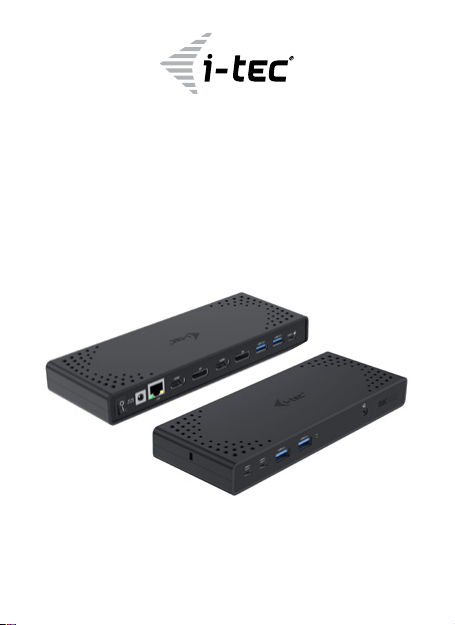

P/N: CADUA4KDOCKPDL2

User guide • Gebrauchsanweisung • Mode d’emploi

Manual de instrucciones • Manuale • Uživatelská příručka

Instrukcje obsługi • Užívateľská príručka • Vartotojo vadovas

Handleiding

Quick Start

ENGLISH

EN Please read the entire instruction manual carefully. Detailed

manual is available on our website www.i-tec.cz/en/ in the tab

„Manuals, drivers“. In case of any issues, please contact our technical

support at: [email protected]

DE Bitte lesen Sie das gesamte Handbuch sorgfältig durch. Die

ausführliche Gebrauchsanweisung ist auch auf unserer Webseite

www.i-tec.cz/de/ unter „Benutzerhandbücher, Treiber“ bei diesem

Produkt zu finden.

Wenn Sie Probleme haben, kontaktieren Sie bitte

unser Support-Team unter: [email protected]

FR Veuillez lire attentivement le manuel dans son intégralité. Un

manuel détaillé est disponible sur notre site www.i-tec.cz/fr/ sous

l'onglet "Manuels, pilotes". Si vous avez des problèmes, veuillez

contacter notre équipe support à [email protected]

ES Por favor, lea atentamente todo el manual. El manual detallado

está disponible en nuestro sitio web, www.i-tec.cz/es/ bajo la

pestaña "Manuales y controladores" de este producto. Si tiene algún

problema, póngase en contacto con nuestro equipo de soporte en

[email protected]

IT Leggere attentamente tutto il Libretto d’uso. Il Libretto d’uso è a

disposizione anche sulla scheda “Manuali e strumenti” del nostro

sito web: www.i-tec.cz/it/. In caso di problemi rivolgersi al supporto

tecnico: [email protected]

CZ 

k dispozici na našem webu www.i-tec.cz   

        

obrátit na naši technickou podporu: support@itecproduct.com

PL       

 

    

internetowej www.i-tec.cz/pl/

       

serwisem pod adresem: support@itecproduct.com

CADUA4KDOCKPDL2

ENGLISH

SK 

www.i-tec.cz



na našu technickú podporu: [email protected]

LT  

rasti

  www.i-tec.cz/en/ šio produkto skyrelyje

„Manuals,

      

technine pagalba: support@itecproduct.com

NL Wij vragen u vriendelijk om de volledige handleiding zorgvuldig

door te lezen. Een gedetailleerde handleiding van dit product is

beschikbaar op onze website www.i-tec.cz/nl/ onder het tabblad

"Handleidingen en drivers". Mochten er zich problemen voordoen

kunt u contact opnemen met ons supportcenter via

[email protected].

Quick Start

ENGLISH

CADUA4KDOCKPDL2

ENGLISH

ENGLISH................................................... 06–09

DEUTSCH.................................................. 10–13

FRANÇAIS.................................................14–17

ESPAÑOL...................................................18–21

ITALIANO................................................... 22–25







LIETUVOS................................................. 38–39

NEDERLANDS........................................... 40–43

WEEE......................................................... 46–47

Declaration of Conformity........................ 48–49

FCC...................................................................50

Quick Start

ENGLISH

1 2 3 4

5 6 7 8 9 10 11

DESCRIPTION

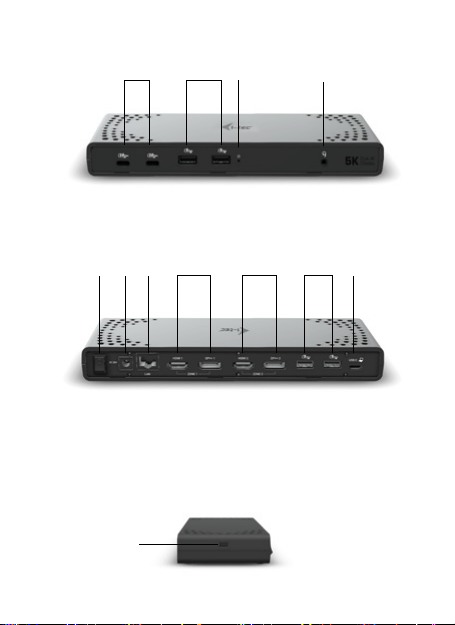

Front panel:

1. 2x Gen.2 USB-C port with fast charging support (BC 1.2)

2. 2x USB 3.2 Gen.1 port with fast charging support (BC 1.2)

3. LED indication

4. 3.5mm Audio combo connector

Back panel:

5. On/Off switch to turn the docking station on and off

6. Input for power supply

7. Ethernet GLAN RJ-45 port (DisplayLink DL-6950)

8. Zone 1 - HDMI/DP (HDMI or DP can be connected)

9. Zone 2 - HDMI/DP (HDMI or DP can be connected)

10. 2x USB 3.2 Gen.1 port with fast charging support (BC 1.2)

11. USB-C port for connecting the dock to a laptop

Side panel

12.

CADUA4KDOCKPDL2

ENGLISH

SPECIFICATIONS

• 1x USB-C port for connection to USB-C or USB-A devices

(USB-C cable and USBC to USB 3.0 adapter included)

• Docking station technology: displayLink + USB-C PD

• Power Delivery: 100W

• Video Ports:

- 2x Display Port (supports DP++)

- 2x HDMI

• Resolution:





- 2 monitors - 1x DP/HDMI + 1x DP/HDMI → 

• 2x USB-C 3.2 Gen.2 port with fast charging support (BC 1.2)

• 4x USB 3.2 Gen.1 port with fast charging support (BC 1.2)

• 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950)

• 1x 3.5mm Audio combo connector

• 1x power input (DC 20V/6.5A)

• ON/OFF switch to turn the docking station on and off

• LED indication



• Support for VESA mounting

• USB-C to USB-C/USB-A cable (100 cm)

• OS: Windows 10/11, macOS, Linux Ubuntu, Android 5 and higher, Chrome OS

R51 and higher

• Easy driver installation (Windows, MacOS, Ubuntu, Android (external link))

• Product dimensions: 224 x 88 x 27 mm

• Product weight: 330 g

• Package dimensions: 250 x 250 x 50 mm



SYSTEM REQUIREMENTS

Hardware requirements:

• Devices with a free USB-A, USB-C or Thunderbolt™ 3/4

Requirements for the Power Delivery function:

• Devices with a free USB-C, USB4 or Thunderbolt™ 3/4-enabled port

“Power Delivery”.

Operating system:

• Windows 10/11, macOS, Linux Ubuntu, Android 5 and higher, Chrome OS R51

andhigher

If the docking station is connected via USB 3.0, charging of laptops and tablets is not

supported

Quick Start

ENGLISH

INSTALLING DRIVERS

Windows:

1) Download and run DisplayLink Cleaner:

https://synaptics.com/products/displaylink- graphics/downloads/windowsin-

stallation-cleaner

2) Restart your laptop

3) Download and install the DisplayLink driver:

https://synaptics.com/products/displaylink-graphics/downloads/win-



4) Restart your laptop

5) Connect the docking station

macOS:

1) Download and install DisplayLink Manager:

https://www.synaptics.com/products/displaylink-graphics/downloads/macos

2) The installation will prompt you to enable Screen Recording

a. Go to the APPLE tab / System Preferences / Security & Privacy / Privacy

b. Find Screen Recording in the Privacy tab

c. Click on the lock in the bottom left corner

d. Enter your password

e. Check the box next to DisplayLink Manager

3) After installation, open DisplayLink Manager from Launchpad

4) Find the DisplayLink icon in the top menu bar and open it

5) Select “Run the application automatically after login”

6) Connect the docking station

SAFETY INSTRUCTIONS FOR USING THE DOCKING STATION

• Do not expose to extreme temperatures and humidity.





• Avoid straining the USB-C port or cable.

• Restart the product periodically using the ON/OFF button or by unplugging it from

the mains.

• Do not plug USB-C PD adapters into USB-C ports that are not marked as ports to

connect USB-C PD power adapter.

• It is recommended that you switch off the docking station at the end of the day.

In cooperation with the service department:

• Check functionality after falling into water or on the ground.

• Verify functionality when the cover is cracked.

• Complain about the device not working according to the manual.

CADUA4KDOCKPDL2

ENGLISH

FREQUENTLY ASKED QUESTIONS

Available on our website www-i-tec.pro under “FAQ” for this product

GLOSSARY OF TERMS

Interface / port / connector / input / slot - the place where two devices are physically

connected.

Controller - a semiconductor component (called a chipset) in a notebook/tablet that

ensures the operation of some from the ports.

Thunderbolt™ - is a fast hardware interface that allows you to connect devices

(peripherals) to your computer via an expansion bus. Thunderbolt combines PCI-Express

and DisplayPort into a serial data interface. It allows daisy chaining of up to 6 additional

Thunderbolt™ devices, with Thunderbolt™ 3/4 transfer rates of up to 40Gbit/s.

USB-C / USB Type-C / USB4 / Thunderbolt™ 3/4 - is a symmetrical connector Allows

faster charging, power, dual-role (not only host, but also guest), support for alternative

modes - Alt Mode (DisplayPort, MHL, Thunderbolt 3, Power Delivery) and error notication

via Billboard device.

USB-C Power Delivery (USB-C PD) -

optional feature of the USB-C connector. Connector

with this support can both charge and be charged, and supports loads from 10W to 240W

USB 3.2 / 3.1 / 3.0 / 2.0 - standard for USB interface / port for connecting various

USB devices. Various USB devices can be connected to the docking station or adapter

using USB Type-A interface the USB Type B port is used to connect the docking station

or adapter to a laptop/tablet.

HDMI/Display Port - A standard for a digital graphics interface/port used to connect

monitors and other graphic display devices.

LAN (Local Area Network) - local area network, now the most common is the so-called

Ethernet, which is used by The docking station achieves theoretical transfer rates of up

to 2.5 Gbit/s .

Audio - a term for an audio input (microphone) or output device (headphones/speakers).

Quick Start

DEUTSCH

1 2 3 4

5 6 7 8 9 10 11

BESCHREIBUNG

Frontplatte:

1. 2x Gen.2 USB-C-Anschluss mit Schnellladeunterstützung (BC 1.2)

2. 2x USB 3.2 Gen.1-Anschluss mit Schnellladeunterstützung (BC 1.2)

3. LED-Anzeige

4.

Rückwand:

5. Ein/Aus-Schalter zum Ein- und Ausschalten der Dockingstation

6. Eingang für die Spannungsversorgung

7. Ethernet GLAN RJ-45-Anschluss (DisplayLink DL-6950)

8. Zone 1 - HDMI/DP (HDMI oder DP können angeschlossen werden)

9. Zone 2 - HDMI/DP (HDMI oder DP können angeschlossen werden)

10. 2x USB 3.2 Gen.1-Anschluss mit Schnellladeunterstützung (BC 1.2)

11. USB-C-Anschluss für den Anschluss der Dockingstation an einen Laptop

Seitenwand

12.
