Ipf electronic OTR49170 Manual de usuario

MANUAL •Subject to alteration! Version: July 2019

ipf electronic gmbh

•Rosmarter Allee 14 •58762 Altena

│

Tel +49 2351 9365-0 •Fax +49 2351 9365-19

│

[email protected] •www.ipf-electronic.com 1

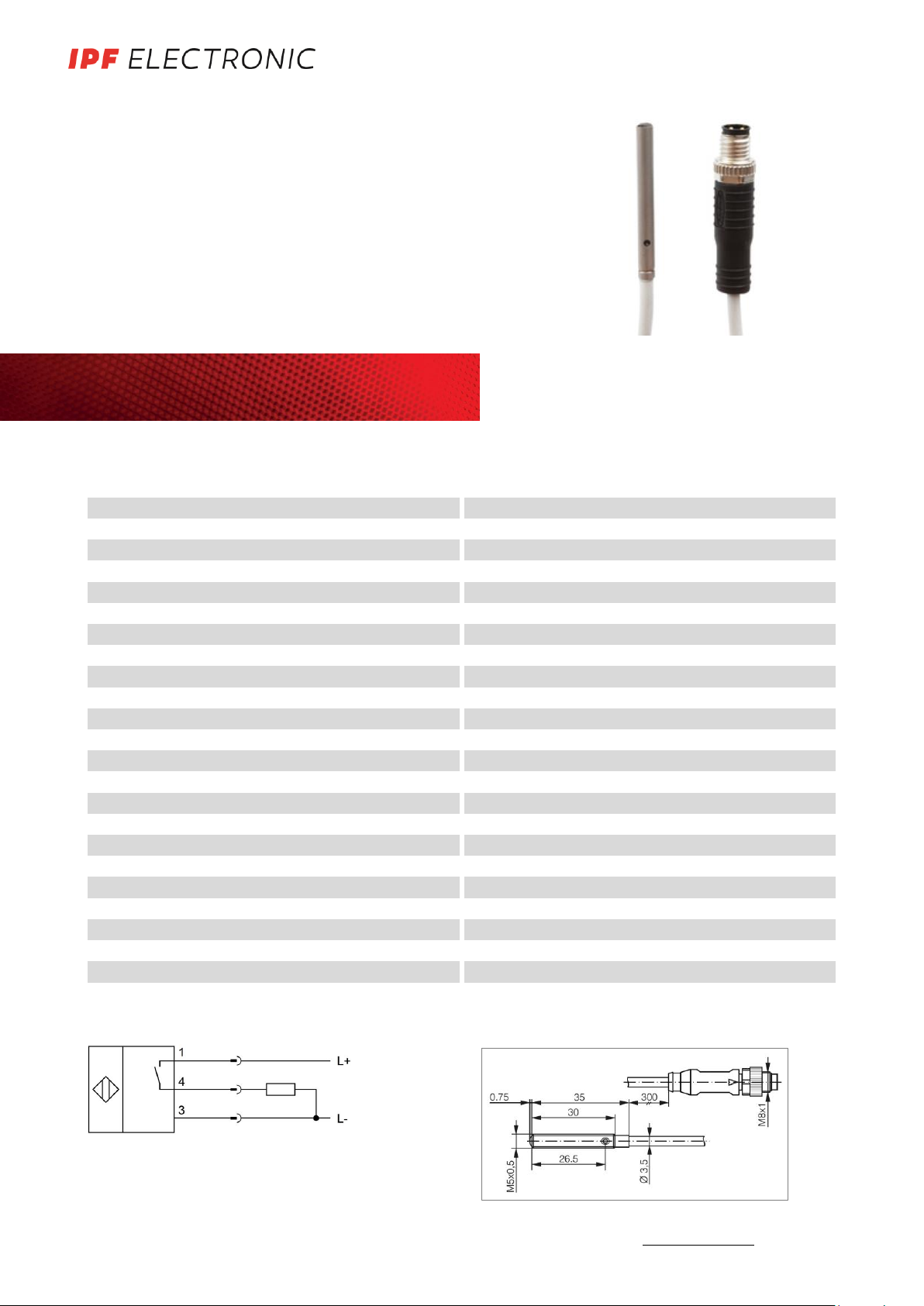

OTR49170

optical sensors

diffuse reflection sensors

Istainless steel sleeve

Ihigh degree of protection IP67

ILED display for status and functional reserve

Iconnection with M8-pigtail

TECHNICAL DATA

sensing range max.

60mm (object with 90% reflectivity)

operating range

0 … 50mm (object with 90% reflectivity)

transmitting element

LED, red light

wave length

630nm

operating voltage UB

10 … 30V DC

residual ripple

≤ 10%

power consumption (no load)

≤ 12mA

output signal

pnp, no

output current (max. load)

≤ 100mA

voltage drop (max. load)

≤ 2V DC

Sampling frequency

≤ 1kHz

indicator LED, green

excess gain

indicator LED, yellow

sensing state

short circuit protection

reverse polarity protection

housing material

stainless steel V2A

optics material

PBT / PMMA

degree of protection (EN 60529)

IP 67

design

Ø 4mm

length

35.75mm

operating temperature

-20 … +65°C

connection

300mm PUR-Cable / M8-Connector, 3-pin

connection accessories

e.g. VK200075

mounting accessories (clip)

AY000044

connection dimensional drawing

Colors: 1 = BN (brown), 3 = BU (blue), 4 = BK (black)

Functions: 1 = L+, 3 = L-, 4 = PNP NO

subminiature devices

visible red light

MANUAL •Subject to alteration! Version: July 2019

ipf electronic gmbh

•Rosmarter Allee 14 •58762 Altena

│

Tel +49 2351 9365-0 •Fax +49 2351 9365-19

│

[email protected] •www.ipf-electronic.com 2

Installation and environment

To attach the device only use a mounting clip, for example AY000044.

Coverings on the optics impair the function. Please install the device in such a way that dust cannot be deposited or

liquids can get on the optics. The device should be accessible for cleaning.

From time to time, the optics should be cleaned with a soft cloth moistened with soapy water.

Cable

The connecting cable between sensor and M8-connector should be laid as fixed as possible or strain-relieved.

Adjustment

Mount the device by taking into account the sensing range, so that the object is reliably detected. In case of reliable

detection, the LED lights up green.

If the LED lights up yellow, the device is in an insecure area. The cause may be an object that is too far away or even

soiling.

There should be no other objects than the one to be detected within the detection area or its border.

Note

The devices respond to the intensity of the light that is reflected of any object. The nominal switching distances are

based on white paper with an area of 100 x 100mm. The possible detection ranges for less reflective materials can be

found in the table "sensing range". The switching distance increases with more reflective materials (e.g. polished

aluminum).

Sensing range Light spot size

target (reflectivity)

operating range

sensing range max.

white (90%)

0 … 50mm

0 … 60mm

grey (18%)

0.2 … 28mm

0.2 … 30mm

black (6%)

0.5 … 13mm

SAFETY WARNINGS:

Before initial operation, please make sure to follow all safety instructions that may be provided in the product

information!

Never use these articles in applications where the safety of a person depends on their functionality.
