ipf electronic DW34312 Series Manual de usuario
manual pressure sensor page 1
ipf electronic gmbh
Kalver Str. 25 - 27
www.ipf-electronic.com
Subject to alteration!
58515 Lüdenscheid - Germany
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
manual pressure sensor
DW34312x
page 2 manual pressure sensor
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
table of contents
safety instructions page 3
controls and indicating elements page 4
page 5
page 6
page 8
page
8
page 9
page 9
page 10
page 11
page 12
page 12
page 15
page 16
page 17
description of the operating elements
menu / overview
operation modes of the switching outputs
switch-point with release position
switch-point with hysteresis
window function with release position

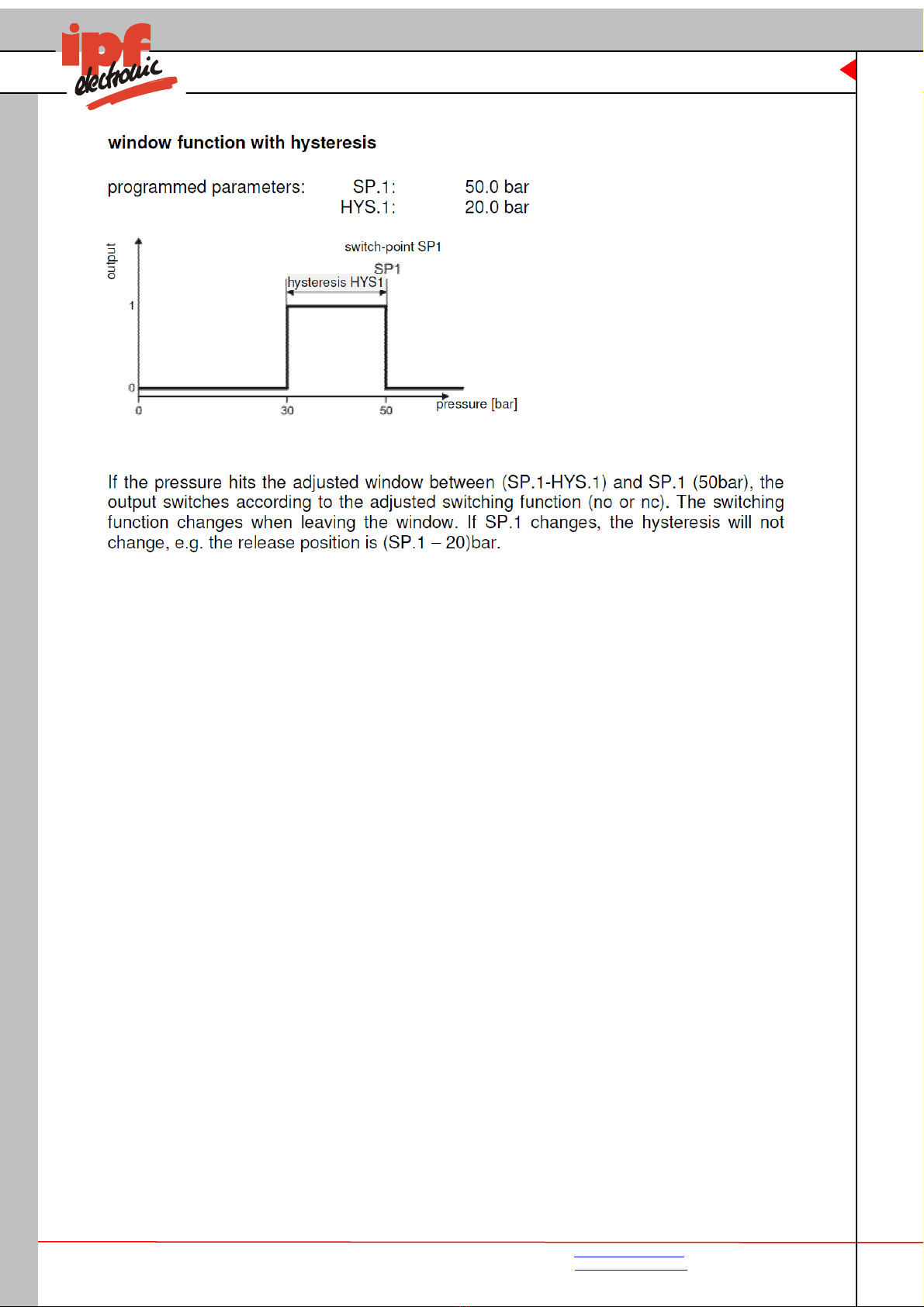

window function with hysteresis
operating modes
programming
list of parameters
mounting and electrical connection
initial operation / operation
factory settings / technical data
dimensional drawings / list of articles
page 18
manual pressure sensor page 3
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19
safety instructions
www.ipf-electronic.com
Read the product description before installing the unit. Ensure that the
product is siutable for your application without any restrictions.
Non-adherence to the operating instructions or technical data can lead to
personal injury and/or damage to property.
In all applications check compliance of the product materials (see technical
data) with the media to be measured.
Do never touch the pressure membrane with the fingers or any other object.
The membrane can be damaged irreparably!
Never use these articles in applications where the safety of a person
depends on their functionality!
page 4 manual pressure sensor
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]

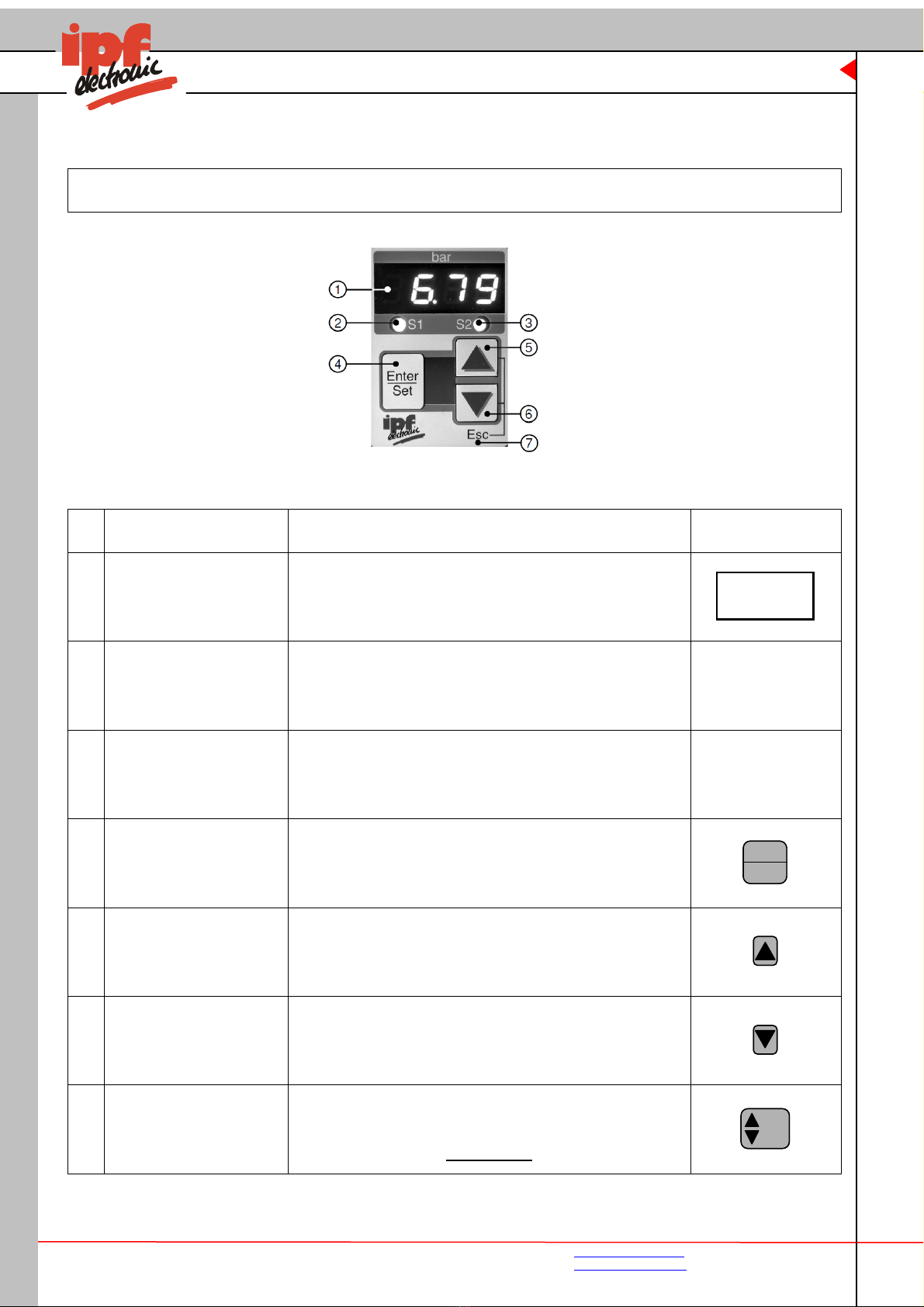

controls and indicating elements
description function symbol
1 4-digit display displays the current system pressure
parameter, parameter values
265.4
2 LED red
S1
displays the switching state of output 1
lights, if the output is switched -
3 LED red
S2
displays the switching state of output 2
lights, if the output is switched -
4 programming button
Enter/ Set
selection of menus and parameters
setting and saving of parameters
Enter
Set
Enter
Set
5 arrow key
up
setting the parameter values
increasing the value
(fast, keep the button pressed
stepwise by pressing the button short)
6 arrow key
down
setting the parameter values
decreasing the value
(fast, keep the button pressed
stepwise by pressing the button short)
7 ESC finishing programming without saving
key lock: press both the arrow keys at the
same time
ESCESC
manual pressure sensor page 5
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
265.4
265.4265.4
SP.2

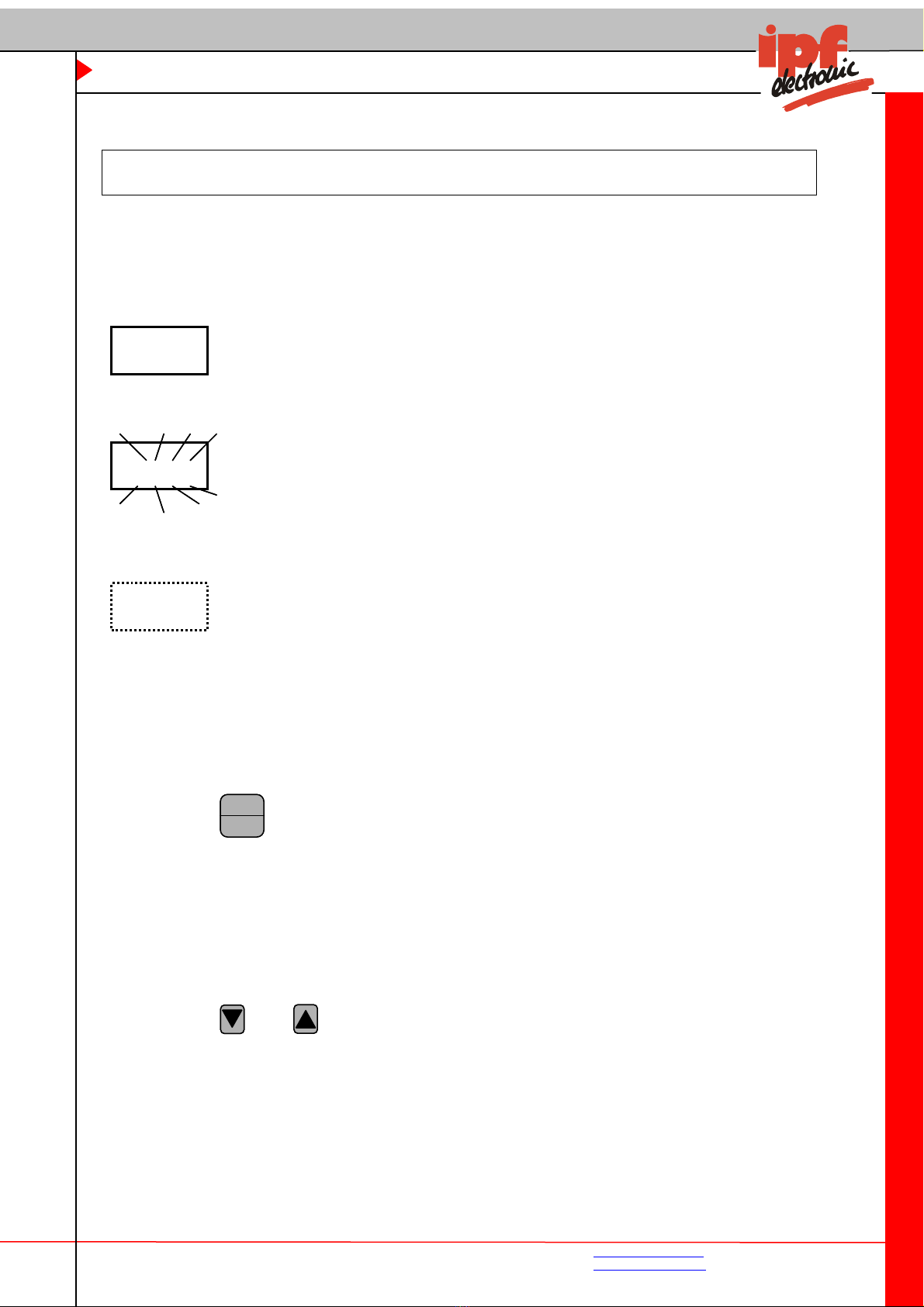

description of the operational controls
display
4-digit lighted LED display
symbolic description:
shows the current system pressure (RUN-Mode), menu name, parameters
and parameter values.
blinking display in RUN-Mode: fault report (Error).
3 x blinking in PROGRAMM mode: saving current value after pressing
Enter/Set button.
The indication on the display depends on the programmed function.
If one of these functions is selected in the enhanced Menu, the indication
will be shown on the display.
program button Enter/Set
symbol:
Enter
Set
Enter
Set
Selection of menus and submenus as well as confirming and saving of parameter values.
Short pressing in the RUN-Mode →starting up the base menu.
arrow keys
symbol:
and
Increasing and decreasing the parameter values and scrolling of the menu.
Pressing the button continuously, the value increases or decreases in „fast-forward“
mode. Pushing the button →the value changes step by step.
page 6 manual pressure sensor
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
ESC- button
symbol:
ESCESC
Pressing both arrow keys + at the same time results in the ESC function.
With the ESC function you can step backwards inside the menu and parameters
without saving the settings.
In order to leave all menus and submenus please press the ESC-button again and again
until you are back in the RUN-mode.
key lock
If the device is in the RUN-Mode and you press the arrow keys + at the same
time for at least 5 seconds, the key lock will be activated.
The display shows „sLOC“, blinking 3 times.
Now the adjusted settings can be read but not be changed.
For cancelling the key lock please press both arrow keys + for at least 5 seconds
again.
menu / overview
1. level
manual pressure sensor page 7
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]

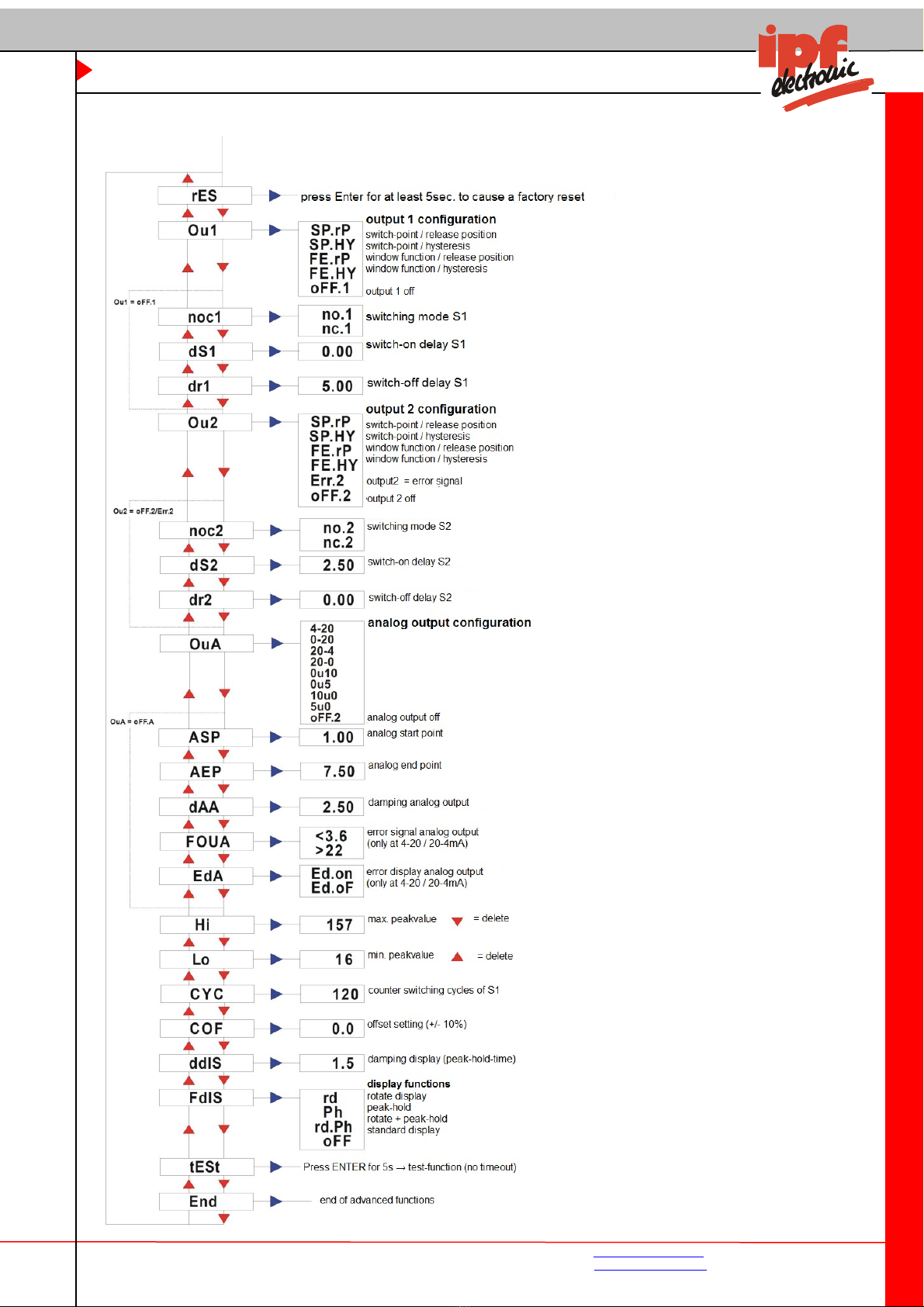

2. level
page 8 manual pressure sensor
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
operation modes of the switching outputs
notes:
•The following examples and descriptions of the switching output 1 (SP1) refer to the
switching function „normally open“ (no). If the switching output 1 is set „normally
closed“ (nc) the states are reversed.
•The minimum range between the switching outputs (SP.1 and rSP.1) is 1% of the
nominal pressure; stated by the system.
•The smallest adjustable hysteresis is 1% of the nominal pressure; stated by the sys-
tem.
•All examples are effective for output 2, if this output is defined as switching output
(SP-2) also.

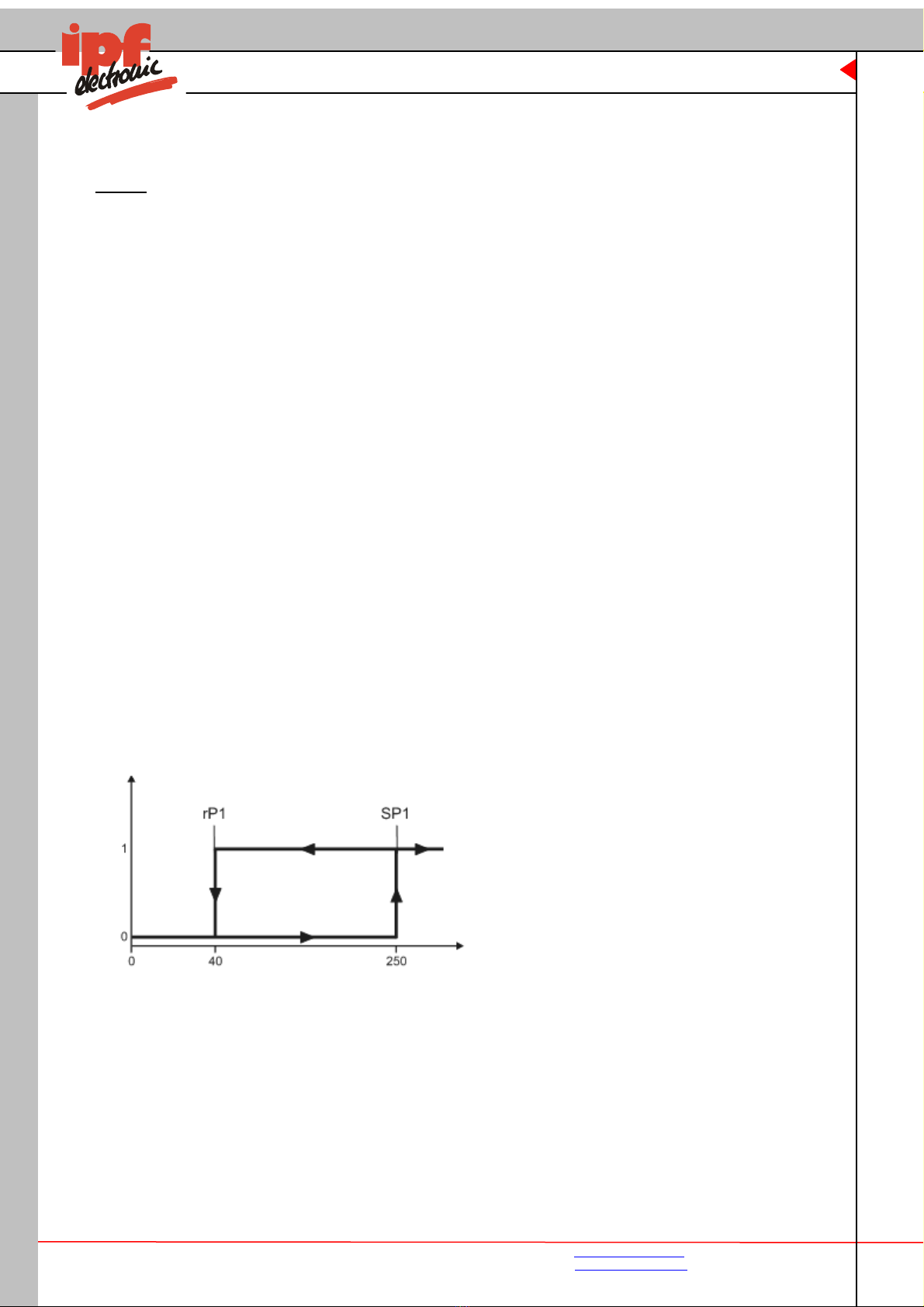

switch-point with release position
programmed parameters: SP.1: 250.0 bar
rP.1:
40.0 bar
output
release position
switch-point
pressure [bar]
An increasing pressure up to SP.1 (e.g. 250bar), switches the output according to the ad-
justed switching function (no or nc). This state remains also for higher pressure.
For decreasing pressure the switching state changes with the pressure value at rP.1 (e.g.
40bar). If SP.1 will be changed, rP.1 remains the same.
The minimum range between SP1 and rSP.1 is 1% of the maximum pressure.
manual pressure sensor page 9
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
switch-point with hysteresis
programmed parameters: SP.1: 50.0 bar
HYS.1: 20.0 bar
output
pressure [bar]
switch-point
An increasing pressure up to SP.1 (e.g. 50bar) switches the output according to the ad-
justed switching function (no or nc). This state remains also for higher pressure.
For decreasing pressure the switching state changes after passing the hysteresis (e.g.
20bar). If SP.1 will be changed, the hysteresis HYS1 remains the same, that is the release
position is (SP.1 – 20)bar.
page 10 manual pressure sensor
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com
Subject to alteration!
Tel +49 2351 9365-0
Fax +49 2351 9365-19 [email protected]
