IOGear GCS932UB Manual de usuario

Installation

Installation Guide

2-Port USB DVI-D Cable KVM Switch

with Audio and Microphone Support

GCS932UB

PART NO. M1103

Table of Contents

Package Contents 4

System Requirements 5

Overview 6

Standard Installation 7

Advanced Installation 9

LED Indication 12

Port Switching 13

Hotkeys Summary Table 14

Autoscan Interval Table 16

Mac Keyboard Emulation 17

Sun Keyboard Emulation 18

Factory Default Settings 19

Firmware Upgrade 20

Upgrade Fail 24

Federal Communications Commission (FCC)

Statement

CE Statement 27

SJ/T 11364-2006 28

Limited Warranty 29

Contact 30

Package Contents

1 x 2-Port USB DVI-D Cable KVM Switch•

1 x Remote Switch Button•

1 x Installation Guide•

1 x Warranty Card•

System Requirements

Console

DVI-D supported monitor•

USB keyboard and mouse•

Powered speakers and microphone (optional)•

Computers

Two USB ports•

A DVI-D supported connection•

3.5mm audio and microphone connections•

(optional)

Operating System

Windows XP•

Windows Vista (32bit/64bit)•

Windows 7•

Mac OS X or greater•

Sun Solaris workstation•

Linux, UNIX and other USB supported systems*•

*Additional drivers and support may be needed

Overview

Remote Switch Button1.

CPUs Mic. connection2.

CPUs Audio connection3.

CPUs DVI-D connection4.

CPUs USB Mouse connection5.

CPUs USB Keyboard connection6.

Remote Switch Button Port7.

Console USB Mouse Port8.

Console USB Keyboard Port9.

LEDs10.

Console DVI-D Video Port11.

Console Mic. Port12.

Console Audio Port13.

21 3 64 5

12 13117 8 9

Step 1

Please make sure your computers and monitor are

powered off before you start.

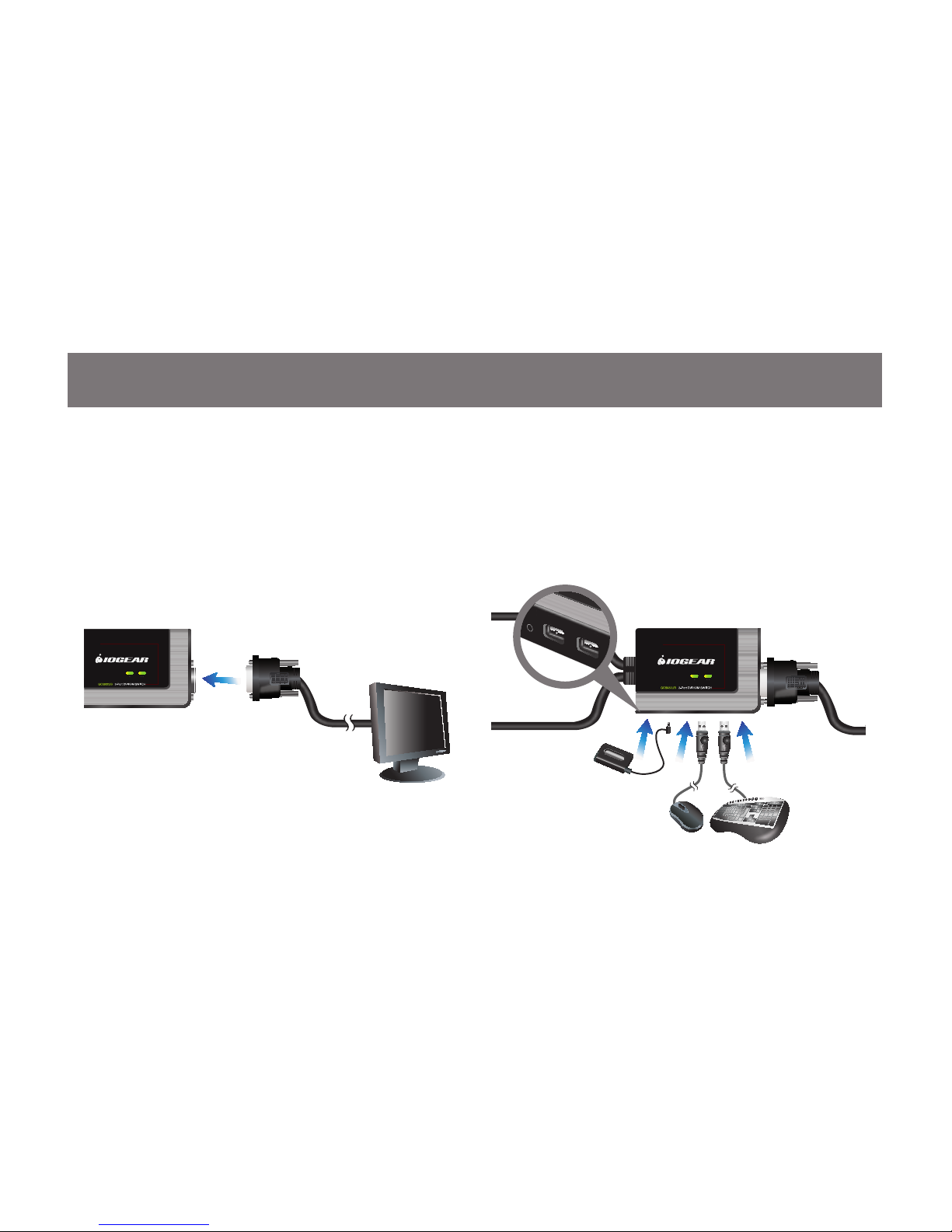

Step2

Connect the DVI cable from your monitor to the

console DVI monitor port. Then, turn on the

monitor.

Step 3

Connect your USB keyboard and mouse to the

console USB keyboard port and console USB

mouse port. If you would like to use the remote

switch button, please connet it to the remote

Standard Installation

switch button port.

Step 4

Connect your powered speaker and mic. to the

console audio port and console mic. Port.

Step 5

Connect a set of your molded KVM cable to each of

your computers – DVI cable to the DVI output, USB

cables to open USB ports from your computer,

audio cable to your audio output and mic. cable to

the mic. input.

Final Step

Step 1

Please make sure your computers and monitor are

powered off before you start.

Step2

Connect the DVI cable from your monitor to the

console DVI monitor port. Then, turn on the

monitor.

Step 3

Connect your USB keyboard to the console USB

keyboard port. If you would like to use the remote

switch button, please connet it to the remote switch

button port.

Advanced Installation

Step 4

Connect a powered USB hub to the console mouse

port, then connect the mouse to any available USB

port in the hub. Then, connect any peripherals that

you want to share between your computers to the

other available USB ports in the hub.

Note: Please make sure mouse emulation has been

disabled for this setup to function correctly.

Step 5

Connect your powered speaker and mic. to the

console audio port and console mic. Port.
