IOGear GCS2HU Manual de usuario

2-Port Cable KVM Switch with HDMI Support

GCS2HU/GCS62HU

PART NO. M1130

User Manual

www.iogear.com

IOGEAR, the IOGEAR logo, are trademarks or registered trademarks of IOGEAR. Microsoft and Windows are registered trademarks of Microsoft Corporation.

All other brand and product names are trademarks or registered trademarks of their respective holders. IOGEAR makes no warranty of any kind with regards

to the information presented in this document. All information furnished here is for informational purposes only and is subject to change without notice.

IOGEAR assumes no responsibility for any inaccuracies or errors that may appear in this document.

Table of Contents

Package Contents 4

System Requirements 5

Overview 6

Standard Installation 7

Advanced Installation 9

LED Indication 12

Port Switching 13

Hotkeys Summary Table 14

Hotkeys Summary Table Cont. 15

Autoscan Interval Table 16

Mac Keyboard Emulation 17

Factory Default Settings 18

Firmware Upgrade 19

Upgrade Fail 23

Compliance Information 24

Limited Warranty 25

Contact 26

Package Contents

• 1 x 2-Port Cable KVM Switch with HDMI Support

• 1 x Manual

• 1 x Warranty Card

System Requirements

Console

• 1 x HDMI display

• 1 x Standard 104 Key wired USB keyboard

• 1 x Standard 2 or 3 button wired mouse

• Powered speakers and microphone (optional)

Computers

• 1 x HD port

• 2 x USB ports

• 3.5mm audio ports (optional)

Operating System

• Windows Vista®

• Windows® 7

• Windows® 8.1

• Windows® 10

• Mac OS®X or greater

• Sun Solaris workstation

• Linux®, UNIX and other USB supported systems*

*Additional drivers and support may be needed

Overview

1. PC 1 LED

2. PC 2 LED

3. Console USB Mouse Port

4. Console HD Port

5. Console USB Keyboard Port

6. Console Speaker Port

7. Console Microphone Port

8. CPU Audio connector

9. CPU USB Keyboard connector

10. CPU HD connection

11. CPU USB Keyboard connector

12. CPU Microphone connector

13. Remote Switch Button

9 11 12 134

5 6 7

Step 1

Please make sure your computers and monitor are

powered off before you start.

Step2

Connect the HD cable from your monitor to the

console HD monitor port. Then, turn on the monitor.

Step 3

Connect your USB keyboard and mouse to the

console USB keyboard port and console USB

mouse port.

Standard Installation

Step 4

Connect your powered speaker and microphone to

the console audio port and console

microphone port.

Step 5

Connect a set of your molded KVM cable to each of

your computers – HD cable to the HD output, USB

cables to open USB ports from your computer,

audio cable to your audio output and mic. cable to

the mic. Input.

Final Step

Turn on your computers.

Step 1

Please make sure your computers and monitor are

powered off before you start.

Step2

Connect the HD cable from your monitor to the

console HD monitor port. Then, turn on the monitor.

Step 3

Connect your USB keyboard to the console USB

keyboard port.

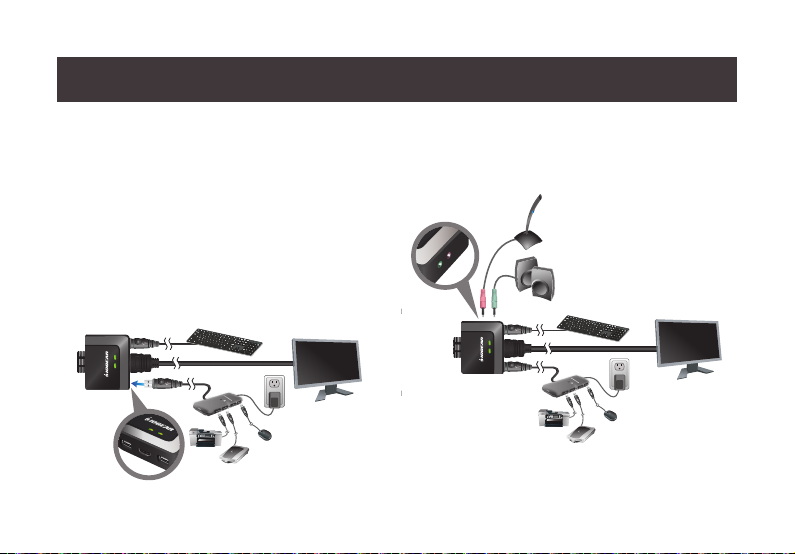

Advanced Installation

Step 4

Connect a powered USB hub to the console mouse

port, then connect the mouse to any available USB

port in the hub. Then, connect any peripherals that

you want to share between your computers to the

other available USB ports in the hub.

Note: Please make sure mouse emulation has been

disabled for this setup to function correctly.

Step 5

Connect your powered speaker and mic. to the

console audio port and console mic. port.
