Features

Invacare®Lynx™Scooters

Invacare®Lynx™ Scooters

Lyn

™

L-3

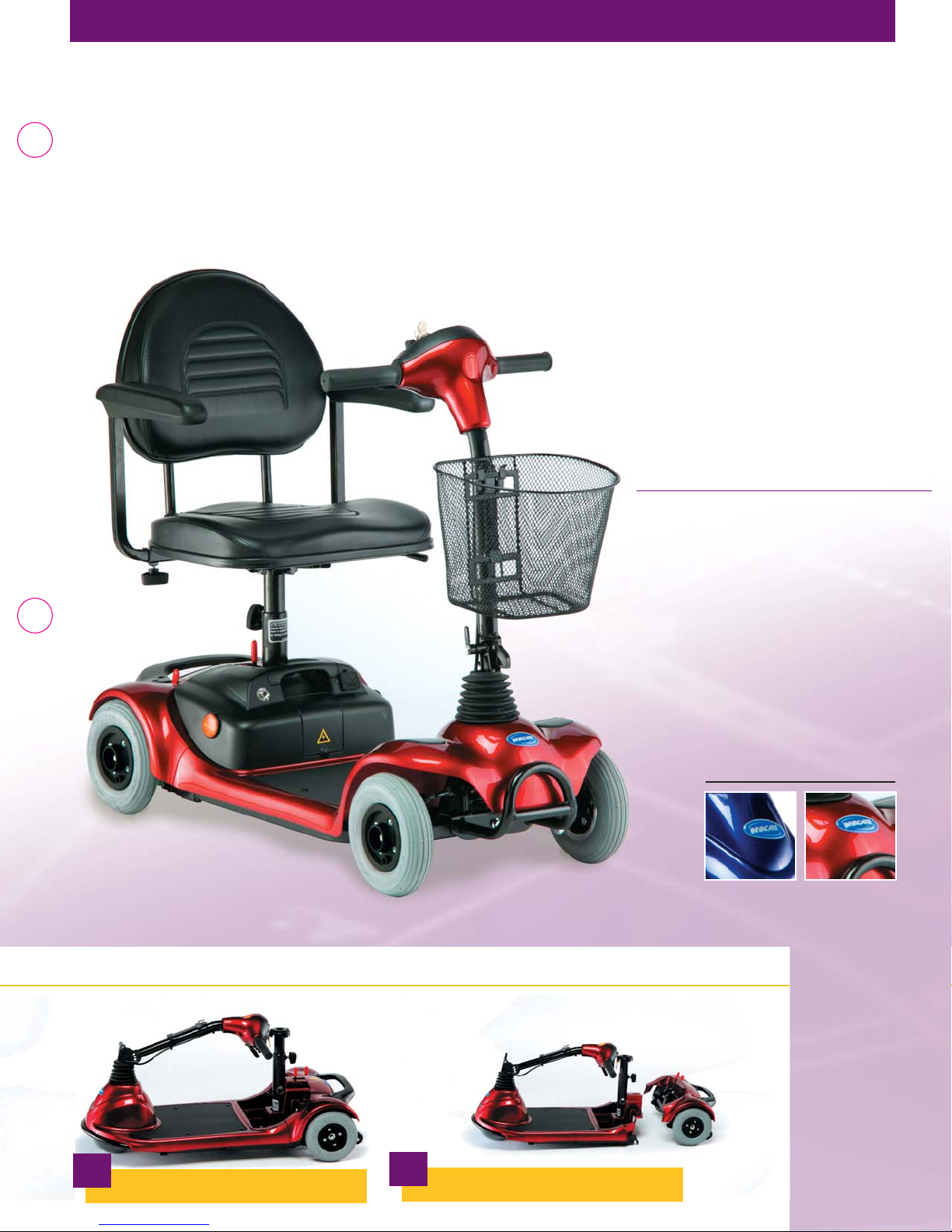

The three-wheel Lynx L-3 scooter takes

portability to a new level. The L-3 model

conveniently disassembles into four compact

pieces for easy transport. Pick the destination,

stow it in the trunk and go… the L-3 model will

do the rest. With an estimated seven miles of

range, a plug-in battery charger and flat-free

tires, consumers can plan their schedule around

what they want to do, not around the limitations

of their scooter.

•Easy 4-piece disassembly

•Estimated 7 mile travel range

•0 - 5 mph variable speed control

•250 lb. weight capacity

•Connector-free, drop-in battery pack

•On or off-board battery charging

•Foam-filled, flat-free tires

•Comfortable 360˚ rotating chair

•Ample leg room and foot clearance

•3-position adjustable tiller

The new Invacare®Lynx™L-3 and L-4 micro-portable

scooters allow you to accomplish daily activities with ease!

You’ll be amazed at how simple they are to assemble and

disassemble for transport. Their compact size and

seamless functionality allow them to easily transition from

the tight turns of the home to the wide-open spaces of the

outdoors. With many of the same attributes on both

models, you can choose between two stylish scooters

packed with great features at a competitive price.

Blue Red

Shroud Colors

micro-portable

Remove Seat

1. Remove Battery

Four Easy Steps for Portability

Note: Do not operate on roads, streets or highways.

Invacare®Lynx™ Scooters

Lyn

™

L-4

The Lynx L-4 offers the features of the L-3 model

with the performance and bold look of a four-

wheel scooter. The stable four-wheel base of the

L-4 model handles varying surfaces with ease.

Customize the L-4 model to fit the consumer by

simply adjusting the seat height, armrest width

and tiller angle. Get comfortable, get set and go!

With a top speed of five mph, you can feel

confident the Lynx L-4 scooter will get you to

your destination on time.

Features

•Easy 4-piece disassembly

•Estimated 7 mile travel range

•0 - 5 mph variable speed control

•250 lb. weight capacity

•Connector-free, drop-in battery pack

•On or off-board battery charging

•Foam-filled, flat-free tires

•Comfortable 360˚ rotating chair

•Ample leg room and foot clearance

•3-position adjustable tiller

Blue Red

Shroud Colors

micro-portable

Fold Tiller Down

3. Remove Back Wheels

Note: Do not operate on roads, streets or highways.

Invacare®Lynx™ Scooters

Invacare®Lynx™Scooters

Specifications - Lynx Microportable

Overall dimensions L-3 L-4

Base length 39.8" 39.8"

Base width 20" 20"

Useable footspace width 15.25" 15.25"

Step height (floor pan to ground) 4" 4"

Seat height (floor pan to seat cushion) 14"-16" 14"-16"

padded seat padded seat

Seat dimensions

Width 16.5" 16.5"

Depth 14.5" 14.5"

Back height 16" 16"

Arm dimensions

Length 11.6" 11.6"

Height between seat and arm 9" 9"

Width between arms 15" 15"

Speed range 0-5 mph 0-5 mph

Estimated travel range* 7 miles 7 miles

Weight limit 250 lb. 250 lb.

Maximum incline capability 8˚ grade 8˚ grade

Tires

Front 8" x 2" 8" x 2"

Rear 8" x 2" 8" x 2"

Turning radius 39.4" 51.2"

Weight

Front base section 30 lb. 39 lb.

Rear base section (with shrouds) 25 lb. 25 lb.

Entire seat 24 lb. 24 lb.

Batteries 23 lb. 23 lb.

Basket 1 lb. 1 lb.

Total weight 103 lb. 112 lb.

Limited warranty - frame, electronics, transaxle 1 year 1 year

*Travel range will vary depending on user weight, speed, battery charge and terrain.

Disassembles for Easy Transport

Lynx L-3 and L-4 micro-portable

360

Rotating Swivel Chair

Flat-free Tires

On/Off Chair Battery

Charging

Invacare®Lynx™ Scooters

Lyn

™

L-3X

Disassembles for Easy Transport Sliding Seat *

Blue Red

Shroud Colors

The compact Lynx™L-3X has the power, comfort

and travel range of a large scooter without the

unnecessary bulk. With a 300 lb. capacity, sliding

seat and ample leg room, the L-3X model can fit a

wide variety of users regardless of height or

weight. You no longer have to stock several

models in your showroom when the Lynx will do

the trick!

Features

•Estimated 20 mile travel range

•0 - 5 mph variable speed control

•300 lb. weight capacity

•360˚ rotating and sliding seat

•3-position adjustable tiller

•Ample leg room and foot

clearance

•Easy disassembly for travel

•Comfortable seat with soft

contoured foam

•Foam-filled, flat-free tires

compact

* On L-3X only.

Note: Do not operate on roads, streets or highways.

Invacare Corporation

www.invacare.com

USA

One Invacare Way

Elyria, Ohio

44035-4190

(800) 333-6900

Canada

570 Matheson Blvd. E.,

Unit 8

Mississauga, Ontario

L4Z 4G4 Canada

(800) 668-5324

are identified by the symbols

™ and ®. All trademarks are

owned by or licensed to

Invacare Corporation unless

otherwise noted.

Specifications are subject to

change without notification.

Invacare Corporation

Form No. 06-047

Rev. 04/07

Invacare®Lynx™ Scooters

Invacare®Lynx™Scooters

Specifications - Lynx L-3X Compact

Overall dimensions L-3X

Base length 44"

Base width 21.5"

Useable footplate width 17.75"

Step height (floor pan to ground) 5"

Seat height (floor pan to seat cushion) 16"

Seat dimensions

Width 18"

Depth 16"

Back height 13.5"

Arm dimensions

Length 11.25"

Height between seat and arm 7"

Width between arms 17"- 24"

Speed range 0-5 mph

Estimated travel range up to 200 lb. individual* 20 miles

201 lb. to 300 lb. individual* 16.5 - 19 miles

Weight limit 300 lb.

Maximum incline capability 8˚ grade

Tires

Front 8" x 2"

Rear 9" x 2"

Turning radius 44.7"

Weight

Front base section (without battery) 30 lb.

Rear base section (with shrouds) 43 lb.

Entire seat 28 lb.

Batteries 56 lb. (2)

Basket 1 lb.

Total weight 158 lb.

Limited warranty - frame, electronics, transaxle 1 year

*Travel range will vary depending on user weight, speed, battery

charge and terrain.

Invacare®Lynx™ Scooters

™
