Interlogix ZeroWire Manual de instrucciones

ZeroWire Quick User Guide 1 / 4 P/N 466-2920 • REV B • ISS 21APR17

ZeroWire Quick User Guide

Key Colour Description



ALARM

Red System is in alarm. Enter your PIN

code then ENTER to turn off the

alarm. Press STATUS key for more

info.



STAY

Not lit System is disarmed if Away is also

not lit.

Green System is armed in the “STAY”

mode.



STATUS

Green System is ready to be armed.

Yellow System message present.

Red (steady) System trouble message present.

Touch the STATUS key to hear system messages. If

you are unable to fix the issue, contact your service

provider for help.



AWAY

Not lit System is disarmed if Stay is also

not lit.

Red System is armed in the “AWAY”

mode.



Not lit System cannot be armed, press

STATUS key for more info

Key Colour Description

READY

Green

(steady)

Your system is ready to arm in Away

or Stay mode.

Green

(flashing)

Zones are currently unsealed but

system is force-armable. If these

zones are not sealed by the end of

the exit time the system will go into

alarm.



BYPASS

Touch the BYPASS key to access the bypass menu

where you can bypass or un-bypass zones.



CHIME

Touch the CHIME key to access the chime menu

where you can select zones to make a chime sound

on the ZeroWire when they are tripped.



HISTORY

Press the HISTORY key to listen for alarm and event

history.

2 / 4 ZeroWire Quick User Guide

Displaying Status in a PD6662 system

In a PD6662 system the Status key behaviour has been

modified for greater security. It will be off or red, and not

announce system status when pressed.

To check system status and unlock the screen saver,

enter your PIN code followed by enter:

Enter your user PIN

code.

STATUS

Select Status.

This action unlocks the

screen saver.

Arming in Away Mode

READY STATUS

Check ready key is

green.

Check status key is

green.

AWAY

Select the Away Mode.

Leave the premises in

30 to 60 seconds (as

set by the installer).

4. Close the Final Set

Door.

Arming in Stay Mode

STATUS

Check status key is

green. Close all

protected doors and

windows. If you have

motion detectors

outside your “stay

mode”, have everyone

leave those areas.

STAY

Select the Stay Mode.

Stay within the

protected areas.

Arming in Instant Stay Mode

STATUS

Green Flashing Green

Check status key is

green. Close all

protected doors and

windows. If you have

motion detectors outside

your “stay mode”, have

everyone leave those

areas.

STAY

Select the Stay Mode

twice.

Or, press Stay button

once when system is

already in Stay Mode. In

this case, you will not be

asked second time for a

PIN code.

4. Stay within the

protected areas.

Final door becomes an

instant alarm zone.

Arming in Night Mode

STATUS

Check status key is

green. Close all

protected doors and

windows. If you have

motion detectors outside

your “stay mode”, have

everyone leave those

areas.

STAY

Select the Stay Mode

three times.

Or, press Stay button

once when system is

already in Instant Stay

Mode.

4. Stay within the

protected areas.

5. Final door becomes an instant alarm zone.

Note: Subsequent presses of the Stay button loop through the

three Stay Mode states:

Stay Mode Stay Instant Mode Night Mode

STAY

Note: The 3

Stay option will be available only if Engineer

configures Night mode.

USER PIN CODE

ENTER

USER PIN CODE

ENTER

EXIT DELAY BEEPS

USER PIN CODE

ENTER

EXIT DELAY BEEPS

USER PIN CODE

ENTER

EXIT DELAY BEEPS

USER PIN CODE

ENTER

EXIT DELAY BEEPS

ZeroWire Quick User Guide 3 / 4 P/N 466-2920 • REV B • ISS 21APR17

Disarming

1. Enter the premises through a designated entry/exit door.

Approach the

ZeroWire. When you

are detected, the

entry warning timer

will begin and then

the ZeroWire will

beep.

Enter your PIN code

before the entry

delay expires.

4. All zones are now disarmed, any bypassed zones are

restored to normal operation.

PD6662 Disarming

1. Enter the premises through a designated entry/exit door

All zones are now disarmed, any bypassed zones are

restored to normal operation.

A user shall use the Fob or the App to disarm the system.

Bypassing a Zone

BYPASS

Select Bypass Menu.

Enter PIN code with authority

to bypass.

3.;

Select a zone to bypass.

Toggle between un-

bypassed to bypassed state.

5. Exit from Bypass Menu.

Displaying Status in a PD6662 System

In a PD6662 system, the behavior of indicators has been

modified for greater security. The ‘status’ key will be off or red

and will not announce system status when pressed.

To conform to PD6662 the system should have been installed

by the engineer as a ONE Area configuration.

Enter a valid user PIN.

STATUS

Select Status Key.

Status condition(s) are

announced.

Acknowledging Alarms

STATUS

Select Status Key.

Status condition(s) are

announced.

Enter a valid master

PIN.

STATUS

Status Key will change

to green if no other

conditions are

present.

Note: Once a confirmed alarm has occurred, it requires an

Engineer to reset the system before it can be armed again.

Event History

HISTORY

Select History Menu.

Enter a valid master PIN.

3. Listen to history events.

Touch ENTER for next

event.

Touch 0 for previous event.

5. Exit from History Menu.

Emergency Keys

ZeroWire has three (3) emergency keys: Medical, Police

(duress) and Fire.

In a PD6662 system, the emergency keys are disabled to

conform to the policy. They can however be used for other

purposes such as activation of scenes.

To cancel an emergency activation:

Enter you code after an

emergency key has been

activated.

ENTRY DELAY BEEPS

USER PIN CODE ENTER

ENTRY DELAY BEEPS

USER FOB TO DISARM

USER APP TO DISARM

USER PIN CODE

ENTER

ZONE NUMBER

ENTER

USER PIN CODE

ENTER

STATUS ANNOUNCED

USER PIN CODE

ENTER

USER PIN CODE

ENTER

MASTER PIN CODE

ENTER

4 / 4 ZeroWire Quick User Guide

Permitting Engineer access

Enter PIN code.

2.; Press the Menu key.

Select the option 8 or 9.

Enter the Engineer code.

The Engineer can then program from the panel, and also has

access to connect via the smartphone/tablet app.

Changing a User PIN

Selects User Configuration

menu.

3. Selects configure user PIN.

Select user number.

Set user PIN code (e.g.

12345)

Exits from Advanced system

configuration.

Note: Users must have unique PIN codes. If the new PIN code

you enter is the same as another user’s PIN code your

ZeroWire will announce "PIN code is occupied, select a new

user PIN code."

Main Menu

Touching the [MENU] key will give you access to main menu.

The Personal Voice Guide will prompt you through each menu

and announce what options are available.

There are 9 main features used for customizing your security

system. Some menus require a Master User PIN code to

access.

1. Volume Level

2. Backlight Level

3. User Configuration

4. System Test

5. Zone Configuration

6. Voice Message Recording

7. Detector Reset

8. Basic System Configuration

9. Advanced System Configuration

Using the UltraSync+ app

The first screen that will appear once you connect is

Arm/Disarm. Using the menu bar located along the bottom of

the app, you can program other ZeroWire settings −zones,

cameras, rooms (Z-Wave devices).

Master users will have access to the full Users menu for

creating and managing users.

When you login with the installer account, you will also have

access to additional menus for setting up and programming the

ZeroWire −Settings and Advanced.

Engineer Reset

Engineer reset required after confirmed Alarm or Panic.

To perform Engineer Reset:

• With screen saver on:

Customer Code> Enter followed by Engineer Code >

Enter.

• To perform a reset via the app:

Engineer logs into the UltraSync+ app then just presses the

Disarmed key on display.

Contact information

www.utcfireandsecurity.com

For customer support, see www.utcfssecurityproducts.eu

MASTER PIN CODE

ENTER

MASTER PIN CODE

ENTER

MENU 3

MASTER PIN CODE

ENTER

USER NUMBER

ENTER

1 2 3

4 5

ENTER

MENU MENU

Otros manuales para ZeroWire

Otros manuales de Sistema de seguridad de Interlogix

Interlogix

Interlogix ATS111 A Series Instrucciones de montaje

Interlogix

Interlogix Simon XT Manual de usuario

Interlogix

Interlogix Simon XT Manual de usuario

Interlogix

Interlogix UltraView UVC-6120-1 Manual de usuario

Interlogix

Interlogix Learn Mode Water Resistant Pendant Panic... Manual de usuario

Interlogix

Interlogix ATS1235 Instrucciones de montaje

Interlogix

Interlogix ZeroWire Manual de usuario

Interlogix

Interlogix Simon 3 Manual de usuario

Interlogix

Interlogix AS280 Instrucciones de montaje

Interlogix

Interlogix ATSx500A Series Instrucciones de montaje

Interlogix

Interlogix TX-7211-05-1 Instrucciones de montaje

Interlogix

Interlogix ATS125 Instrucciones de funcionamiento

Interlogix

Interlogix DC107 Series Instrucciones de montaje

Interlogix

Interlogix Simon XT Manual de usuario

Interlogix

Interlogix ATS111xA-N Series Instrucciones de montaje

Interlogix

Interlogix DC108 Series Instrucciones de montaje

Interlogix

Interlogix ITI Simon Manual de usuario

Interlogix

Interlogix Simon XTi-5 Version 2 Manual de usuario

Interlogix

Interlogix ACL805SUW-BS Manual de usuario

Interlogix

Interlogix RF-7220-07-1 Instrucciones de montaje

Interlogix

Interlogix Advent Manual de usuario

Interlogix

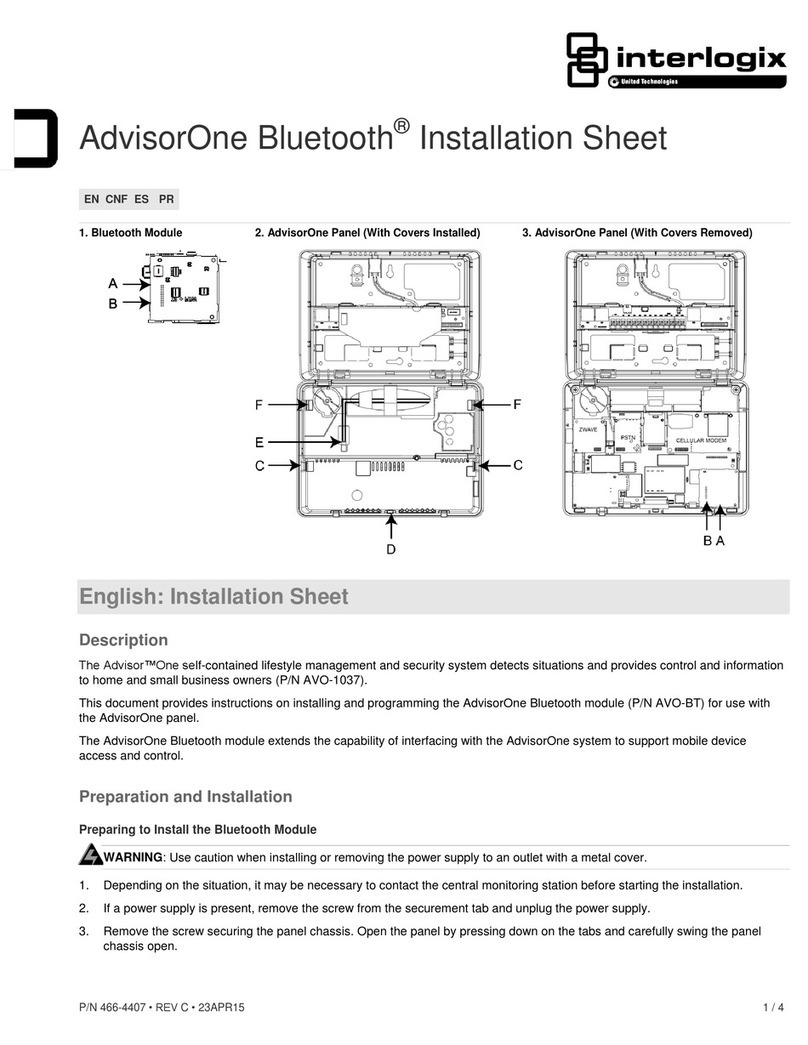

Interlogix advisorone Instrucciones de montaje
