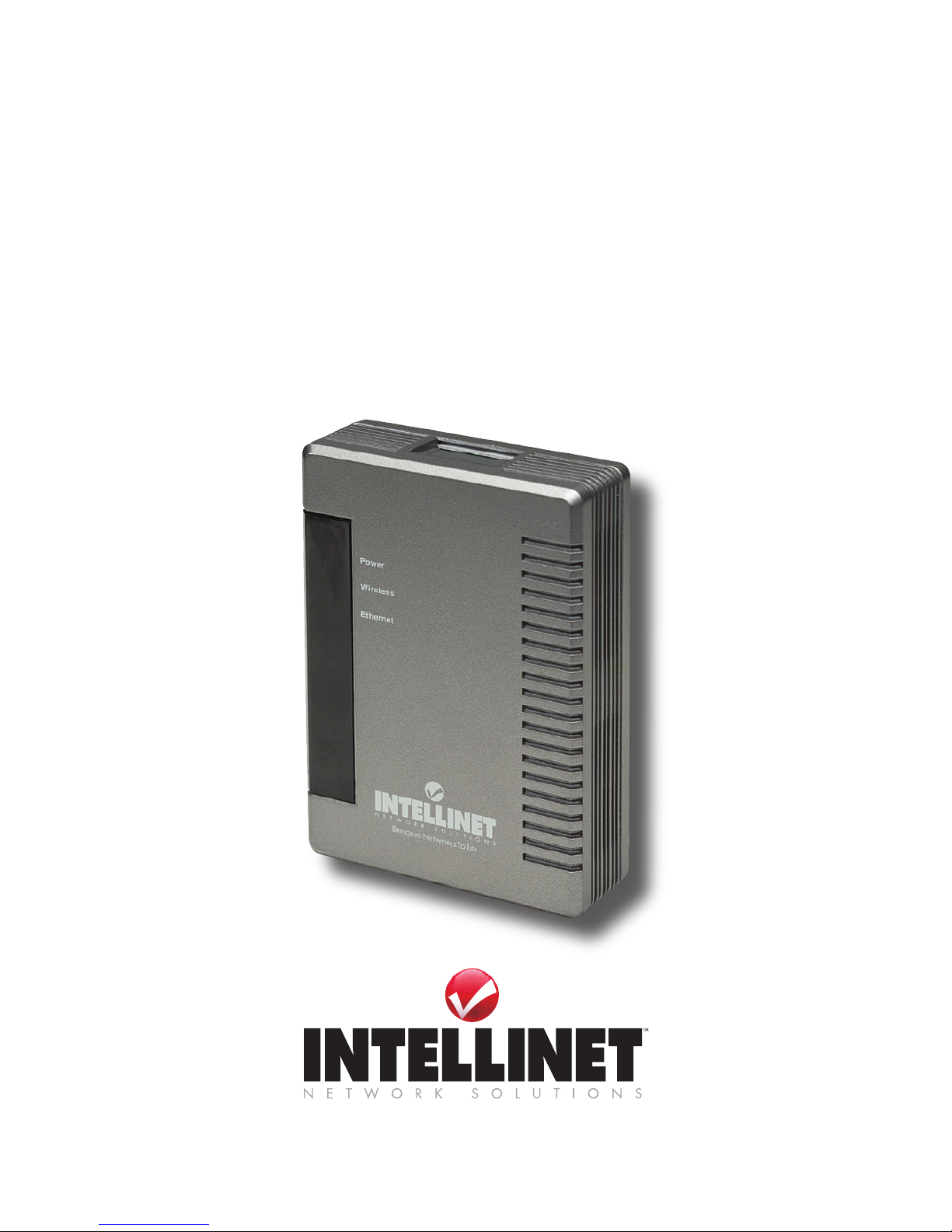

WIRELESS G

BROADBAND

TRAVEL

ROUTER

USER MANUAL

Model 523875

INT-523875-UM-0807-03

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™

Wireless G Broadband Travel Router, Model 523875.

This router is equipped with two 10/100 M auto-sensing Ethernet ports

for connecting to a LAN and cascading to another similar router. It also

features 64/128-bit WEP encryption, WPA and IEEE802.1x to provide a

high level of security to protects users’ data and privacy. The MAC address

lter prevents access to your wireless LAN from unauthorized MAC

addresses, thus doubling network security, and the easily congured

Web-based management utility ensures that your wireless network

connection is always solid and hassle-free. allowing you to enjoy the

benets of these additional features:

• Compact design, great for traveling

• Up to 54 Mbps network data transfer rate

• Compatible with all 802.11b & g wireless products

• DHCP server assigns IP addresses for all LAN users

• Supports virtual server and DMZ (demilitarized zone)

• Supports Access Point mode, Gateway (Router) and Client mode

• Supports UPNP (Universal Plug and Play)

• Supports VPN pass-through (IPSec, PPTP, L2TP)

• Content control through URL lter

• Remote management function (enable/disable and management port)

• Lifetime Warranty

Package contents

• Wireless G Broadband Travel Router

• Ethernet Cat5 RJ-45 cable, 1.0 m (3 ft.)

• User manual

Fcc certiFications

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modications not expressly approved by the

grantee of this device could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Fcc rF radiation exPosure statement

This equipment complies with FCC RF radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed and

operated with a minimum distance of 20 cm between the radiator and

your body.

ce mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.

TABLE OF CONTENTS

Initial Setup......................................................................................... 6

Hardware Connections ................................................................ 6

LED Indicators .............................................................................6

Operation Modes ......................................................................... 6

 ................................................................ 8

Mode (Operation/Wireless Mode) ...............................................8

Status ............................................................................................... 26

TCP/IP........................................................................................ 27

Other .......................................................................................... 28

 .................................................................30

TCP/IP Network Settings...........................................................30

Internet Access .......................................................................... 40

Wireless LANs & Station Conguration..................................... 42

...............................................................................44

...................................................................................46

NOTE: Some screen-shot images have been modied to t the format

of this user manual.

CONTENTS

section page

INITIAL SETUP



1. Connect the Wireless G Broadband Travel Router to a power outlet.

2. Connect one end of the Ethernet cable to the router and the other end

to your desktop or notebook computer.





The router features three operation modes — AP (access point), GW

(gateway) and Client Infrastructure — and is congured at the factory.

To change the settings in order to employ more advanced congurations

or change the mode of operation, use the included Web-based utility as

described in subsequent sections of this manual.

aP mode

When acting as an access point, the router

connects all stations (desktop/notebook with

wireless network adapter) to a wired network.

All stations can have Internet access if only

the router is connected to the Internet.

INITIAL SETUP

Power

Wireless

Ethernet

 (green) Solid when device is on.

 (blue) Solid when device is on.

Flashing when receiving/sending data.

 (green) Solid when Ethernet cable is connected.

Flashing when receiving/sending data.

gW mode

When GW mode is selected, the access

point will enter the gateway mode, and the

wireless connection will be set up from a

point-to-point local LAN to a point-to-

multipoint WAN.

client mode (inFrastructure)

If set to Client (Infrastructure) mode, this

device can work like a wireless station

when it’s connected to a computer so that

the computer can send packets from wired

end to wireless interface.



1. Turn on your computer and connect it to the Wireless G Broadband

Travel Router with an Ethernet cable.

2. Make sure your wired station is set to the same subnet as the router:

192.168.1.254.

3. Start your Web browser. In the “Address” eld on the menu bar, enter

“http://192.168.1.254.”

NOTE: No username or password is required for the initial login; you do,

however, have the option of setting up a username and password for

added security. (See the Password subsection in 

.)

INITIAL SETUP

CONFIGURATION VIA THE WEB

The Conguration menu on the upper panel is divided into four main

sections: Mode (operation/wireless mode), Status, TCP/IP and Other.

Select a section, then click the “Setup” button that corresponds to the

desired subsection (e.g., Mode ‡Access Point, as shown below).



CONFIGURATION VIA THE WEB

access Point/aP mode settings

 Displays the device name.

 By selecting this option, you won’t be

able to make a wireless connection with this access point in your

network; i.e., this device will not be visible by any wireless station.

 The drop-down menu offers three options:

• 2.4 GHz (B) — 802.11b supported rate only.

• 2.4 GHz (G) — 802.11g supported rate only.

• 2.4 GHz (B+G) — Both 802.11b and 802.11g supported rate.

The default is 2.4 GHz (B+G) mode.

 The service set identier (SSID) differentiates one WLAN from

another; therefore, all access points and devices attempting to connect

to a specic WLAN must use the same SSID. It is case-sensitive and

must not exceed 32 characters. A device will not be permitted to join the

basic service set (BSS) unless it can provide the unique SSID. An SSID

is also referred to as a network name because, essentially, it is a name

that identies a wireless network.

 Allows you to set the channel manually or automatically.

To set manually, just select the channel you want to specify. If “Auto” is

selected, you can set the range so the router automatically surveys and

chooses the channel with the best situation for communication. The

number of channels supported depends on the access point’s region.

All stations communicating with the AP must use the same channel.

 Click “Setup” to display the Security screen and options.

 Select an

option from the pull-down

menu; e.g., “Open system

or Shared Key,” “Open

System,” “Open System

with 802.1x,” “Shared Key,”

“WPA-RADIUS,” “WPA-PSK,” WPA2-RADIUS” and “WPA2-PSK.”

 In the pull-down menu, select either “None” or “WEP.”

 Select 64-bit or 128-bit encryption.

Select “HEX” if using hexadecimal numbers (0-9, or A-F). Select

“ASCII” if using ASCII (case-sensitive) characters. Ten hexadecimal

CONFIGURATION VIA THE WEB

digits or ve ASCII characters are needed if 64-bit WEP is used;

26 hexadecimal digits or 13 ASCII characters if 128-bit WEP is

used.

 Select “Passphrase” or “Hex” (64

characters).

 Pre-Shared Key serves as a password. Key in an

8- to 63-character string to set the password or leave it blank, in

which case the 802.1x Authentication will be activated. Make sure

the same password is used on the client end.

 Enter the number of seconds that will elapse

before the group key changes automatically. The default is 86,400

seconds.

This enables secure fast roaming

without noticeable signal latency. Pre-authentication provides a way

to establish a PMK (pairwise master key) security association before

a client connects, with the advantage being that the client reduces the

time that it’s disconnected to the network.

 RADIUS is an authentication

authorization and accounting client-server protocol. The client is

a network access server which has access to a user database with

authentication information and which desires to authenticate its

links.

 Enter the RADIUS server’s port number provided by your ISP.

The default is 1812.

 Enter the RADIUS server’s IP address provided by

your ISP.

 Enter the password that the AP shares with the RADIUS

server.

 Check to enable this function.

 Enter the port, IP address and

password as above.

 Click to save and apply the current settings.

 Click to clear and reset the current settings.

CONFIGURATION VIA THE WEB

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de Intellinet

Intellinet

Intellinet 524537 Manual de usuario

Intellinet

Intellinet 503693 Manual de usuario

Intellinet

Intellinet 523431 Manual de usuario

Intellinet

Intellinet 524315 Manual de usuario

Intellinet

Intellinet 520454 Manual de usuario

Intellinet

Intellinet 524681 Manual de usuario

Intellinet

Intellinet 502566 Manual de usuario

Intellinet

Intellinet 516204 Manual de usuario

Intellinet

Intellinet 524780, 524797, 524872, 524896 Manual de usuario

Intellinet

Intellinet 503693 Manual de usuario

Intellinet

Intellinet 524803 Manual de usuario

Intellinet

Intellinet 524490 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Intellinet

Intellinet 520638 Manual de usuario

Intellinet

Intellinet 524360 (Annex A) Manual de usuario

Intellinet

Intellinet 523455 Manual de usuario

Intellinet

Intellinet 521604 Manual de usuario

Intellinet

Intellinet 525312 Manual de usuario

Intellinet

Intellinet 523233 Manual de usuario

Intellinet

Intellinet 524445 Manual de usuario

Intellinet

Intellinet 524681 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Intellinet

Intellinet 523967 Manual de usuario

Intellinet

Intellinet 524803 Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

D-Link

D-Link DIR-506L Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario
