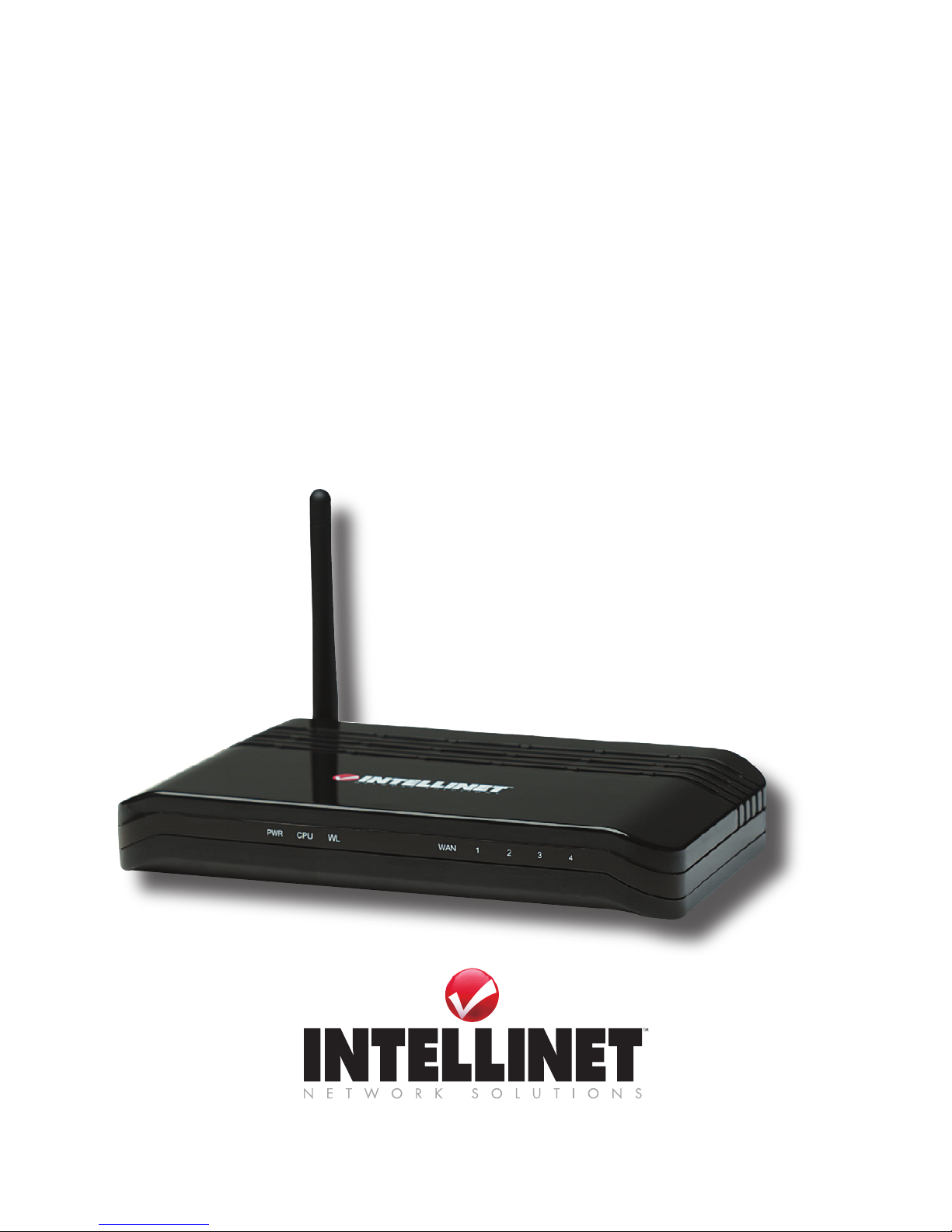

Intellinet 503693 Manual de usuario

Wireless G

BroadBand

router

quick

install

Guide

MODEL 503693

INT-503693-QIG-0608-02

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Wireless G Broadband Router, Model 503693.

This quick install guide presents the rudimentary steps required to set up

and operate this device. For more detailed instructions and specications,

refer to the user manual 1) on the CD enclosed with this product; 2) on

the Web site listed below; or 3) in some cases, printed and enclosed

with this product. Contact your INTELLINET NETWORK SOLUTIONS

dealer with comments or questions, or visit www.intellinet-network.com

for information on the latest software and rmware updates, related

products and additional contact information.

NOTE: Some screen images are modied to t the format of this guide.

installation

Before you begin the installation procedure, conrm that you have:

• A compatible operating system (Windows 98/NT/Me/2000/XP, Linux

or Mac) and Web browser (Internet Explorer 5.0 with JavaScript

function, or Netscape Navigator 6.0 or above);

• A LAN card which has been correctly installed in your computer;

• Your user ID and password if you are xDSL user;

• Basic information like whether your IP address is static or dynamic if

you connect to the Internet by a LAN or WAN.

NOTE: If your computer currently has ADSL PPPoE dial-up software

installed, back up your installation software and un-install your ADSL

PPPoE dial-up software by going to Start, then Control Panel, then Add

or Remove Programs.

Hardware Connections

1. Connect your broadband cable (xDSL, cable modem or LAN/leased

cable) with the WAN port of the Wireless G Broadband Router.

2. Connect your computer LAN card’s port or your switch’s Uplink port

with one of the LAN ports of the Wireless G Broadband Router using

a common network cable.

3. Connect any other PC(s) to available LAN ports.

4. Connect the power supply to the Wireless G Broadband Router. The

router will go into a self-detect mode. After a proper startup, the CPU

LED will ash/blink slowly, indicating that the router is operational.

NOTE: All LAN ports of the Wireless G Broadband Router can

automatically sense crossover cable, so you can either use straight-

through cable or crossover cable to connect a LAN card or switch.

Computer Setup

By default, your computer is congured to automatically work with the

router. If you haven’t made any changes to the TCP/IP conguration of

the computer’s network card, skip Steps 1-6 below and go directly to

Router Setup.

The default IP address is 192.168.1.254.

The default subnet mask is 255.255.255.0.

The following setup procedure is based on a PC running Windows XP;

the steps are similar for other systems.

1. On the desktop, go to Start, then Control Panel.

2. Double-click “Network and Internet Connections.”

3. In turn, click to open “Network Connections,” “Local Area Connection,”

“Properties,” “Internet Protocol (TCP/IP)” and “Properties.”

4. Click “General,” then select “Obtain an IP address automatically”

and “Obtain DNS server address automatically.”

5. Click “OK,” then restart.

Router Setup

Open your Internet browser and enter http///192.168.1.254 in the Address

eld. (This is the default IP address.) If a login window displays, enter

“admin” in both the User Name and Password elds, then click “OK.” If

no login window displays, either you’re already logged in or the TCP/IP

settings have been changed (refer to Steps 1-6 above).

Conrm that your modem is properly connected. (If the WAN LED on

the router is off, check the network cable connection between the modem

and the router’s WAN port.) On the left-side menu, click “TCP/IP

Settings,” then “WAN Interface.”

DHCP CLIENT (CABLE MODEM) USER SETUP

1. From the WAN Access Type drop-down menu, select “DHCP Client.”

The router will automatically receive the IP parameters from your ISP.”

PPPoE (ADSL) USER SETUP

1. From the WAN Access Type drop-down menu, select “PPPoE.”

2. Enter your username and password in the corresponding elds.

3. Click “Apply.”

STATIC USER SETUP

1. From the WAN Access Type drop-down menu, select “Static IP.”

2. Enter your WAN IP address (as seen by external Internet users).

3. Enter the subnet mask used for the WAN IP address. Typically, this

should be 255.255.255.0.

4. If required, enter the default gateway.

5. If required, enter the DNS server address(es).

PPTP USER SETUP

1. From the WAN Access Type drop-down menu, select “PPTP.”

2. Enter your IP address, subnet mask, server IP address, username

and password (obtained from your ISP).

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
