Intellinet 523547 Manual de usuario

16/24-PORT

GIGABIT

ETHERNET

RACKMOUNT

MANAGED SWITCH

USER

MANUAL

MODEL 523547/523554

INT-523547/523554-UM-0107-01

CONTENTS

1. Introduction .......................................................................3

Front Panel............................................................................. .................4

Rear Panel................................................................ ...........................5

2. Installation ........................................................................5

Device Installation............................................................................. .......5

Network Cable Installation................................................................ ......6

3. Functions ............................................................................6

4. Switch Management .........................................................7

Managing through a Web Browser ............................................7

Managing with Command Line Interface ....................................17

5. Speciﬁcations ..................................................................24

FCC STATEMENTS

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the interference

at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: 1) This device may not cause harmful interference and

2) This device must accept any interference received, including interference that

may cause undesired operation.

CE Mark Warning

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 class A for ITE, the essential protection requirement

of Council Directive 89/336/EEC on the approximation of the laws of the

member states relating to electromagnetic compatibility.

CONTENTS

section page

1. INTRODUCTION

Thank you for purchasing this INTELLINET NETWORK SOLUTIONS™

Gigabit Ethernet Rackmount Managed Switch, Model 523547 (16-port)

or Model 523554 (24-port). With its 10/100/1000 Mbps gigabit ports

and user-friendly Web-based management interface, this switch boosts

networking throughput to provide a real gigabit connection that makes

it possible to transfer large, high-bandwidth ﬁles with greater speed,

efﬁciency and reliability.

Refer to this user manual for complete setup and operation instructions, and

enjoy the beneﬁts of these additional features:

• 10/100/1000 auto-sensing ports automatically detect optimal network speeds

• 4 SFP mini-GBIC transceiver module slots (use of an SFP port automatically

disables the connection of its corresponding copper port)

• All RJ-45 ports with Auto-MDIX (auto uplink) support

• Supports NWay Auto-Negotiation

• Store and forward switching architecture

• Full/half duplex operation

• IEEE 802.3x ﬂow control for full duplex

• Zero packet loss back-pressure ﬂow control for half duplex

• Non-blocking wire-speed forwarding and ﬁltering

• Supports port controls (speed, ﬂow control and maximum frame size)

• Broadcast storm control with multicast packet rate settings

• Supports VLAN (16-port version: 16 groups; 24-port version: 24 groups)

and trunking (16-port version: 8 groups; 24-port version: 12 groups)

• Supports Quality of Service (QoS) with 2 priority levels

• Supports port mirroring

• Supports jumbo frames up to 9 kBytes

• Packet ﬁltering/forwarding rates: 1,488,000 pps (1000 Mbps), 148,800 pps

(100 Mbps), 14,880 pps (10 Mbps)

• Rugged metal housing for maximum durability

• Supports up to 8192 MAC address entries

• 340 kBytes buffer memory, 16-port version;

500 kBytes buffer memory, 24-port version

• Supports SNMP management

• Conﬁguration via Web browser or RS-232 console port

• Includes 19” rackmount brackets

• Lifetime Warranty

Package Contents

• Gigabit Ethernet Rackmount Managed Switch

• Power cable

• User manual

INTRODUCTION

FRONT PANEL

Ports and LED indicators

are found on the front

panel of the switch. The

tables below explain

their purpose and

operation.

LEDs

NOTE: The four mini-GBIC slots (A, B, C and D) share LED indicators with the

last four RJ-45 (copper) ports (i.e., ports 13–16 on the 16-port model and ports

21–24 on the 24-port model).

Ports

The auto-negotiation feature allows ports to operate in one of the following modes:

NOTE: For the last four (highest numbered) ports, when both the ﬁber (mini-

GBIC) and copper (RJ-45) interfaces are connected, the switch automatically

disables the copper port and activates the ﬁber interface.

INTRODUCTION

System LED Status Operation

PWR Steady green Power on

Off Power off

Port LEDs Status Operation

1000M Steady green Valid port connection at 1000 Mbps

Blinking green Valid port connection; data being transmitted/

received

Off No valid link or connected at 10/100 Mbps

10/100M Steady green Valid port connection at 10/100 Mbps

Blinking green Valid port connection; data being transmitted/

received

Off No valid link or connected at 1000 Mbps

Media Speed Duplex Mode

10/100/1000 Mbps copper 10 Mbps Half/Full Duplex

100 Mbps Half/Full Duplex

1000 Mbps Full Duplex

1000 Mbps (ﬁber – mini-GBIC 1000 Mbps Full Duplex

required)

16-port

model

shown

Restore Default Button

Use this button to reset the switch or restore factory default settings. To reset,

press the button once. To restore factory default settings, press and hold the

button for three seconds.

REAR PANEL

Power Receptacle

Plug the female end of the power cord ﬁrmly into the receptacle and the other

end into an electrical outlet. Conﬁrm that the power LED is lit for a normal

power status.

2. INSTALLATION

DEVICE INSTALLATION

The Gigabit Ethernet Rackmount Managed Switch can be placed directly on

your desktop or mounted in a rack. Rackmounting facilitates orderly installation

when you are going to install a series of networking devices.

Prior to use, it is recommended that the device be placed/positioned:

• with a minimum of 25 mm of clearance on the top and sides for adequate

ventilation

• away from sources of electrical noise, such as radios, transmitters and

broadband ampliﬁers

• where it cannot be affected by excessive moisture

Desktop

1. Attach the included rubber feet to the bottom of the device to keep it from

slipping. The recommended positions are marked on the switch.

2. Place the device on a level surface that can support the weight of the switch

(and any other items that need to be considered).

Rackmount

1. Disconnect any cables from the switch before proceeding with rackmounting.

2. Place the device on a hard, ﬂat surface with the front facing you.

3. Position one of the two included mounting brackets over the mounting holes

on one side of the unit.

4. Insert the screws and fully tighten them with a suitable screwdriver.

5. Repeat the two previous steps for the other side of the device.

6. Insert the switch into the rack (secure with suitable screws, if desired);

reconnect cables as needed.

INSTALLATION

NETWORK CABLE INSTALLATION

Crossover/Straight-Through Cable

All the ports on the Gigabit Ethernet Rackmount Managed Switch support

Auto-MDI/MDI-X functionality, so both crossover and straight-through cables can

be used to connect to PCs, routers, additional switches and other devices.

Cat3/4/5/5e UTP/STP Cable

Cat3/4/5/5e UTP/STP cables provide optimal performance when the proper

cable is matched to the required transmit/receive speed, as indicated below.

3. FUNCTIONS

Jumbo Frames

With Jumbo Frames supported, the switch can transport data in fewer frames,

which helps prevent overheads, shortens processing time and reduces the

number of interruptions. NOTE: To enable Jumbo Frames, Flow Control should

be enabled ﬁrst.

Flow Control and Back Pressure

Flow Control and Back Pressure both make it easier for lower-speed and

higher-speed devices to communicate with each other, ensuring that data

transmissions are correct. The 802.3x Flow Control and Back Pressure

mechanisms work for full and half duplex modes, respectively. Flow Control

can be enabled or disabled on a per-port basis.

Mirror

The Mirror function lets a network administrator monitor trafﬁc by forwarding a

copy of the packets transferred by the monitored port to a “sniffer” port.

VLAN

With VLAN support, the network can be segmented into groups to reduce

collisions caused by heavy trafﬁc among multiple devices. The switch supports

both port-based and 802.1Q tag-based VLAN. Port-based VLAN classiﬁes

FUNCTIONS

Media Speed Recommended cable

10/100/1000 Mbps copper 10 Mbps Cat3/4/5 UTP/STP

100 Mbps Cat5 UTP/STP

1000 Mbps Cat5/5e UTP/STP

1000 Mbps ﬁber (mini-GBIC 1000 Mbps Cable type depends on

required the GBIC: Refer to the

mini-GBIC instructions.

incoming packets to VLANs according to their ingress port. The 802.1Q-based

VLAN adds a tag to the header of the packet to classify the VLANs.

Trunk (Aggregation)

The Trunk function integrates several ports to enlarge the bandwidth, which

helps boost the backbone connectivity. The switch allows a maximum of eight

(16-port) or twelve (24-port) groups, with eight members for each group.

Quality of Service (QoS)

QoS classiﬁes packets based on precedence, which means the packets are

transmitted and received by their priorities. This helps high-bandwidth-demanded

applications such as VoIP to get an unobstructed connection.

Simple Network Management Protocol (SNMP)

This device is SNMP-supported, allowing it to be monitored or inspected by

an SNMP management station.

4. SWITCH MANAGEMENT

Advanced management options can be accessed through a Telnet session/

Internet browser over the network (in-band) or through a console port.

MANAGING THROUGH A WEB BROWSER

Authentication

To access the Web-based management interface, conﬁgure the management

station with an IP address and subnet mask compatible to the switch, which

has the following factory default settings:

IP address: 192.168.1.1

Subnet mask: 255.255.255.0

Default gateway: 192.168.1.254

1. Activate your Web browser and enter the above IP address in the Address

ﬁeld.

2. Key in the username and password to authenticate. The factory default

value for both username and password is “admin.” Click “Apply.”

After authentication, the System Conﬁguration page (shown on next page)

displays as the homepage. The complete Conﬁguration menu — plus

Monitoring and Maintenance links — appears on the left side of each page

for access to all management functions.

MANAGEMENT

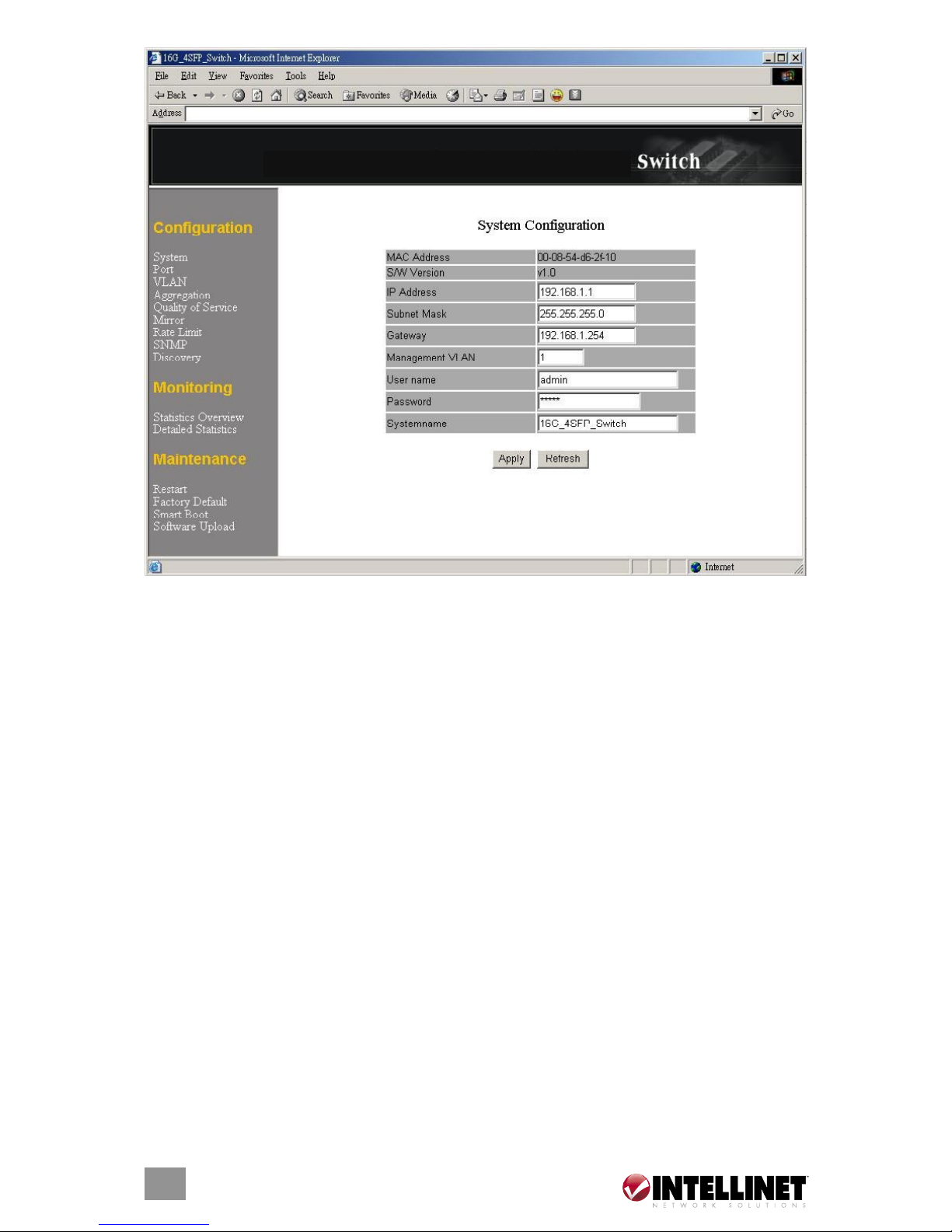

System Conﬁguration

The System Conﬁguration window presents the switch information and allows

the conﬁguration of the switch properties.

MAC Address: The MAC address of this device.

S/W Version: The software version of this device.

IP Address: Set up the IP address of the switch.

Subnet Mask: Set up the subnet mask of the switch.

Gateway: Set up the gateway of the switch.

Management VLAN: The VLAN group that is allowed to access the WEB-based

management interface.

Username: The login name. (default: “admin”)

Password: The login password. (default: “admin”)

System Name: The name of the device.

To save the conﬁguration of the system, click “Apply.” NOTE: After applying a

new IP address, a new login page will be started automatically. Login again

to proceed to other conﬁgurations.

MANAGEMENT

Gigabit Ethernet Rackmount Managed

Port Conﬁguration

The Port Conﬁguration page shows the link status of each port and allows the

conﬁguration of speed, ﬂow control and maximum frame size for each port.

Link: Shows the link status of each port. The column lights green with the link

speed while there is a valid connection to this port.

Mode: Select a speed for each port. “Auto Speed” enables auto-negotiation;

“Disable” stops the port from functioning.

Flow Control: Check the boxes to enable FDX ﬂow control; uncheck to disable.

Max Frame: Adjust the size of jumbo frames. The set length is 1518 bytes; the

maximum value can be up to 9216 bytes.

MANAGEMENT

* 16-port images are used throughout this user manual. 24-port images show identical information.

To save the port conﬁguration, click “Apply.” You can also click the “Refresh”

button to see the current status of each port.

VLAN Conﬁguration

VLAN divides the network members into groups to reduce packet collisions

and improve network efﬁciency. The switch supports 802.1Q tag-based VLAN.

To add new VLAN groups:

1 Fill in a VLAN ID from 2 to 4094 in the “VLAN\Port” column.

2. Select the ports for each of the VLAN groups.

3. Click “Apply.”

To delete a VLAN group:

1. Clear the members of the selected VLAN group by clicking those ports with

checked boxes.

2. Clear the VLAN ID of the VLAN you want to remove in the “VLAN\Port”

column. (Don’t

actually enter

“NA” — just leave

the ﬁeld blank.)

3. Click “Apply.”

NOTE: When a port

is conﬁgured to a

speciﬁc VLAN group,

a PVID that corresponds

to the VLAN ID will

automatically be

assigned to this port.

(For example: When

Port 3 is added to a

VLAN with VLAN ID

“2,” the PVID “2” will

be automatically

assigned to Port 3.)

NOTE: The VLAN,

Port Aggregation and

Mirror settings are

correlative. Make sure

that the settings won’t

inﬂuence each other.

MANAGEMENT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Intellinet

Intellinet

Intellinet 523530 Manual de usuario

Intellinet

Intellinet 561075 Manual de usuario

Intellinet

Intellinet 561686 Manual de usuario

Intellinet

Intellinet 503723 Manual de usuario

Intellinet

Intellinet 561433 Manual de usuario

Intellinet

Intellinet 520881 Manual de usuario

Intellinet

Intellinet IPS-28GM04-370W Manual de usuario

Intellinet

Intellinet 502931 Manual de usuario

Intellinet

Intellinet 561099 Manual de usuario

Intellinet

Intellinet 523318 Manual de usuario

Intellinet

Intellinet 524117 Manual de usuario

Intellinet

Intellinet 561167 Manual de usuario

Intellinet

Intellinet 502023 Manual de usuario

Intellinet

Intellinet IPS-10GM02-242W Manual de usuario

Intellinet

Intellinet IES-05GP Manual de usuario

Intellinet

Intellinet 561426-V3 Manual de usuario

Intellinet

Intellinet 524063 Manual de usuario

Intellinet

Intellinet 520409 Manual de usuario

Intellinet

Intellinet 561280 Manual de usuario

Intellinet

Intellinet 524117 Manual de usuario

Intellinet

Intellinet 561167 Manual de usuario

Intellinet

Intellinet Cat5e 162470 Manual de usuario

Intellinet

Intellinet 560665 Manual de usuario

Intellinet

Intellinet 523790 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
