Intel NUC Series Manual de usuario

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

Intel® NUC kit NUC9VXQNX

Intel® NUC kit NUC9V7QNX

Intel® NUC kit NUC9i9QNX

Intel® NUC kit NUC9i7QNX

Intel® NUC kit NUC9i5QNX

User Guide

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products

described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject

matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product

specifications and roadmaps.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published

specifications. Current characterized errata are available on request.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by

visiting: http://www.intel.com/design/literature.htm.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation.

Performance varies depending on system configuration. No computer system can be absolutely secure.

Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.





NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX
User Guide –May 2020
Contents
0 Introduction .............................................................................................................................5
1 Before You Begin ...........................................................................................................................................5
2 Installation Precautions.............................................................................................................................6
3 Observe Safety and Regulatory Requirements.........................................................................6
0 Open the Chassis ...................................................................................................................7
0 System Memory ....................................................................................................................10
0 Change the M.2 SSD...........................................................................................................13
0 Install a 2.5” SSD or Hard Drive.................................................................................15
0 Close the Chassis.................................................................................................................16
0 Connect Power ......................................................................................................................20
0 Install an Operating System .........................................................................................22
0 Install the Latest Device Drivers and Software ................................................23




NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

Revision History

Date

Revision

Description

1.0

Initial release.

1.1

Updated the section 5.0

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

1.0 Introduction

This User Guide provides step-by-step installation instructions for these products:

•Intel® NUC kit NUC9VXQNX

•Intel® NUC kit NUC9V7QNX

•Intel® NUC kit NUC9i9QNX

•Intel® NUC kit NUC9i7QNX

•Intel® NUC kit NUC9i5QNX

1.1 Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and

with the safety practices and regulatory compliance required for using and

modifying computer equipment.

Disconnect the computer from its power source and from any network before

performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open

the computer or perform any procedures can result in personal injury or equipment

damage. Some circuitry on the board can continue to operate even though the front

panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Create a log to record information about your computer, such as model,

serial numbers, installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the

procedures described in this chapter only at an ESD workstation using an

antistatic wrist strap and a conductive foam pad. If such a station isn’t

available, you can provide some ESD protection by wearing an antistatic wrist

strap and attaching it to a metal part of the computer chassis.

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

1.2 Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the

installation instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing

to qualified technical personnel.

1.3 Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility

of noncompliance with regional laws and regulations.

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

2.0 Open the Chassis

1. Unscrew the two top screws on the rear side of the chassis and shift the cover:

2. Remove the left side panel:

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

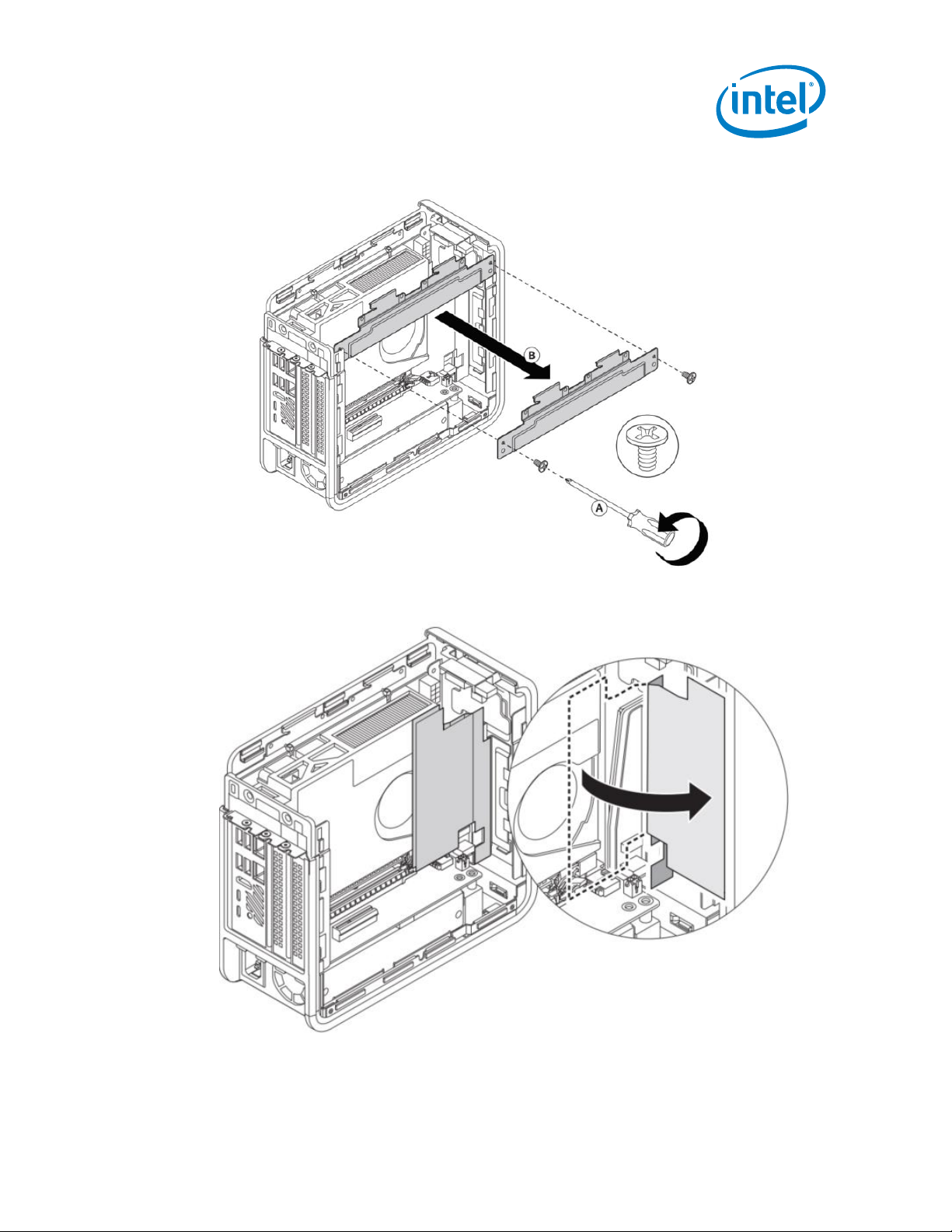

3. Remove the cross bar bracket:

4. Fold the air guide back:

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

5. Unscrew the two bottom screws and open the NUC door:

NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX

User Guide –May 2020

3.0 System Memory

Intel® NUC kit NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX and NUC9i5QNX

have two 260-pin DDR4 SO-DIMM sockets. Be sure to select memory modules that

meet these requirements:

•1.2V low voltage memory

o1.35V via XMP support –NUC9i9QNX, NUC9i7QNX and NUC9i5QNX

SKUs Only

•2666 MHz SO-DIMMs

•Max capacity - 64GB

•Non-ECC

oECC supported by the NUC9VXQNX only

Find compatible memory modules in the Intel Product Compatibility Tool

•NUC9VXQNX

•NUC9V7QNX

•NUC9i9QNX

•NUC9i7QNX

•NUC9i5QNX

NOTE

If you plan to install only one memory module, install it in the lower

memory socket.

To install memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 5.

2. Turn off all peripheral devices connected to the computer. Turn off the

computer and disconnect the power cord.

3. Remove the computer’s bottom chassis cover.
