InSinkErator Evolution Excel Guía

For those who enjoy the very

best kitchen appliances.

Evolution

Series®

Grind More. Hear Less.®

Evolution

Excel®

The ultimate in disposer performance.

Nothing grinds more with less noise.

• SoundSeal Plus™technology

reduces disposer noise by at least

60% vs. standard disposers.

• MultiGrind Plus™technology

delivers 3 stages of grind vs. 1 stage

in standard disposer.

• Features exclusive Jam-Sensor®

Circuit that increases motor torque

500% to automatically break through

the toughest jams.

• Includes Quiet Collar®sound

reducing sink baffle.

Submittal Sheet

Job Specifications

Specifications

Type of Feed Continuous

On/Off Control Wall Switch

Motor Single Phase

HP 1.0

Volts 120

Reversing Auto-Reverse Grind

System™ feature

HZ 60

RPM 1725

Amp. (Avg. Load) 10.2

Time Rating Intermittent

Lubrication Permanently

Lubricated Upper &

Lower Bearings

Shipping

Weight (Approx.) 25.5 lbs.

Unit Finish Stainless Steel

Light Gray TEN-1706

Overall Height 13-1/2”

SoundSeal Plus Anti-Vibration Mount®

Technology Anti-Vibration

Tailpipe Mount™

Quiet Collar®Sink Baffle

Multi-Layer

SoundLimiter™ Insulation

MultiGrind Plus GrindShear Ring®

Technology Tri-Action Lug™ System

feature

Undercutter Disk®

Jam-Sensor®Circuit

Grind Chamber

Capacity 40 oz.

Motor Manual Reset

Protection Overload

Average Approx. 1 Gallon Per

Water Usage Person Per Day

Average

Electrical Usage 3-4 KWh Per Year

Drain 1-1/2” Anti-Vibration

Connection (Hose Clamp)

Dishwasher

Drain Connection Yes

Food Waste Disposers

Dimensions

Food Waste Disposer(s) shall be

InSinkErator Model Evolution Excel®

with MultiGrind Plus™and SoundSeal

Plus™technologies, 1.0 HP motor,

Auto-Reverse Grind System®, Stainless

Steel Grind Chamber and components.

Warranty:

7-Year parts and in-home service.

Sample Specification

The complete InSinkErator warranty is included in the Care & Use

Booklet packed with each unit.

* Add 1/2” when stainless steel sinks are used.

9 "

5 3/4"

6 11/16"

13 1/2"

1-800-558-5700

www.insinkerator.com

The Emerson logo is a trademark and service mark of

Emerson Electric Co. The mounting collar configuration

is a trademark of Emerson Electric Co.

InSinkErator may make improvements and/or changes

in the specifications at any time, in its sole discretion,

without notice or obligation and further reserves the

right to change or discontinue models.

Food waste disposers provide an environmentally responsible alternative to

transporting food waste to landfills. And they can help reduce greenhouse gas

emissions. At capable wastewater treatment plants, food waste can be converted

to biosolids and used as fertilizer. Capable plants can also capture methane gas

and recycle it as an energy source. (Check the plant in your area.)

Hecho en los EE.UU.

The mark of responsible forestry

BV-COC-080715

Otros manuales para Evolution Excel

Tabla de contenidos

Otros manuales de Eliminación de basura de InSinkErator

InSinkErator

InSinkErator PRO 1000LP Manual de usuario

InSinkErator

InSinkErator Evolution Excel Manual de usuario

InSinkErator

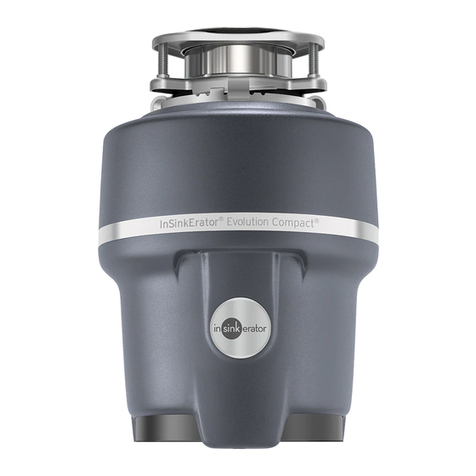

InSinkErator Evolution Compact Evolution Compact Manual de usuario
