Weber mt CR 7-II Hd Instrucciones de funcionamiento

CR 7-II Hd

CR 7-II Hd E

CR 7-II Hd CCD

0116641

0116642

0116645

Operating and

Maintenance Manual

Attached to the machine is a rating plate. Note down the information given on this plate so that you

can recreate the rating plate should the plate be lost.

1 Designation 2 Type

.................................................... ...................................................

3 Serial no. 4 Year of construction

.................................................... ....................................................

5 Weight 6 Rated power kW

.................................................... ....................................................

Contents

1. Introduction..................................................................................................................... 4

2. Description...................................................................................................................... 5

3. Technical data................................................................................................................. 6

4. Safety............................................................................................................................... 7

4.1. Information and safety stickers ........................................................................... 12

5. Operation....................................................................................................................... 13

6. Transport....................................................................................................................... 22

7. Storage .......................................................................................................................... 22

8. Maintenance.................................................................................................................. 23

8.1. Maintenance overview .............................................................................................. 24

8.2. Description of the maintenance operations............................................................ 25

8.2.1. Check the engine oil level ................................................................................ 25

8.2.2. Change the engine oil ...................................................................................... 25

 8.2.3.Cleantheairlter............................................................................................. 26

8.2.4. Check the hydraulic oil level ............................................................................ 27

8.2.5. Change the oil in the exciter ............................................................................ 27

8.2.6. Adjust / replace the spark plug......................................................................... 27

8.2.7. Check V-belt..................................................................................................... 28

8.2.8. Use a permanent charger ................................................................................ 28

8.2.9. Change the fuses............................................................................................. 28

8.3. Operating uids and ll levels ................................................................................. 29

This operating and maintenance manual is designed to help

you become familiar with your soil compactor and enable you

to maintain it and use it for its intended purpose.

The safety and maintenance instructions provided in this

manual will help avoid hazards, reduce repair and downtime

costs and will increase the reliability and operational readiness

of your machine. Follow these instructions precisely.

This operating and maintenance manual must always be kept

at the implementation site of the machine and be available to

the machine operator.

Enclosed with this manual is a valid declaration of conformity

and a spare parts lists for orders of spare parts. Store these

documents carefully.

If you require any additional information, turn to your

Weber MT dealer.

Found on the last page of this manual is a QR code. Scan

it to acquire the current contact addresses of all Weber MT

branches.

You can obtain information on the assembled Honda gasoline

engine and the associated operating and maintenance manual

as well as the spare parts list, if needed, at

www.honda-engines-eu.com

1. Introduction

2. Description

The machine The machine is a hand-guided, reversible soil compactor.

The machine is composed of a bottom and a top section.

The bottom section houses the exciter, while the top section

contains the engine and the required controls.

An air-cooled Honda gasoline engine makes the exciter vibrate

via a centrifugal clutch. The generated force is transmitted

between top and bottom section via a V-belt.

The engine speed is adjusted between idle speed and full-

throttle speed via a gas lever.

Forward and reverse travel is variably controlled with a handle

via a hydraulic system.

3. Technical data

CR 7-II Hd CR 7-II Hd E CR 7-II Hd CCD

Weight

Operating weight CECE [kg] 397 423 425

Dimensions

Overall length [mm] 1710 1710 1710

Overall width/with attachment plates

[mm] 510/650/790 510/650/790 510/650/790

Height with folded guide bar [mm] 1160 1160 1160

Base plate length [base in mm] 450 450 450

Pressure surface [mm] 450x640/450x790 450x640/450x790 450x640/450x790

Drive

Engine manufacturer Honda Honda Honda

Type GX390 GX390 GX390

Performance at operating speed in ac-

cordance with ISO 3046-1 [kW] 7.0 7.0 7.0

Combustion process 4-stroke gasoline 4-stroke gasoline 4-stroke gasoline

Operating speed [1/min] 2750 2750 2750

Operating speed [soil-dependent,

m/min] 24 24 24

Incline capacity [soil-dependent, %] 35 35 35

Vibration

System Two-shaft vibrator Two-shaft vibrator Two-shaft vibrator

Drive concept mechanical mechanical mechanical

Frequency [Hz] 74 74 74

Centrifugal force [kN] 65 65 65

Noise emissions in accordance with

2000/14/EC

Sound pressure level LPA ascertained

in accordance with EN 500, [dB (A)] 94 94 94

Sound power level LWA ascertained in

accordance with EN ISO 3744 and EN

500, [dB (A)]

108 108 108

Vibration values

Root-mean-square acceleration value

for hand-arm vibration ascertained in

accordance with EN 500, [m/s²]

2.1 2.1 2.1

In accordance with directive 2006/24/

EC, complying with the vibration values

is the owner's responsibility

4. Safety

General All safety instructions must be read and complied with, as non-

compliance will result in

- Danger to life and limb of the user,

- Impairments to the machine or other property.

In addition to the operating manual, the accident-prevention

regulations in the country where the appliance is used must be

complied with.

Intended use

Non-intended use

Residual risk There is always an increased risk of accidents in the

immediate danger area around the machine if the operator

fails to notice persons in the vicinity of the machine.

Anyone close to the machine must be made aware of this risk.

The operator must not put the machine into operation unless

everyone in the vicinity of the machine is aware of this risk.

The machine should only be used in technically faultless

condition, as intended, in a safety-conscious and hazard-

conscious manner, and in compliance with the instructions in

the operating manual.

Malfunctions that may impair safety require that you stop

working with the machine immediately. These types of damage

must be reported and corrected without delay.

The machine is designed exclusively for compacting:

- Sand,

- Gravel,

- Crushed rock,

- Low-cohesive mixed material,

- Paved surfaces.

The operator's work position is behind the machine.

The operator must guide the machine safely with both hands

on the handle.

Unless used as intended, the machine involves a risk of

personal injury and property damage. The machine is

expressly not suitable for:

- Compacting frozen subsurfaces,

- Compacting hard soils that cannot be compacted

further,

- Compacting non-bearing material,

- Compacting highly cohesive soils,

- Compacting (ramming) that exerts point loads on the

base plate,

- Crushing and compacting individual rocks.

The responsibility for any damage arising from non-intended

use falls on the owner / operator.

Non-intended use or misuse will void all liability and warranty

claims.

Requirements on the operator

Personal protective equipment Personal protective equipment consisting of

- Hard hat,

- Hearing protection,

- Protective gloves,

- Work shoes or boots with toe guard

must be worn during operation and the execution of

maintenance on the machine.

Danger areas The immediate danger area is the direct perimeter around the

machine.Thisareaiso󰀨-limitstothirdparties.

Spare parts, changes and

conversions

Changes and conversions are prohibited unless made with

originalWeberMTspareparts.Ifthemachineismodied

with other accessories without the approval of Weber MT, the

manufacturer will not assume liability for any resulting personal

injury or property damage.

All maintenance and repairs must be carried out with original

WeberMTspareparts.Untestedsparepartsmaya󰀨ectthe

reliability and safety of the machine.

Before starting the machine There is danger of material damage if the machine is

started before necessary maintenance or repairs have been

completed. Make sure every time before starting the machine

that all work on the machine has been completed.

To avoid injuries, the machine must not be started unless the

operator wears the required personal protective equipment.

Objectsplacedontopofthemachinemayfallorbeungo󰀨

during operation or when the machine is started. Therefore,

remove all loose objects or tools before starting the machine.

If the gas cap is open, fuel may escape and ignite on the

engine when the machine is started or while it is operating.

There is a risk of burns. Therefore, do not start the machine

unless the gas cap is closed.

This soil compactor may only be operated by suitable

operators who are 18 years or older. They must be instructed

on how to operate the machine by the owner or by the owner's

assignedpersonnel.Theoperatormustcomplywithtra󰀩c

regulations.

The machine must not be operated by children.

Start-up procedure Do not disperse any sprays or other agents into the air intake

while the machine is starting up. They may lead to overheating

in the combustion chamber and result in damage to the

engine.

Thereisdangerofsu󰀨ocationiftheoperatorstartsupthe

machine in closed rooms or in deep and tight trenches.

Operating the machine in closed rooms is prohibited. Provide

for an adequate supply of air before starting the machine.

One electronic start procedure must not last longer than 5

seconds to avoid damage to the engine. Pause for at least 10

seconds before repeating the start procedure.

If the ignition key fails to spring back to position “1” by itself,

the electric starter and the engine may sustain damage. Abort

the start procedure and shut down the machine. Identify and

rectify the cause before the next start attempt.

During operation Monitor the surroundings to avoid injury to third parties or

material damage.

Suspend operation and shut down the machine if detecting

damage on the machine during operation.

Stop operation and shut down the machine if the light

indicators of the start module do not go out shortly after startup

or come on during operation.

The symbol is lit permanently during operation. It signals

that the engine is running. Refer to the section “Operation” for

the exact meaning of the individual light indicators.

Parking the machine Alwaysparkthemachineonalevelsubsurfacewithsu󰀩cient

bearing capacity.

Parked machines presenting an obstacle must be secured in

accordance with statutory regulations, particularly in the area

ofpublictra󰀩csurfaces.

Engine and exhaust heat up during operation and can cause

burns on contact. Therefore, do not touch these components

duringoperationorshortlyafterthemachinewasswitchedo󰀨.

Fueling the machine Spilled fuel may ignite and has a negative impact on the

environment. Therefore, wipe up spilled fuel and make sure

thegascapisrmlytightenedafterfueling.

Cleaning work Useclearwaterforcleaning.Donotuseammablesolvents.

The vapors of the solvents may ignite upon contact with hot

components or other sparks.

Perform cleaning tasks only in rooms that are suitable and

have been approved for that purpose. Residual oil and

lubricantsthatmayhavebeenrinsedo󰀨haveanegative

impact on the environment and must be collected by suitable

means (e.g. oil separator).

Safe handling of combustion

engines

Combustion engines pose a particular risk during operation.

Their exhaust emissions contain carbon monoxide, a colorless

and odorless gas that is extremely hazardous, which, if inhaled

evenbriey,cancauseunconsciousnessanddeath.

Therefore, never inhale the exhaust gas.

Inspection The machine must be inspected in accordance with the

corresponding implementation conditions and operating

conditions to ensure its operationally safe status. This

inspection should be performed as needed by an expert

-however,nolessthanonceayear.Thendingsofthe

inspection must be stored in writing until the time of the next

inspection.

When coming into contact with fuels, the rubber-bonded metal

bu󰀨ersofthemachinemaybecomedamagedorine󰀨ective.

Therefore,wipespilledfuelcarefullyo󰀨therubber-bonded

metalbu󰀨ers.

Fuelvaporsareeasilyammable.Donotsmokeandkeep

awayfromopenrewhilerefuelingthemachine.

The machine must not be fueled unless the engine is switched

o󰀨.

Otros manuales para CR 7-II Hd

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Eliminación de basura de Weber mt

Weber mt

Weber mt CR 3 HD Instrucciones de funcionamiento

Weber mt

Weber mt CR 5-II Hd Instrucciones de funcionamiento

Weber mt

Weber mt CR 6 Instrucciones de funcionamiento

Weber mt

Weber mt 0116533 Instrucciones de funcionamiento

Weber mt

Weber mt CR 9 CCD 2.0 Instrucciones de funcionamiento

Weber mt

Weber mt CR 3-II Hd Instrucciones de funcionamiento

Weber mt

Weber mt CR 7 Instrucciones de funcionamiento

Weber mt

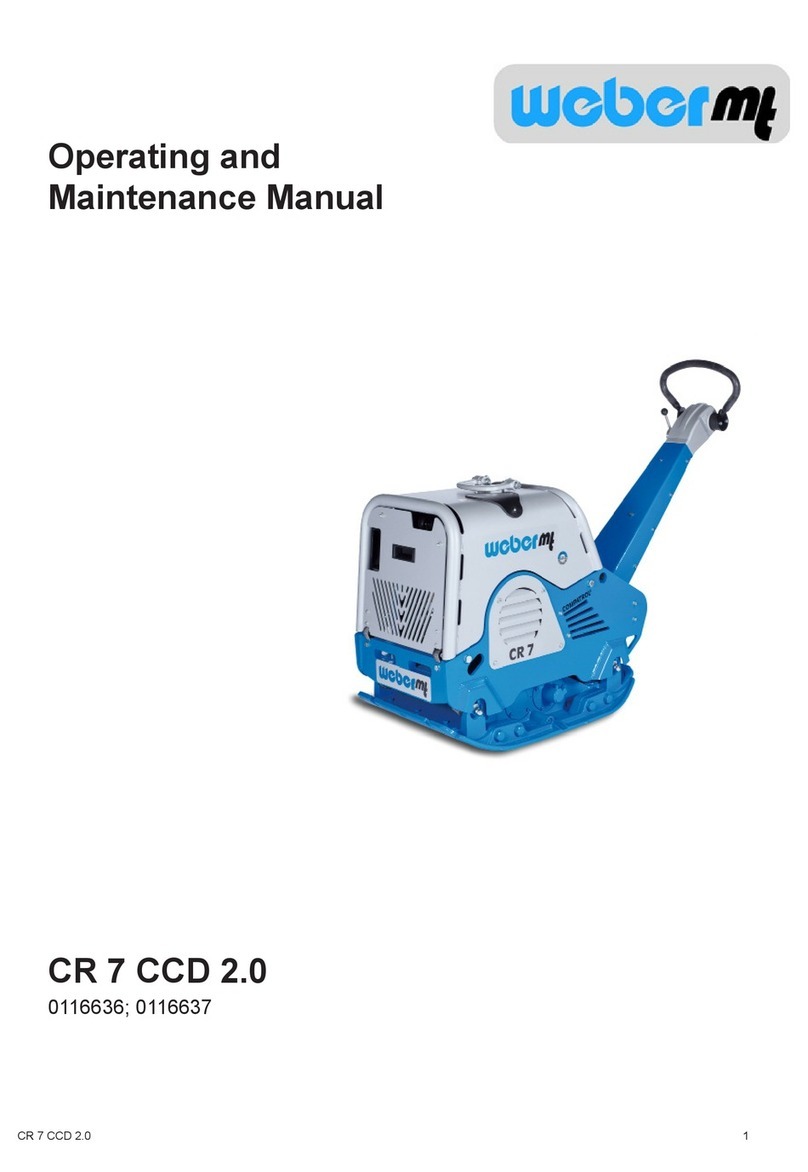

Weber mt 0116636 Instrucciones de funcionamiento

Weber mt

Weber mt VPR 450 DC Instrucciones de funcionamiento

Weber mt

Weber mt CR 9-II Hd E Instrucciones de funcionamiento

Weber mt

Weber mt CR 1 Instrucciones de funcionamiento

Weber mt

Weber mt CR 6 Hd Instrucciones de funcionamiento

Weber mt

Weber mt CR 12 Instrucciones de funcionamiento

Weber mt

Weber mt TRC 66 Manual

Weber mt

Weber mt CR 5-II CCD Instrucciones de funcionamiento

Weber mt

Weber mt CR 5-II Instrucciones de funcionamiento

Weber mt

Weber mt CR 8 Instrucciones de funcionamiento

Manuales populares de Eliminación de basura de otras marcas

Insinger

Insinger I-6 Manual de usuario

Franke

Franke CE-50 Manual de funcionamiento

Leafield Environmental

Leafield Environmental Envirobank 140 Hoja de instrucciones

Meiko

Meiko TopCut B Manual de usuario

KitchenAid

KitchenAid KCDB250G2 Manual de usuario

Gladiator

Gladiator Garage Compactor Manual de usuario

Maytag

Maytag DFC1500 Manual de instalación

THERMEx

THERMEx WASTEMINATOR II Manual de usuario

ROBINHOOD

ROBINHOOD SE390 Manual de usuario

Whirlpool

Whirlpool GC2000PE2 Manual de usuario

Scheppach

Scheppach HP3000S Instrucciones de montaje

Haigh

Haigh Quattro Vanguard Original Manual de usuario

Maxmatic

Maxmatic 5000 Hoja de especificaciones

InSinkErator

InSinkErator Model SS-100 Manual de usuario

Toro

Toro FP-2200 Manual de usuario

Elephants Foot

Elephants Foot eDiverter Manual de usuario

Zanussi

Zanussi DU 4400 Manual de usuario

KitchenAid

KitchenAid KaDette KCDB150 Manual de usuario
