Quick Start Guide

iWL2x1

GETTING STARTED

Set up your base unit in a convenient location close to apower

source.

Base Unit

Connect the power supply unit into the power socket on your

base unit and to the mains power. After a short initialisation

process, the terminal will display READY or an idle logo. The

terminal is ready touse.

Note: Press and hold the yellow clear key and the dot key

together to turn the terminal off.

The terminal will automatically select a mobile network.

Should you wish to select the network manually please

follow steps below:

From READY screen press menu key twice and select

SUPERVISOR (F3). Terminal will prompt for your

password, if you haven’t setup own supervisor password

please use the default password provided in the

paragraph below. In SUPERVISOR menu select CONFIG

(F3) then press menu key once and select SEL GSM N/W

(F1). The terminal will search for networks and display the

available network list. Select appropriate network and

press enter key to connect to a chosen provider.

SUPERVISOR PASSWORD

The default Supervisor Password is 01483. Please note: The

terminal will require you to change this to a new password of

your choosing before you can process any transactions.

FUNCTION KEYS

F1-F4 Keys: The function keys enable you to choose options

on screen and correspond to the labels displayed on the screen.

Menu Key: Toenter the application menus press the Menu

key from the idle (READY) screen. Pressing the key again

moves to the next menu (if available).

Correction Keys: When entering numbers or letters, the

yellow clear key deletes one character at a time, while the red

cancel key deletes the entire line (this key also cancels

transactions).

Confirmation Key: The green enter key is used to confirm

anything that has been typed into the terminal.

Paper Feed Key: Totest the feeding of the paper through the

printer press and hold the clear key.

See page 4 for instructions to change the paper roll.

01483

Power socket

Terminal

charging port

Terminal guides

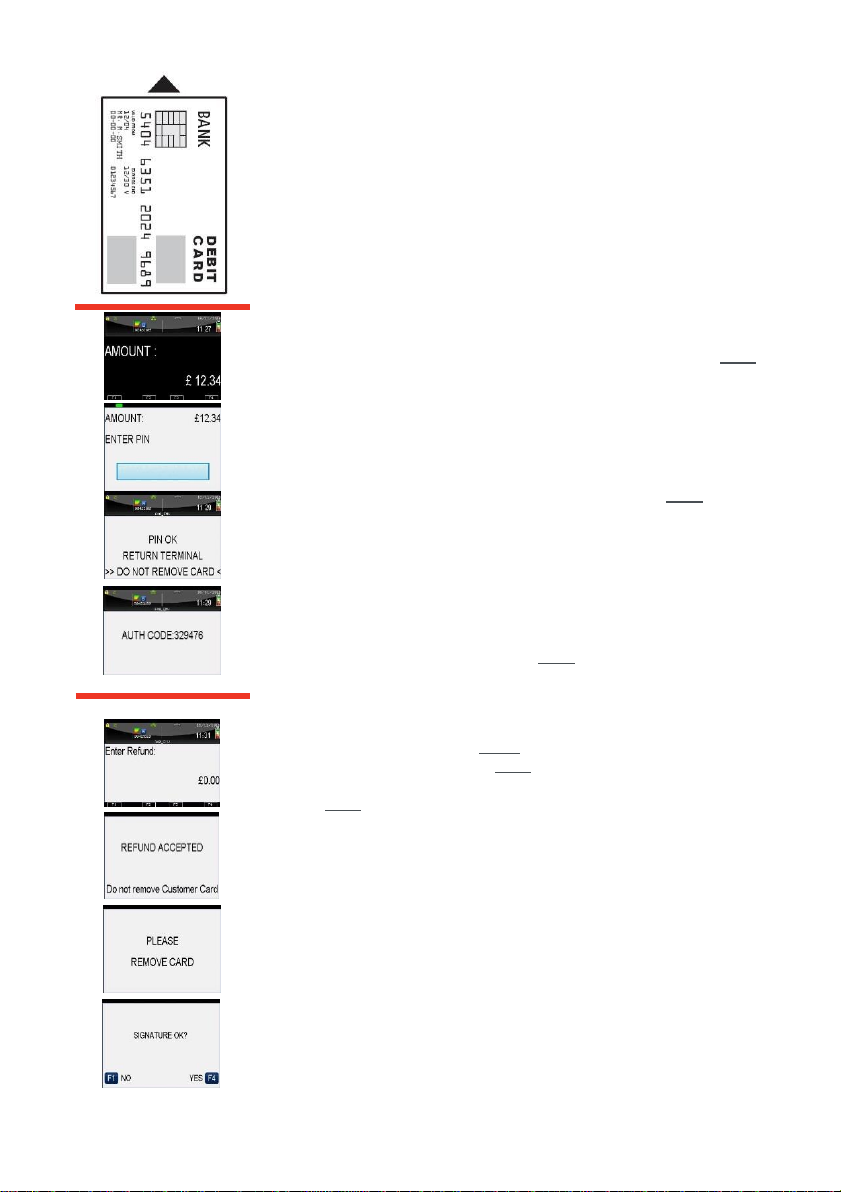

THE CHIP CARD READER

Customer cards must be inserted as shown, with the chip upwards.

Push the card fully into the slot below the keypad and follow the

instructions on screen.

If you see a BAD READ message, check the card orientation and try

again. After three bad reads the terminal will prompt you to swipe

the card.

DO NOT remove the card until instructed to do so by the

terminal.

CHIP & PIN TRANSACTIONS - SALE

From the idle screen, insert the customer’s card into the card reader.

Enter the sale amount for the transaction and press the green enter

key. For example enter £12.34 as 1234.

The customer must enter their PIN code.

NEVER ASK THE CUSTOMER TO DIVULGE THEIR PIN CODE.

After the customer has entered their PIN and pressed enter they will

be prompted to return the terminal to you.

The terminal will now connect to the acquirer for authorisation, if the

transaction is authorised then an AUTH CODE will be shown.

The terminal will print two receipts. The merchant copy will be

printed irst, then once you press the enter key, the customer copy

will be printed.

CHIP & PIN TRANSACTIONS - REFUND

From the idle screen, press menu, then choose REFUND (F2). Enter

the Supervisor Password and enter. Now insert the customer’s card

into the card reader. Enter the refund amount for the transaction and

press enter.

The terminal will now connect to the acquirer for authorisation, if the

refund is authorised then REFUND ACCEPTED will be shown.

The terminal will print the merchant copy which the customer must

sign. Remove the card.

Check the signature on the merchant copy with that on the card. If

the signature is valid then choose YES (F4), otherwise choose NO

(F1).

The terminal will then print the Customer Copy.

CONTACTLESS - SALE

From the idle screen, enter the sale amount for the transaction and

press the enter key. For example enter £12.34 as 1234. If you make

a mistake, press the clear key and re-enter the amount.

The cardholder should present their card/payment device

against the contactless symbol on the terminal display.

The terminal will now print the Merchant receipt.

Note: If the customer requests a receipt this must be done before the

next transaction takes place. From the idle screen press the (F1) key

to print a customer receipt.

MAIL ORDER TRANSACTIONS - SALE

Press the menu key, then MAILORDER (F1). Choose either

REFUND (F1) or SALE (F4). When prompted type in the customer’s

card number and press enter.

Enter the Expiry Date, the start date (if required), the issue number (if

required), pressing enter after each entry. Enter the card security

Code (CSC), the numbers from the cardholder’s postcode (e.g. GU7

1LG is 71), and the numbers from the cardholder’s address (e.g. Flat

1, 28 High Street is 128), pressing enter after each entry. If you do

not know any of these then you can press enter without entering

anything to bypass the check whenappropriate.

Enter the sale amount and press enter.

The terminal will connect to gain authorisation and will prompt you to

choose VOID (F1) or CONFIRM (F4), the result of the CSC/AVS

check is then shown.

The terminal will print off the two receipts.

END OF DAY REPORTS

To access the reports menu press the menu key twice, then

REPORTS (F1). Enter the Supervisor Password and press

enter.

END OF DAY: One touch function that prints both the Z REPORT

and the BANKING report. This MUST be done at the end of each day

that you trade.

BANKING: Indicates total value of transactions that have been

processed and shows that the totals have been confirmed by the

Acquirer.

X REPORT: Shows the breakdown of transactions in different ways

enabling you to check off against individual receipts and the

BANKING report.

Z REPORT: Exactly the same as the X REPORT, except that the Z

REPORT resets the totals ready for the next day’s trade.

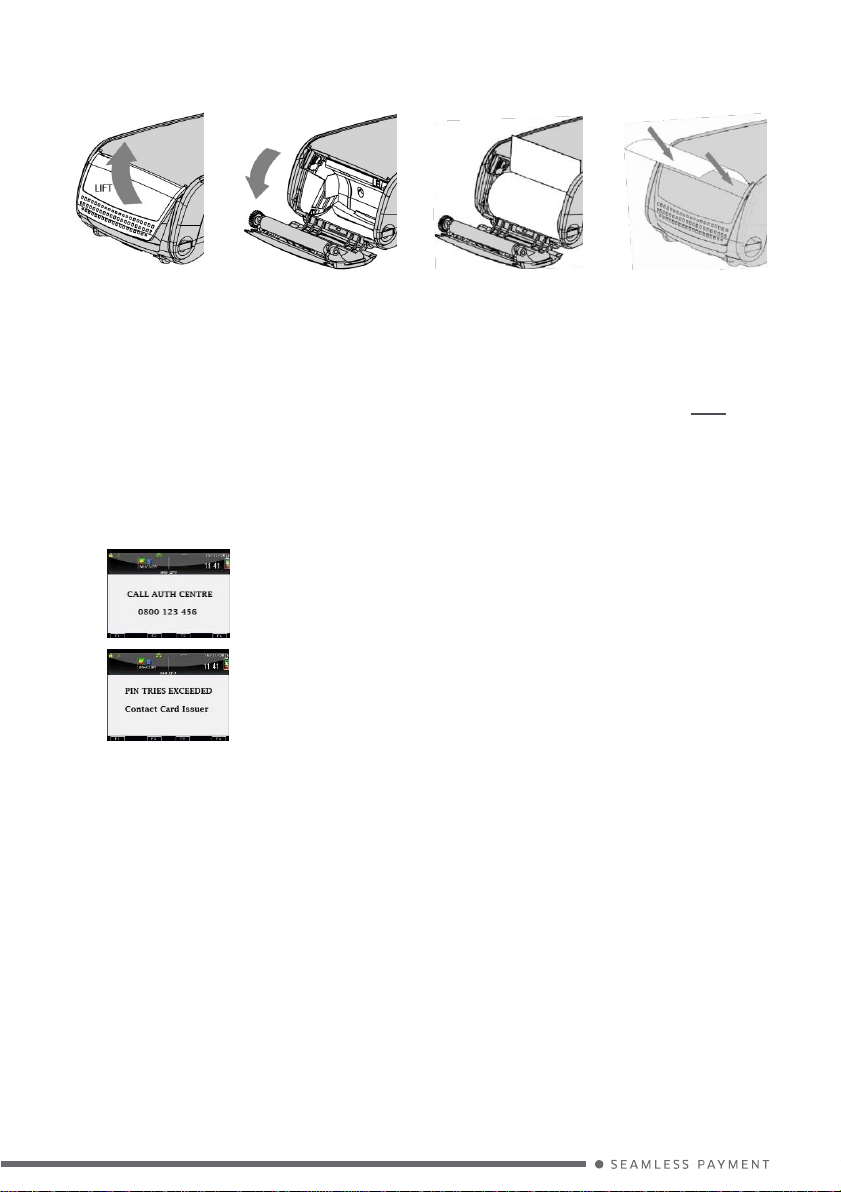

CHANGING THE PAPER ROLL

Hold the terminal securely in one hand. With the other hand, and by using two fingers, lit the

printer cover release as shown. Fully open the printer cover and remove the old roll of paper.

Unstick the end of the new roll, leaving the end free, hold the paper roll and carefully place into

the printer compartment.

Holding the free end of the paper and the terminal as shown, close the printer cover and push

firmly until it locks. While your terminal is displaying the idle screen, press and hold the clear key

to ensure that the paper feeds correctly.

ONLY OPEN THE PRINTER COVER AS SHOWN - DO NOT FORCE THE PRINTER COVER

TIPS AND ADVICE

REFERALS: If the terminal displays CALL AUTH CENTRE or

PLEASE WAIT with a telephone number, then you must refer the

transaction and phone for authorisation for that card.

PIN TRIES EXCEEDED: If the terminal displays this message then the

cards PIN has been locked by the cardholder. They must contact their

card issuer or use an ATM to unlock the PIN if they know the PIN.

DUPLICATE RECEIPTS: To print a duplicate of the last transaction

processed press the menu key three times, followed by DUPLICATE

(F4).

For further information on the terminal functions provided in this Quick Start Guide

please refer to your Terminal User Guide on our website at:

www.ingenico.co.uk/smart-terminals/user-guides

This Quick Start Guide (DIV434773A) relates to terminal software APACS 4048 97.11.01

Whilst every effort has been made to ensure that the content of this document is accurate, Ingenico will not accept

responsibility for any loss, damage or injury that may be incurred as a result of any errors or inaccuracies. The

product is varied to suit an acquirer’s individual requirements and as such some features may vary or be disabled.

This document should be accepted as a guide only to the use of the product.

In the effort for continued improvements in design and quality, products features and information regarding

setting up, installation and use of all Ingenico products is subject to change without prior notice.
