Impex POWERHOUSE ELITE PHE1000 Manual de usuario

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Resistance Chart

Warranty

Ordering Parts

Model

PHE 1000

Retain This

Manual for

Reference

03-07-04

OWNER'S

MANUAL

POWERHOUSE ELITE

PHE1000 HOME GYM

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICES...................................................................……….. 2

HARDWARE IDENTIFIER.....….....................................................................……….. 3

ASSEMBLY INSTRUCTIONS.........................................................................……….. 6

PARTS LIST…………………………………………………………………………………..17

RESISTANCE CHART………….......................................................................……….18

WARRANTY.................................................................................................………….19

ORDERING PARTS.......................................................................................…………19

BEFORE YOU BEGIN

Thank you for selecting the POWERHOUSE ELITE PHE1000 HOME GYM

by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this

manual carefully before using the machine. As a manufacturer, we are

committed to provide you complete customer satisfaction. If you have any

questions, or find there are missing or damaged parts, we guarantee you

complete satisfaction through direct assistance from our factory. To avoid

unnecessary delays, please call our TOO-FREE customer service number.

Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES

NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

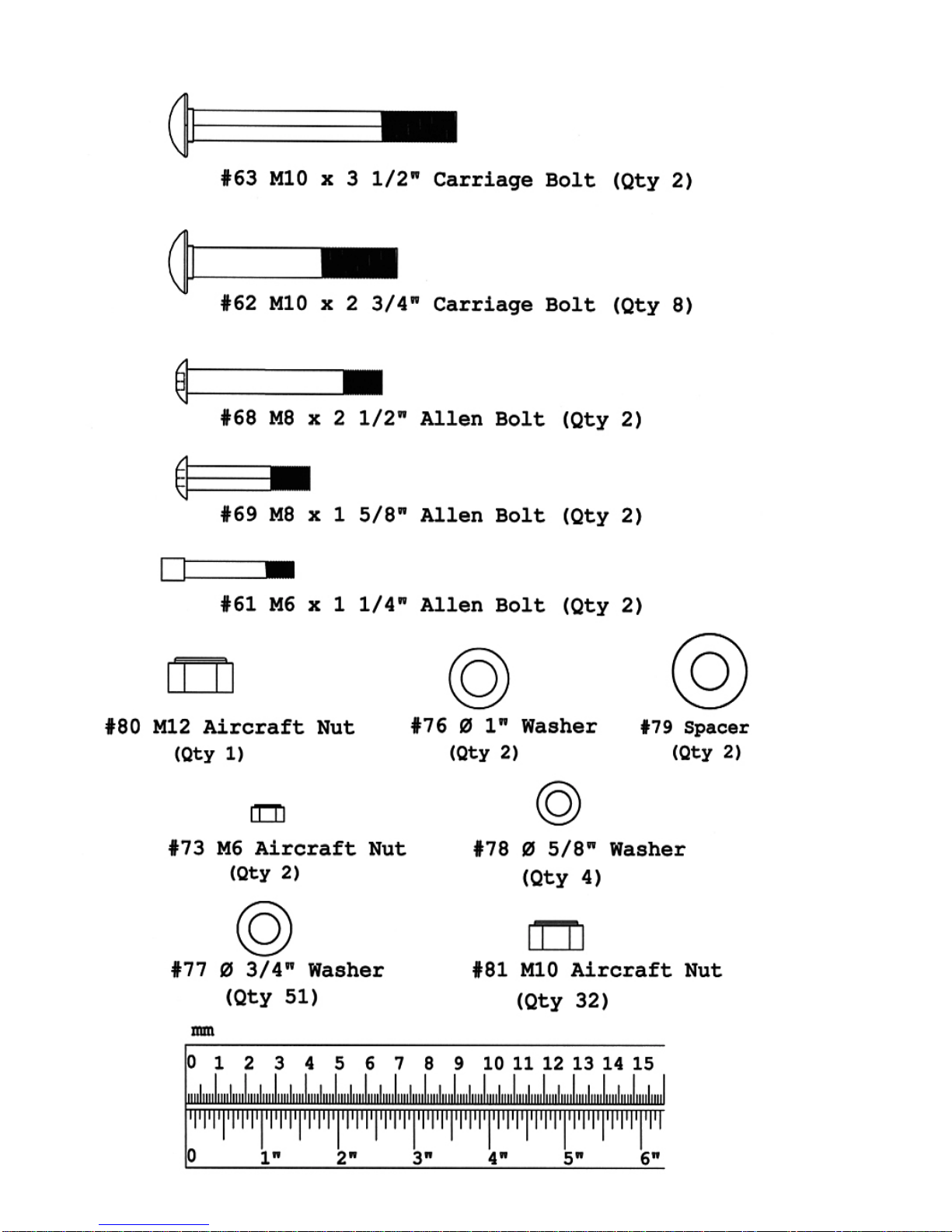

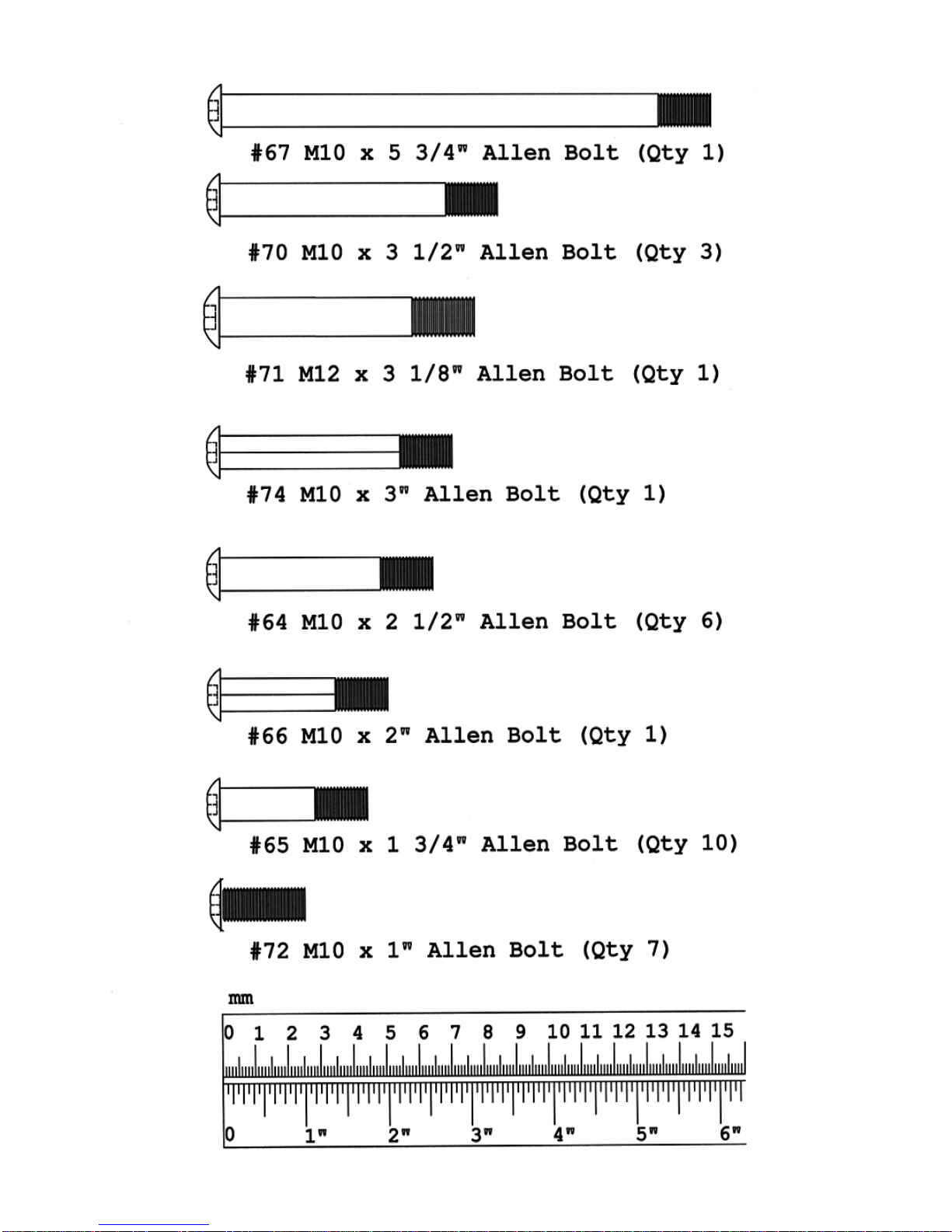

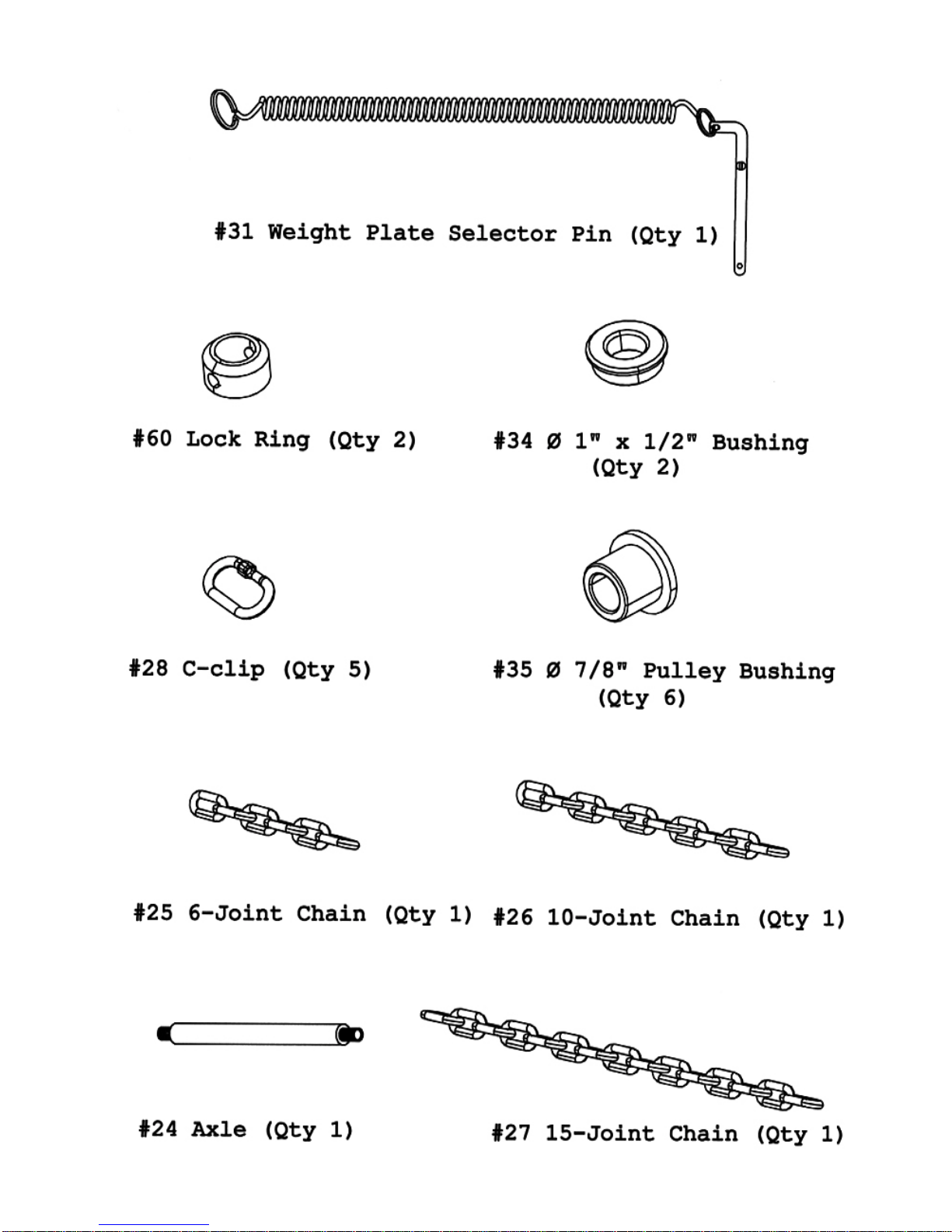

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches. NOTE: It is strongly recommended this machine to be assembled by

two or more people to avoid possible injury.

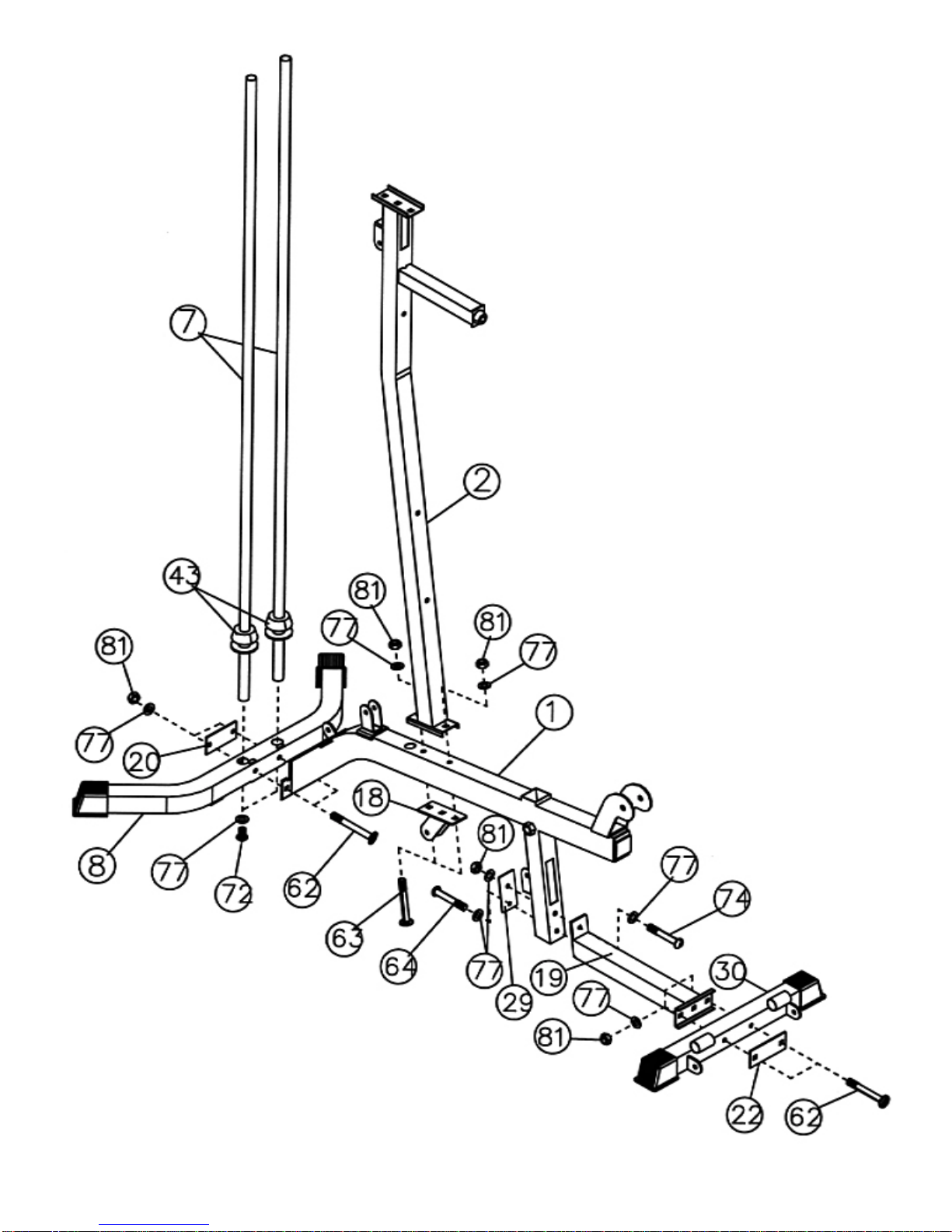

STEP 1 (See Diagram 1)

A.) Slide two Ø2 ½” Round Rubber Bumpers (#43) onto the Guide Rods (#7). Insert

the two Guide Rods into the holes on the Rear Stabilizer (#8). Secure each Guide

Rod with one M10 x 1” Allen Bolt (#72) and ∅¾” Washer (#77) from the bottom.

B.) Attach the rear of Main Base Frame (#1) to the Rear Stabilizer. Secure them with

two M10 x 2 ¾” Carriage Bolts (#62), one 4 3/8” x 2” Bracket (#20), two Ø ¾”

Washers (#77), and two M10 Aircraft Nuts (#81). Do not tighten the nuts and bolts

yet.

C.) Attach the Front Base Frame (#19) to the Main Base Frame (#1). Secure them

with one M10 x 3” Allen Bolt (#74), one 4” x 2” Bracket (#29), two Ø ¾” Washers

(#77), and one M10 Aircraft Nut (#81) to the top hole. Secure the bottom hole with

one M10 x 2 ½” Allen Bolt (#64) and ∅¾” Washer (#77) from the back.

D.) Attach the Front Stabilizer (#30) to the Front Base Frame. Secure them with two

M10 x 2 ¾” Carriage Bolts (#62), one 4 ¾” x 2” Bracket (#22), two Ø ¾” Washers

(#77), and two M10 Aircraft Nuts (#81).

E.) Place the Vertical Frame (#2) onto the Main Base Frame. Secure them with two

M10 x 3 ½” Carriage Bolts (#63), one Pulley Bracket (#18), two Ø ¾” Washers

(#77), and two M10 Aircraft Nuts (#81). Securely tighten all nuts and bolts

previously installed.

DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Slide 9 Weight Plates (#37) onto the Guide Rods (#7). Align the holes on the Weight Plates.

Insert a Selector Rod (#21) through the center hole. Slide the Selector Stem (#36) onto the

Guide Rods.

B.) Attach the holes on the Upper Frame (#6) onto the Guide Rods. Place the Upper Frame

onto the Vertical Frame (#2). Secure the Upper Frame (#6) to the Guide Rods (#7) with two

M10 x 1” Allen Bolts (#72) and Ø ¾” Washers (#77).

C.)Secure the Upper Frame to the Vertical Frame with two M10 x 2 ¾” Carriage Bolts (#62),

one 4 ¾” x 2” Bracket (#22), two ∅¾” Washers (#77), and two M10 Aircraft Nuts (#81).

D.)Insert the Foot Plate Axle (#84) through the pivot on the Foot Plate (#83). Attach the Foot

Plate to the Front Stabilizer (#30). Secure the Axle to Front Stabilizer with two M10 x 1” Allen

Bolts (#72) and Ø ¾” Washers (#77).

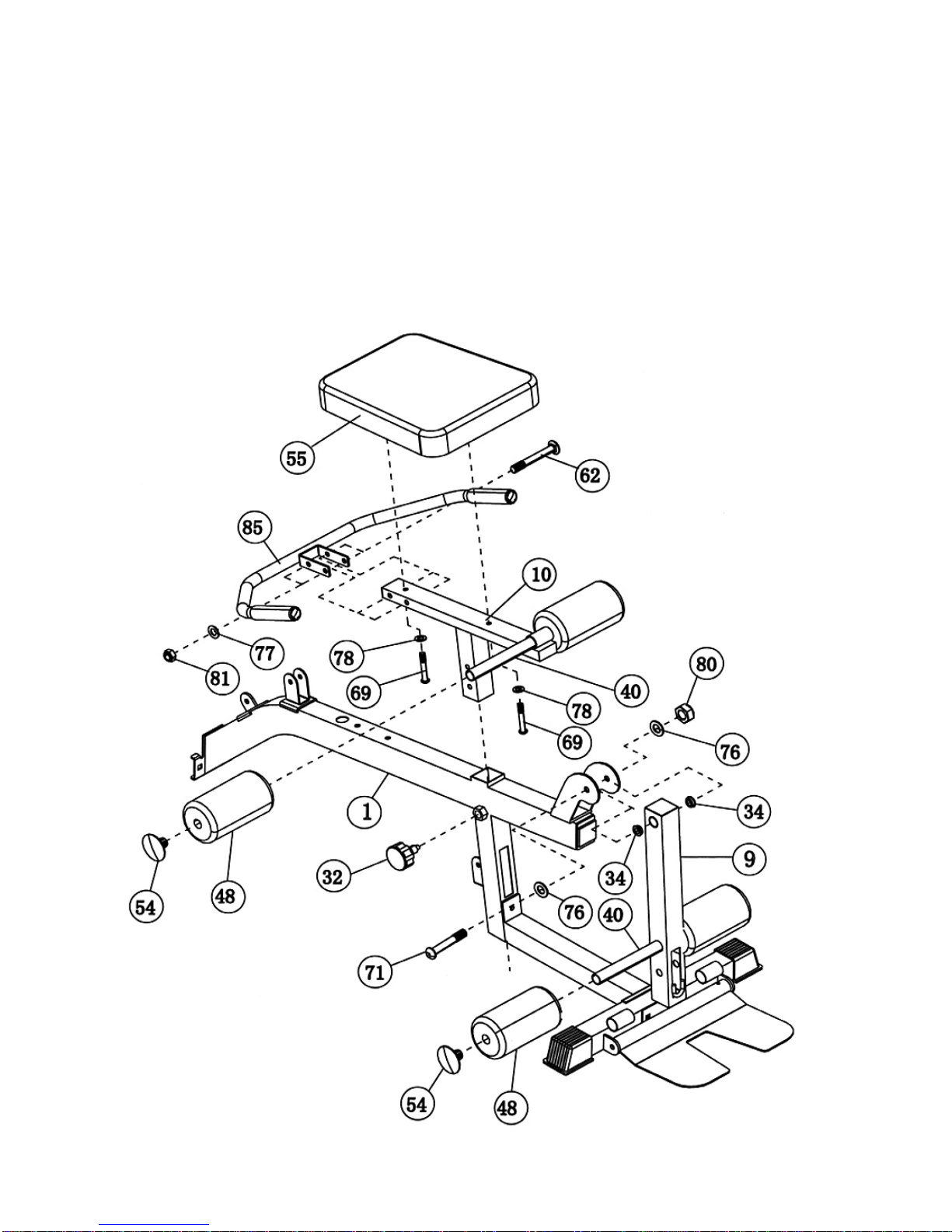

STEP 3 (See Diagram 3)

A.) Attach the Seat Handle (#85) to the Seat Support (#10). Secure it with two M10 x 2 ¾”

Carriage Bolts (#62), four Ø ¾” Washers (#77), and two M10 Aircraft Nuts (#81).

B.) Place the Seat (#55) onto the Seat Support (#10). Secure it with two M8 x 1 5/8” Allen Bolts

(#69) and Ø 5/8” Washers (#78).

C.) Insert the Seat Support into the opening on the Main Base Frame (#1). Use a Lock Knob

(#32) to secure the Seat Support at desired height.

D.) Attach two ∅1” x ½” Bushings (#34) to the Leg Developer (#9). Attach the Leg Developer to

the bracket on the Main Base Frame. Secure it with one M12 x 3 1/8” Allen Bolt (#71), two Ø

1” Washers (#76), and one M12 Aircraft Nut (#80). Do not over tighten the Bolt and Nut.

Make sure the Leg Developer is able to swivel on the Bolt.

E.) Insert two Foam Tubes (#40) halfway through the holes on the Seat Support and Leg

Developer. Push four Foam Rolls (#48) onto the Tubes from both ends. Cover each end

with a Foam Roll End Cap (#54).

STEP 4 (See Diagram 4)
