IFM Efector 200 O7E2 Series Manual de usuario

Operating instructions

Through-beam sensor

O7E2xx / O7S2xx

UK

UK

O7E200 / 00 10 / 2009

2

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

→Cross-reference

Important note

Non-compliance can result in malfunctions or interference.

2 Functions and features

The through-beam sensor detects objects and materials without contact and

indicates their presence by a switching signal.

Range: →packaging or data sheet.

3 Installation

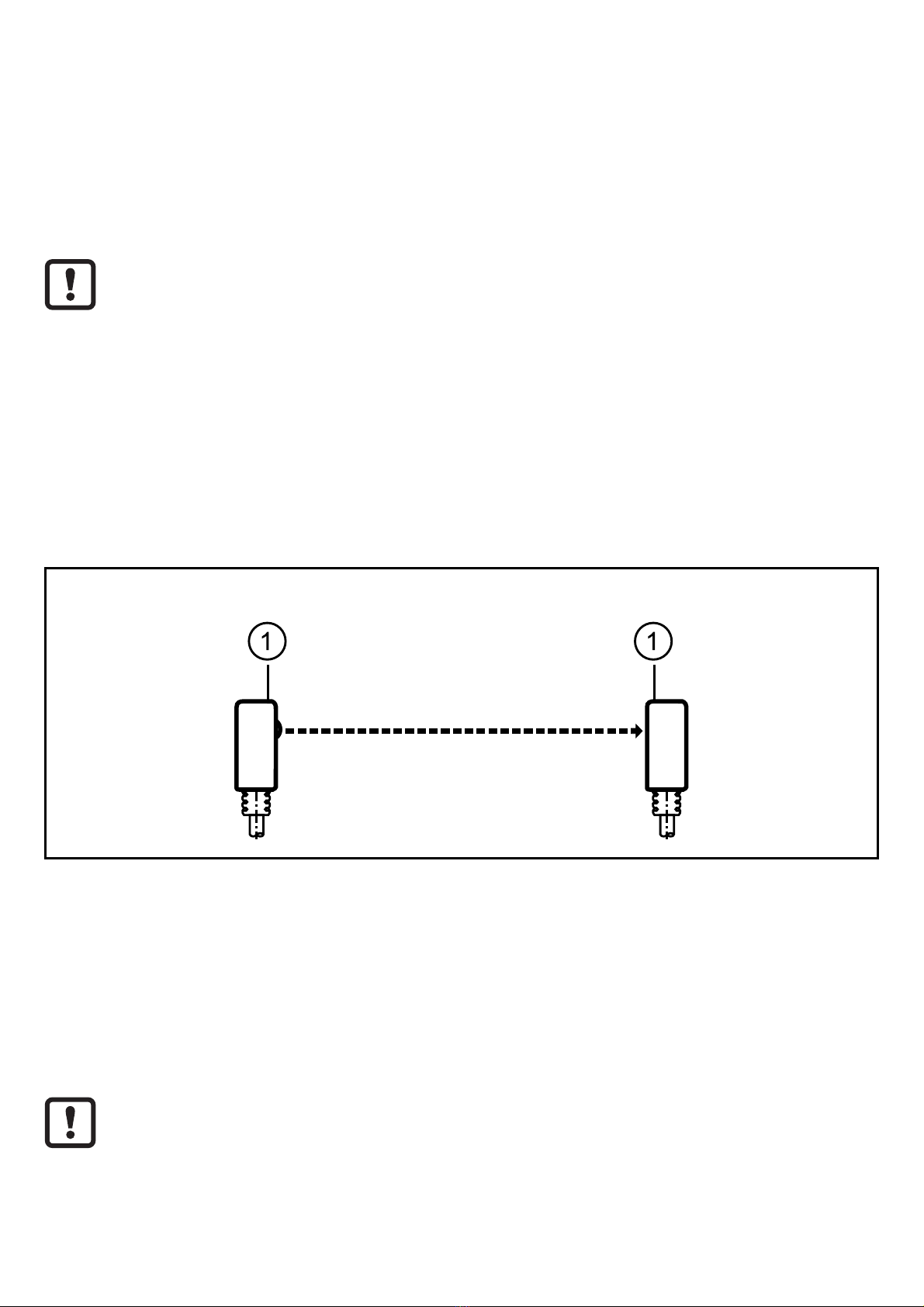

Transmitter Receiver

LED1:

Secure the receiver (O7E2xx) to a bracket.►

Align the transmitter (O7S2xx) to the receiver and secure it in the same way.►

Maximum range only with accurate alignment.

4 Electrical connection

The unit must be connected by a qualified electrician.

The national and international regulations for the installation of electri-►

cal equipment must be adhered to.

Ensure voltage supply to EN 50178, SELV, PELV.►

3

UK

Disconnect power.►

Connect the unit as follows:►

Transmitter (O7S2xx) DC

1

3

L+

L

Receiver (O7E2xx) DC PNP DC NPN

L+

L

1

4

3

L+

L

1

4

3

5 Operation

Check whether the unit operates correctly.►

Transmitter (O7S2xx): The green LED is lit when the sensor is ready for ope-•

ration.

Receiver:•

Dark-on switching units (O7E-DPKG): The output is switched / the yellow LED

is lit when an object is detected.

Light-on switching units (O7E-HPKG): The output is switched / the yellow LED

is lit when no object is detected.

6 Maintenance, repair and disposal

Keep the front panes of the sensor free from soiling.►

For cleaning do not use any solvents or cleaning agents which could damage►

the plastic material.

Technical data and further information at

www.ifm.com →Select your country →Data sheet direct:
