IFM Electronic Efector 300 Manual de usuario

Operating instructions

Mechatronic flow sensor

SBT6xx

80008277 / 00 02 / 2014

1 Preliminary note

►Instructions

> Reaction, result

→Cross-reference

Important note

Non-compliance can result in malfunction or interference.

Information

Supplementary note.

2 Safety instructions

• Please read this document prior to set-up of the unit. Ensure that the product is

suitable for your application without any restrictions.

• Improper or non-intended use may lead to malfunctions of the unit or to un-

wanted effects in your application. That is why installation, electrical connec-

tion, set-up, operation and maintenance of the unit must only be carried out by

qualified personnel authorised by the machine operator.

• In order to guarantee the correct condition of the device for the operating time

the device must only be used in media with which the wetted parts are compat-

ible(→Technicaldata).

Contents

1 Preliminary note...................................................................................................2

2 Safety instructions ...............................................................................................2

3 Functions and features ........................................................................................3

4 Function...............................................................................................................4

5 Installation............................................................................................................4

6 Electrical connection............................................................................................5

7 Technical data and scale drawing........................................................................5

8 Maintenance, repair, disposal..............................................................................5

• The responsibility whether the measurement devices are suitable for the

respective application lies with the operator. The manufacturer assumes no

liability for consequences of misuse by the operator. Improper installation and

use of the devices result in a loss of the warranty claims.

WARNING

Personal injury can occur if the unit and connections become hot or media

underpressure(upto15bar)orhotmedia(upto180°C)leak.

►Install the unit according to the applicable rules and regulations.

►Ensure that the system is free of pressure during installation.

► Ensurethatnomediacanleakatthemountinglocationduringinstallation.

► Equiptheunitwithsuitableprotection(e.g.cover)toavoidhazardtoperson-

nelfromtouchingthesensor,connectionsandcablesorfromleakingmedia.

3 Functions and features

Theunitmonitorsliquids(water,glycolsolutions).

It detects the flow quantity on the principle of differential pressure and converts it

intoananalogueoutputsignal(4...20mA).

4 Function

1Q [l/min]

1: nalvalueofthemeasuringrange

Theanaloguesignalforwater(20°C)islinearfrom4mA(=noflow)to20mA

(=finalvalueofthemeasuringrange,seeTechnicalData).

For an output signal > 20 mA the flow quantity is above the final value of the

measuring range.

5 Installation

IN OUT

Rp 4

►Insert the unit into the Rp ¾ pipe

according to the direction of flow

(arrow)andtighten.

IN=inlet

OUT=outlet

Baffled pipes on the sensor's inlet or outlet side are not necessary.

► Donotinstalltheunitonferromagneticmaterials.

(Ferromagnetic materials are all metals exerting an attractive force on test

magnets.)

► Donotoperatetheunitinthevicinityofmagneticconstantandalternating

fields(e.g.weldingsystems).

►If the sensors are installed side by side, observe a minimum distance of 50 mm

between the sensor axes.

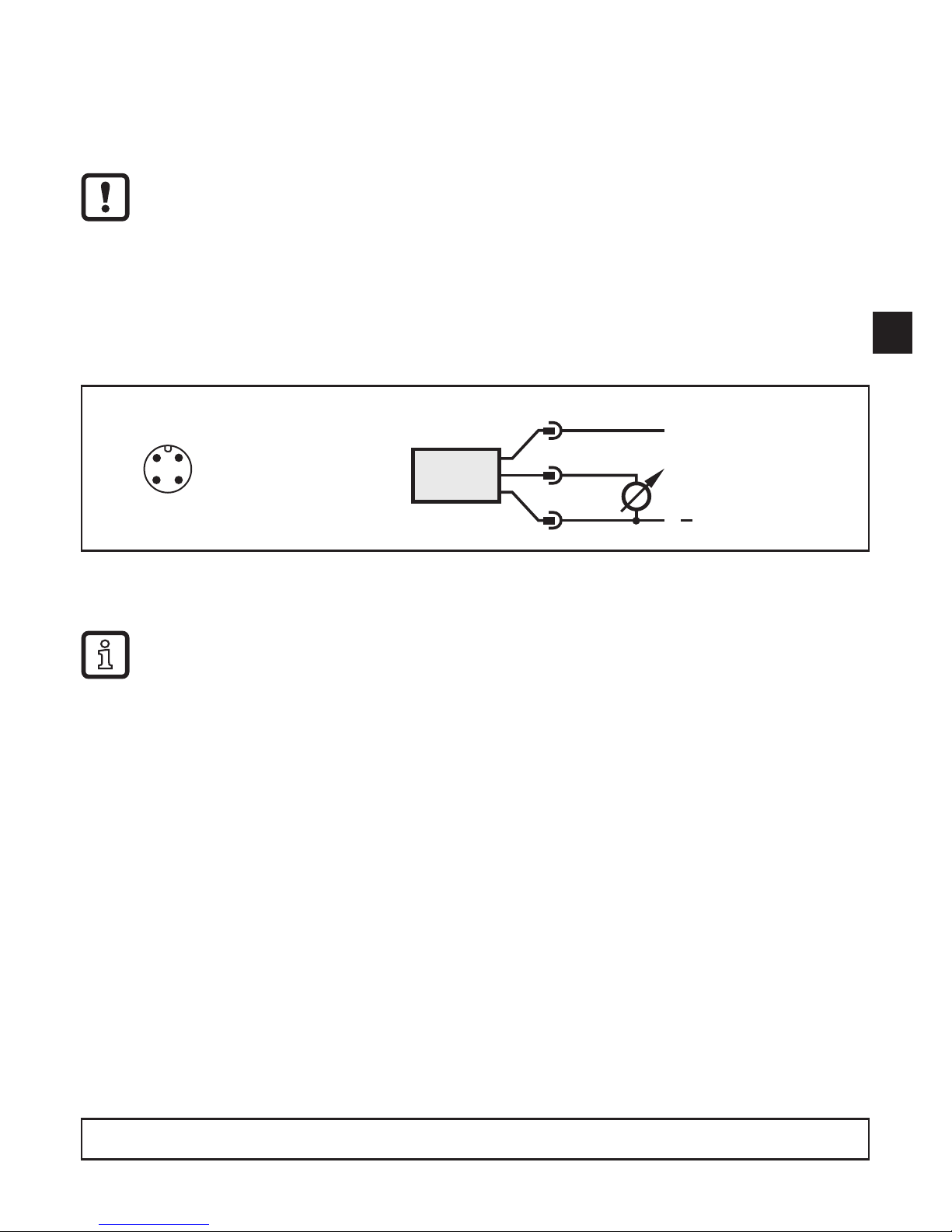

6 Electrical connection

The unit must be connected by a qualified electrician.

The national and international regulations for the installation of electrical

equipment must be adhered to.

Voltage supply according to EN 50178, SELV, PELV.

► Disconnectpower.

►Connect the unit as follows:

2 1

L+

1 BN

2 WH

3 BU

Corecoloursofifmsockets:1=BN(brown),2=WH(white),3=BU(blue)

ColourstoDINEN60947-5-2

Informationaboutavailablesockets/connectorsatwww.ifm.com.

7 Technical data and scale drawing

Technical data and scale drawing at www.ifm.com

8 Maintenance, repair, disposal

If used correctly, no maintenance and repair measures are necessary.

Incaseofstronglypollutedmedia:mountafilterbeforetheinlet(IN).

Recommendation: use a 200-micron filter. Only the manufacturer is allowed to

repair the unit.

After use dispose of the unit in an environmentally friendly way in accordance with

the applicable national regulations.

More information at www.ifm-electronic.com
