IDEAL ND-5499 Manual de usuario

350 Series

Digital Multimeter

#61-350

#61-352

#61-354(TRMS)

Features

Auto / Manual Ranging

Non-Contact Voltage (NCV) 80-600V AC

Measures AC/DC Current (352 and 354 only)

Measures AC/DC Voltage and Resistance

Measures Frequency and Capacitance (352 and

354 only)

Audible Continuity

Data Hold

Low Battery Indication

Auto Power Off

Large Numbers and Symbols

Electronic overload protection on all ranges

Warning

. . . . . . . . . .

. . . . . . . .

Safety sheet

. . . . . . . . .

. . . . . . . . . .

. . . . . . . .

. . . . . . . . .

2Read First

2Safety Information

Understand and follow operating instructions

carefully. Use the meter only as specified in this

manual; otherwise, the protection provided by

the meter may be impaired.

WARNING

To avoid possible electric shock, personal injury

or death, follow these instructions:

․Do not use if meter appears damaged, Visually

inspect the meter to ensure case is not

cracked and back case is securely in place.

․Inspect and replace leads if insulation is

damaged,metal is exposed or probes are

cracked. Pay particular attention to the

insulation surrounding the connectors.

․Do not use Meter if it operates abnormally as

protection maybe impaired.

․Do not use during electrical storms or in wet

weather.

․Do not use around explosive gas, dust or

vapor.

․Do not apply more than the rated voltage to

the meter.

․Do not use without the battery and the back

case properly installed.

․Remove the test leads from the circuit prior to

removing battery cap.

․Do not attempt to repair this unit as it has no

userserviceable parts.

․Voltages exceeding 30VAC or 60VDC pose a

shock hazard so use caution.

CAUTION

To protect yourself, think “Safety First”:

․ Use appropriate personal protective equipment

such as safety glasses, face shields, insulating

gloves, insulating boots and/or insulating mats.

․Before each use.

- Perform a continuity test by touching the test

leads together to verify the functionally of the

battery and test leads.

- Use the 3 Point Safety Method. (1) Verify

meter operation by measuring a known

voltage. (2) Apply meter to circuit under test.

(3) Return to the known live voltage again to

ensure proper operation.

․Never ground yourself when taking electrical

measurements.

․ Connect the black common lead to ground or

neutral before applying the red test lead to

potential voltage. Disconnect the red test lead

from the voltage first.

․ Always work with a partner.

․When using the probes, keep fingers as far

behind the probe tips as possible.

․Never connect a source of voltage with the

function rotary switch in Ω/ :</A //Hz

position.Never set the meter in A function

to measure the voltage of a power supply

circuit in equipment that could result in

damage to the meter and the equipment

under test.

Risk of electric shock

See instruction card

DC measurement

Equipment protected by double or

reinforced insulation

Battery

Fuse

Earth

AC measurement

Conforms to EU directives

Symbols as marked on the meter and

Instruction card

Measuring AC/DC Voltage And

Frequency

Resistance

/630V1 F

Capacitor

Discharge hight-voltage

Circuit Power off

Disconnect

Testing for Continuity

Measuring DC / AC Current

(For 352,354 only)

Disconnect

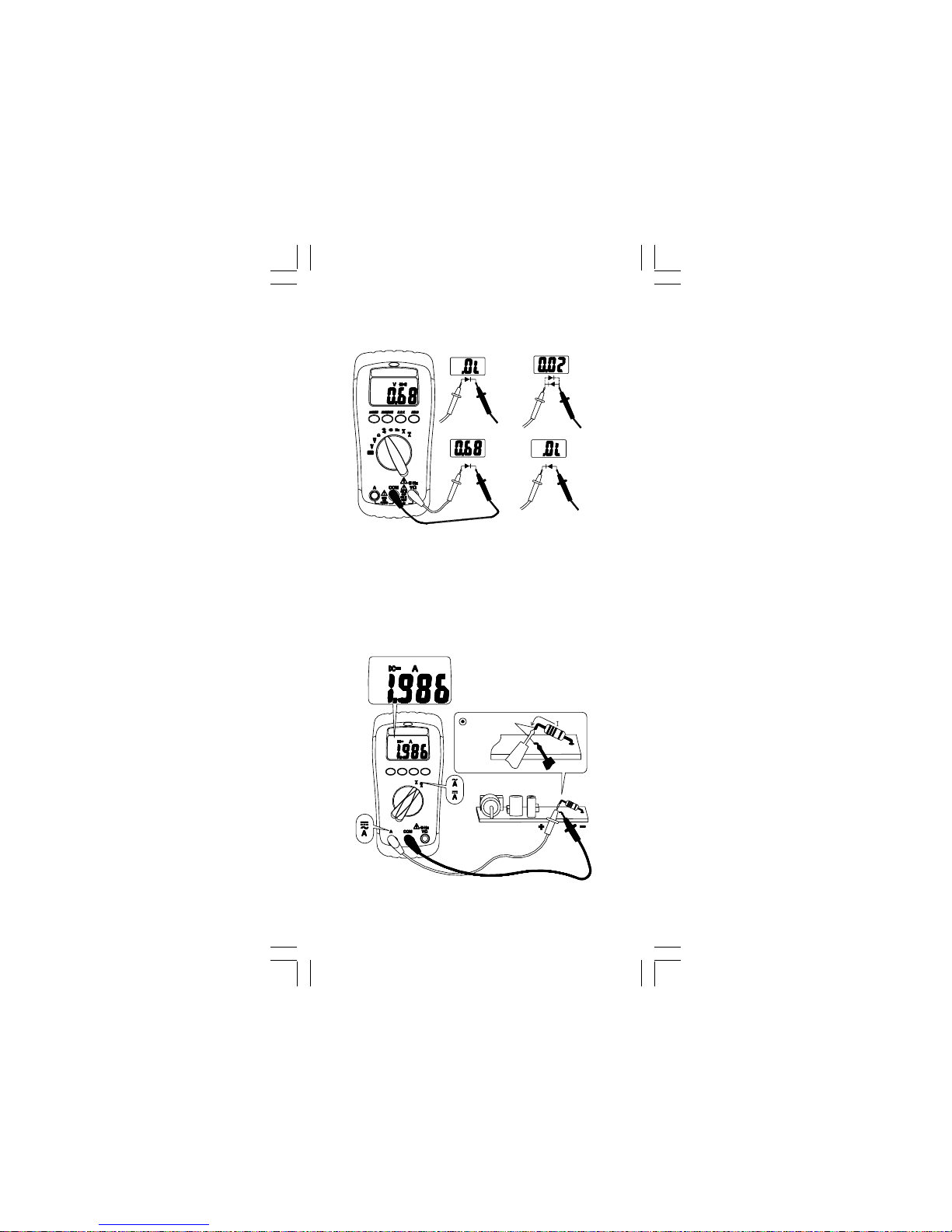

Testing for Diode

Black

Red

Red Black

Good Diode

Bad Diode

Red Black Red Black

MIN MAX Record

Measuring Capacitance

(For 352,354 only)

Display Hold

Auto Power Off (Battery Saver)

10 min

Manual Ranging and Auto Ranging

Disable Auto Power Off

NCV

1. NCV switch will be activated on any function

or at OFF status.

2. Test leads are not used for the NCV test.

3. Press the NCV button. The display goes

black, a tone sounds and the red LED lights

up to verify the instrument is operational.

The NCV button must be held down to detect

the presence of voltage without use of the

leads.

Non-Contact Voltage (NCV)
