IDEAL ND 3511-1 Manual de usuario
#61-320
320 Series
Grade Multimeter
2
WARNING!
1. DO NOT UNDER ANY CIRCUMSTANCES EXCEED THESE
RATINGS:
• Voltage is not to exceed 1000 Volts.
• Resistance, Capacitance, Logic and Continuity functions
are not to be performed on circuits capable of delivering
greater than 600 Volts.
• Current measurements are not to be performed on
circuits capable of delivering greater than 500 Volts
2. To avoid electrical shock hazards and/or damage to the meter:
• Do not exceed the voltage ratings for the meter. Use
caution when measuring voltage.
• Do not use during electrical storms. AC power sources
with inductive loads or electrical storms may result in
high voltage. High energy transients can damage meter
and present a dangerous shock hazard.
• Turn off power to the circuit or device being measured
before taking resistance and capacitance measurements.
Fully discharge all capacitors before measuring.
3. Ensure meter is in proper working order before using.
Visually inspect meter for damage. Performing a continuity
check can verify proper operation. If the meter reading goes
from overload to zero, this typically means the meter is in
proper working order.
4. Visually inspect leads for damage before using. Replace if
insulation is damaged or leads appear suspect.
5. Never ground yourself when taking electrical measurements.
Do not touch exposed metal pipes, outlets, fixtures etc.
Keep your body isolated from ground by using dry clothing,
rubber shoes, mats, or any other approved insulating
material. Keep your fingers behind the finger guards on the
probes. Work with others.
6. Before beginning all unknown measurements, set meter to
highest possible range.
7. Before breaking a circuit for testing, turn off the power to the
circuit. When disconnecting from a circuit, disconnect the
hot lead first, then the common lead.
8. Disconnect the meter from the circuit before turning off any
indicator, including motors, transformers, and solenoids.
3
1
4
3

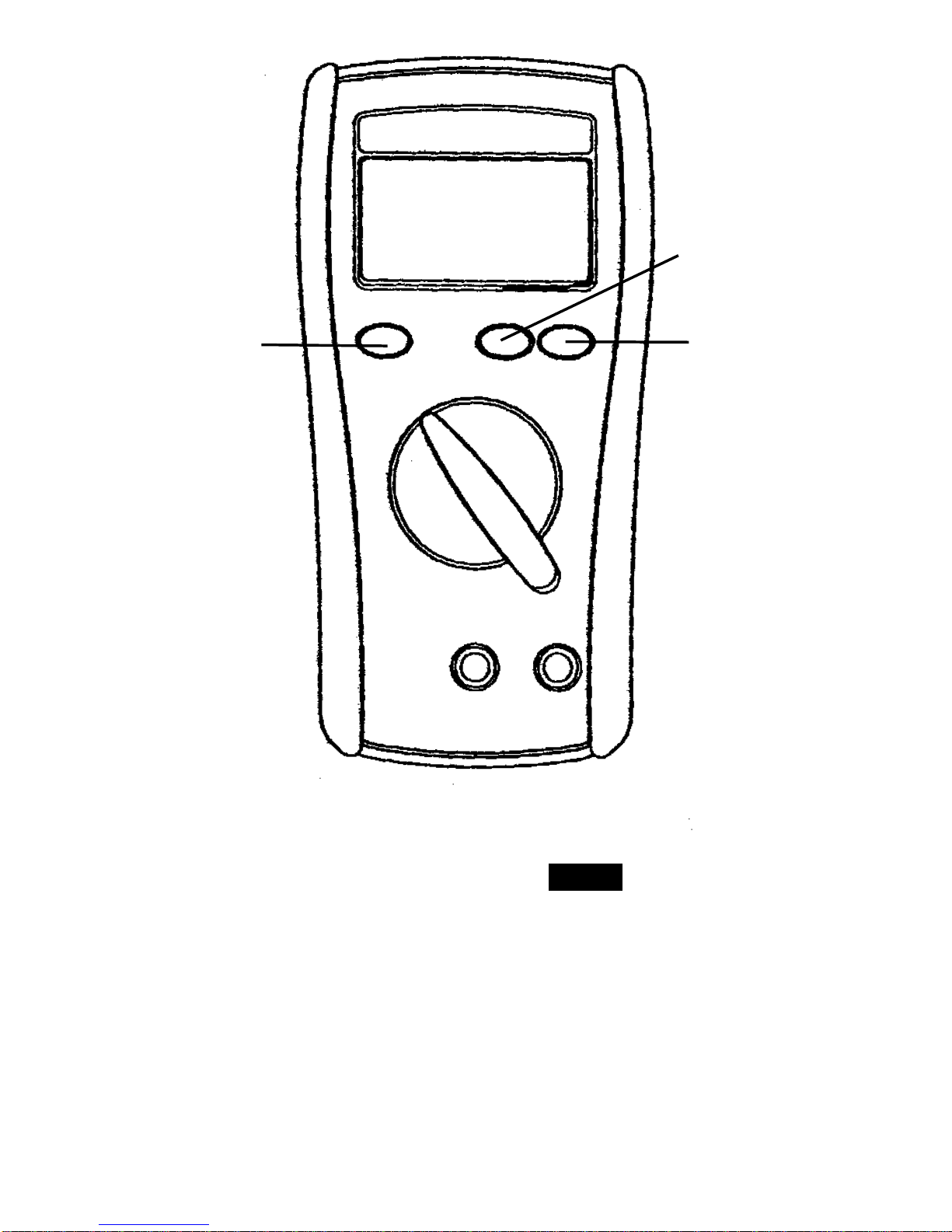

1. Min/Max Switch
• Pressing this button once results in the displayed maxi-
mum value of the current reading.
• Pressing the min/max button once more results in the
displayed minimum value of the current reading.
• If pressed a third time “Max Min” will flash on the LCD
indicating that the minimum and maximum value are
being recorded while the current reading is displayed.
• Pressing the min/max button for > 2 seconds exits the
Min/Max mode.
2. Range Button
•Pressing the range button selects the manual ranging
mode.
• When the range button is pressed RANGE will
appear in the upper left of the LCD display.
• WHen in the manual range mode, pressing the range
button changes the measurement range.
• To return to auto ranging, hold the range button for >2
seconds.
3. Hold Button
• The hold button is used to hold the measured value for
all functions.
• The value is displayed alon g with the annunciator.
• This function can be used in the min/max or peak
min/max mode.
Auto Power Off (APO)
If the meter is left idle for more than 10 minutes, the meter
automatically turns the power off. When this happens, the
state (non-logic measurement) of the meter is saved, the meter
can be turned back on by pushing any button or changing the
rotary switch. The meter will give an alarm 15 seconds before
the meter automatically turns the power off. To disable the
auto power off function, power up the meter wile pressing
either the range or min/max button. To enable the auto power
off, switch the meter off and then on again without depressing
any buttons.
4
H
5
Overload Protection
Function Overload Protection
VAC & VDC 1000V
ADC µA input: 600V RMS
16A/500V
Ohms (Ω) 600VAC/600VDC
Diode 600VAC/600VDC
Continuity 600VAC/600VDC
Unit of Measure Multipliers
For your reference, the following symbols are often used to
make measurement easier:
Symbol Verbal Multiplier
M mega x 1,000,000
k kilo x 1,000
m milli ÷ 1,000
µ micro ÷ 1,000,000
6
True RMS AC Volt
Range Resolution Accuracy Max. Display
600mV 0.1mV 600.0
6V 1mV ±(0.9% reading 6.000
60V 10mV + 5 digits) 60.00
600V 100mV 600.0
750V 1V 750
AC Conversion Type: Conversions are average sensing RMS
calibrated.
Input Impedance: 10MΩless than 100 pF.
Frequency Response: 40 Hz ~ 500 Hz
To Measure AC Voltage:
1. Plug the black test lead into the COM port and the red test
lead into the Hz V ΩµA port.
2. Set the rotary switch to the v position.
3. Connect the meter in parallel with the load or circuit.
4. Measure AC Voltage.
Circuit Connection:
˜
7
DC Volts
Range Resolution Accuracy Max. Display
600mV 100µV 600.0
6V 1mV ±(0.5% reading 6.000
60V 10mV + 2 digits) 60.00
600V 100mV 600.0
1000V 1V 1000
Input Impedance: 10MΩ(over 1000MΩin 600mV range)
To Measure DC Voltage:
1. Plug the black test lead into the COM port and the red test
lead into the Hz V ΩµA port.
2. Set the rotary switch to the v position.
3. Connect the meter in parallel with the load or circuit.
4. Measure DC Voltage
Circuit Connection:
DC Current
Range Resolution Accuracy Voltage Max
Burden
600µA 0.1µA ±(1.0% reading < 4mV / µA 600.0
6000µA 1µA + 2 digits) 6.000
Overload Protection: µA input: 600V RMS
To Measure DC Current:
1. Plug the black test lead into the COM port and the red test
lead into the Hz V ΩµA port.
2. Set the rotary switch to the mA or A position.
3. Connect the meter in series with the load or circuit.
4. Measure DC Current.
Circuit Connection:
8
9
Frequency/RPM
Range Resolution Sensitivity Accuracy
6000Hz 1Hz
60KHz 10Hz 100mV RMS Frequency:
600KHz 100Hz 0.01% ±1 digit
6MHz 1KHz 250mV RMS
60MHz 10KHz 1V RMS
Overload Protection: 600V rms
*Less than 20Hz the sensitivity is 1.5V
To Measure Frequency:
1. Plug the black test lead into the COM port and the red test
lead into the Hz V ΩµA port.
2. Set the rotary switch to the Hz position.
3. Connect the meter in parallel with the load or circuit.
4. Measure Frequency.
Circuit Connection:
10
Resistance (Ohms)
Range Resolution Accuracy Max. Display
600Ω0.1Ω600.0
6KΩ1Ω±(0.7% reading 6.000
60KΩ10Ω+ 2 digits) 60.00
600KΩ100Ω600.0
6MΩ1KΩ6.000
60MΩ10KΩ60.00
Open Circuit Voltage: -1.3V approx.
To Measure Resistance:
1. Turn the power off to the circuit or device that is to be
measured and discharge all capacitors before attempting a
measurement.
2. Plug the black test lead into the COM port and the red test
lead into the Hz V ΩµA port.
3. Set the rotary switch to the Ωposition.
4. For correct reading, ensure that the device being tested
contains no voltage.
5. Connect test leads across the resistor or circuit to be measured.
6. Measure resistance.
Circuit Connection:
