IDEAL 61-340 Manual de usuario

#61-340

#61-342

Digital Multimeter

Instruction Manual

All manuals and user guides at all-guides.com

all-guides.com

www.idealindustries.com

Read First: Safety Information

Understand and follow operating instructions carefully.

Use the meter, test leads and all accessories only as

specified in this manual; otherwise, the protection

provided by the meter can be impaired.

WARNING

To avoid possible electric shock, personal injury or

death, follow these guidelines:

• Do not use if meter appears damaged. Visually inspect

the meter to ensure case and jaws are not cracked.

• Inspect and replace test leads if insulation is damaged,

metal is exposed, or probes are cracked. Pay particular

attention to the insulation surrounding the connectors.

• Always ensure the meter, test leads and all accessories

meet or exceed the measurement category required

in the working environment. (i.e. CAT rating)

• Note that the measurement category and voltage

rating of combinations of the meter, the test leads,

and the accessories is the lowest of the individual

components.

• Do not use meter if it operates abnormally as

protection maybe impaired.

• Do not use during electrical storms or in wet weather.

• Do not use around explosive gas, dust, vapor,

amperage or in damp or wet environments.

• Do not apply more than the rated voltage to the meter.

• Remove the test leads from the input jacks before

measuring current.

• Replace battery as soon as battery indicator

appears to avoid false readings.

• Remove the test leads from the meter prior to

removing battery cover.

• Do not use without the battery and battery cover

properly installed.

• Do not attempt to repair this unit as it has no user-

serviceable parts.

• Use the proper terminals, functions and range for

your measurements.

• Never ground yourself when taking electrical

measurements.

• Connect the black common lead to ground or neutral

before applying the red test lead to potential voltage.

Disconnect the red test lead from the voltage first.

• Keep fingers behind the guard rings of the probe tips.

• Voltages exceeding 30VAC or 60VDC pose a shock

hazard so use caution.

All manuals and user guides at all-guides.com

CAUTION

To protect yourself, think “Safety First”:

• Comply with local and national safety codes.

• Use appropriate personal protective equipment such

as face shields, insulating gloves, insulating boots,

and/or insulating mats.

• Before each use:

- Perform a continuity test by touching the test leads

together to verify the functionality of the battery

and test leads.

- Use the 3 Point Safety Method. (1) Verify meter

operation by measuring a known voltage.

(2) Apply

meter to circuit under test. (3) Return to

the known

live voltage again to ensure proper operation.

• Always work with a partner.

Test Leads

Symbols on the Unit

Risk of Danger. Important Information. See

Manual.

Hazardous voltage. Risk of electrical shock.

Application around and removal from Hazard-

ous Live conductors is permitted.

AC (Alternating Current)

DC (Direct Current)

Earth Ground

CAT II

Measurement Category II applies to test and

measuring circuits connected directly to utiliza-

tion points (socket outlets and similar points)

of the low-voltage MAINS installation

CAT III Measurement Category III applies to measuring

circuits connected to the distribution part of the

building’s low-voltage MAINS installation

CAT IV Measurement Category IV applies to test and

measuring circuits connected at the source of

the building’s low-voltage MAINS installation

...

Guard ring

CAT IV 600V

CAT III 1000V CAT II 1000V

All manuals and user guides at all-guides.com

AC Converter: 61-340 model is averaging sensing, rms calibrated; 61-342 model is true rms sensing.

Accuracy: Accuracy is specified as +/-(a percentage of the reading + a fixed amount) at 23°C±5°C (73.4°F ± 9°F), less than 75% relative humidity.

Temperature Coefficient: 0.1 times the applicable accuracy specification from 32°F to 64°F and 82°F to 122°F (0°C to 18°C ; 28°C to 50°C).

Ranges & Accuracies

Function Range & Resolution Accuracy Overload Protection

DC Voltage 400.0m/4.000/40.00/400.0 V ±(0.5%+5)

600.0V ±(1.0%+3)

AC Voltage 400.0m/4.000/40.00/400.0/600 V ±(1.5%+5)

(40~400Hz)

DC Current 400.0/4000 µA ; 40.00/400.0 mA ±(0.5%+5) 500mA/600V Fast Fuse

4.000/10.00 A ±(1.5%+5) 10A/1000V Fast Fuse

AC Current 400.0/4000 µA ±(1.5%+5) 500mA/600V Fast Fuse

(40~400Hz) 40.00/400.0 mA ±(2.0%+5)

4.000/10.00 A ±(2.5%+5) 10A/1000V Fast Fuse

400.0Ω±(1.2%+5)

Resistance 4.000k/40.00k/400.0k Ω±(1.0%+2) 600V DC/AC rms

4.000MΩ  ±(1.2%+2)

40.00MΩ  ±(2.0%+5)

40.00nF ±(3.0%+10)

Capacitance* 400.0n/4.000µ/40.00µ F ±(3.0%+5) 600V DC/AC rms

400.0µ/4000µ F ±(20%+5)

Frequency 10.00/100.0/1.000k/10.00k/100.0k/1.000M/10.00M Hz ±(0.1%+3) 600V DC/AC rms

Sensitivity: <1MHz: 0.7Vrms ; >1MHz: 5Vrms

Duty Cycle 0.1 - 99.9% ±(2.5%+5) (<10kHz)

Diode CheckTest current : (1±0.6) mA and then open circuit voltage is 2.5VDC typical. 600V DC/AC rms

Continuity The beeper turns on <25Ωand turns off at >120Ω. 600V DC/AC rms

Temperature** -58~1500°F ±(3.0%+5) —

-50~800°C ±(3.0%+3)

*Accuracy not available for <10nF capacitance. **Accuracy is stated for meter only. Thermocouple accuracy adds another ±2.5% to reading.

Input Impedance : 10MΩfor VAC & VDC. CF > 2, add ±1.0% to accuracy.

Symbols on the Unit

All manuals and user guides at all-guides.com

AC Converter: 61-340 model is averaging sensing, rms calibrated; 61-342 model is true rms sensing.

Accuracy: Accuracy is specified as +/-(a percentage of the reading + a fixed amount) at 23°C±5°C (73.4°F ± 9°F), less than 75% relative humidity.

Temperature Coefficient: 0.1 times the applicable accuracy specification from 32°F to 64°F and 82°F to 122°F (0°C to 18°C ; 28°C to 50°C).

Function Range & Resolution Accuracy Overload Protection

DC Voltage 400.0m/4.000/40.00/400.0 V ±(0.5%+5)

600.0V ±(1.0%+3)

AC Voltage 400.0m/4.000/40.00/400.0/600 V ±(1.5%+5)

(40~400Hz)

DC Current 400.0/4000 µA ; 40.00/400.0 mA ±(0.5%+5) 500mA/600V Fast Fuse

4.000/10.00 A ±(1.5%+5) 10A/1000V Fast Fuse

AC Current 400.0/4000 µA ±(1.5%+5) 500mA/600V Fast Fuse

(40~400Hz) 40.00/400.0 mA ±(2.0%+5)

4.000/10.00 A ±(2.5%+5) 10A/1000V Fast Fuse

400.0Ω±(1.2%+5)

Resistance 4.000k/40.00k/400.0k Ω±(1.0%+2) 600V DC/AC rms

4.000MΩ  ±(1.2%+2)

40.00MΩ  ±(2.0%+5)

40.00nF ±(3.0%+10)

Capacitance* 400.0n/4.000µ/40.00µ F ±(3.0%+5) 600V DC/AC rms

400.0µ/4000µ F ±(20%+5)

Frequency 10.00/100.0/1.000k/10.00k/100.0k/1.000M/10.00M Hz ±(0.1%+3) 600V DC/AC rms

Sensitivity: <1MHz: 0.7Vrms ; >1MHz: 5Vrms

Duty Cycle 0.1 - 99.9% ±(2.5%+5) (<10kHz)

Diode CheckTest current : (1±0.6) mA and then open circuit voltage is 2.5VDC typical. 600V DC/AC rms

Continuity The beeper turns on <25Ωand turns off at >120Ω. 600V DC/AC rms

Temperature** -58~1500°F ±(3.0%+5) —

-50~800°C ±(3.0%+3)

*Accuracy not available for <10nF capacitance. **Accuracy is stated for meter only. Thermocouple accuracy adds another ±2.5% to reading.

Input Impedance : 10MΩfor VAC & VDC. CF > 2, add ±1.0% to accuracy.

All manuals and user guides at all-guides.com

AC Converter: 61-340 model is averaging sensing, rms calibrated; 61-342 model is true rms sensing.

Accuracy: Accuracy is specified as +/-(a percentage of the reading + a fixed amount) at 23°C±5°C (73.4°F ± 9°F), less than 75% relative humidity.

Temperature Coefficient: 0.1 times the applicable accuracy specification from 32°F to 64°F and 82°F to 122°F (0°C to 18°C ; 28°C to 50°C).

Function Range & Resolution Accuracy Overload Protection

DC Voltage 400.0m/4.000/40.00/400.0 V ±(0.5%+5)

600.0V ±(1.0%+3)

AC Voltage 400.0m/4.000/40.00/400.0/600 V ±(1.5%+5)

(40~400Hz)

DC Current 400.0/4000 µA ; 40.00/400.0 mA ±(0.5%+5) 500mA/600V Fast Fuse

4.000/10.00 A ±(1.5%+5) 10A/1000V Fast Fuse

AC Current 400.0/4000 µA ±(1.5%+5) 500mA/600V Fast Fuse

(40~400Hz) 40.00/400.0 mA ±(2.0%+5)

4.000/10.00 A ±(2.5%+5) 10A/1000V Fast Fuse

400.0Ω±(1.2%+5)

Resistance 4.000k/40.00k/400.0k Ω±(1.0%+2) 600V DC/AC rms

4.000MΩ  ±(1.2%+2)

40.00MΩ  ±(2.0%+5)

40.00nF ±(3.0%+10)

Capacitance* 400.0n/4.000µ/40.00µ F ±(3.0%+5) 600V DC/AC rms

400.0µ/4000µ F ±(20%+5)

Frequency 10.00/100.0/1.000k/10.00k/100.0k/1.000M/10.00M Hz ±(0.1%+3) 600V DC/AC rms

Sensitivity: <1MHz: 0.7Vrms ; >1MHz: 5Vrms

Duty Cycle 0.1 - 99.9% ±(2.5%+5) (<10kHz)

Diode CheckTest current : (1±0.6) mA and then open circuit voltage is 2.5VDC typical. 600V DC/AC rms

Continuity The beeper turns on <25Ωand turns off at >120Ω. 600V DC/AC rms

Temperature** -58~1500°F ±(3.0%+5) —

-50~800°C ±(3.0%+3)

*Accuracy not available for <10nF capacitance. **Accuracy is stated for meter only. Thermocouple accuracy adds another ±2.5% to reading.

Input Impedance : 10MΩfor VAC & VDC. CF > 2, add ±1.0% to accuracy.

900VDC

750VAC rms

All manuals and user guides at all-guides.com

all-guides.com

AC Voltage (V~)

DC Voltage (V )

Toggle for

Frequency

(>20% of

range)

All manuals and user guides at all-guides.com

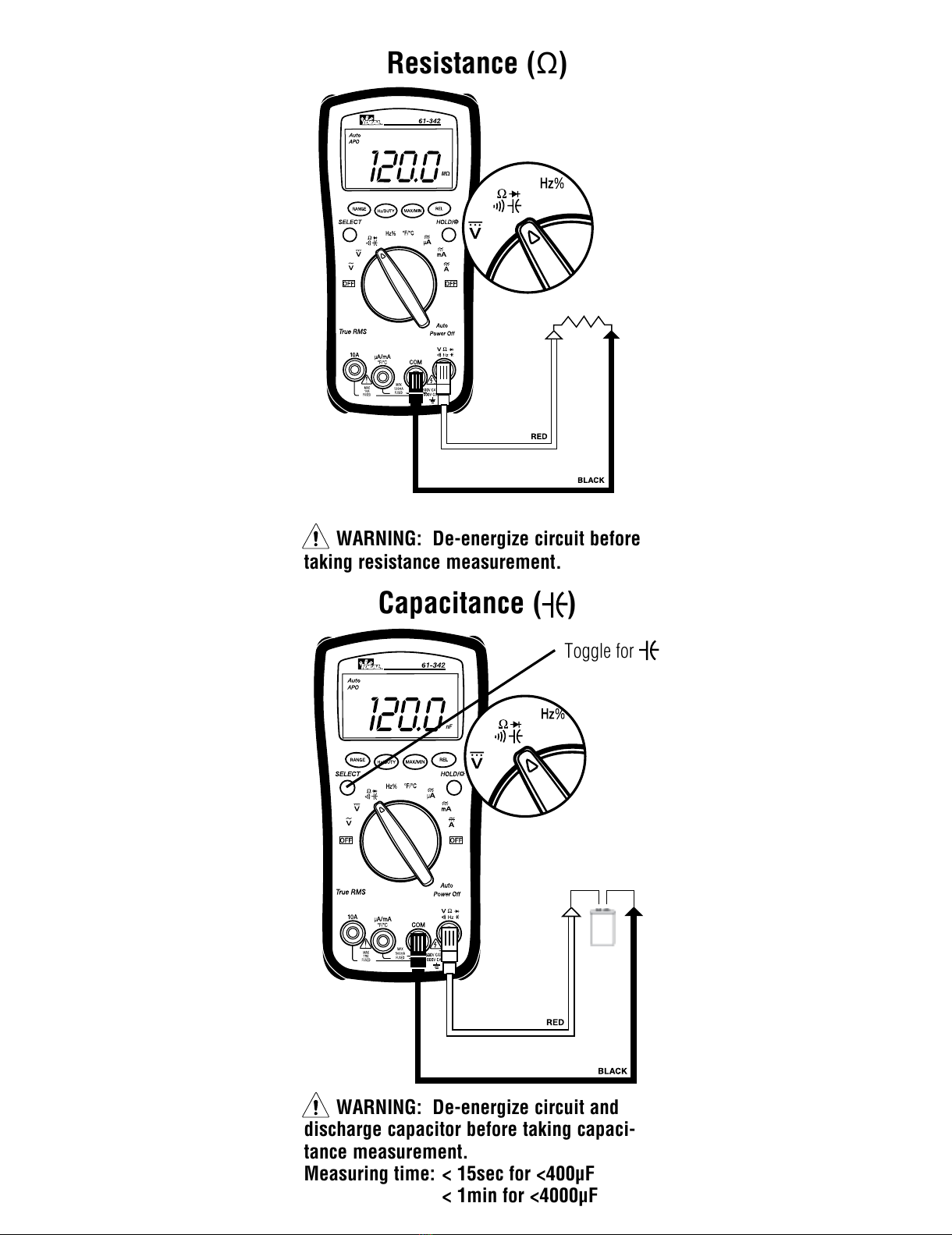

Capacitance ( )

WARNING: De-energize circuit before

taking resistance measurement.

WARNING: De-energize circuit and

discharge capacitor before taking capaci-

tance measurement.

Measuring time: < 15sec for <400µF

< 1min for <4000µF

MΩ

Resistance (Ω)

Toggle for

All manuals and user guides at all-guides.com

AC/DC Current (A

)

DC A

Closed

Circuit

Open

Circuit

Ω

WARNING: De-energize circuit first.

Toggle for

•)))

Closed

Circuit

Open

Circuit

Ω

Audible Continuity (•))))

DC A

Turn power off, break circuit, insert meter in

series, then turn power back on.

WARNINGS:

• Check fuse for continuity before testing.

• Use the proper switch position and lead

inputs.

• Never attempt to measure current on

circuits or equipment with more than

600 volts potential.

• Duty cycle: 15sec ON / 15min OFF for

10A MAX

All manuals and user guides at all-guides.com

Bad Diode

Good Diode

Ope

horted

Foward Reverse

Diode Test ( )

WARNING: De-energize circuit before

checking diode.

WARNING: To avoid electric shock, do

not place test leads or thermocouple on a

voltage source.

Toggle for

Bad Diode

Good Diode

Open Shorted

Foward Reverse

CAT II

MAX

300V

–

Temperature

Toggle for

°C

Bad Diode

Good Diode

Open Shorted

Foward Reverse

CAT II

MAX

300V

All manuals and user guides at all-guides.com
