ICRealtime ICIP-D2000-VIR Manual de usuario

1

ICIP-D2000-VIR

Quickstart Guide

Installation/Accessing

2

Index

Dimensions ……………………………………………………………………………………...3

Connections (Structure) ………………………………………………………………………..4

Installation & Focusing ………………………………………………………………………5-6

Web Operations/Accessing..……………………………………………………………......7-9

3

Dimensions

4

Connections (Structure)

1. Power Connection (Internal) – Tie in your power adapter to either AC/DC terminals

2. Power Connection (Internal) – Tie in your power adapter to either AC/DC terminals

3. Cable Pass-through – Exit ports for running you connections out from

4. RJ45 Network Port (Internal) – Tie in your network cable run directly in to this port

5. I/O Port – For alarm contacts/analog outputs/audio input and output

6. Reset Button – Resets camera to default (hold for 10 seconds)

7. Motorized Focus/Zoom Adjustment – To change the camera’s view (Focus/Zoom)

8. Indicator Light – Lets you know camera status. Green – ready. Red – booting/issue

9. Fan Connection – Direct fan connection

10. Micro SD Slot – For inserting a Mico SD Card for recording

11. AC Power Port – External power connection from your source

12. RJ45 Network Port – External RJ45 connection for network use

5

Installation

Please follow the steps listed below to install the ICIP-D2000VIR. Please refer the image above for

reference.

•Begin by unscrewing the top portion of the housing. You will then see three screws to un-

attach the mounting plate of the camera. See above.

•Please draw the installation holes in the installation surface and then mark four

expansion bolts holes in the surface. Insert four anchors in the holes and secure firmly.

•Please line up the installation holes of the bottom of the pendant mount bracket to the

installation holes in the surface. Then insert the four bolts to the holes of the bottom of

the bracket. Finally fasten the device on the installation surface.

Focusing: To focus, you will notice a small joystick inside the camera (refer to structure

images). The joystick will zoom/focus for the lens using its motorization. To adjust the

position of the lens housing, follow the guide below to loosen the surrounding screws.

6

SD Card Installation

To install a Micro SD Card in to the 2000DVIR, please refer to the picture above.

•Begin by opening the top portion of the housing. There are three hex screws at the top

•Locate the SD Card slot inside the unit. It will have ‘SD CARD’ as a notation

•Insert the Micro SD and be sure it latches inside.

•Power the unit on and you should now see your inserted card present in the storage section

of the camera to be used for internal recording. Note: If it shows ‘error’ for the status of the

card, attempt to use the ‘format’ option in that same section to be sure formatted correctly for

use. This will erase though any previous data on the card.

7

Web Operation

This series IPC product supports Web access and management via PC/Mac.

Web includes several modules: monitor channel preview, system configuration, alarm

and etc.

Network Connection

Please follow the steps listed below for network connection.

•Make sure the IPC has connected to the network properly.

•IPC IP address and PC IP address shall be in the same network segment. IPC

default IP address is 192.168.1.108. If there is router, please set the

corresponding gateway and subnet mask.

Login and Logout

Open IE and input IP camera address in the address bar.

For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108

in IE address bar.

The login interface is shown as below.

Please input your user name and password.

8

Default factory name is ‘admin’ and password is ‘admin’.

Note: For security reasons, please modify your password after you first login.

Input your IP address here.

If it is your first time to login, the system may pop up with a warning box to ask you

whether to install a web plugin. Please click OK button and the system will automatically

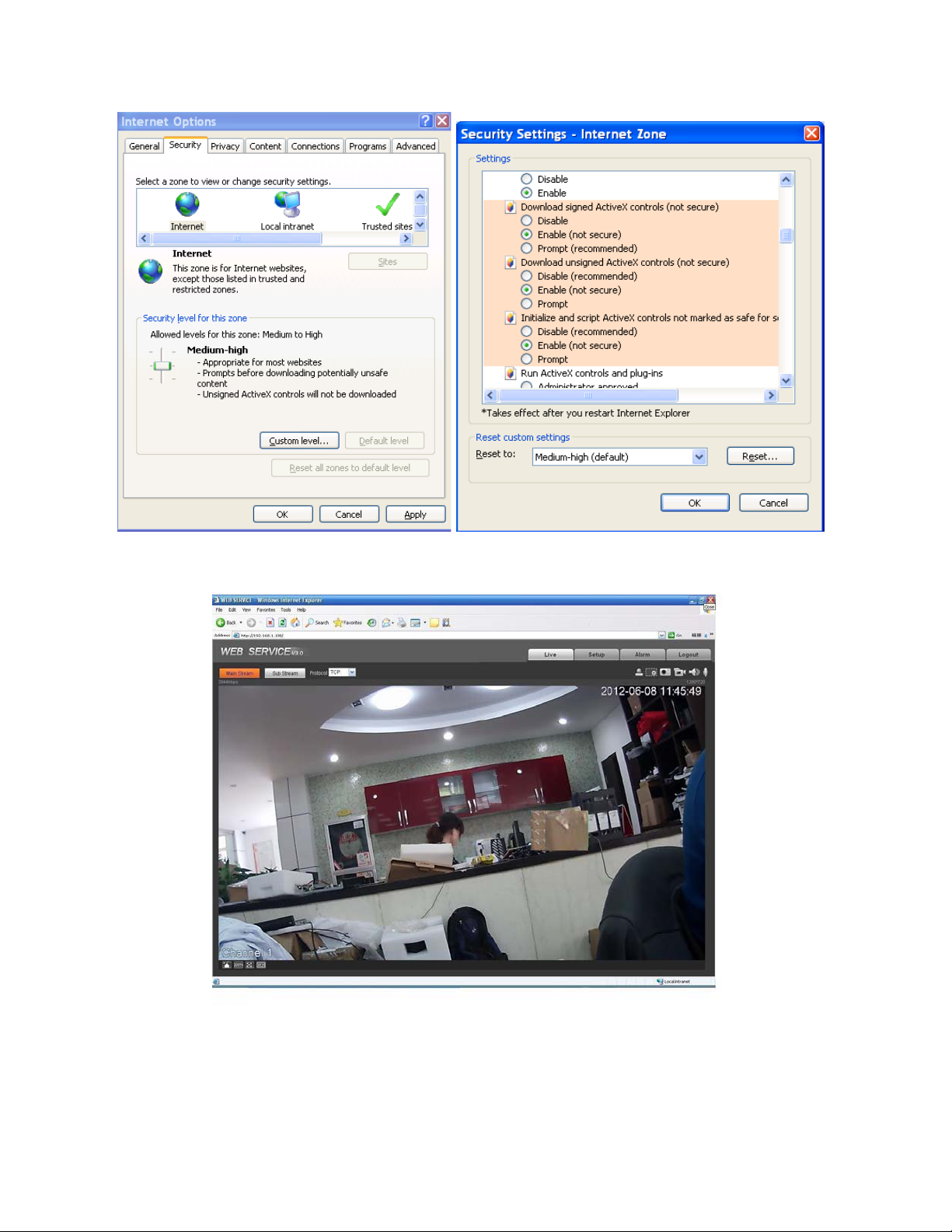

install the control plugin. If you can’t download the control file, you may need to lower

temporarily Internet Explorer’s security settings as shown below. If using browsers other

then Internet Explorer, check to verify security settings are set to allow the downloading

of plugins.

9

After you logged in, you can see the main window.
