ICRealtime AVSD2208VF Manual de usuario

HDAVS IR Vari-focal Dome Camera

User’s Manual

Version 1.0.0

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

1.3 Functions .......................................................................................................................1

2Framework and Dimensions.....................................................................................................3

3Installation....................................................................................................................................4

4Menu.............................................................................................................................................6

4.1 HDAVS Series DVR Settings .....................................................................................6

Welcome

Thank you for purchasing our HDAVS camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC （24V AC）in the IEC60950-1.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

If this product is installed in the ceiling, please make sure the installation position can sustain the min

50N.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series analog camera should be installed in a cool, dry place away from direct sunlight or strong

light, inflammable, explosive substances and etc.

This series camera shall work on the specified working temperature. Please keep it away from the

electromagnetic radiation object and environment.

Please make sure the CMOS component is out of the radiation of the laser beam device. Otherwise it

may result in CMOS optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the

mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.

Please put the dustproof cap to protect the CMOS component when you do not use the camera.

Applicable model

This manual can be applied to the following model:

AVS-D2208-VF

1General Introduction

1.1 Overview

This series megapixel HD camera conforms to the HDAVS standard. It supports video signal

high-speed long distance transmission without any delay. It can be controlled by the DVR

conforming to the HDAVS.

1.2 Features

High-performance CMOS image sensor, megapixel definition.

Support HD video and control signal coaxial transmission.

Support 75-3 coaxial cable transmission without any loss. 720P series transmission

distance over 500m, 1080P series transmission distance over 300m.

High speed, long distance real-time transmission.

Support HDAVS HD and analog SD switch output（Low-end series only support HD video

output）.

Support manual adjustment of lens zoom and focus, conduct lens focus and zoom by

adjusting the focusing nut on the upper part of the dome body, which is convenient for

users to install.

720P series support 720P@25, 720P@30, 720P@50, 720P@60 (Low-end series only

support 720P@25, 720P@30).

1080P series support 1080P@25, 1080P@30, 720P@25, 720P@30, 720P@50,

720P@60（Low-end series only support 1080P@25, 1080P@30）.

Support high performance 3D noise reduction (denoise) （Not supported by low-end

series）, excellent performance in low illumination

Support ICR switch to realize surveillance both in the daytime and at night.

Support OSD (on-screen display)（Not supported by low-end series）, suitable for user

self-defined setup.

Support DC12V power supplying.

IP66 compliance.

Support intelligent IR function, max IR distance 30m.

1.3 Functions

HDAVS Specification

HDAVS is an over-coaxial –cable HD video transmission standard. The technology renders

two HD video formats by progressive scanning.

OSD

User-friendly on-screen display for you to select the different functions.

ICR

The IR cut removal is to filter the IR light in the daytime and then auto switch to the general

fitter at night. This function allows the camera to output the high sensitivity and clear video.

Smart IR technology

The sensor controls the IR light on/off via the combination work of the hardware and software,

which realizes the automatically IR light compensation according to the environment

illumination.

3D NR

Comparing with the general 2D denoise function, the 3D denoise function can not only denoise

the brightness of the video separation signal and saturation signal, it can also denoise the

original data from CCD. It greatly enhances noise reduction performance and guarantees clear

and bright video.

2Framework and Dimensions

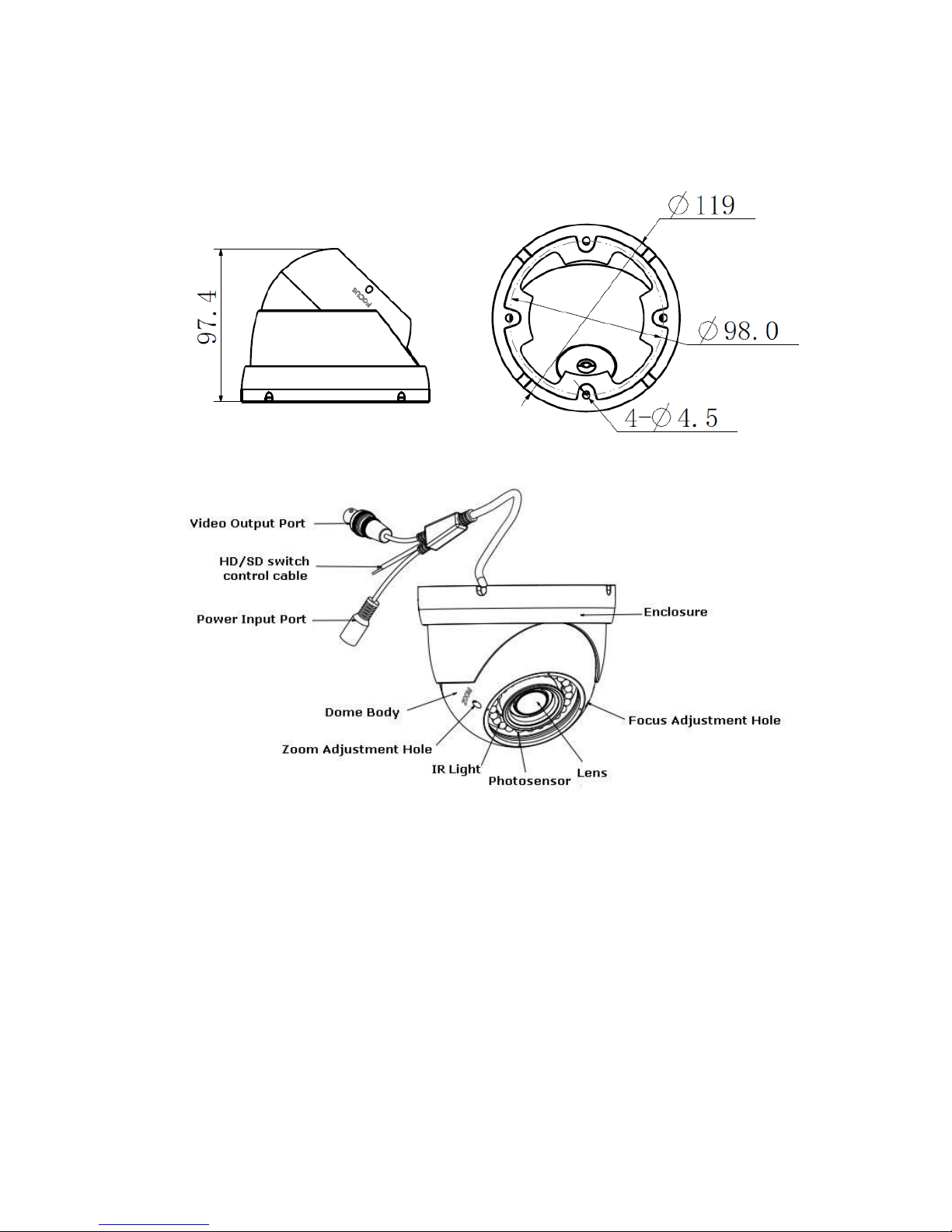

Please refer to the following figures for dimension information. The unit is mm. See Figure

2-1 and Figure 2-2.

Figure 2-1

Figure 2-2

When the standard definition/high definition switch control cable is short circuit, system

outputs standard definition video. Otherwise, when the circuit is open, system outputs the

high definition video（Low-end series supports HD output but doesn’t support SD output,

which also has no HD/SD switch control cable）.

3Installation

Important

Before the installation, please make sure the installation surface can sustain at

least 3X weight of the bracket and the camera.

Figure 3-1

Step1

Take the installation position map from the accessories bag, and stick it on the ceiling or wall

according to the cable exit, dig four holes according to the instruction on the installation

position map, then take out four expansion bolts from accessories bag and put them into the

installation holes and fix them.

Step 2

Open decoration ring and take down enclosure and dome body

Step 3

Adjust the pedestal position according to the cable exit mode (ceiling/side), Pull the cable

through the cable side exit at the installation surface and the pedestal (Please skip this step if

you want to use ceiling exit mode). Line up the screw holes at the bottom of the pedestal to the

holes of plastic expansion bolts in the installation surface. Put four self-tapping screws to

expansion bolts and then secure firmly, and fix the pedestal on the installation surface, see
