WinPAC-5000 Quick Start Guide

Version 1.0.2, August 2012

Congratulations on purchasing Win PAC - the most popular automation solution for

remote monitoring and control application. This Quick Start Guide will provide

information needed to get started with WinPAC. Please also consult the User Manual

for detailed information on the setup and use of Win PAC.

In addition to this guide, the package includes the following items:

Win PAC Module

2 GB microSD card

Software Utility CD Screw Driver

(WP-5141/WP-5141-OD)

(1C016)

2.4 mm

●WinPAC 5000 User Manual

CD:\napdos\wp-5000_ce50\Document\

http://ftp.icpdas.com/pub/cd/winpac/napdos/wp-5000_ce50/document/

●WinPAC 5000 Website

http://www.icpdas.com/products/PAC/winpac/wp-5000_selection_guide.htm

•WinPAC-5000 Quick Start Guide

Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com

-2

WinPAC-5000 Quick Start Guide

1

--------------------------------------------------------------------------------

Configuring the boot mode

Before starting any installation,

be sure that the switch is placed

in the “0” position.

2

--------------------------------------------------------------------------------

Connecting to PC, Monitor and Power Supply

i. Connect the mouse or keyboard to the USB port.

ii. Connect the microphone and earphone to the microphone-in and

earphone-out (for WP-5141-OD only).

iii. Connect PC to the Ethernet port through a hub.

iv. Connect the power supply (10 ~ 30 VDC) to PWR and GND terminals.

v. Connect the monitor to the VGAport.

Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com

-3

WinPAC-5000 Quick Start Guide

3

--------------------------------------------------------------------------------

Changing the User Interface Language

The WinPAC Utility is a toolkit used to quickly control and manage the

WinPAC.

Step 1: Run the WinPAC Utility located on desktop

Step 2: Configure IP(DHCP), FTP Server,

Auto Execution…, etc

Step 3: Save and Reboot the

WinPAC

Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com

-4

WinPAC-5000 Quick Start Guide

4

--------------------------------------------------------------------------------

Inserting and Wiring the I/O Modules

The WinPAC expansion only supports XW-board series modules.

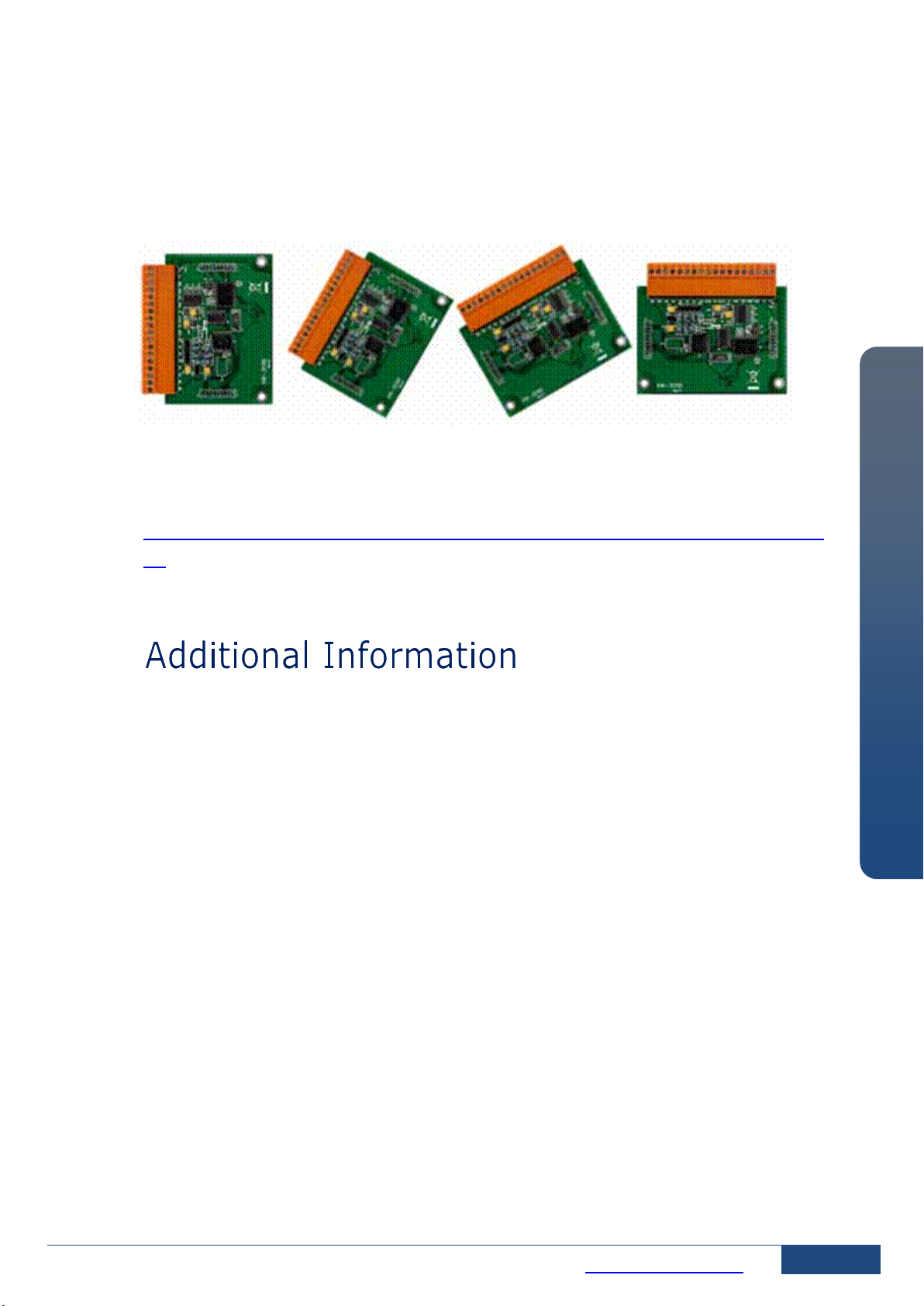

For more information about the XW-board expansion module, please refer to

http://www.icpdas.com/products/PAC/up-5000/XW-board_Selection_Guide.h

tm

After you have finished configuring your module(s), you may start to develop

your own applications. For detailed instructions and more applications, please

refer to WinPAC-5000 User Manual.
