I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

Quick Start Guide for

I-8431/I-8831/I-8431-80/I-8831-80

January 2011, Version 1.1

Congratulations on purchasing 8000 series PAC, I-8431/I-8831/I-8431-80/I-8831-80

- the most popular automation solution for remote monitoring and control application.

This Quick Start Guide will provide information needed to get started. Please also

consult the User Manual for detailed information on the setup and use of

I-8431/I-8831/I-8431-80/I-8831-80.

In addition to this guide, the package includes the following items:

8000 series PAC Software Utility CD RS-232 Cable Screw Driver

I-8431/I-8831/I-8431-80/I-8831-80 (CA-0915) (1C016)

I-8431/I-8831/I-8431-80/I-8831-80 User Manual

CD:\NAPDOS\8000\843x883x\Document\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/8000/843x883x/document/

I-8431/I-8831/I-8431-80/I-8831-80 Website

I-8431/I-8831:

http://www.icpdas.com/products/PAC/i-8000/i-8431-i-8831.htm

I-8431-80/I-8831-80:

http://www.icpdas.com/products/PAC/i-8000/i-8431-80-i-8831-80.htm

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

----------------------------------------------------------------------------------

Mounting the I-8431/I-8831/I-8431-80/I-8831-80

The PAC installation must provide proper ventilation, spacing, and

grounding to ensure the equipment will operate as specified. A minimum

clearance of 50mm between the PAC and the top and bottom side of the

enclosure panels must be provided.

----------------------------------------------------------------------------------

Connecting to PC and Wiring to Power Supply

The PAC has a power input to receive input power from a power source, and

a RS-232 interface to connect to PC.

i. Connect the positive of the power supply to the PAC terminal labeled (+Vs)

and connect the negative of the power supply to the PAC terminal labeled

(GND).

ii. Connect the serial port of the PC to the COM1 of the PAC using the

CA-0915 that came with the package.

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

----------------------------------------------------------------------------------

Inserting and Wiring I/O Modules

There are various types of I/O expansion modules for interfacing

many different field devices to the PAC system.

For more information about I/O expansion module, please refer to

http://www.icpdas.com/products/PAC/i-8000/8000_IO_modules.htm

These modules have their own manuals, so if you are using them you should

supplement this manual with the manual specifically designed for the special

module.

----------------------------------------------------------------------------------

Installing the DCON Utility

DCON Utility is an easy-to-use tool designed for communicating with DCON

protocol I/O modules.

Step 1: Get the DCON Utility

The DCON Utility can be obtained from companion CD or our FTP site:

CD:\Napdos\8000\NAPDOS\Driver\DCON_Utility\setup\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

Step 2: Follow the prompts to complete the installation

After the installation has

been completed, there

will be a new short-cut for

DCON Utility on the

desktop.

----------------------------------------------------------------------------------

Using DCON Utility to Set the I/O Modules

To set the I/O modules, a communication must be made with the PAC via

DCON Protocol. The DCON Utility is the DCON Protocol Utility that can

used to make the communication between the PAC and PC.

Step 1: Run the DCON Utility

Double-click the DCON

Utility shortcut on your

desktop.

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

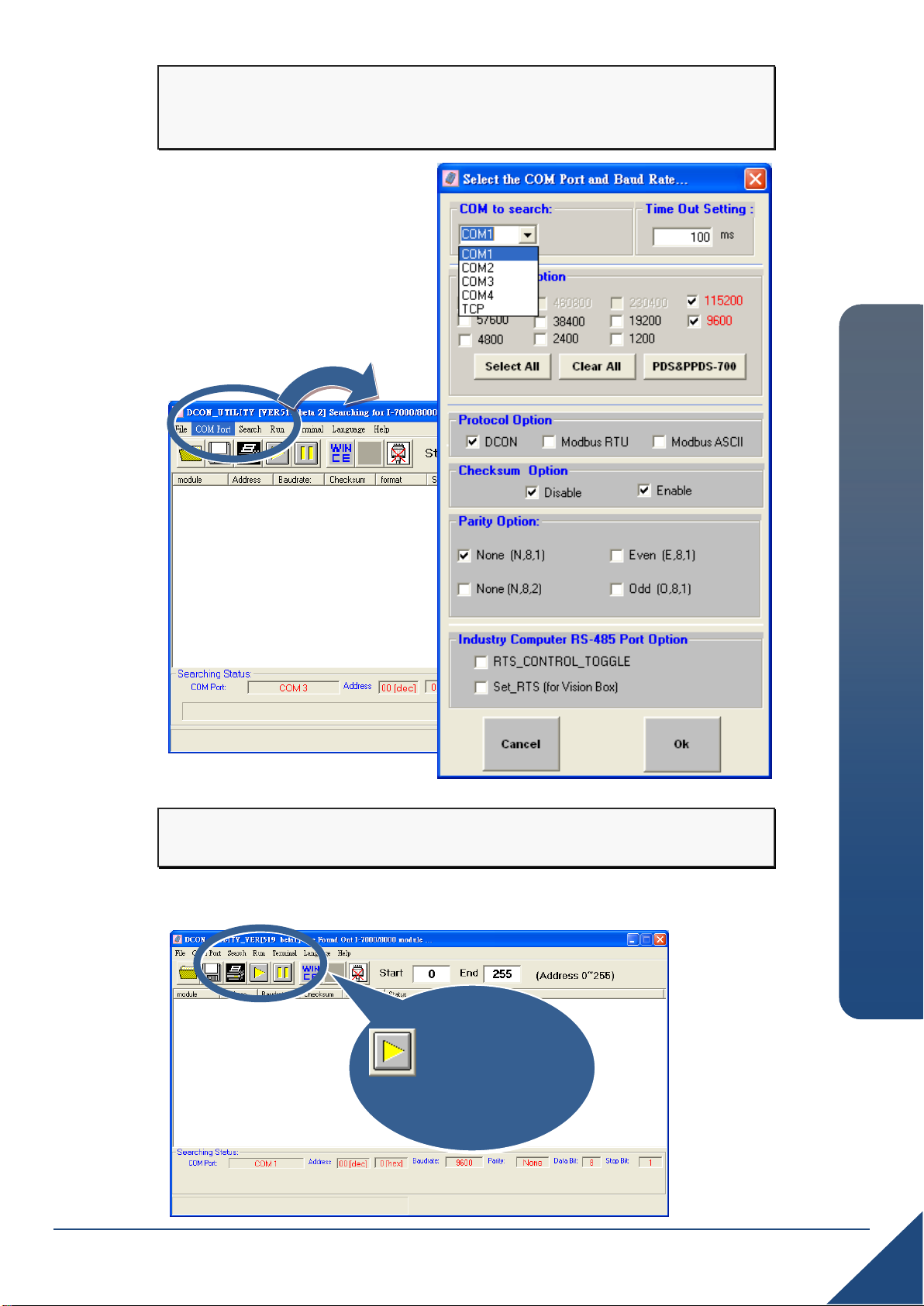

Step 2: Select COM port number which is used for

connection

i. Click “COM Port” from the

menu, a dialog box will

appear.

ii. In the dialog box, select

COM port number which is

used for connection

between PAC and PC.

Step 3: Search the I/O Modules

Click “Start Search” button from the toolbox to search the I/O modules.

Start Search

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

Step 4: Click on the name of the module to enter the

configuration form, and then set the I/O module

After searching has been completed, that will display a list of the PAC and its

expansion I/O modules.

i. Click on the name of the module to enter the configuration form.

ii. Set the configuration parameters of I/O modules.

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

----------------------------------------------------------------------------------

Developing Your Own Application

After you have finished configuring the I/O modules, then you can start

developing your own applications

Here are some development guideline and tips related to the PAC.

Being a Programmable Controller (Master)

●I-8431/I-8831/I-8431-80/I-8831-80 User Manual

CD:\Napdos\8000\843x883x\Document\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/8000/843x883x/docume

nt/

●I-8431/I-8831/I-8431-80/I-8831-80 Demo Program

General function:

CD:\Napdos\8000\841x881x\demo\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/8000/841x881x/docume

nt/

Ethernet function (for XServer and TCP application):

CD:\Napdos\8000\843x883x\TCP\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/8000/843x883x/tcp/

●MiniOS7 API and the Particular 8K Module Reference Manual

CD:\Napdos\MiniOS7\Document\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/minios7/document/

Being a Remote Slave I/O unit (Slave)

●I-8430/I-8830 User Manual

CD:\Napdos\DCON\8430_8830\Documents\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/dcon/8430_8830/docum

ents/

I-8431/I-8831/I-8431-80/I-8831-80 Quick Start Guide

The Reference Manual for the Supported I/O Module

●I-8K and I-87K Series I/O module Reference Manual

CD:\Napdos\DCON\IO_Module\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/dcon/io_module/

Tips & Warnings

The PAC has programs installed that start up automatically

when you start-up the PAC. When you want to set the PAC,

you will have to initialize the PAC if there are any programs

that start up automatically before you start-up the PAC.

Connect the INIT* and the INIT* COM
