ICP DAS USA TZT-P4C4 Manual de usuario

Technical support: service@icpdas.com P1

tZT-P4C4 Quick Start

v1.0, February. 2018

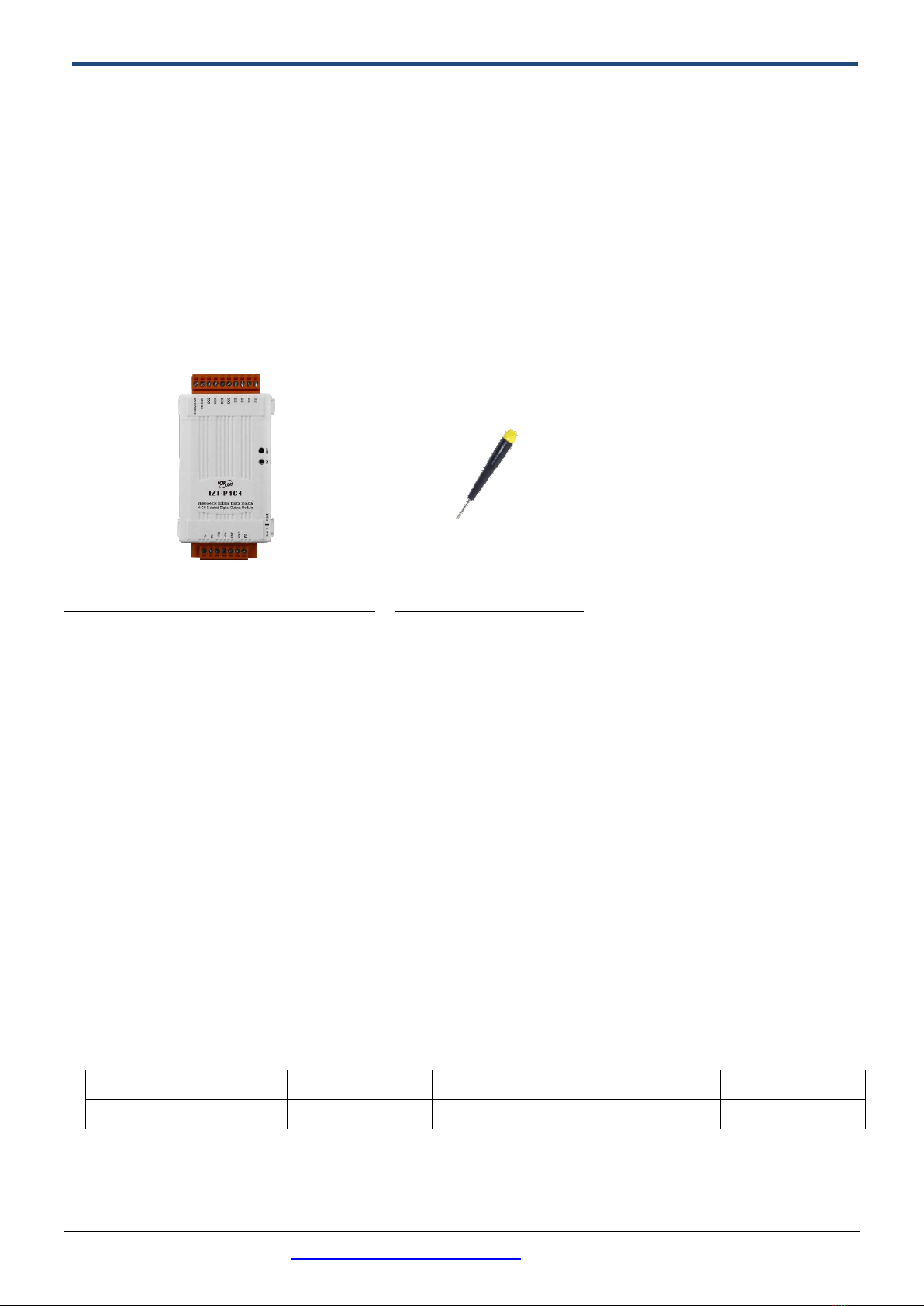

1 What’s in the box?

Without “Quick Start”, The package includes the following items:

tZT-P4C4

Screw Driver

2 Introduction to the Configuration Parameters

1) Pan ID：

group identity for a ZigBee network, and must the same for all devices

in the same ZigBee network. (Setting Range : 0x0000~0x3FFF)

2) Address/Node ID：

distinguish identity of a specific the ZigBee module, and must be

unique for each device connected the same ZigBee network.

(Setting Range : 0x01~0xFF)

3) RF Channel：

indicates the radio frequency channel, and must be set to the same

value as other modules on the same ZigBee network.

Channel

0x00

0x01

……

0x0F

Frequency(MHz)

2405

2410

……

2480

RF channels 0x04, 0x09, 0x0E or 0x0F are recommended because they

do not overlap with the Wi-Fi frequencies based.

Technical support: service@icpdas.com P2

3 Preparation

1) Turn the switch to “Init”

2) Connect tZT-P4C4 module.

i. Open DCON Utility and use ZT-2000 Coordinator connect

Default Parameter：

Protocol

DCON

CheckSum

Disable

PAN ID

0x1234

Node ID

0x01

RF Channel

0x0E

RF Power

0x07

ii. Use RS-232

3) Power supply range：+10 ~ +30 VDC

4 Communication Test

As the ZigBee network is controlled by the ZigBee coordinator, the

ZT-2550/ZT-2570 (ZigBee coordinator) must be configured first. Please

refer to documents shown below for full details of how to configure these

devices.

Once configuration of the ZigBee coordinator has been completed.

Set the ”Pan ID” and the “RF Channel” values for the tZT-P4C4 to the

same values as the network, and then reboot the device. The module

will automatically start to function on the ZigBee network using the

default protocol.

※ Documents

http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/document/zt-255x/

http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/document/zt-257x/

※ Configuration Utility (Used to configure ZT-2000 I/O device Coordinator)

http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/utility/

Technical support: service@icpdas.com P3

5 Communication Test

Once the tZT-P4C4 has joined the ZigBee network, the signal quality

can be confirmed by monitoring the status of the ZigBee Net LED

indicators. If the LED indicator shows a steady light, communication with

the tZT-P4C4 has been successfully established for data acquisition and

control.

ICP DAS also provides the “DCON Utility”, which can be used to

simulate DCON/Modbus communication. This software can also be

used to verify the device settings and ZigBee I/O functions.

※ The DCON Utility can be download from:

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

Simulate I/O channel operating via using DCON Utility

1) Launch DCON Utility and select the correct COM Port settings to

connect the ZigBee Coordinator (ZT-2550/ZT-2570).

2) Clicking “Search” button will start searching which tZT-P4C4 is in

the same ZigBee network.

3) If there is any tZT-P4C4 displayed, double clicking the “module

name” will start the I/O channels operated platform.

Technical support: service@icpdas.com P4

6 Troubleshooting

1. Technical Support

If you have any difficulties using your tZT-P4C4, please send a

description of the problem to servi[email protected] Include the

following items in your email:

A. Set the DIP switch of the ZT-255x device to the [ZBSET] position

then reboot the device. Launch the ZT Configuration Utility and

select [Save Log] icon to save the configuration of the ZT-255x as

a file.

B. After clicking the [Save Log] icon, enter the “File Name” and the

“File Path” in the Windows “Save” dialog box. Once the

configuration has been successfully saved, the following message

will be displayed.

2. LED Indicator Status:

LED Indicator

Status

Introduction

ZBNet

(Green LED)

ZigBee Coordinator (Master)

Steady Lit

ZigBee Net is set up correctly

Blinking to Steady Lit

Already have same ZigBee

network or rejoin ZigBee network

ZigBee Router (Slave)

Steady Lit

The Signal is Strong

Blinking (500ms)

The Signal is Available

Blinking (1s)

The Signal is Weak

Blinking (2s)

The Signal is Unstable or There is

no Available

ZigBee PWR

(Red LED)

The status of module board

Steady Lit

The Power is ON and the Module

Initialization is Correct

Blinking (200ms)

Module Initialization Failure

Blinking (1s)

Watchdog is Enabled and the

status of the I/O channel

has been changed to the Safe

Value. Reset the module

via the power switch or

configuration commands.

Steady Unlit

The Power is OFF
