I-Tech NK2e Manual de usuario
User Manual
NK2e / NK2b
1U Short Depth Keyboard Drawer
i-Tech Company LLC
Contents
< Part. 1 > NK2e / NK2b
1.1 Package Content P.1
1.2 Structure Diagram & Dimension P.1
1.3 Installation P.3
1.4 Connection P.4
< Part. 2 > Specifications
2.1 Keyboard / Mouse Specifications P.5
2.2 Environmental Conditions P.8
P. 1
NK2e or NK2b unit X 1
- Pair of L-bracket with fastener screws X 1
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
2
1
4
Adjustable rear mounting L-bracket
104-key keyboard
Mouse interchangeable module kit
Carry handle to release the 2-pt lock
1
2
3
4
3
< Part 1 > NK2e / NK2b
< 1.1 > Package Content
< 1.2 > Structure Diagram
P. 2
NK2e / b
Front View
< 1.2 > Dimension
Side View
UNIT : mm
1mm = 0.03937 inch
Top View
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H) Net Weight Gross
Weight
NK2e / NK2b 441.6 x 400 x 44 mm
17.4 x 15.7 x 1.73 inch
582 x 500 x 100 mm
22.9 x 19.7 x 3.9 inch
8.6 kg
18.9 lb
10.1 kg
22.2 lb
* All dimensions stated are subject to change if options are selected / integrated to base model part codes
Rear View
KB / MS
Power
P. 3
■Install left & right rear L-brackets with two fasteners
shown above.
■Leave the fasteners slightly loose.
■Measure the depth of the front and rear mounting
rails.
■Align each rear L-bracket to a suitable length and
tighten the fasteners.
■Fix the keyboard drawer into the rack.
M6 mounting screws & cage nuts are not provided.
Step 1
Step 2
Step 3
< 1.3 > Installation- How to install L-bracket
P. 4
NK2e / b
Caution : The keyboard drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables
while servers and KVM are powered on may cause irreversible damage to the servers, KVM and
keyboard drawer. Before attempting to connect anything to the keyboard drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the
keyboard drawer is receiving power. The company is not responsible for damage caused in this way.
< 1.4 > Connection to USB Server
< 1.4 > Connection to external KVM
Keyboard Drawer
Keyboard Drawer
USB server
USB console KVM
attached 2-in-1
K/B cable
USB
attached 2-in-1
K/B cable
P. 5
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
OS support Windows / Linux / Unix / Mac OS
G keyboard integrated with trackball
Gb
G keyboard integrated with touchpad
Ge
< Part 2 > Specifications
< 2.1 > Standard Keyboard / Mouse Specifications
Supporting layouts
America
United States
EMEA
United Kingdom Germany France Spain Italy
Asia
Japan Korea
P. 6
NK2e / b
MAC keyboard integrated with trackball
Mb
MAC keyboard integrated with touchpad
Me
How to Use "MAC" Keyboard
Keyboard Features
F1
Decrease display brightness
F9
Fast-forward
F2
Increase display brightness
F10
Mute sound
F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
F11
Decrease volume
F4
Dashboard
F12
Increase volume
F7
Rewind Eject disc
F8
Play / Pause Command
Supporting layouts
America
United States
< 2.1 > MAC Keyboard / Mouse Options
P. 7

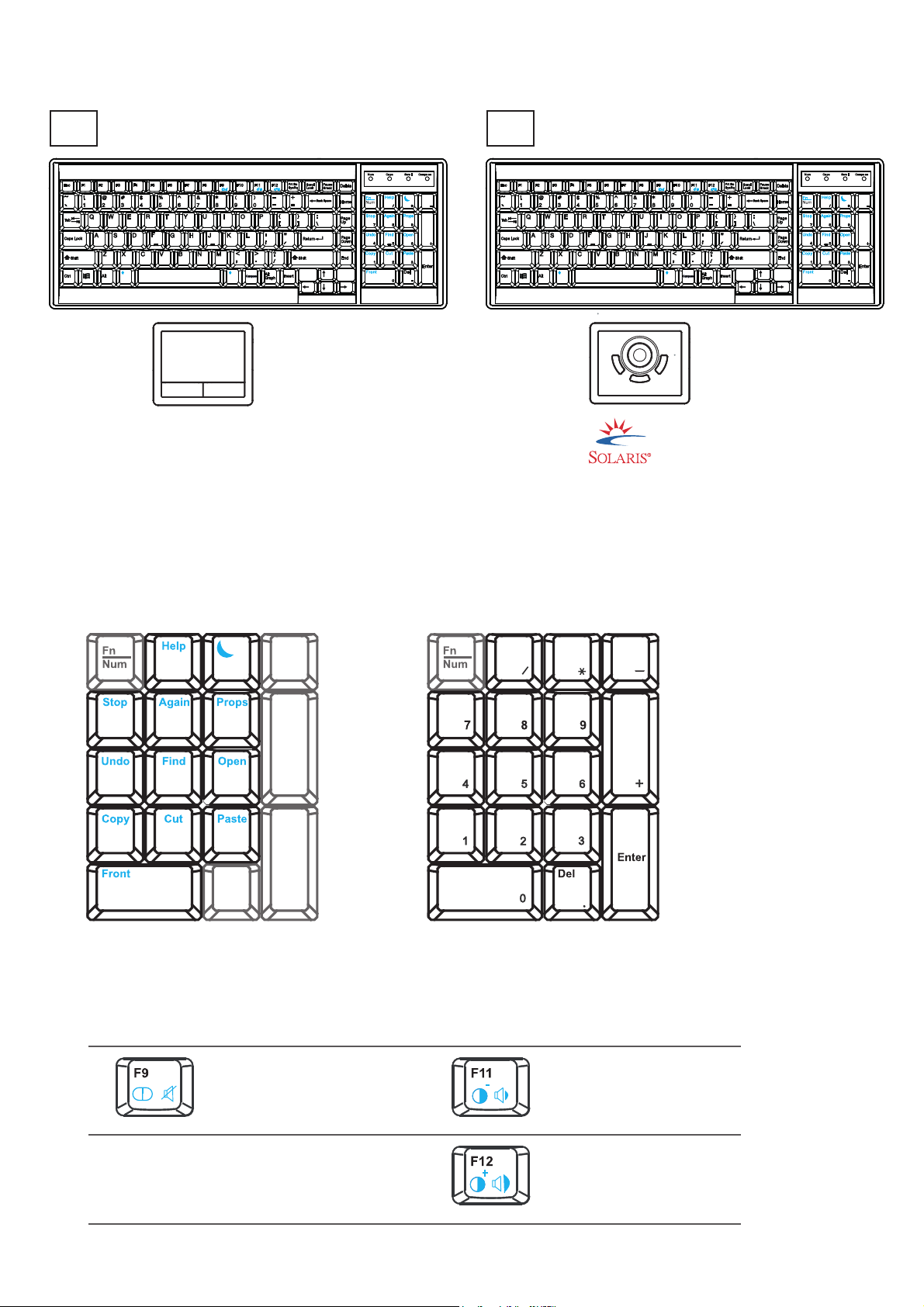

< 2.1 > SUN Keyboard / Mouse Options
Audio / Display Keys * Please ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Num Cap s Scro ll Comp oseNum Cap s Scro ll Comp ose
GS keyboard integrated with trackball
GSb
GS keyboard integrated with touchpad
GSe
■Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■104 key notepad keyboard with full numerical pad and SUN function
■USB interface
■US layout only
GS keyboard integrated with touchpad / trackball
Num LED in Offmode
Key pad behaves as a SUN Solar
system administration command mode
How to Use "GS" Keyboard
P. 8
NK2e / b
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
< 2.2 > Environmental Conditions
