HyperX HX-HSCSC-BK Manual de usuario

User Manual

HyperX Cloud Stinger Core Headset

Find the language and latest documentation for your HyperX Cloud Stinger Core Headset here.

HyperX Cloud Stinger Core Headset Installation Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en Español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en Français

. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano

............Por as instruções em Português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim

. . . . . . . . . . . . . . . . . . Для инструкции на Pусском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Korean

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 1 of 9

HyperX Cloud Stinger Core Headset

Part Numbers:

HX-HSCSC-BK

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 2 of 9

TABLE OF CONTENTS

Overview..................................................................................................................................3

In-line audio control operation..................................................................................................4

Usage (PS4™ & PS4™ Pro)....................................................................................................5

Usage (Xbox One™)................................................................................................................6

Usage (Nintendo Switch™)......................................................................................................7

Usage (mobile device) .............................................................................................................8

Headset Specifications.............................................................................................................9

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 3 of 9

Overview

A. Headband adjustment slider

B. Rotating noise cancellation mic

C. In-line audio control

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 4 of 9

In-line audio control operation

The in-line audio control contains a volume wheel to adjust the headphone output volume and

a microphone mute slider to mute the microphone.

To increase the headset volume, rotate the volume wheel clockwise (towards the + sign). To

reduce the volume, rotate the volume wheel anticlockwise (towards the – sign).

To mute the microphone, slide the microphone mute button to the down position. To activate

the microphone, slide the microphone mute button to the up position.

Microphone

Active

Microphone

Mute

Headphone

Volume

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 5 of 9

Usage (PS4™ & PS4™ Pro)

To use the headset with PlayStation™4 (PS4™), connect the 3.5mm plug on the headset

directly to the PS4™game controller and follow these steps:

1. Turn on your PS4™game console.

2. Navigate to the ‘Settings’ menu and select it.

3. Highlight the ‘Devices’ menu option and select it.

4. Scroll down to ‘Audio Devices’ and select it.

5. Choose ‘Output to Headphones’ and select ‘All Audio’’.

Using with PS4™

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 6 of 9

Usage (Xbox One™)

To use the headset with Xbox One™, connect the 3.5mm plug on the headset directly to the

3.5mm jack on the Xbox™One controller

*If your Xbox One™controller does not have a 3.5mm jack, you will need the Xbox One™Stereo

Headset adapter (sold separately) that plugs into the Xbox One™controller (pictured below).

Using with Xbox One™

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 7 of 9

Usage (Nintendo Switch™)

To use the headset with Nintendo Switch™, connect the 3.5mm plug on the headset directly to

the 3.5mm jack on the Nintendo Switch™.

Using with Nintendo Switch™

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 8 of 9

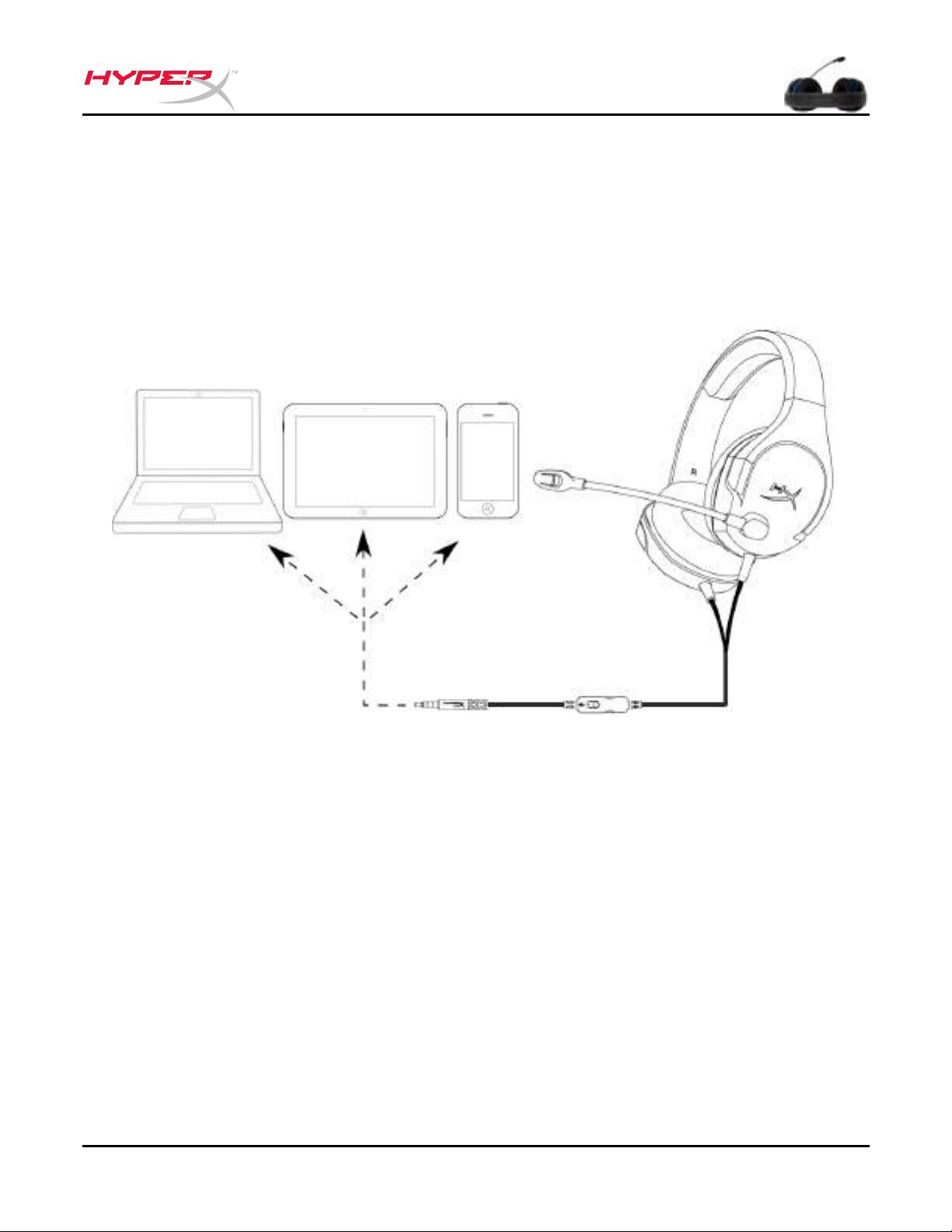

Usage (mobile device)

To use the headset with a mobile device (or other device) with a headset jack (4 pole CTIA),

connect the 3.5mm plug directly into the headset jack on your device.

Using with mobile device (phone, tablet or notebook)

Document No. 480HX-HSCSC001.A01

HyperX Cloud Stinger Core Headset

Page 9 of 9

Headset Specifications

Headphone

Driver: Dynamic, 40mm with neodymium magnets

Type: Circumaural, closed back

Frequency response: 20Hz-20,000Hz

Impedance: 16 Ω

Sound pressure level: 99dBSPL/mW at 1kHz

THD: < 2%

Weight: 215g

Cable length and type: Headset (1.3m)

Connection: Headset - 3.5mm plug (4 pole)

Microphone

Element: Electret condenser microphone

Polar pattern: Noise-cancelling

Frequency response: 50Hz-18,000 Hz

Sensitivity: -41.5dBV (0dB=1V/Pa,1kHz)
