Hussmann IMPACT RL Manual de usuario
PARTS LIST
Item Quantity Description
RL/RM RLN RLNI
RM/RMF RMN RLNIE RLT
1.2242Donut Gasket
2.1122Gasket, 1 x 1/2 x 180 in.
3.1121Gasket, 1/2 x 1/4 x 180 in.
4. 6 6 12 6 Cap Screw 5/16 -18 x 11/4
5. 6 6 12 6 Split Lock Washers 5/16
6.1121Joint Molding
7. 5 5 10 5 Binder Post and Screw
8.1121Splice Connector
Merchandisers
®
RL / RM / RMF, RLT
RLN / RMN / RLNI / RLNIE
Joining Instructions
Reach-in Merchandisers
NOTE: Be sure first merchandiser
has been leveled according to the
main installation instruction.
Carefully unpack and inspect the
joining parts listed above to verify
completeness and that there is no
damage.
1Prepare cases for joining (both
sides of islands) as shown in
Figure 1.
A. Remove bumpers, rails,
packing materials, and splash-
guards from the both cases.
B. Remove shelves (if
installed).
C. Remove display racks and
pans from ends to be joined.
D. Remove rear shelf supports.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 1
Splashguard brackets must
be installed before piping
or wiring case.
B
A
CD
E
C
Figure 1. Prepare Cases
Bumper
Bumper
Retainer
Splashguard
SIDE VIEW
Raceway
A
Bumper
Bumper
Retainer
Splashguard
SIDE VIEW
A
RLT
P/N 0387177F
October 2005
E. Remove back panels from
ends to be joined by lifting up
and out near the bottom. No
tools are necessary. The RLT
models have upper and lower
back panels that must be
removed.
F. Remove joint molding from
any door frames that will be
joined to another case.
G. RLNI Only: Remove screws
and interior top panel on both
sides of the island case end to
be joined (see Figure 1).
Merchandisers
®
P/N 0387177F
2HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
E
GG
RLNI Only
Alignment Pin
F
E
RL / RM / RMF
RLN / RMN
and RLNI
RLT
2Locate and remove the shipping
block in the center of the heat
exchanger in the interior bottom
of each case, see Figure 2.
Snap a chalk line on the floor to
use as a guide for positioning
the front of the cases in the line-
up. The front base frame should
be on the chalk line.
3Once cases are close to final
placement, remove the shipping
braces from the ends to be
joined, see Figure 3. Discard
bolts and flat washers used to
hold shipping braces. Bolts
are too long to be used for
joining.
P/N 0387177F
Reach-in Joining Instruction
3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Figure 2. Remove Shipping Block
(One From Each Side of Island Models)
Shipping
Block
RMN
RLNI / RLNI
Figure 3. Remove Shipping Braces
DO NOT USE SHIPPING BOLTS TO JOIN CASES!
Shipping Brace
Merchandisers
®
P/N 0387177F
4HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Factory Installed
Nut Retainer
RL / RM / RMF
and
RLN / RMN
4If not already installed make
sure Nut Retainers and
Alignment Pins are in place in
the right end frame as shown in
Figure 4A or 4B.
Factory Installed
Nut Retainer
RLT has no
Alignment Pin
RLT
Figure 4A. Verify Nut Retainer Installation
P/N 0387177F
Reach-in Joining Instruction
5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Alignment Pin Alignment Pin
RLNI

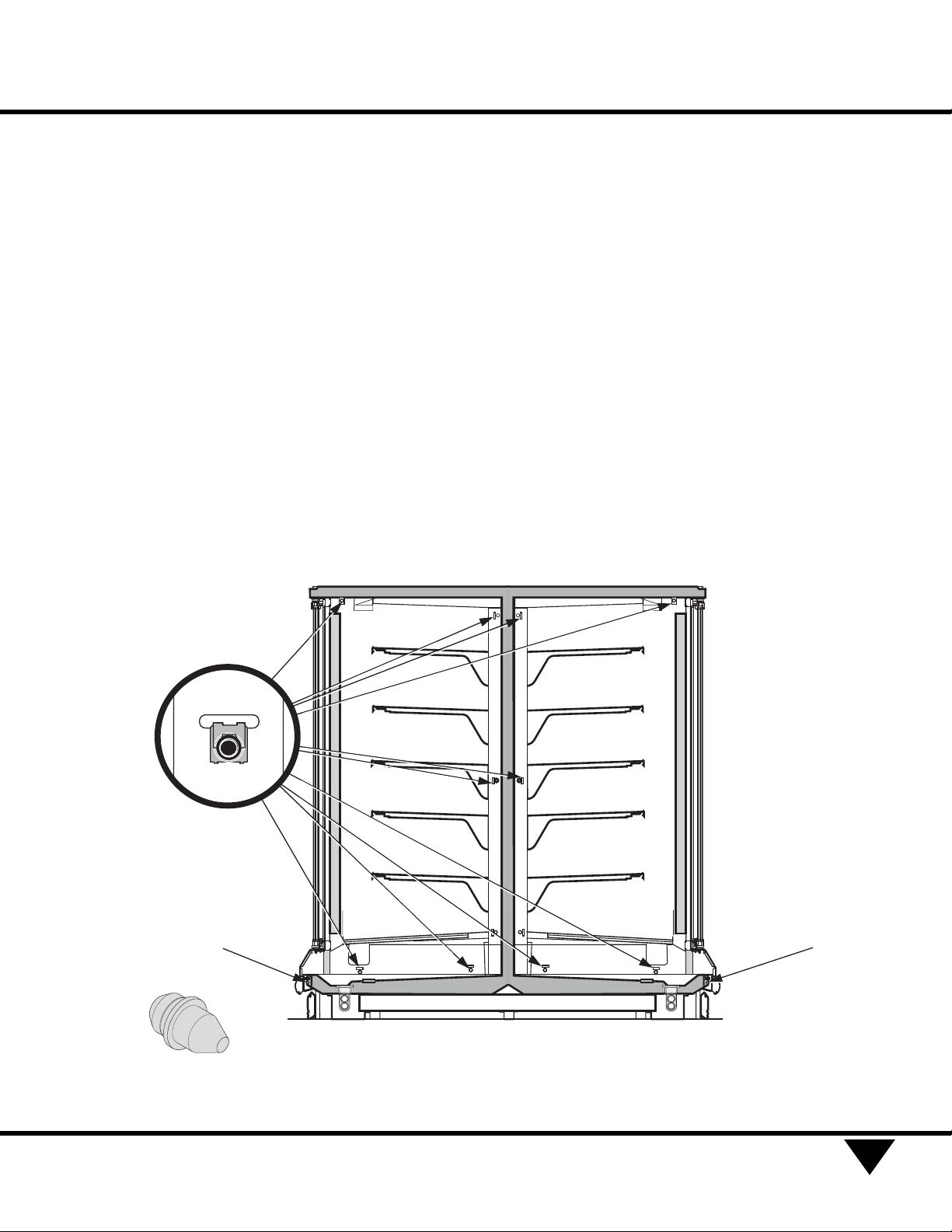

Figure 4B. Verify Nut Retainer Installation
5Apply Donut Gasket – 1 in
recess around both left end as
shown in Figure 5A, Part 1; 5B
or 5C, Part 1, and right end
frames as shown in Figure 5A,
Part 2; 5B or 5C, Part 2.
Apply the wider Foam Tape
Gasket — 2 around the right
end frame as shown in Figure
5A, Part 2, 5B or 5C, Part 2.
Merchandisers
®
P/N 0387177F
6HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Figure 5A, Part 1. Apply Gasket to Left End of RL/RM/RMF and RLN/RMN
Donut
1
1
RL / RM / RMF
and
RLN / RMN
Apply the narrower Foam Tape
Gasket — 3 around the
perimeter of the right end frame
outside of the donut gasket as
shown in Figure 5A, Part 2, 5B
or 5C, Part 2.
• Lap gaskets at lower corners.
• Check that there are no gaps
between gasket and case.
• Do not stretch gasket,
especially around corners. To
make sharp corners, paper
backing can be torn without
removing from gasket.
• Do not butt gaskets; always
lap joints.
• Remove paper backing after
gasket is applied to keep gasket
free of debris.
• Gasket has high tack
adhesive and must be properly
placed the first time.
P/N 0387177F
Reach-in Joining Instruction
7
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
1 in. x 1/2in.
Donut
1
2
1/2in. x 1/4in.
3
Make sure area where raceway attaches to end frame
is sealed with the wider 1 in. x 1/2in. gasket.
2
1
3
Figure 5A, Part 2. Apply Gaskets to Right End of RL/RM/RMF and RLN/RMN
RL / RM / RMF
and
RLN / RMN
ALL MODELS:
Apply gasket
between wipes.
NOTES:
1. The perimeter gasket, ITEM 3,
is required by NSF.
2. Butyl is NOT an acceptable
substitute for donut or foam
gasket.
Merchandisers
®
P/N 0387177F
8HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Figure 5A. Apply Gaskets to Left End of RLNI
Gaskets
Must Be
Applied As
Shown
1
Donut
1
RLNI
P/N 0387177F
Reach-in Joining Instruction
9
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Gaskets
Must Be
Applied As
Shown
2
Make sure area where raceway attaches to end
frame is covered with wider 1 in. x 1/2in. gasket.
3
1
1 in. x 1/2in.
Donut
1
2
1/2in. x 1/4in.
3
Figure 5B. Apply Gaskets to Right End of RLNI
RLNI
Merchandisers
®
P/N 0387177F
10 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Figure 5C, Part 1. Apply Gasket to Left End of RLT
Donut
1
1
