Hussmann SSGT Manual de usuario

T'Stat Bulb

Location

(Optional

Lights)

P/N 0420065A

SSGT

Data Sheet Set

P/N 0420065A

NSF®Certified

May, 2003

Merchandisers

Note: Changed items have been underlined.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 0404551 Fan Motor, Ambient (120V) (1)

0404552 Fan Motor, Ambient (220V)

B. 0137880 Optional Adjustable (2)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

C. 0355716 Ballast, Electronic, 2 lamps

(120V) (3)

C. 0355398 Ballast, Electronic, 3 lamps

(120V) (4)

C. 0440215 Ballast, Electronic, 2 lamps

(230V 50-60 Hz) (3)

C. 0428652 Ballast, Electronic, 3 lamps

(230V 50-60 Hz) (4)

0385104 Ballast Transformer

(230V 50-60 Hz, per ballast)

D. Fluorescent Lamp (5)

Replace with like fixtures

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. SSGT Data Sheet

2 of 6

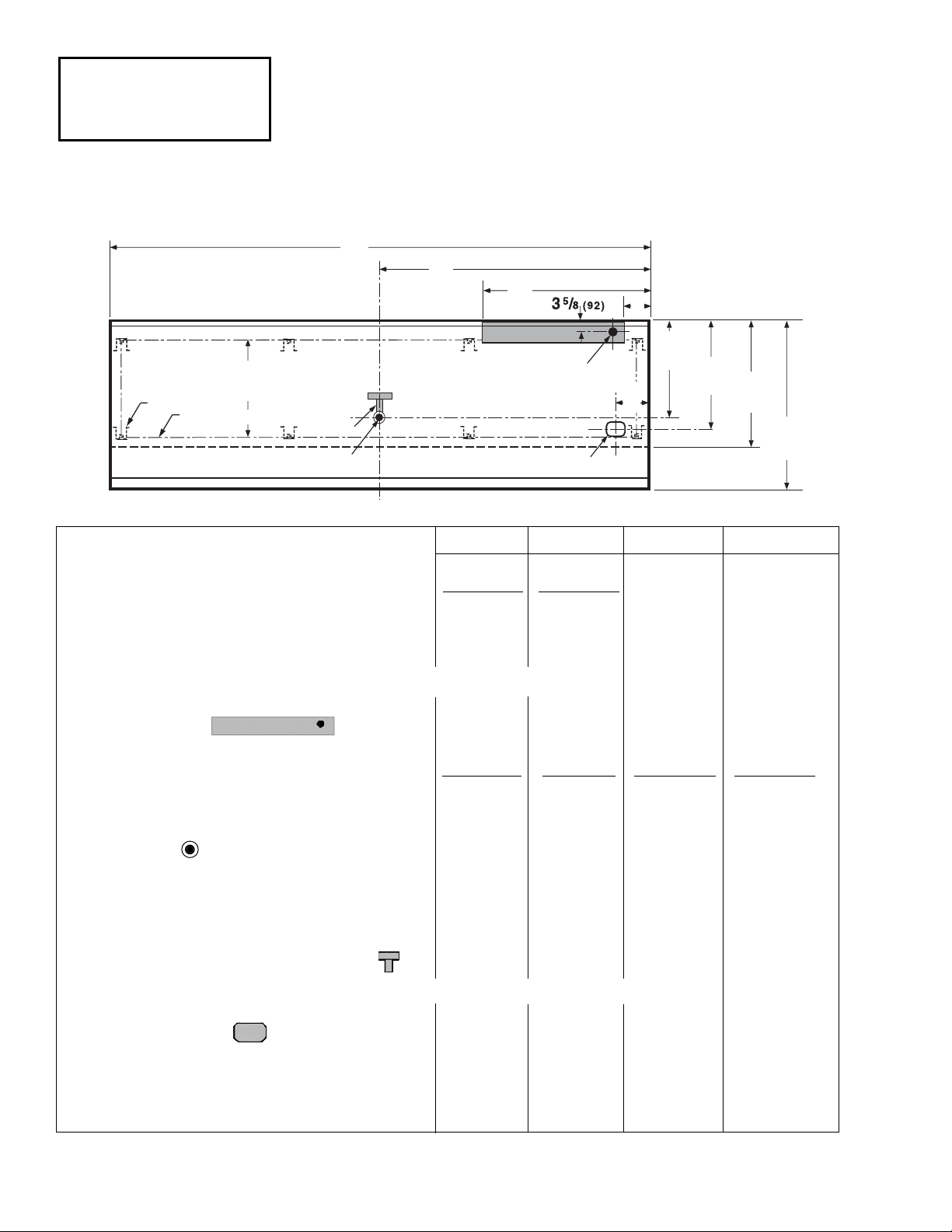

Engineering

Plan Views

(See Note*)

255

(651)

5/8

(651)

Legs

283

(730)

Front

Refrigeration

Outlet

Water Seal

Waste Outlet

Leg Center Lines

Electrical

5/8

(1133)

333

(849)

(See Note**)

SMBT

SMGT

SSGT

Seafood

Flat Hinged Glass

Models

Dimensions shown as in. and (mm).

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length* 48 1/4 (1226) 72 1/4 (1835) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front 44 5/8(1134) 44 5/8(1134) 44 5/8(1134) 44 5/8(1134)

(Note: Includes bumper)

Back of case to front of splashguard 33 3/8(848) 33 3/8(848) 33 3/8(848) 33 3/8(848)

Center of rear legs to center of front legs 25 5/8(651) 25 5/8(651) 25 5/8(651) 25 5/8(651)

Each End and Partition adds 1 1/2in. (38 mm) to the length of the lineup.

Electrical Service

(B) RH end of case to Electrical raceway right edge 7 (178) 7 (178) 7 (178) 7 (178)

Back of case to center of knockout 3 5/8(92) 3 5/8(92) 3 5/8(92) 3 5/8(92)

* Electrical Field Wiring Connection Point

Waste Outlet

(D) RH end of case to the center of waste outlet 24 (610) 24 (610) 24 (610) 24 (610)

Back of case to center of waste outlet 25 5/8(652) 25 5/8(652) 25 5/8(652) 25 5/8(652)

Water Seal

Center of tee to center of waste outlet 11 3/8(289) 11 3/8(289) 11 3/8(289) 11 3/8(289)

Outside diameter of drip piping 1 1/2(38) 1 1/2(38) 1 1/2(38) 1 1/2(38)

** Field installed water seal outlets, tees, and connectors are shipped with the merchandiser.

Refrigeration Outlet

Back of case to center of refrigeration outlet 28 3/4(731) 28 3/4(731) 28 3/4(731) 28 3/4(731)

(E) RH end of case to center of refrigeration outlet 9 3/8(238) 9 3/8(238) 9 3/8(238) 9 3/8(238)

Outside diameter of the liquid line 3/8(9.5) 3/8(9.5) 3/8(9.5) 3/8(9.5)

Outside diameter of the suction line 5/8(16) 5/8(16) 5/8(16) 5/8(16)

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H. Schedule defrost at night while

lights are off.

SSGT

Discharge Air (°F) 21

Evaporator (°F) 18

Unit Sizing (°F) 16

Btu/hr/ft* SSGT

Parallel 380

Conventional 400

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

SSGT

Frequency (hr) 24

Defrost Water (lb/ft/day) 0.15

(± 15% based on case configuration and

product loading).

SSGT

OFFTIME (minutes) 70

Failsafe (minutes) 90

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

SSGT

CI/CO (Temp °F)** 11°F / 1°F

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)**

Not Recommended

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)***

4 ft 0.75

6 ft 1.0

8 ft 1.5

12 ft 2.0

***This is an average for all refrigerant

types. Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End/Partition (in.) 1 1/2

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 3 of 6P/N 0420065A

SSGT

(1321)

5/8

(854)

221/2

(572)

5/8(651)

283/4 (730)

(864)

(508)

24 1/4

(616)

133/4

(349)

333/8 (849)

445/8 (1133)

35/8

(92)

(289)

(267)

Refrig.

Outlet Elec.

FAN

21O

COIL

Dimensions shown as in. and (mm).

Flat Hinged Glass, Gravity, Single Display Level Impact SSGT

Seafood

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF®) Standard #7 requirements.

NOTE: The bumper is 4 in. (102 mm) wide. Center of the bumper is

181/2in. (470 mm) from the floor.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. SSGT Data Sheet

4 of 6

Impact SSGT

Seafood

Electrical Data

Number of Fans 4 ft 6 ft 8 ft 12 ft

Refrigeration (120V 60hz) – 4W NA NA NA NA

Ambient Air Wipe – 15W 1 2 3 4

Export Refrigeration (230V 50 hz ) – 4W NA NA NA NA

Export Ambient Air Wipe – 15W 1 2 2 3

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Refrigeration Fans

Standard (120V 60hz) NA NA NA NA NA NA NA NA

Energy Efficient(120V 60hz) NA NA NA NA NA NA NA NA

Export: 230V 50 hz NA NA NA NA NA NA NA NA

Ambient Air Wipe Fans

Standard (120V 60hz) 0.26 0.52 0.52 0.78 15 30 30 45

Energy Efficient(120V 60hz) NA NA NA NA NA NA NA NA

Export: 230V 50 hz 0.13 0.26 0.26 0.39 15 30 30 45

Constant On Anti-sweat Heaters NA NA NA NA NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60hz) 0.46 0.72 0.72 0.98

With Energy Efficient Fans (120V 60hz) NA NA NA NA

With Export Fans (230V 50 hz ) 0.33 0.46 0.46 0.59

Maximum Over Circuit Protection 120V 20 20 20 20

Electric Defrost Heaters (208V) NA NA NA NA NA NA NA NA

Gas Defrost Heaters (208V) NA NA NA NA NA NA NA NA

Standard Lighting* (120V 60hz) 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

2 Row Canopy 0.49 0.80 0.98 1.42 58 92 116 170

1 Row Rail 0.49 0.40 0.49 0.71 58 46 58 85

Optional Lighting

1 Row Ledge 0.49 0.40 0.49 0.71 58 46 58 85

*230V lighting values are under review.

5 of 6P/N 0420065A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

R = Red G = Green BL = Blue LB =Light Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

Fans

Electric Service Receptacle Receptacles

120V NEUTRAL

MAROON

BAND

120V POWER

N.E.C.

TAGS MAROON

BAND

Refrigeration

Thermostat

Condensing Unit

}

(Field Installed)

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

Ambient Fan

Wiring

Glass Air Wipe

120V NEUTRAL

BROWN BAND

Fans

BROWN BAND

120V POWER 1

4 ft case has 2 Fans

6 ft case has 4 Fans

8 ft case has 4 Fans

12 ft case has 6 Fans

SSGT Data Sheet

6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Standard Lighting 2 Row Canopy,

1 Row Interior Rail

Light Circuits

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

120V NEUTRAL

ORANGE OR TAN BAND

BL BL

Light

Switch

120V POWER

ORANGE OR TAN

BAND

55 5

GGG

55 5

Optional Ledge Light Circuit

Rail Light Circuit
