Hussmann DSRPI-03Y Manual de instrucciones

1 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

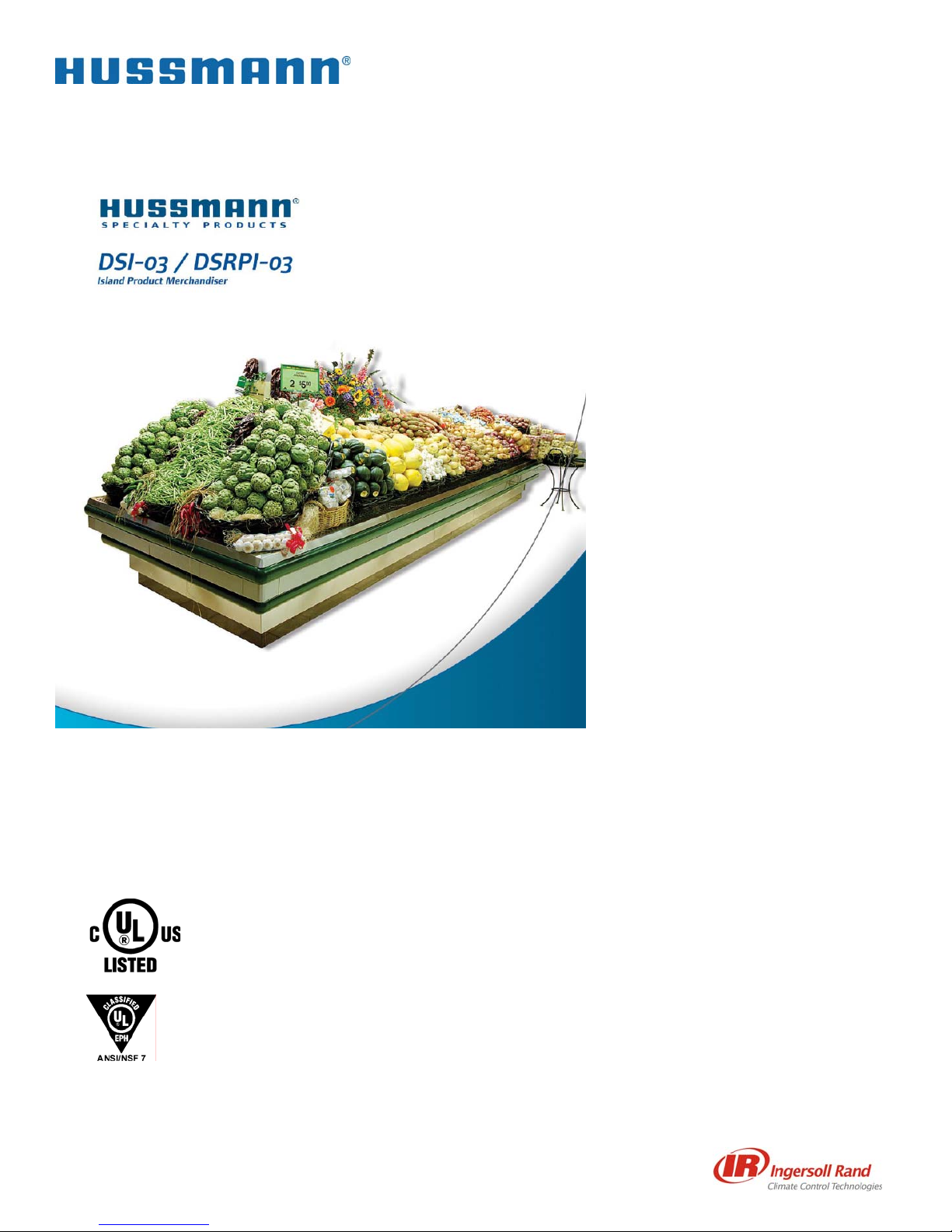

DSI-03/DSRPI-03

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 36

Evaporator (F) 18

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

tu/hr/

Parallel 750

Conventional 865

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 8

OFFTIME

Temp Term °F 54

Failsafe Minutes 50

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 ½*

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

NA NA

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

CUL Listed

UL Sanitation

2 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

Engineering

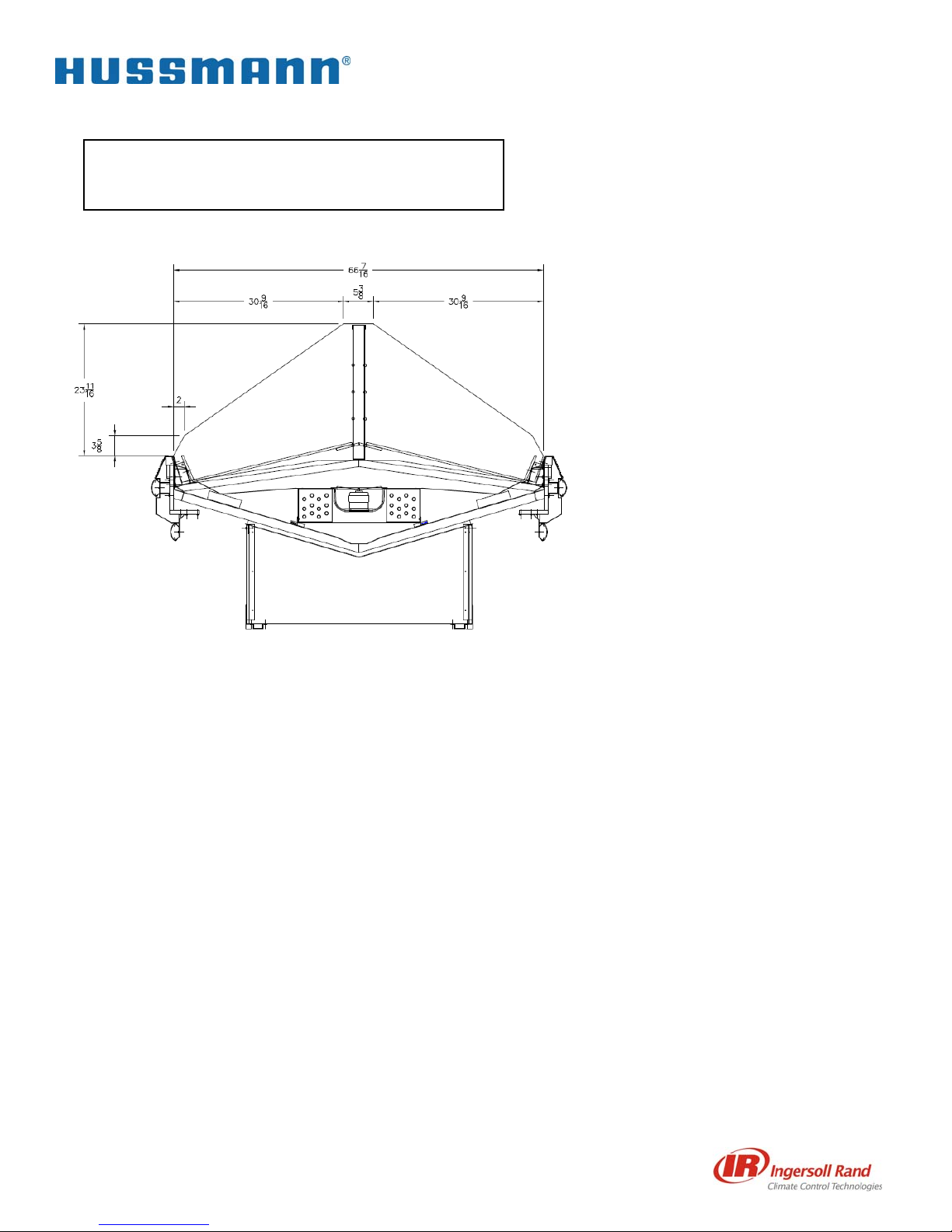

CROSS SECTION DSRPI-03

3 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

Engineering

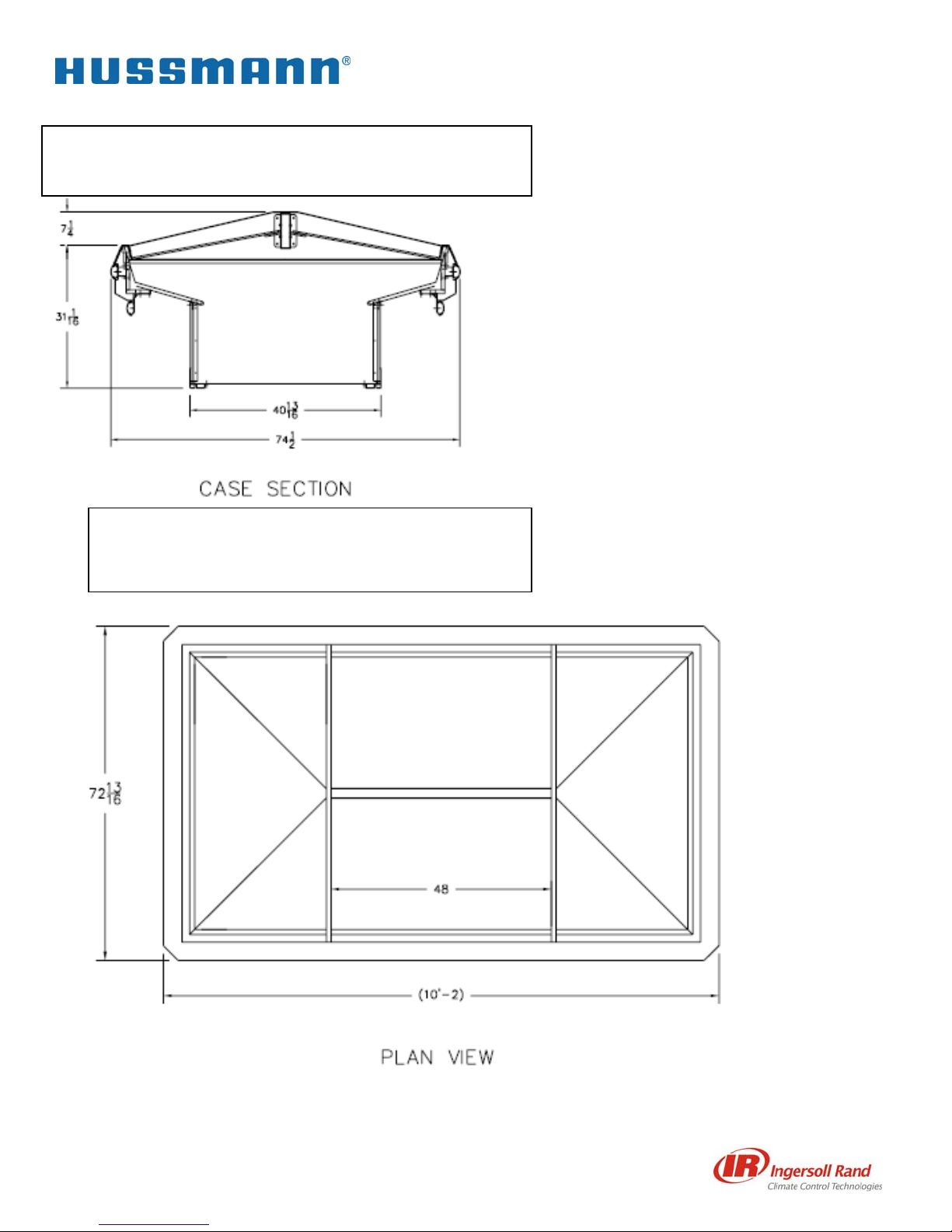

CROSS SECTION DSI-03-6’X10’

Engineering

Plan View DSI-03-6’X10’

4 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

Engineering

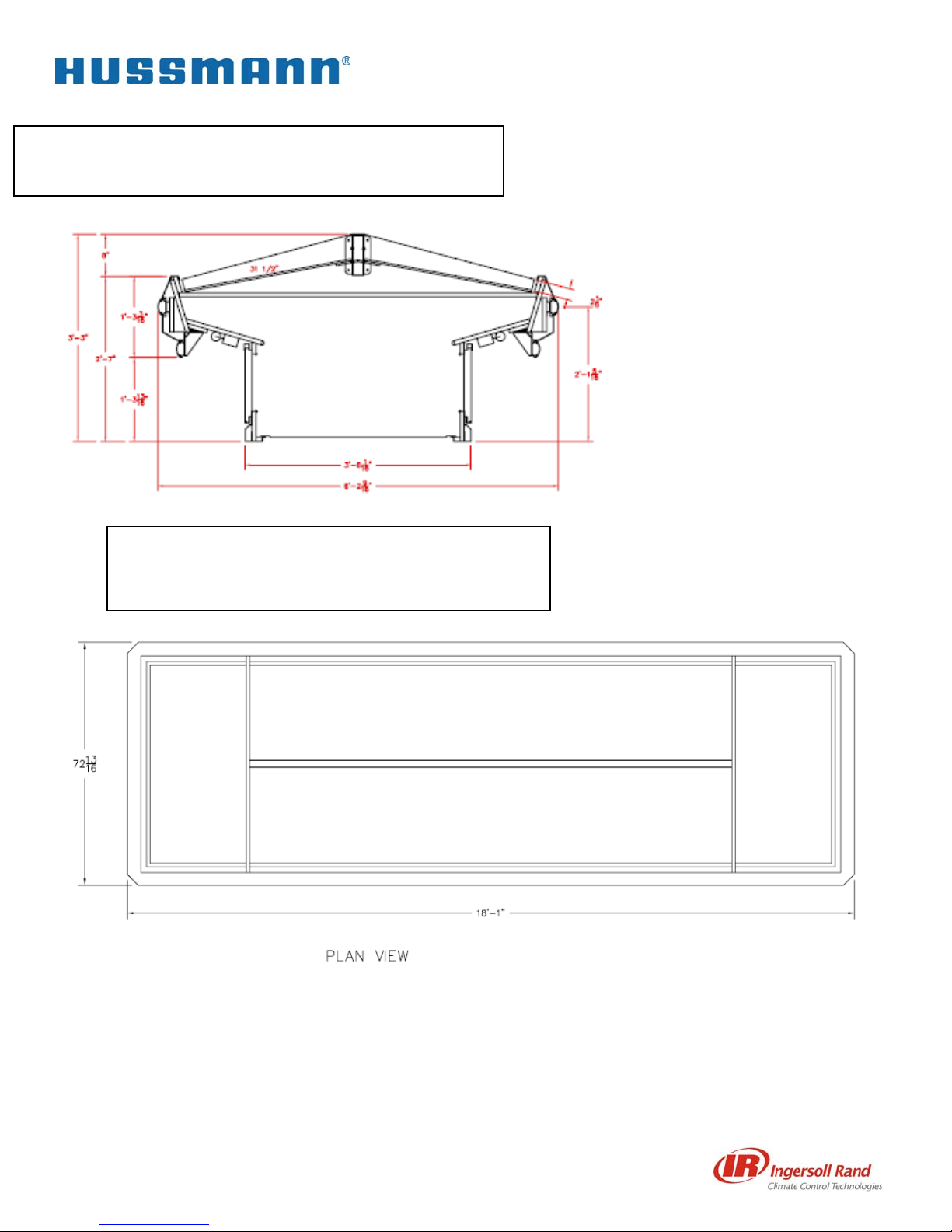

CROSS SECTION DSI-03-6’X18’

Engineering

Plan View DSI-03-6’X18’

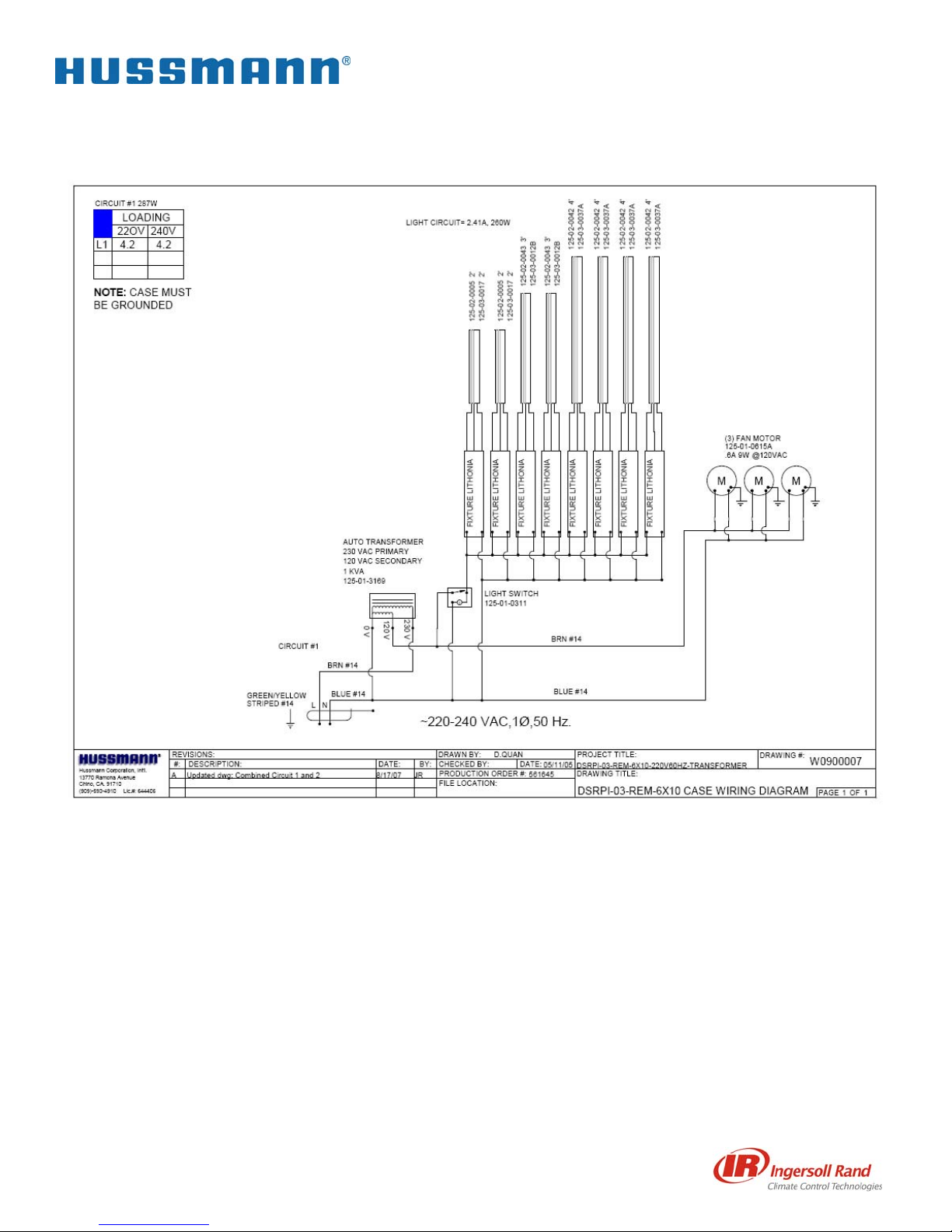

5 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

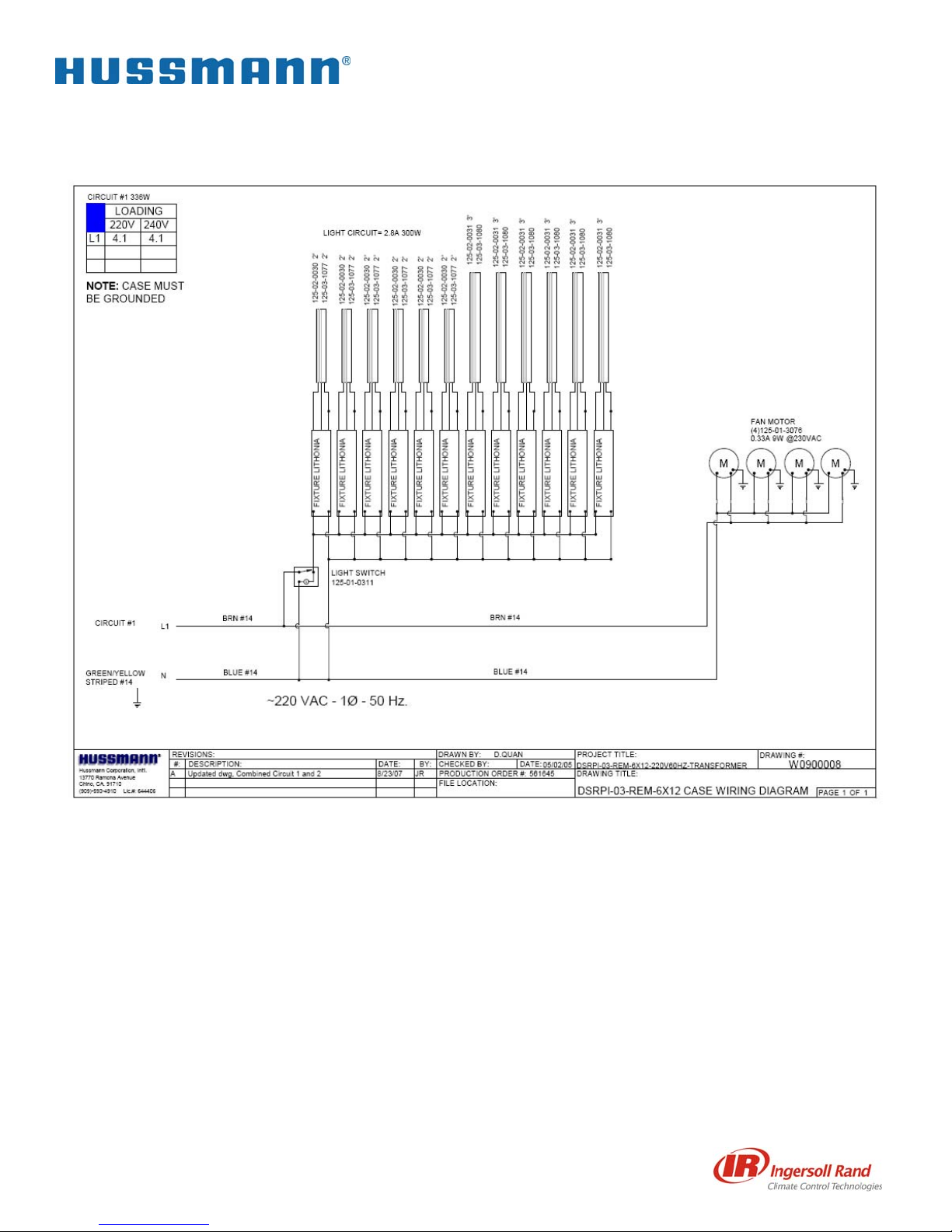

6 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

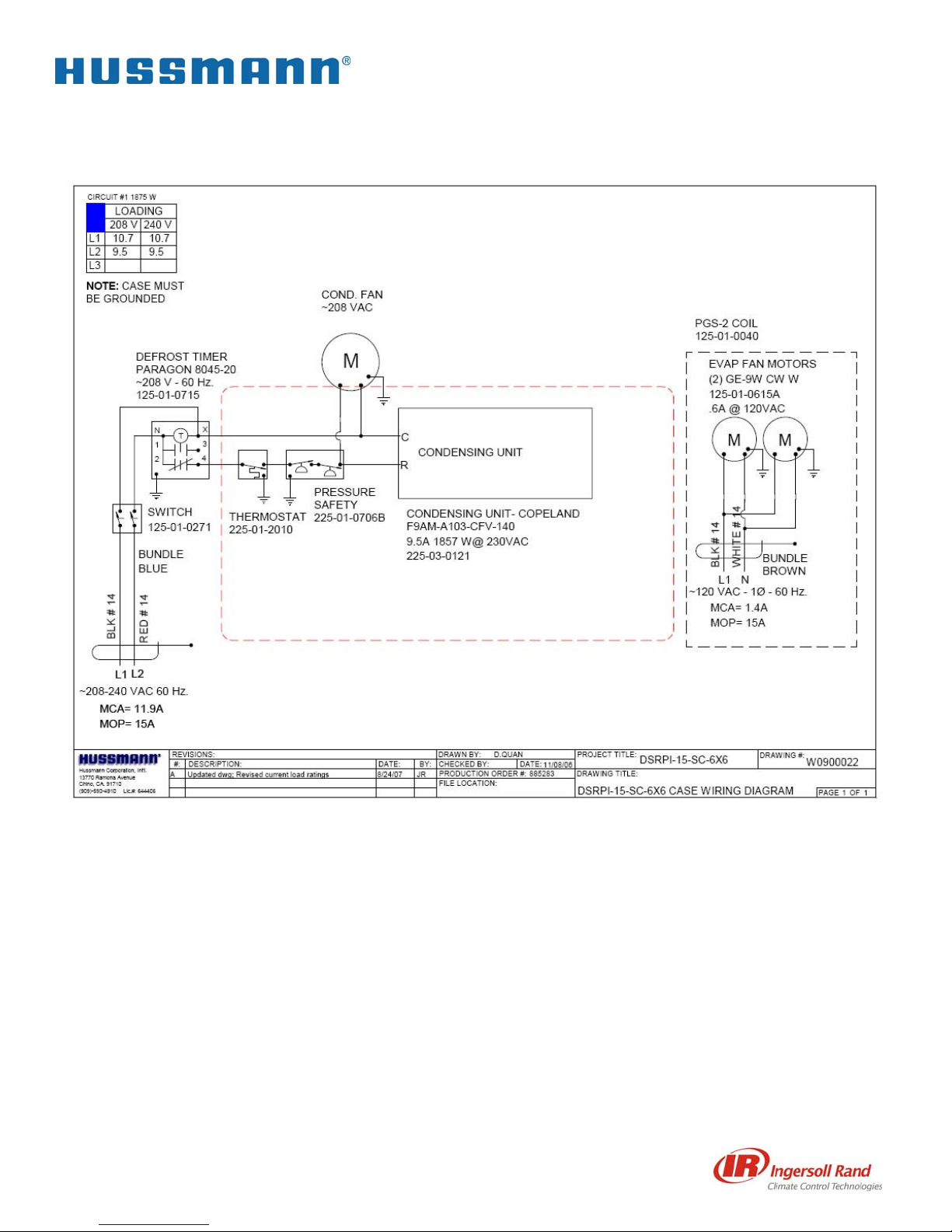

7 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

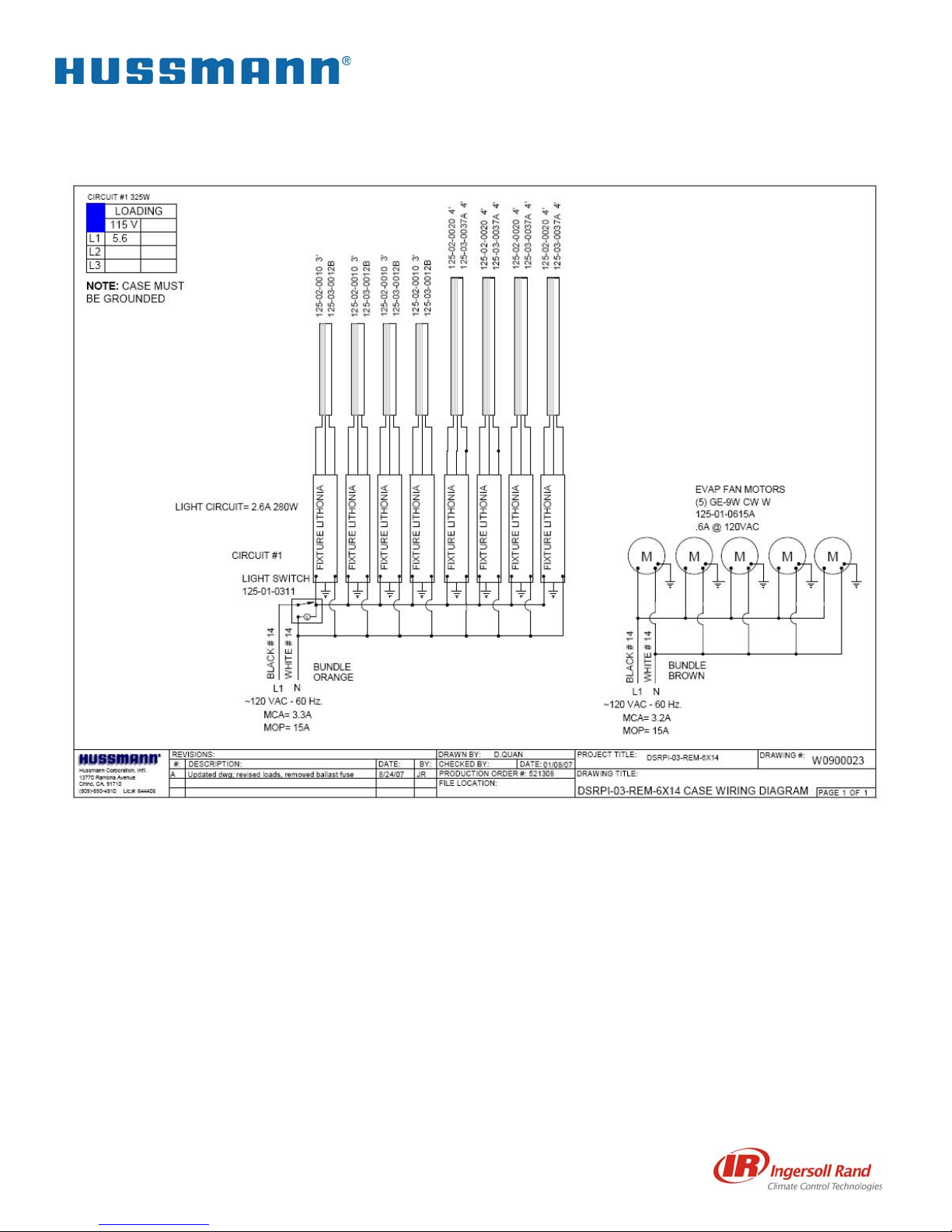

8 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03

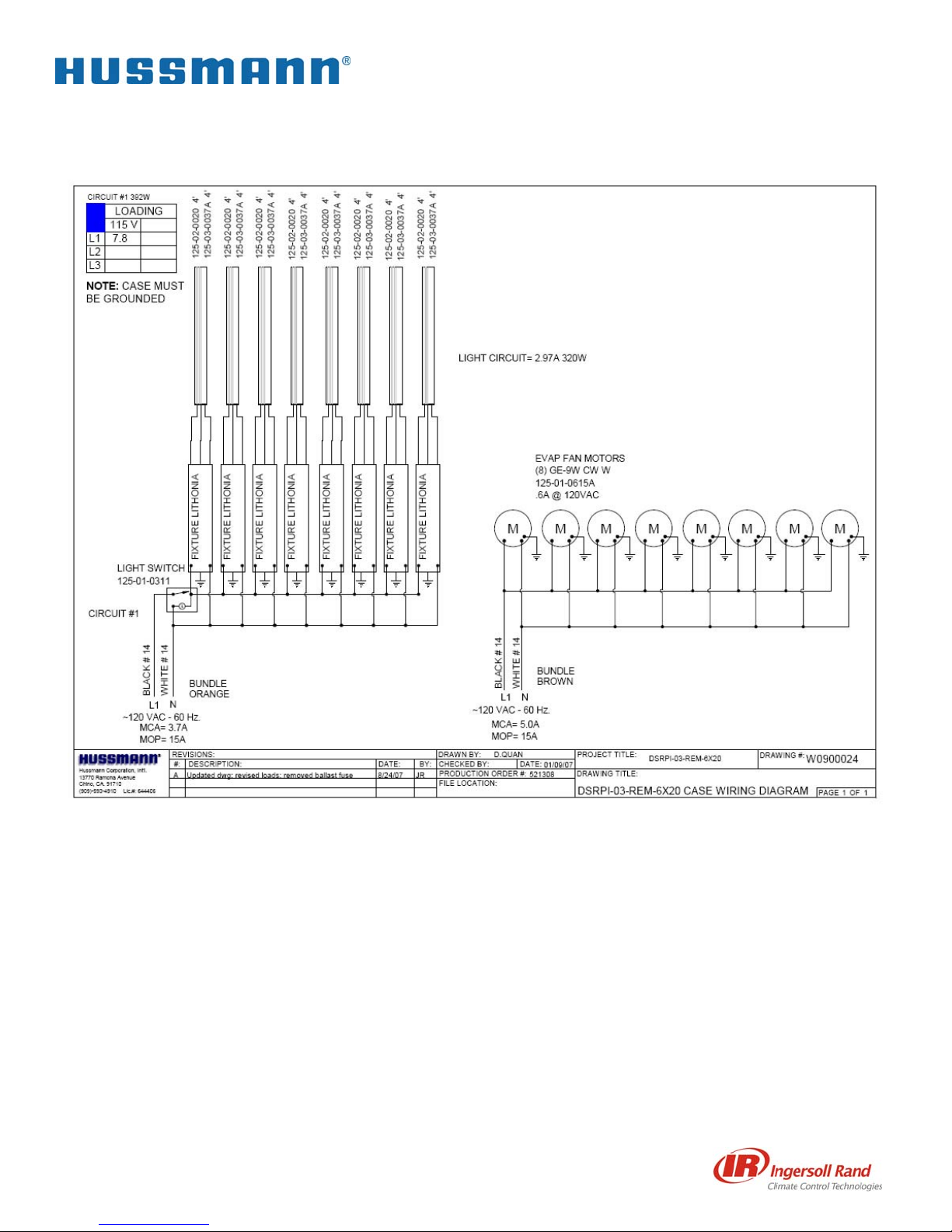

9 of 9

DSI-03/DSRPI-03

Technical Data Sheet

Rev A

ecialt

Products

DSI-03/DSRPI-03
