Hussmann DSF Manual de instrucciones

1 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 28

Evaporator (F) 20

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

tu/hr/

* DSF CENTER DISPLAY

Parallel 700

Conventional 805

tu/hr/

* DSF INLET

Parallel 400

Conventional 460

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 8

OFFTIME

Temp Term °F 54

Failsafe Minutes 46

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 2

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

NA NA

CUL Listed

UL Sanitation

2 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

Engineering

CROSS SECTION

3 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

Engineering

CROSS SECTION

4 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

Engineering

Plan View

5 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

DSF-5-REM (Albertsons w/Humidity system) 5' W0700006

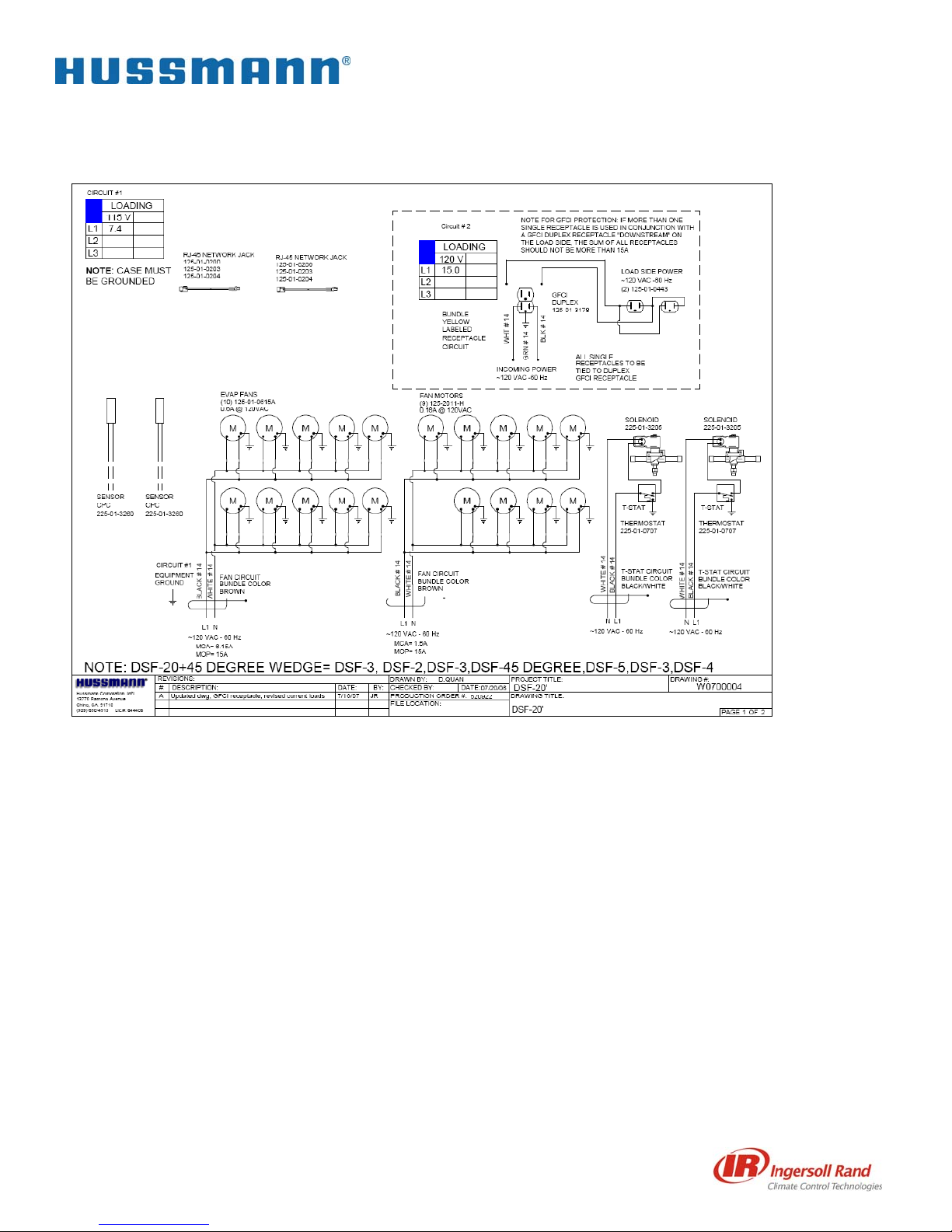

DSF-20' 20' W0700004

Engineering

Plan View

6 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

7 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF

8 of 8

DSF

Technical Data Sheet

Rev B

ecialt

Products

DSF
