Hussmann IMPACT LWGH Manual de instrucciones

P/N 0409827_D

Merchandisers

LWGH

Technical Data Sheet

P/N 0409827_D

NSF®Certified

February 2007

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 4W Fan Assembly (1)

0392457 Fan Motor, Standard (MO.4410101)

0409511 Fan Blade, embossing toward motor

(FB.0409511)

B. Optional Adjustable Refrigeration Thermostat (2)

C. 0398557 (Front) Defrost Termination Thermostat (3)

(CT.4440611)

0398558 (Rear) (Electric Defrost only) (CT.4481088)

D. 0425304 Heater Switch (4)

(Koolgas Defrost only) (CT.0425304)

HEATERS

E. Control-Glass Anti-sweat Heaters (Export) (5)

Contour Ends 250V, 5amp

0400543 8 & 12 foot cases (CT.4480905)

F. 0395709 Modular Electric

Defrost Heaters, 208V (6)

(HE.4850409)

Item Part # Description Wiring Item #

HEATERS (CONTINUED)

G. Drip Pan Heaters, Electric 208V (7)

0392413 8 foot case (HE.0392413)

0392414 12 foot case (HE.0392414)

Drip Pan Heaters, Koolgas 120V (8)

0421238 8 foot case (HE.4850496)

0421239 12 foot case (HE.4850497)

H. Nosing Anti-sweat Heaters (9)

0401605 8 foot case (Discharge)

(HE.0401605)

0401606 12 foot case (Discharge)

(HE.4850471)

I. Multiglass - 2 Pane, w/heater (Front & Rear) (10)

0420156 8 foot case (GL.4985203)

0420157 12 foot case (GL.4985204)

0420184 Contour end (GL.4985218)

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

NOTE: Revision D corrects heater data on Page 4.

LWGH Technical Data Sheet

2 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

7/8

(141)

Access Area

(Gray)

LWGH

9/16

(141)

10 7/8

(276)

7/8

(98)

(127)

IFC

Refrig. Outlet

Electrical

Water Seal

(See Note*)

Waste Outlet

Front

Base Rail

1/2

(2070)

(1753)

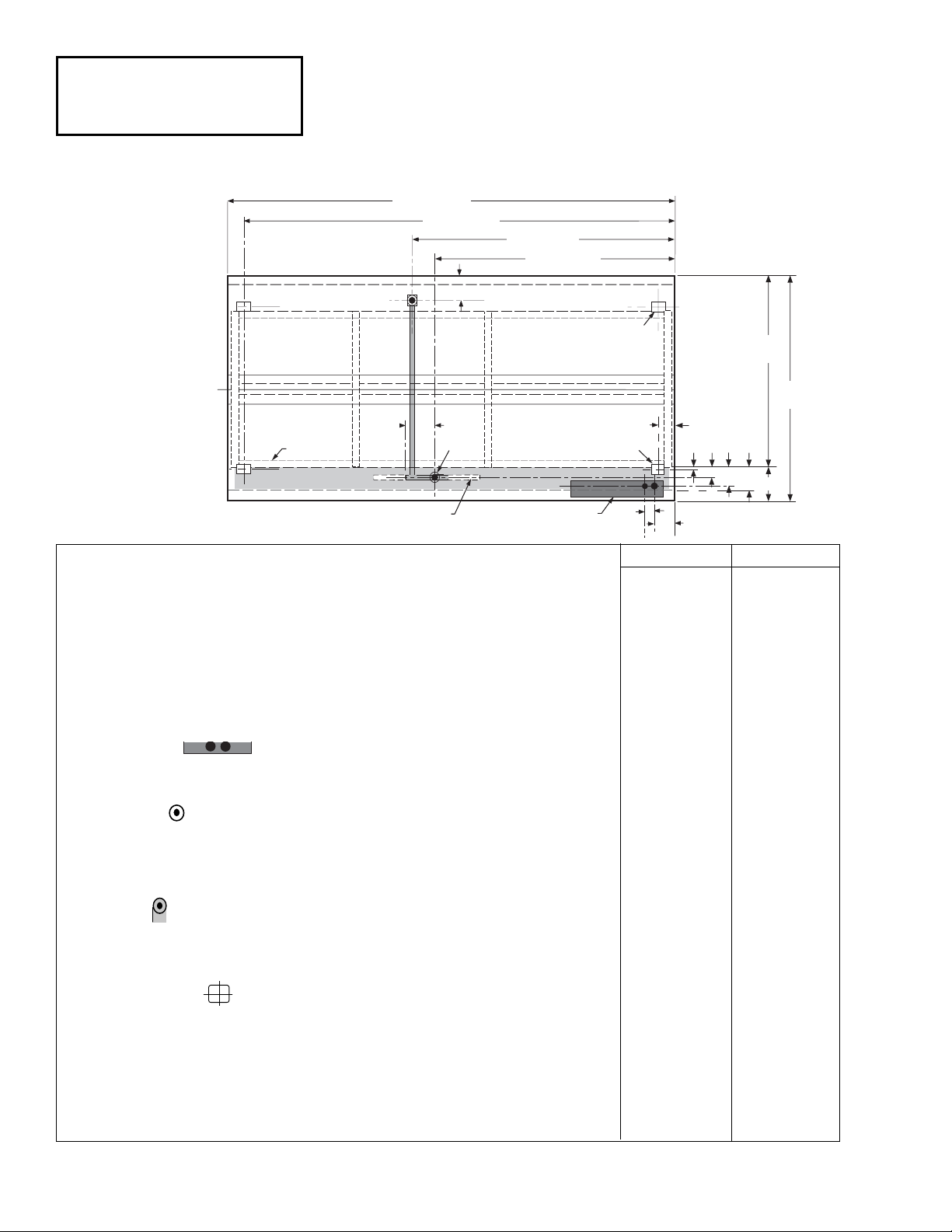

Engineering

Plan Views

Dimensions shown as inches & (mm).

Single Deck

Frozen Food

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 1/4(2445) 144 3/8(3667)

(Each end and insulated partition adds 2 in. (51 mm) to case line up.)

Maximum O/S dimension of case back to front (includes bumper) 81 1/2 (2070) 81 1/2 (2070)

(B) Front of splashguard to O/S edge of front base rail 8 1/2 (216) 8 1/2 (216)

Back of case to O/S edge of front base rail 69 (1753) 69 (1753)

Width of base rail 2 1/8(54) 2 1/8(54)

Stub-up area (gray) between front base rail and

splashguard 7 5/8 (194) 7 5/8 (194)

Electrical Service (Electrical Field Wiring connection point)

RH End of case to center of nearest knockout 5 (127) 5 (127)

(D) Center of knockouts to O/S edge of front base rail 7 (178) 7 (178)

Waste Outlets

(E) RH End of case to the center of front waste outlet 58 1/4 (1480)) 67 7/8 (1724)

(F) Center of waste outlet to O/S edge of front base rail 3 3/4 (95) 3 3/4 (95)

(G) RH End of case to center of rear waste outlet 38 (965) 76 1/2 (1918)

Back O/S of case to center of waste outlet 8 7/8 (225) 8 7/8 (225)

Water Seal

Edge of water seal to center of waste outlet 11 (279) 11 (279)

O/S diameter of drip pipe lines 1 1/2 (38) 1 1/2 (38)

Note*: Field installed water seal outlet, tees and connectors are shipped with case.

Refrigeration Outlet

RH End of case to center of RH front and rear refrigeration outlets 5 1/2(140) 5 1/2(140)

(H) LH End of case to center of LH front and rear refrigeration outlets 88 3/8 (2245) 138 7/8 (3527)

Back O/S edges of case to center of refrigeration outlet 70 1/4 (1784) 70 1/4 (1784)

(I) Center of refrigeration outlet to O/S edge of front skidrail 1 1/4(32) 1 1/4(32)

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

FF IC

Discharge Air (°F) –12 –22

Evaporator (°F) –20 –30

Unit Sizing (°F) –23 –33

Btu/hr/ft FF IC

Parallel 775 785

Conventional 800 810

DEFROST DATA

FF IC

Frequency (hr) 24 24

Defrost Water (lb/ft/day) 1.5 1.2

(± 15% based on case configuration and product

loading).

ELECTRIC FF IC

Temp Term (°F) 48°48°

Failsafe (minutes) 60 60

GAS

Duration (minutes) 15 18

OFFTIME Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

FF IC

CI/CO (Temp °F)* –27/–39 –27/–39

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)

Not Recommended

*Use a Temperature Pressure Chart to determine

PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

8 ft 3.5

12 ft 5.3

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

Each Contoured End 5

3 of 7P/N 0409827_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

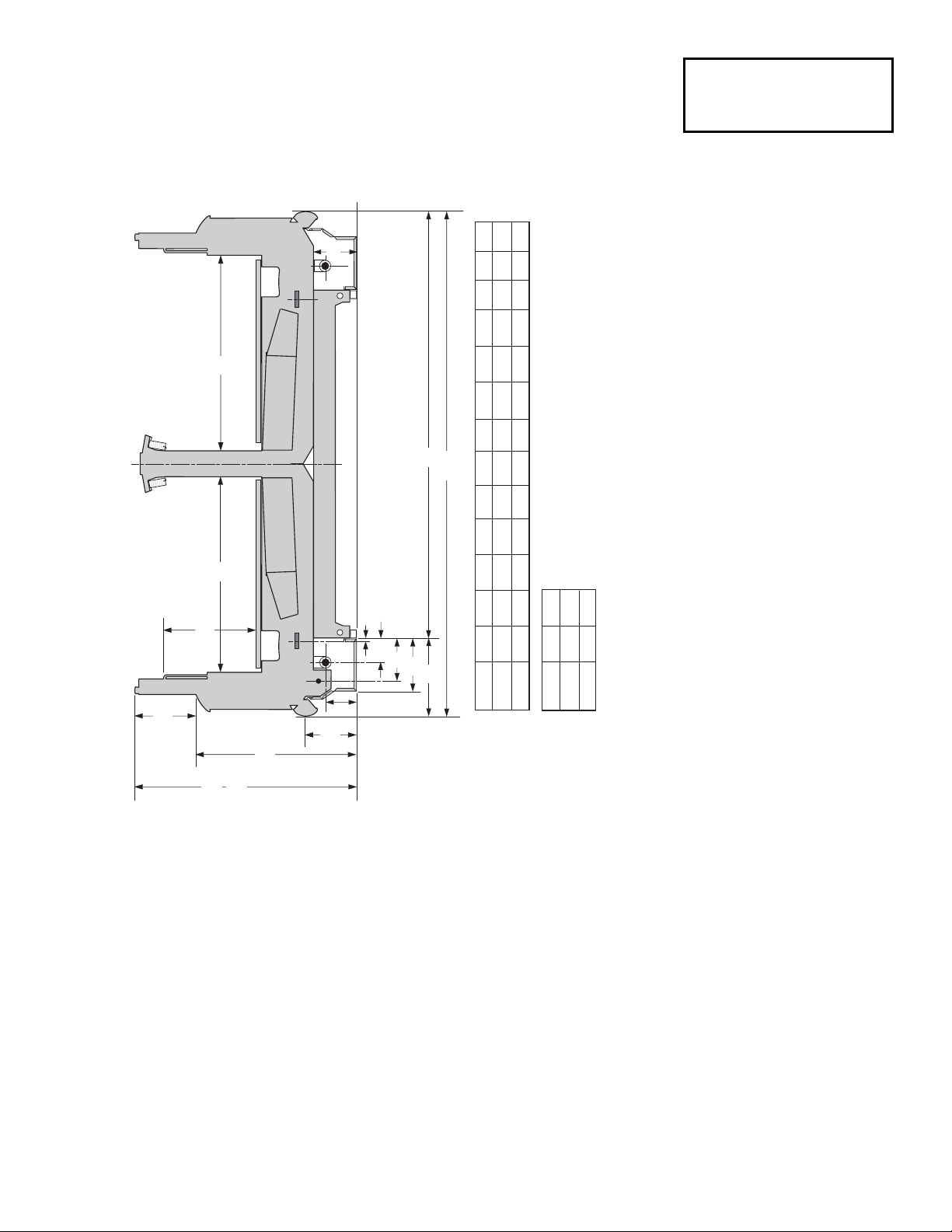

(MM)

381 1753

3/4

Front

of Case

FAN COIL

LWGH

914 81

178 2070

214

1/2

318 1 2 7

15 32

1/4

Dimensions

1/2

254

1/2

178

FAN

COIL

(MM)

210

LWGH

660

1/4

Dimensions shown in inches & (mm).

Impact LWGH

Frozen Food & Ice Cream

Single Level Wide Island High Front Display, with Glass Front

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. LWGH Technical Data Sheet

4 of 7

Impact LWGH

Frozen Food & Ice Cream

Electrical Data

8 ft 12 ft

Number of Fans – 4W 4 6

(Energy Efficient fan motors are not available for End or End-compartment models)

Amperes Watts

8 ft 12 ft 8 ft 12 ft

Evaporator Fans

120V 60Hz Standard 1.24 1.86 96 144

120V 50Hz Standard NA

230V 60Hz Export 0.60 0.90 96 144

230V 50Hz Export 0.72 1.08 108 162

120V 60Hz Energy Efficient 0.56 0.84 40 60

230V 60Hz Energy Efficient NA

Nosing Anti-sweat Heaters (on fan circuit)

120V 60Hz Standard 1.88 2.80 224 336

230V 50Hz Export 0.98 1.46 224 336

Glass Anti-sweat Heaters

120V 60Hz Standard 2.44 3.32 294 398

230V 50Hz Export 1.41 1.91 324 439

Cycling Anti-sweat Heaters

120V 60Hz Standard NA

230V 50Hz Export NA

Minimum Circuit Ampacity

120V 60Hz Standard 5.76 8.18

120V 50Hz Standard NA

230V 60Hz Export

230V 50Hz Export 3.31 4.65

120V 60Hz Energy Efficient 5.08 7.16

230V 60Hz Energy Efficient NA

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Electric Defrost Heaters

208V 60Hz Standard Front Compartment 8.0 12.0 1670 2505

208V 60Hz Standard Rear Compartment 8.0 12.0 1670 2505

230V 50Hz Export Front Compartment 8.9 13.3 2047 3060

230V 50Hz Export Rear Compartment 8.9 13.3 2047 3060

Koolgas Drip Pan Heaters

120V 60Hz Standard 5.0 7.5 600 900

230V 50Hz Export NA

Standard Lighting: None

5 of 7P/N 0409827_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

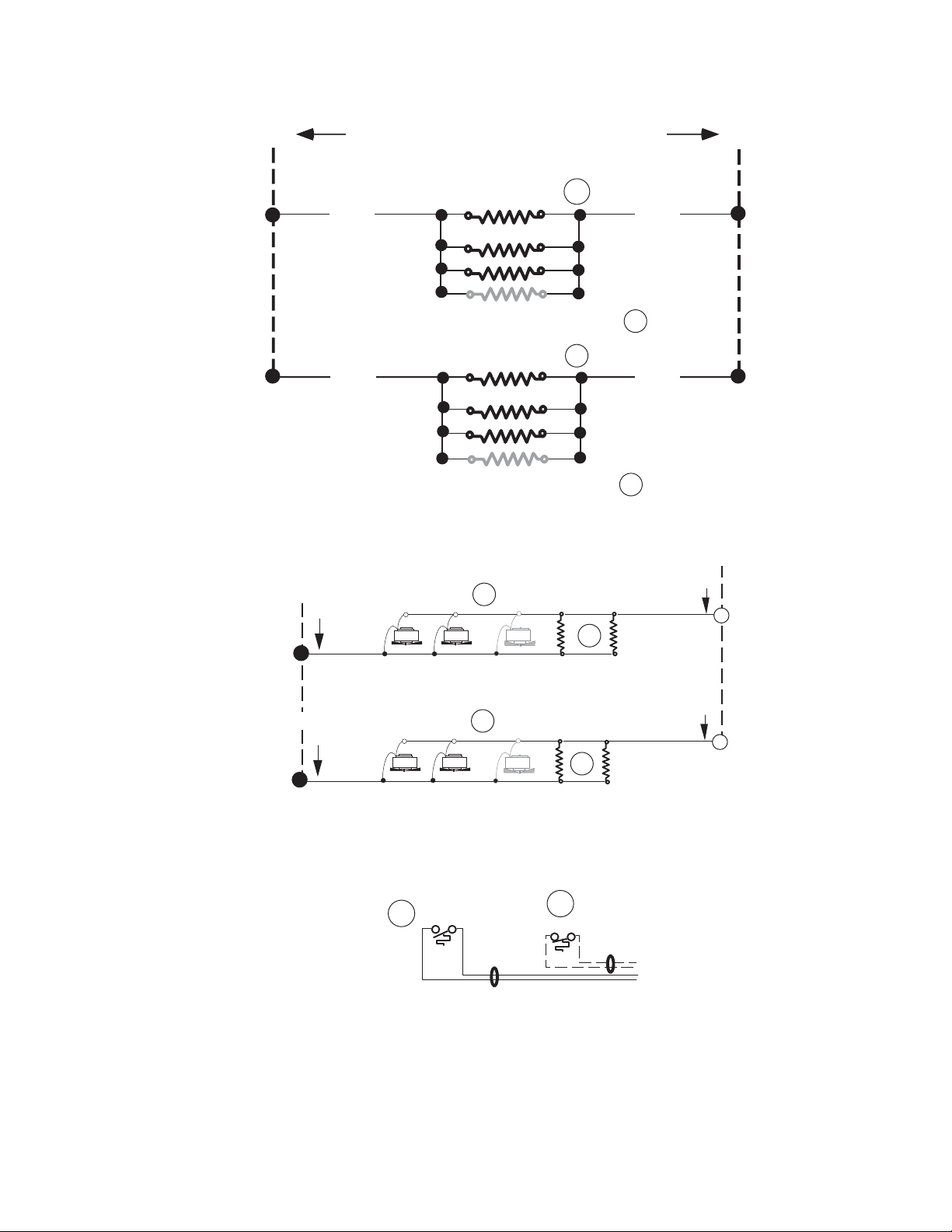

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue To

Condensing Unit

}

Light Blue

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

(Field Installed)

208 V Power From Defrost Contactors

L1 L2

Modular Electric Defrost Heaters

Drip Pan Heater

Modular Electric Defrost Heaters

Drip Pan Heater

Red

BROWN BAND

Fans

BROWN BAND

Nosing (anti-sweat) Heaters

120V POWER

BROWN BAND

Fans

BROWN BAND

120V NEUTRAL

Nosing (anti-sweat) Heaters

Electric Defrost – Standard

Gas Defrost – Optional

LWGH Technical Data Sheet

6 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Drip Pan Heater

Yellow

Heater Switch

Yellow

120V POWER 120V NEUTRAL

Dark BlueDark Blue

Refrigeration

Thermostat

Condensing Unit

}

Light Blue

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

(Field Installed)

Drip Pan Heater

Yellow

Heater Switch

Yellow

120V POWER 120V NEUTRAL

Dark BlueDark Blue

BROWN BAND

Fans

BROWN BAND

Nosing (anti-sweat) Heaters

120V POWER

120V NEUTRAL

BROWN BAND

Fans

BROWN BAND

Nosing (anti-sweat) Heaters

7 of 7P/N 0409827_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

2 Pane Multiglass

Glass Anti-sweat Heater

White

Red

Black Black

Heater Control

Red

230V

Purple

W/White

White

Anti-sweat Heater (Export Only)

LWGH Contour Ends

2 Pane Multiglass

Glass Anti-sweat Heater

White

230V

Purple

2 Pane Multiglass

Glass Anti-sweat Heater

Black Black

White

Glass Anti-sweat Heater (Export Only)

2 Pane Multiglass

Glass Anti-sweat Heater

White

Yellow

120V

Purple

2 Pane Multiglass

Glass Anti-sweat Heater

Black Black

White

Glass Anti-sweat Heater (Domestic)

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

Purple

120V

White

2 Pane Multiglass

Glass Anti-sweat Heater

White

Black Black

120V

Purple

White

Anti-sweat Heater (Domestic)

LWGH Contour Ends

0400543

Yellow Yellow Yellow

Discharge

Glass

Return

Glass

10 10

Purple

Glass Anti-sweat Heaters — Domestic & Export

Tabla de contenidos

Otros manuales de Comerciante de Hussmann

Hussmann

Hussmann Impact Excel P2X-EP Manual de instrucciones

Hussmann

Hussmann IMPACT ED1C-ICE Manual de usuario

Hussmann

Hussmann RGD Instrucciones de funcionamiento

Hussmann

Hussmann IMPACT M4NE Manual de usuario

Hussmann

Hussmann SHVSS-C Manual de instrucciones

Hussmann

Hussmann IMPACT Elite E1S Manual de instrucciones

Hussmann

Hussmann M1X-XGEC Manual de instrucciones

Hussmann

Hussmann IMPACT CW2U-XGE Manual de instrucciones

Hussmann

Hussmann Impact C6LE Manual de usuario

Hussmann

Hussmann M1XL-GE Manual de instrucciones

Hussmann

Hussmann BEXD-A Manual de usuario

Hussmann

Hussmann R3 Instrucciones de funcionamiento

Hussmann

Hussmann C5 Manual de usuario

Hussmann

Hussmann Impact Excel B3XC-LEP Manual de instrucciones

Hussmann

Hussmann Impact C2-XGE Manual de instrucciones

Hussmann

Hussmann Q1-SS Instrucciones de funcionamiento

Hussmann

Hussmann IMPACT M4NGE Manual de usuario

Hussmann

Hussmann FWEG Manual de instrucciones

Hussmann

Hussmann Impact Excel M3X-GE Manual de instrucciones

Hussmann

Hussmann VGK Manual de usuario

Hussmann

Hussmann RGSSFP Manual de instrucciones

Hussmann

Hussmann VBL Manual de usuario

Hussmann

Hussmann IMPACT Elite E3S Manual de instrucciones

Hussmann

Hussmann SHVSV Series Manual de usuario

Manuales populares de Comerciante de otras marcas

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manual de usuario

EPTA

EPTA COSTAN RHINO MULTI Manual de usuario

CASCO

CASCO Nano Cube Manual de usuario

True

True GDIM-26 Manual de usuario

Structural Concepts

Structural Concepts Oasis Mobile Series Instrucciones de instalación

Haussmann

Haussmann RL Manual de usuario

Howard McCray

Howard McCray R-CDS32E-4 Manual de usuario

EPTA

EPTA iarp Cool Emotions Delight Lite Manual de usuario

VALERA

VALERA BC 85 Manual de usuario

HL Display

HL Display 3eBin Manual de usuario

Dixie Narco

Dixie Narco DNCB 501E Manual de usuario

APW Wyott

APW Wyott Racer DMXD-30H Manual de usuario

Hoshizaki

Hoshizaki KD-90C Manual de usuario

Summit

Summit SCR1006 Manual de usuario

Delfield

Delfield Shelleyspeed SPM-28E Manual de usuario

EPTA

EPTA iarp Cool Emotions GLEE 40 Manual de usuario

Kysor/Warren

Kysor/Warren GranBering KW Guía

Crane

Crane BevMAX Refresh 6 Media Manual de usuario
