Hussmann MWGE Manual de usuario

P/N 0395229B

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

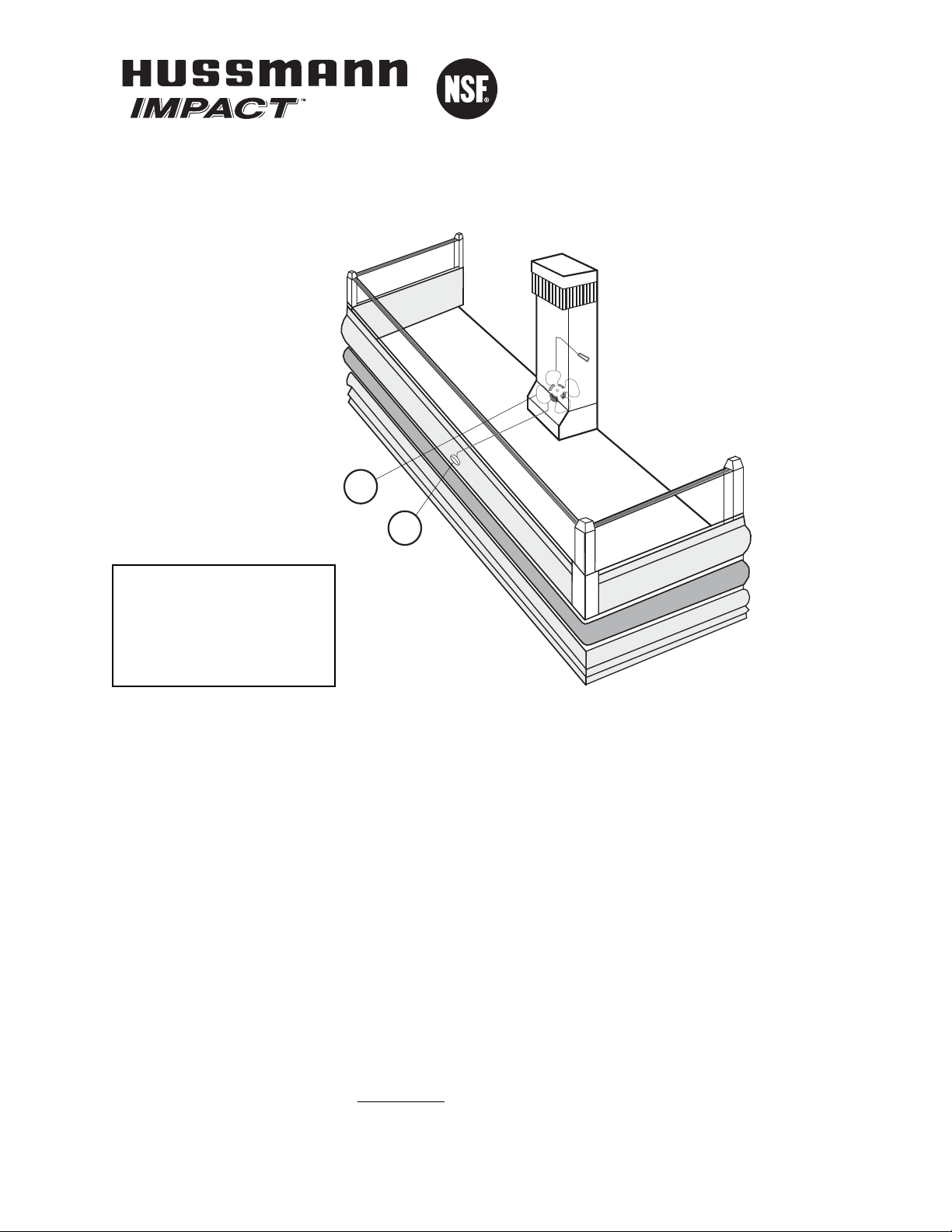

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

A. 9W Fan Assembly 1

0378349 Fan Motor, Evaporator (120V)

0124150 Fan Blade

embossing toward motor

B. 0253451 Optional Adjustable 2

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

None

Merchandisers

Note: Changed items have been underlined.

MWGE

Data Sheet Set

P/N 0395229B

NSF®Certified

December, 2003

Not a

Stand-alone

Case

MWGE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 4

External Base

3/8

(949

)

Waste Outlet

& Water Seal

Not a Stand-alone case.

MWGE joined to parent case at factory.

7/8

(682

)

7/8 (149

)

(432

)

5/8

(1464

)

5/8

(1895

)

7/8

(149

)

Front

3/8

(238

)

1/2 (89

)

7/8

(200

)

MWGE

Engineering

Plan Views

Wide Island

Meat, End

12-2003

Dimensions shown as inches and (mm).

3 of 4P/N 0395229B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Optional

Positions

(1118)

Front of

Case Electrical

(Optional Kit)

MWGE

FAN

COIL

37 3/8

(949)

(382)

5 7/8(149)

3 1/2(89)

2 1/4(57)

(432)

37 3/8

(949)

20 3/8

(518)

24 1/2

(622)

9 3/4

(248)

11 3/4

(298)

7 3/4

(196)

Note: Not a Stand-alone case.

MWGE joined to parent case at factory.

18 1/2

(470)

25 1/2

(648)

REFRIGERATION DATA

MWGE

Discharge Air °F 26

Evaporator °F 18

Unit Sizing °F 16

Btu/hr/case** MWGE

Parallel 3560

Conventional 4068

**For all refrigeration equipment other

than Husssmann, use conventional BTU

values.

DEFROST DATA

Frequency (hrs) 6

ELECTRIC OR GAS Not Recommended

Defrost Water (lb/ft/day) 1.1

OFFTIME MWGE

Temp Term °F 43

Failsafe Minutes 60

CONVENTIONAL CONTROLS

Low Pressure Backup Control

MWGE

CI/CO** 12°F / 2°F

Indoor Unit Only, Pressure Defrost

Termination 43 °F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 5/8

Estimated Charge (lbs)***

MWGE 1.1

***This is an average for all refrigerant

types actual refrigerant charge may vary

by approximately half a pound.

Length (in.) added to Lineup

by Each End or Insulated

Partition. 1 1/2

Impact MWGE

Wide Island End, 1 Display Level with Front Glass

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

4 of 4 MWGE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

End Case

Number of Fans – 9W 1

Amperes Watts

Merchandiser End Case End Case

Fans (Refrigeration)

Standard (120V 60Hz) 0.77 62

Energy Efficient (120V 60Hz) 0.38 25

Export (230V 50Hz) 0.47 70

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.97

With Energy Efficient Fans (120V 60Hz) 0.58

Export (230V 50Hz) 0.67

Maximum Over Current Protection (120V) 20

Maximum Over Current Protection (230V) 15

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

Impact MWGE

Meat / Delicatessen

Refrigeration

Thermostat 2

Condensing

Unit

}

Light Blue

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost 1 Fan

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND
