Low Temperature Wall and Island,
Solid and Glass Front Models
Instruction for Installing
Flat Ends
G1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Merchandisers
®
PARTS LIST
Item Quantity Description
LG LIG/LNG LWG
1. 5 6 7 Nut Retainer 5/16 -18 (left end only)
2. 2 2 2 Tape Gasket 1/2x 1 x 120
3 1 1 1 Tape Gasket 1/2 x 1/2 x 120
4 1 1 1 Donut Gasket
5. 1 1 1 End Assembly
6. 5 6 7 Flat Washer 5/16
7. 5 6 7 Lock Washer 5/16
8. 5 6 7 Cap Screw 5/16 -18 x 11/4
9. 5 6 7 Plug Button
10. 1 1 1 Silicone Sealer
11 1 2 2 Glass Post End Cover
12. 6 6 6 Screw #8 x 1/2 Phillips
13. 1 1 1 Splashguard Channel
14. 2 2 2 Screw #8 x 1/2 Phillips Black
15. 1 1 1 Splashguard
Note: Nut retainers are factory installed in the left end, and alignment pins are factory installed in the right end of each merchandiser.

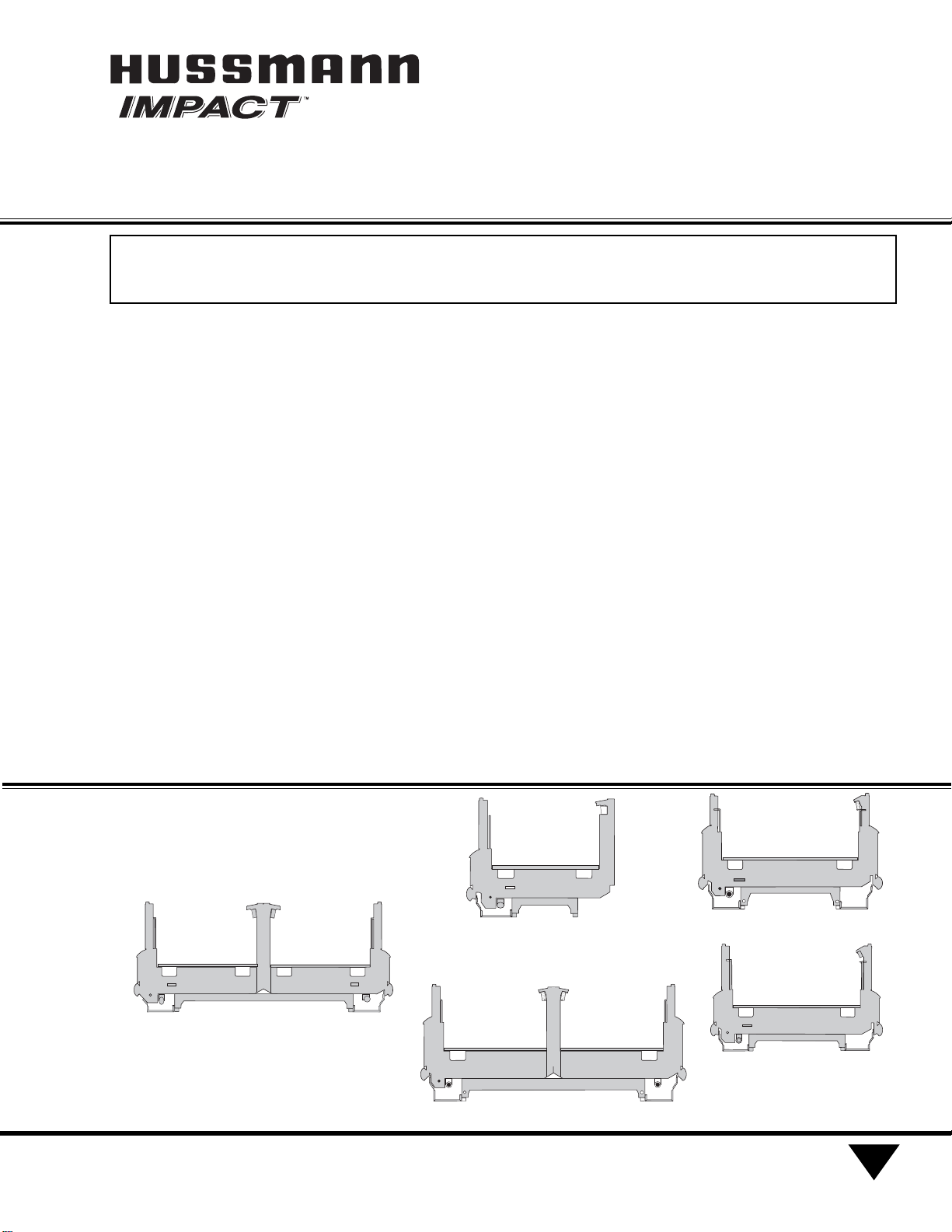

This section covers the installation of flat end panels on glass front models.
For solid front models, go to Page S1.
LG LNGH / LIGH
LNG / LIG
Glass Front Models
LWG / LWUG
LWGH / LWUGH
P/N 0391765
May, 2002
Use caution when removing the
honeycomb. A damaged honeycomb
will cause merchandisers to
perform poorly.
1Remove nut and screw from
honeycomb retainer. Remove
retainer from merchandiser.
(See Detail A)
2On the back side of the wall
case, or both sides of the island
center flue, use fingers to apply
pressure to the top of the
honeycomb. Press gently until
the top corner clears the retainer.
Moving along the honeycomb,
repeat this process to remove the
honeycomb.
P/N 0391765
Merchandisers
®
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
G2
Figure 2. Remove Honeycomb with Fingers
Honeycomb
Retainer
Nut
Retainer Screw
Acrylic
Guard
Detail A
Figure 1. Remove Honeycomb
3Remove the acrylic guard from
the front side of the wall case, or
both sides of the island case by
sliding the guard up and then
forward.
4LEFT ENDS ONLY:
Verify that factory installed nut
retainers are installed in the
left-hand frame.
RIGHT ENDS ONLY:
Install Nut Retainers – 1 in
the right-hand end of the frame.
(See the next page for additional
illustrations.)
Remove alignment pins.
Low Temperature Wall and Island, Glass Front Models P/N 0391765
G3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Figure 3. Remove Acrylic Guard
1
Figure 4. Install Nut Retainer - LG Case
P/N 0391765
Merchandisers
®
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
G4
1
1
Figure 5. Install Nut Retainer - LNG / LIG / LNGH / LIGH Cases
Figure 6. Install Nut Retainer - LWG / LWGH / LWUG /
LWUGH Cases
5Apply Gaskets – 2, 3, and 4
to the case end frame, according
to Figure 7.
Lap gaskets at corners. Check
that there are no gaps between
gasket and merchandiser.
• Do not stretch gasket,
especially around corners.
• Do not butt gaskets; always lap
joints.
• Remove paper backing after
gasket is applied.
• Gasket has high tack adhesive
and must be properly placed the
first time.
Low Temperature Wall and Island, Glass Front Models P/N 0391765
G5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
LWG / LWGH
LWUG / LWUGH 2
3
4
2
2
2
2
LG
1 In. FoamTape Gasket Donut Gasket
1/2In. FoamTape Gasket
234
LNG / LIG
2
2
3
4
2
LNGH / LIGH
2
3
2
4
2
3
4
2
22
2
2
Figure 7. Gasket Diagram
GLASS FRONT CASES
6Fasten End Assembly – 5 to
end frame of merchandiser using
Flat Washer – 6,
Lock Washer – 7 and
Cap Screw – 8. Tighten until
gaskets are compressed.
After end assemblies have been
tightened, insert
Plug Buttons – 9.
P/N 0391765
Merchandisers
®
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
G6
5
Figure 8. Install End Panels
Detail B
1
6
8
7
9
7Apply a bead of Silicone — 10
where end and case join.
When the silicone is dry, replace
honeycomb and acrylic guard.
8Use Screw — 12, to fasten
Post End Cover — 11 where
glass wall meets the installed
end.
Low Temperature Wall and Island, Glass Front Models P/N 0391765
G7
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
12
11
Top Rail
Figure 10. Install Glass Post End Cover
Apply Silicone
Figure 9. Apply Silicone
Detail C
9Use Screws — 12 to attach
Splashguard Channel — 13
to legs of merchandiser.
10 Use Screws — 14 to
attach Splashguard — 15
to splashguard channel.
P/N 0391765
Merchandisers
®
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
G8
Figure 11. Install Splashguard Channel
Figure 12. Install Splashguard
Low Temperature Wall and Island, Solid Front Models P/N 0391765
S1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
PARTS LIST
Item Quantity Description
LLNLW
1. 4 4 6 Nut Retainer 5/16 -18 (Left end only)
2. 2 2 2 Tape Gasket 1/2x 1 x 120
3 1 1 1 Tape Gasket 1/2 x 1/2 x 120
4 1 1 1 Donut Gasket
5. 1 1 1 End Assembly
6. 4 4 8 Flat Washer 5/16
7. 4 4 8 Lock Washer 5/16
8. 4 4 8 Cap Screw 5/16 -18 x 11/4
9. 4 4 8 Plug Button
10. 1 1 1 Silicone Sealer
11. 6 6 6 Screw #8 x 1/2 Phillips
12. 1 1 1 Splashguard Channel
13. 2 2 2 Screw #8 x 1/2 Phillips Black
14. 1 1 1 Splashguard
Note: Nut retainers are factory installed in the left end, and alignment pins are factory installed in the right end of each merchandiser.
This section covers the installation of flat end panels on solid front models.
For glass front models, return to Page G1.
LLN / LNM / LI
LW / LWU
Solid Front Models
Use caution when removing the
honeycomb. A damaged honeycomb
will cause merchandisers to
perform poorly.
1On the back side of the wall
case, or both sides of the island
center flue, use fingers to apply
pressure to the top of the
honeycomb. Press gently until
the top corner clears the retainer.
Moving along the honeycomb,
repeat this process to remove the
honeycomb.
P/N 0391765
Merchandisers
®
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
S2
Figure 1. Remove Honeycomb
Figure 2. Remove Honeycomb with Fingers
