Hussmann IMPACT LWEG Manual de instrucciones

P/N 0395740_H

Merchandisers

LWEG

Technical Data Sheet

P/N 0395740_H

NSF®Certified

February 2007

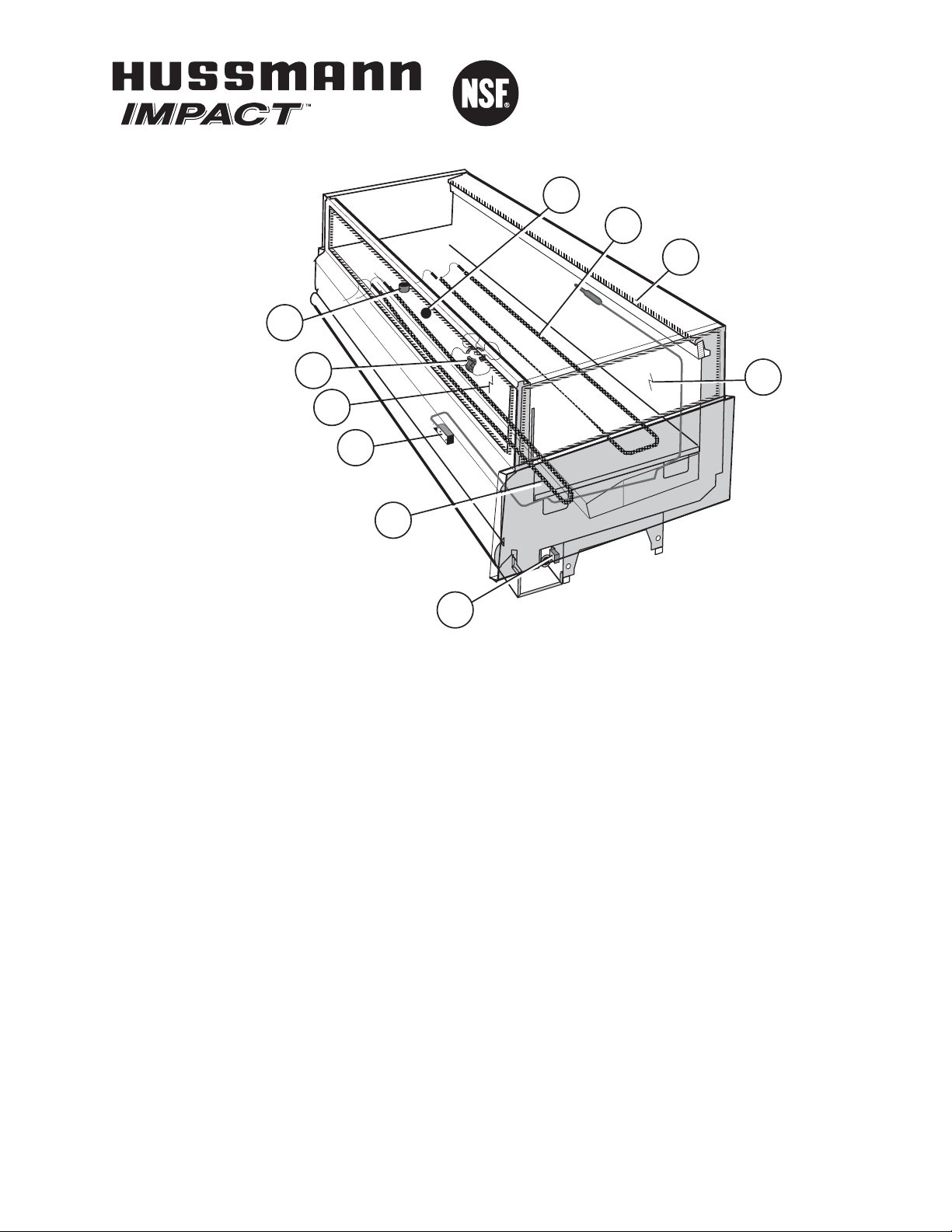

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 4W Fan Assembly (1)

0392457 Fan Motor, Standard (MO.4410101)

0409511 Fan Blade, embossing toward motor

(FB.0409511)

B. Optional Adjustable Refrigeration Thermostat (2)

C. 0398557 Defrost Termination Thermostat (3)

(Electric Defrost only)

(CT.4440611)

D. 0425304 Heater Switch (4)

(Koolgas Defrost only)

(CT.0425304)

HEATERS

E. Control-Glass Anti-sweat Heaters (Export) (5)

Contour Ends 250V, 5amp

0400543 6 foot cases (CT.4480905)

Item Part # Description Wiring Item #

HEATERS

F. Modular Electric Defrost Heaters, 208V

0406444 6 foot case (HE.4850478) (6)

G. Drip Pan Heaters, Electric 208V (7)

0392412 6 foot case (HE.4850461)

G. Drip Pan Heaters, Koolgas 120V (8)

0421237 6 foot case (HE.4850495)

H. Nosing Anti-sweat Heaters (9)

0401612 6 foot case (Discharge) (HE.0401612)

I. Multiglass – 2 Pane, w/heater (Front & Rear) (10)

0420183 Front (GL.4980149)

0420158 LH End (GL.4985284)

0420159 RH End (GL.4985285)

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

NOTE: Revision H corrects heater data on Page 4.

LWEG Technical Data Sheet2 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

LWEG

(635)

Access Area

(Gray)

3/8

(314)

Waste

Outlet

3/4

(170)

7/8

(249)

Electrical

Refrig.

Outlet

(1092)

1/2

(2071)

61/4

(159)

7/8

(249)

(1753)

81/2

(214)

1/2

(318)

Front

3/4

(832)

Engineering

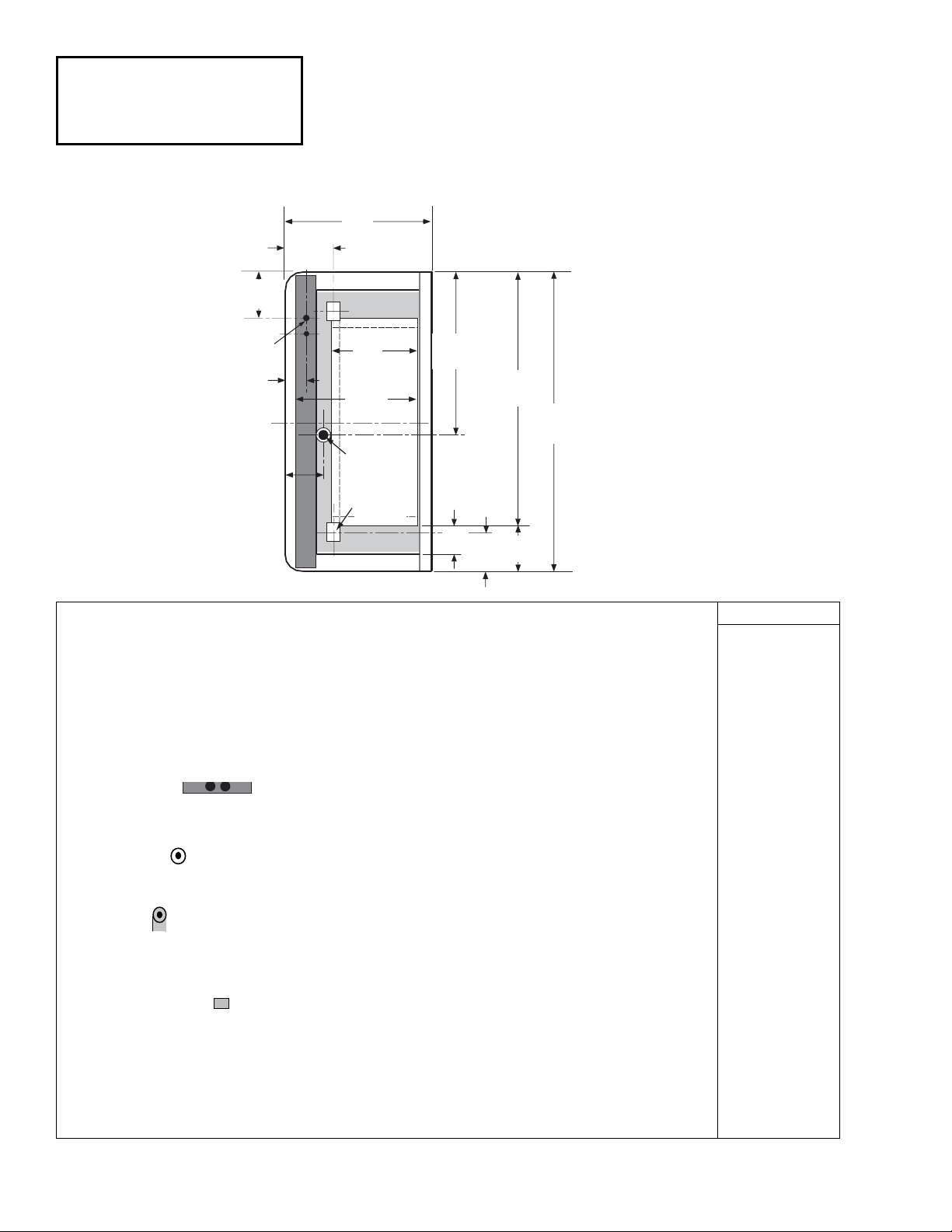

Plan Views Dimensions shown as inches & (mm).

End Case

General

Case Length (without ends or partitions) 43 (1092)

(Each end and insulated partition adds 2 in. (51 mm) to case line up.)

Maximum O/S dimension of case back to front (includes bumper) 81 1/2 (2070)

Front of splashguard to O/S edge of front base rail 8 1/2 (216)

Back of case to O/S edge of front base rail 69 (1753)

Front of case to O/S edge of front base rail 12 1/2 (318)

Width of base rail 2 1/8(54)

Stub-up area (gray) between front base rail and splashguard 7 5/8 (194)

Electrical Service (Electrical Field Wiring connection point)

LH End of case to center of first knockout 6 3/4 (172)

Back O/S edge of case to nearest knockout 9 7/8 (251)

Waste Outlets

LH End of case to the center of waste outlet 9 7/8 (251)

Back O/S of case to center of waste outlet 43 (1092)

Water Seal

Edge of water seal to center of waste outlet 11 (279)

O/S diameter of drip pipe lines 1 1/2 (38)

Note*: Field installed water seal outlet, tees and connectors are shipped with case.

Refrigeration Outlet

LH end of case to center of front and rear refrigeration outlets 12 3/8(314)

Front or rear of case to center of front and rear refrigeration outlet 6 1/4 (83)

Single Deck Frozen Food

Wide Island End

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

FF IC

Discharge Air (°F) –12 –22

Evaporator (°F) –20 –30

Unit Sizing (°F) –23 –33

Btu/hr/case FF IC

Parallel 2325 2355

Conventional 2400 2430

DEFROST DATA

FF IC

Frequency (hr) 24 24

Defrost Water (lb/ft/day) 0.75 0.60

(± 15% based on case configuration and product

loading).

ELECTRIC FF IC

Temp Term (°F) 48°48°

Failsafe (minutes) 60 60

GAS

Duration (minutes) 15 18

OFFTIME Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

FF IC

CI/CO (Temp °F)* –27/–39 –27/–39

Indoor Unit Only, Pressure Defrost

Termination (Temp °F) Not Recommended

*Use a Temperature Pressure Chart to determine

PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

End Case 1.1

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

Each Contoured End (in.) 5

3 of 7P/N 0395740_H

(914)

LWEG

COIL

(381)

1/4 (1021)

(635)

(1092)

(762)

5/8 (803)

1/8 (843)

1/2 (876)

15/16

(862)

14 5/8

(371)

(127)

7 (178)

1/4

(210)

(533)

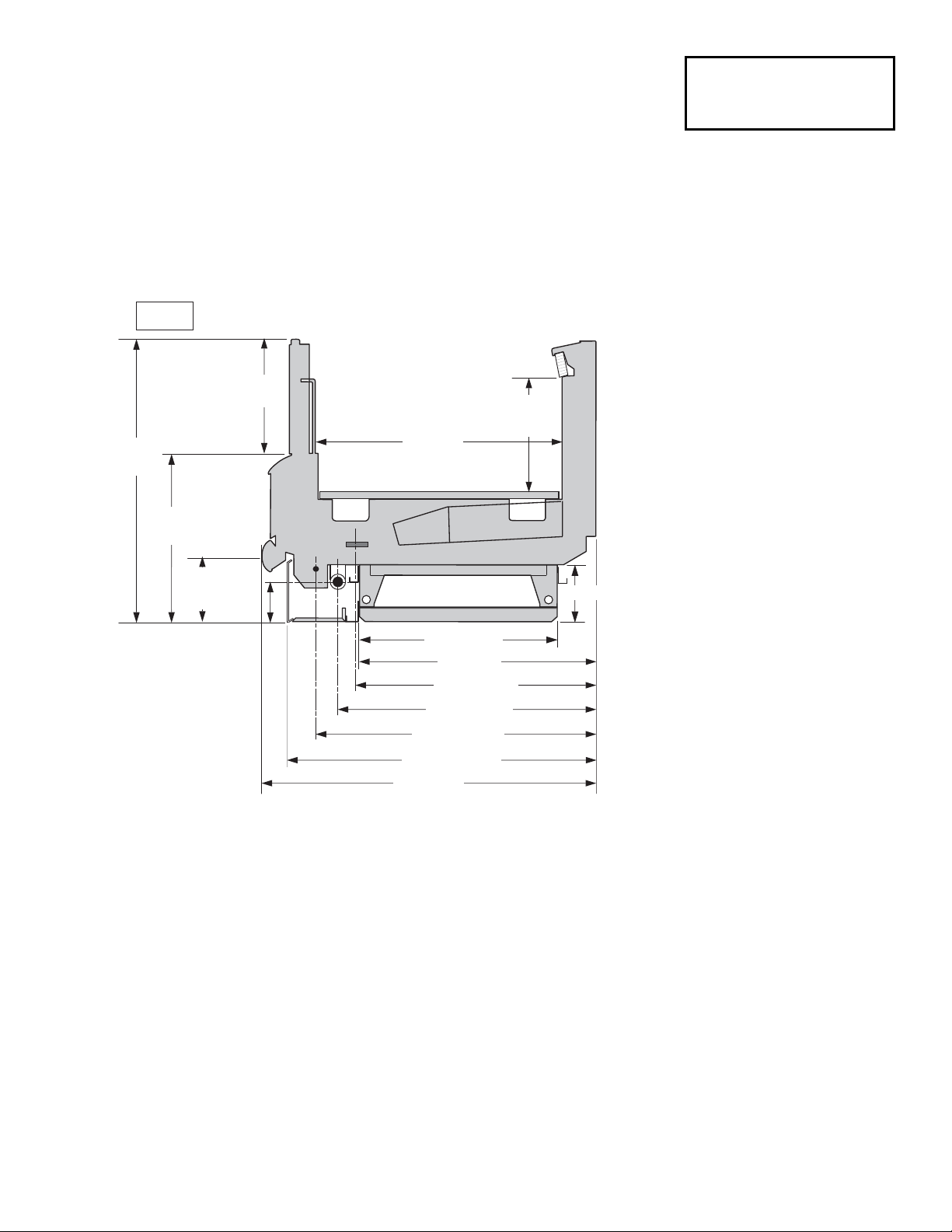

Dimensions shown in inches & (mm).

Impact LWEG

Frozen Food & Ice Cream

Single Level Free Standing End Island Display with Glass Front

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

LWEG Technical Data Sheet4 of 7

Impact LWEG

Frozen Food & Ice Cream

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

End

Number of Fans – 4W 1

(Energy Efficient fan motors are not available for End or End-compartment models)

Amperes Watts

8 ft 8 ft

Evaporator Fans

120V 60Hz Standard 0.31 24

120V 50Hz Standard NA

230V 60Hz Export 0.15 24

230V 50Hz Export 0.18 27

120V 60Hz Energy Efficient 0.14 10

230V 60Hz Energy Efficient NA

Nosing Anti-sweat Heaters (on fan circuit)

120V 60Hz Standard 0.95 114

230V 50Hz Export 0.49 114

Glass Anti-sweat Heaters

120V 60Hz Standard 2.08 250

230V 50Hz Export 1.22 280

Cycling Anti-sweat Heaters NA

230V 50Hz Export NA

Minimum Circuit Ampacity

120V 60Hz Standard 3.54

120V 50Hz Standard NA

230V 60Hz Export 2.06

230V 50Hz Export 2.09

120V 60Hz Energy Efficient 3.37

230V 60Hz Energy Efficient NA

Maximum Over Current Protection 120V 20

Maximum Over Current Protection 230V 15

Electric Defrost Heaters

208V 60Hz Standard 5.5 1150

230V 50Hz Export 6.1 1403

Koolgas Drip Pan Heaters

120V 60Hz Standard 1.25 150

230V 50Hz Export NA

Standard Lighting: None

5 of 7P/N 0395740_H

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

120V POWER

120V NEUTRAL

BROWN BAND

Fan

BROWN BAND

Nosing (anti-sweat) Heater

208 V Power From Defrost Contactors

L1 L2

Drip Pan Heater

Modular Electric Defrost Heater 6

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue To

Condensing Unit

}

Light Blue

32(Field Installed)

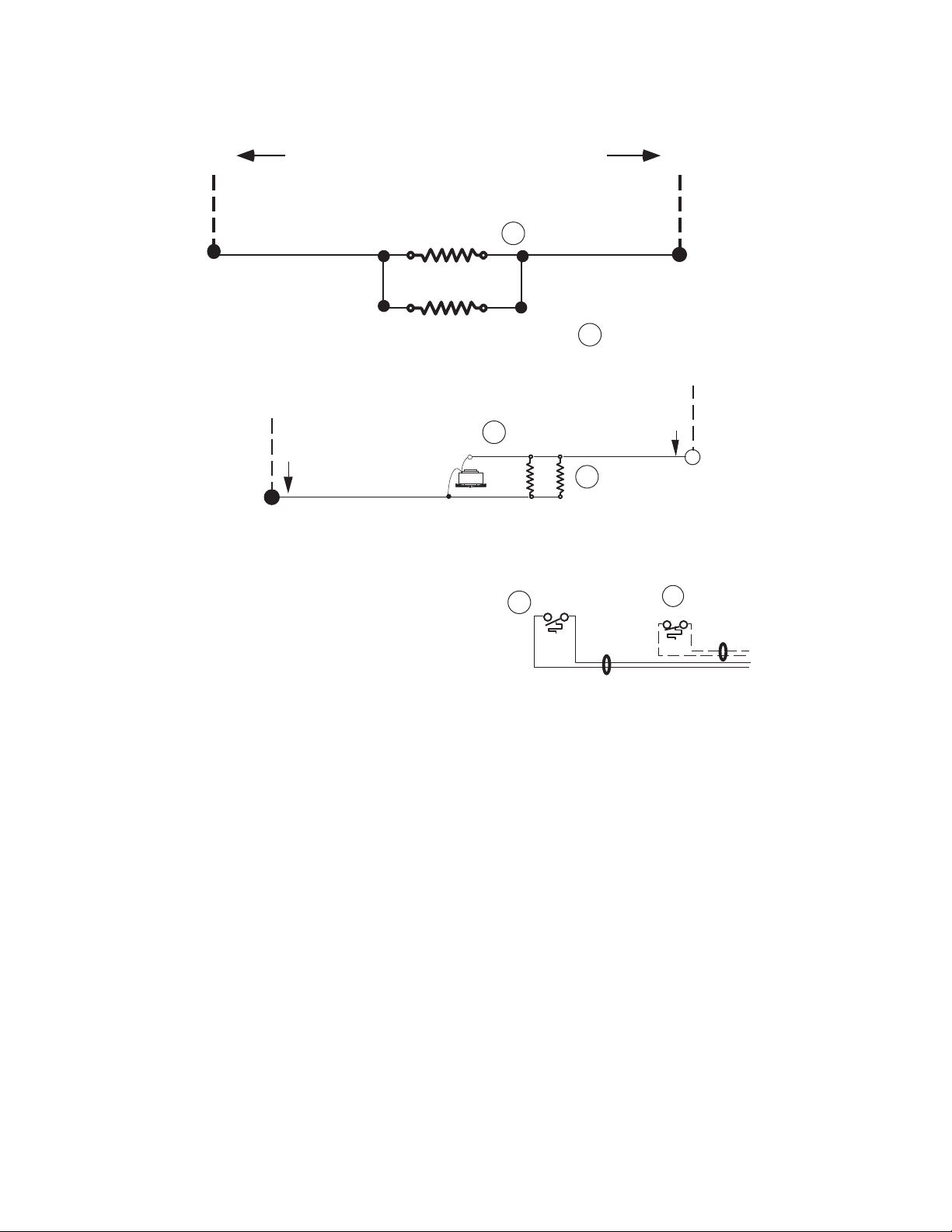

Electric Defrost – Standard

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

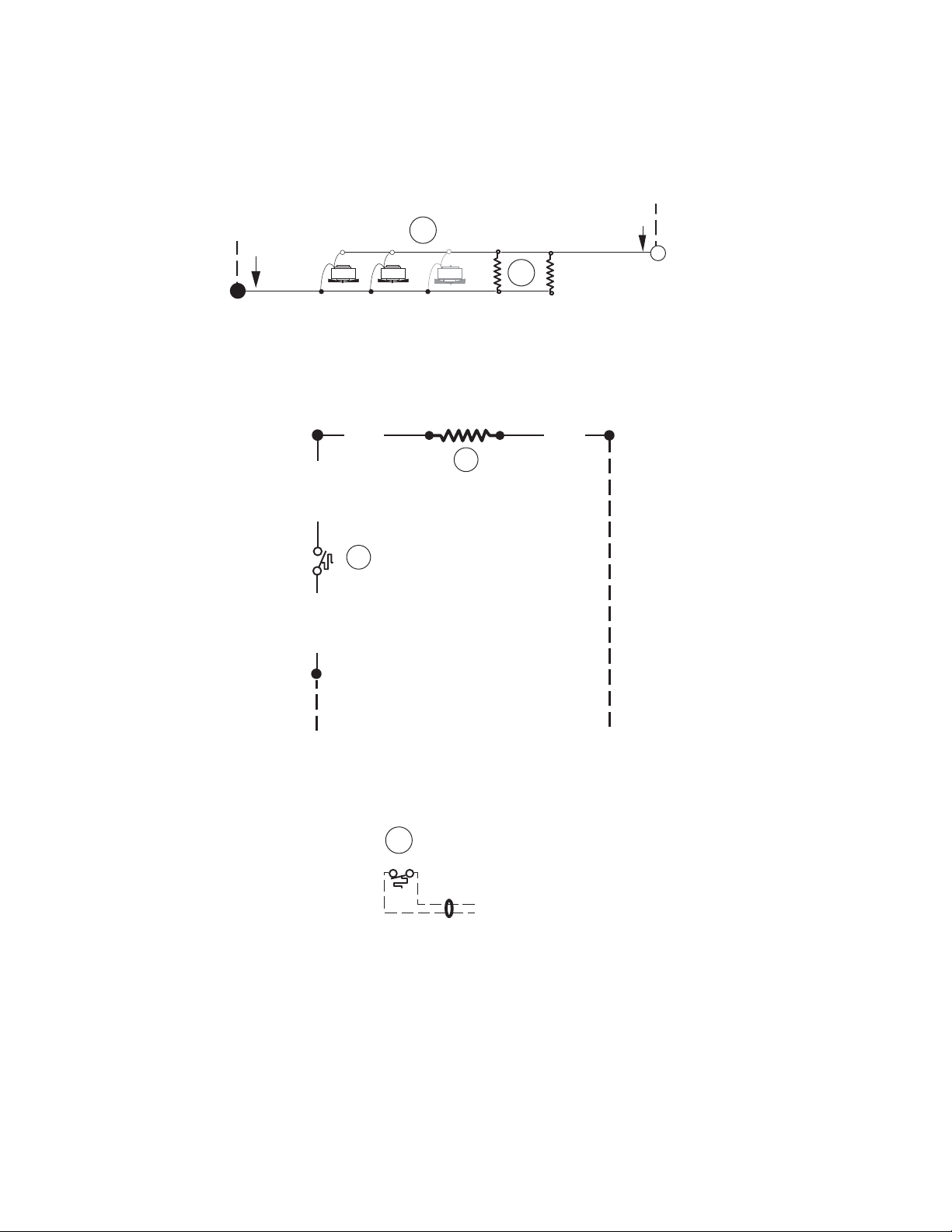

Gas Defrost – Optional

LWEG Technical Data Sheet6 of 7

BROWN BAND

Fans

BROWN BAND

Nosing (anti-sweat) Heaters

120V POWER

120V NEUTRAL

Refrigeration

Thermostat

Condensing Unit

}

Light Blue

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

(Field Installed)

Drip Pan Heater

Yellow

Heater Switch

Yellow

120V POWER 120V NEUTRAL

Dark Blue

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 Pane Multiglass

Glass Anti-sweat Heater

White

Black Black

Purple

White

Red

Heater Control

0400543

Red

230V

Purple

W/White

2 Pane Multiglass

Glass Anti-sweat Heater

Purple White

Black Black

120V

Purple

2 Pane Multiglass

Glass Anti-sweat Heater

Black Black

White

Purple

120V White

2 Pane Multiglass

Glass Anti-sweat Heater

Black Black

White

Purple

Glass Anti-sweat Heater (Domestic)

2 Pane Multiglass

Glass Anti-sweat Heater

White

Black Black

230V

Purple

2 Pane Multiglass

Glass Anti-sweat Heater

Black Black

White

Glass Anti-sweat Heater (Export Only)

LWEG (End Case)

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

LWEG (End Case)

Purple

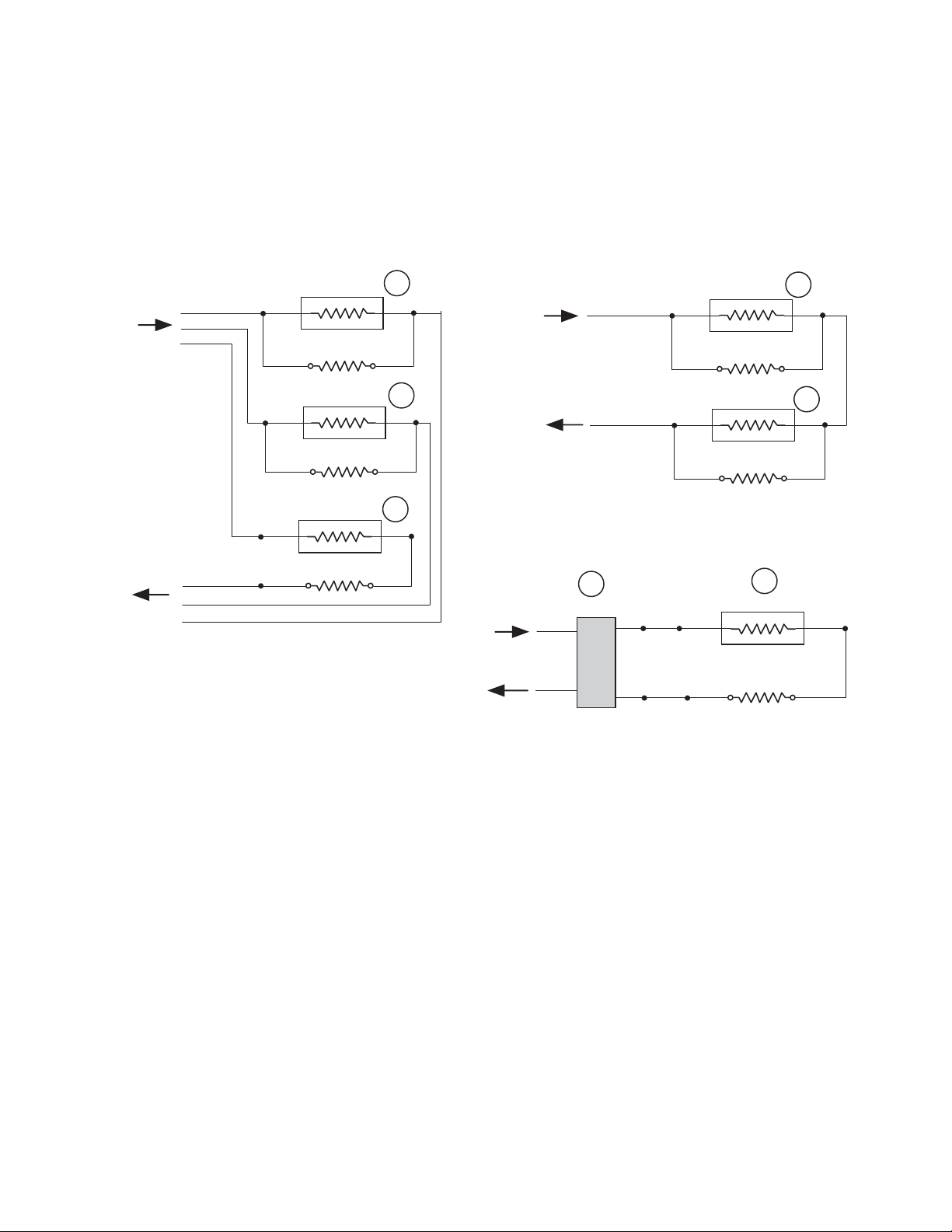

Glass Anti-sweat Heaters — Domestic & Export

7 of 7P/N 0395740_H HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
