Hussmann Impact Excel C6X-LE Manual de instrucciones

P/N 0473388_D

C6X-LE

Technical Data Sheet

P/N 0473388_D

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

D. Ballast, Electronic (4)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision D changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 9 C6X-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

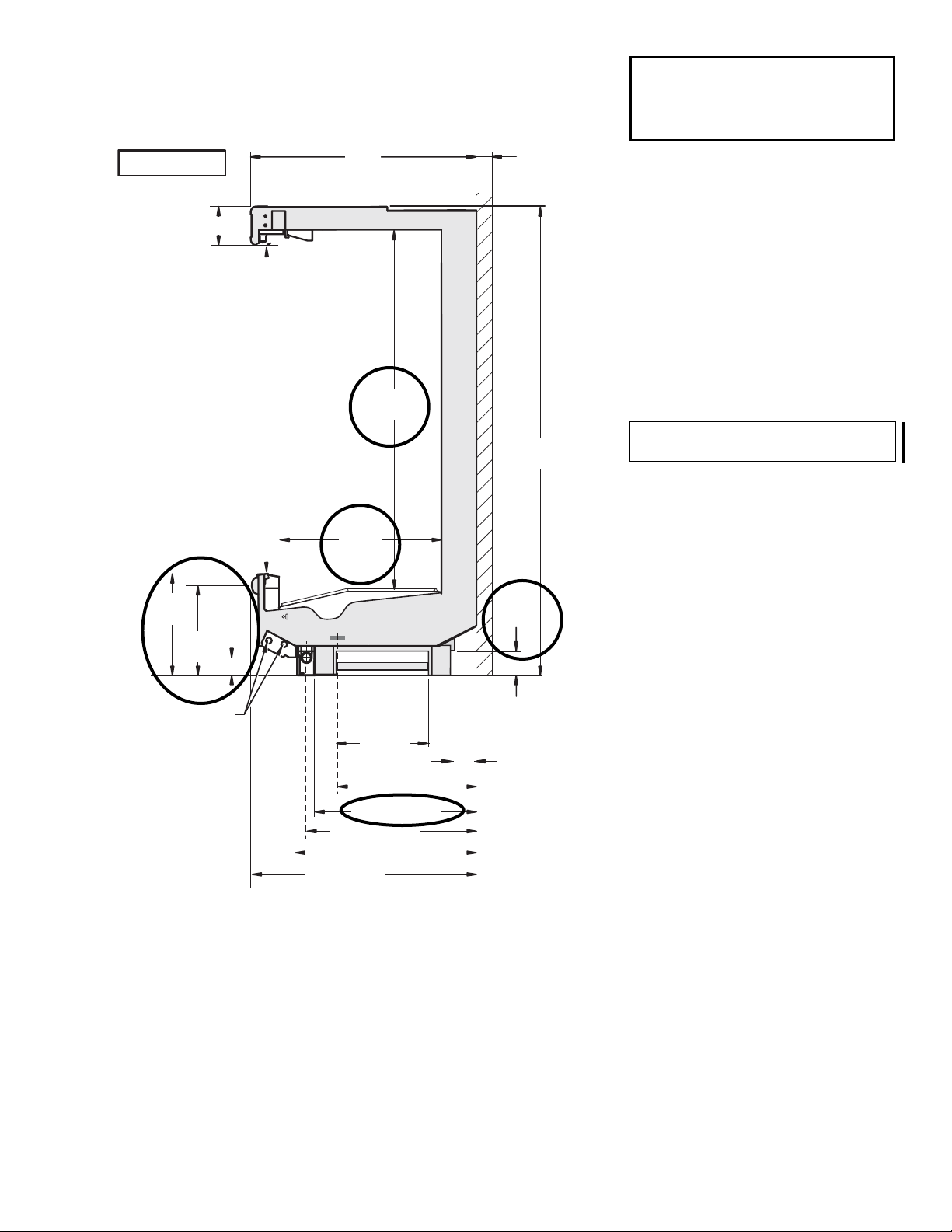

Plan Views

Dimensions shown as in. and (mm).

Convertible

09-2005

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

C6X

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/4(32) 1 1/4(32) 1 1/4(32) 1 1/4(32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

C6X-LE Meat Produce Dairy

Discharge Air (°F) 29 29 31

Evaporator (°F) 21 21 24

Unit Sizing (°F) 19 19 22

Btu/hr/ft — Unlit Shelves

C6X-LE‡‡ Parallel Conventional

MEAT 1885 2000

PRODUCE 1885 2000

DAIRY 1790 1900

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

C6X-LE

Frequency Hrs 4

Defrost Water (lb/ft/day) 10.50

(± 15% based on case configuration and product

loading).

OFFTIME C6X-LE

Temp Term °F 48

Failsafe Minutes 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*C6X-LE

Meat Produce Dairy

14°F / 4°F 14°F / 4°F 17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)** C6X-LE

4 ft 1.6

6 ft 2.3

8 ft 3.2

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 9

P/N 0473388_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

31 5/8 (804)

4 3/4 (120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

30 1/4

(768)

(1064)

60 1/2

(1537)

FAN

C6X-LE

17 1/4

(438)

3 In. (77 mm)

Required

Air Gap

87 3/8

(2219)

7 1/4 (183)

19 5/8

(499) 3 5/8

(92)

26 1/4 (665)

Refrigeration

Outlet

4 7/8

(123)

Electrical

Case to Case

Connections 17 1/8

(436)

67 1/8

(1704)

Dimensions shown as in. and (mm).

Multi-deck, 6 Display Levels, Low Front Impact

Excel

C6X-LE

Meat, Produce, Dairy &

Delicatessen

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—12W 2 — 4 6

Number of Fans—7W — 4 — —

Amperes Watts

Evaporator Fan 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

120V 60Hz Standard 1.30 2.00 2.60 3.90 100 156 200 300

120V 50Hz Standard 1.50 2.20 3.00 4.50 114 168 228 342

230V 60Hz Export 0.66 1.00 1.32 1.98 100 156 200 300

230V 50Hz Export 0.76 1.12 1.52 2.28 114 168 228 342

120V 60Hz Energy Efficient 0.60 0.76 1.20 1.80 36 56 72 108

230V 60Hz Energy Efficient 0.30 0.40 0.60 0.90 36 56 72 108

Minimum Circuit Ampacity

120V 60Hz Standard 1.50 2.20 2.80 4.10

120V 50Hz Standard 1.70 2.40 3.20 4.70

230V 60Hz Export 0.86 1.20 1.52 2.18

230V 50Hz Export 0.96 1.32 1.72 2.48

120V 60Hz Energy Efficient 0.80 0.96 1.40 2.00

230V 60Hz Energy Efficient 0.50 0.60 0.80 1.10

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting (T-8 Fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 Fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting (T-8 Fluorescent)

1 Row of Shelves 0.26 0.51 0.51 0.77 30 59 59 85

2 Rows of Shelves 0.51 1.02 1.02 1.54 59 118 118 170

3 Rows of Shelves 0.77 1.53 1.53 2.31 89 177 177 255

4 Rows of Shelves 1.02 2.04 2.04 3.08 118 236 236 340

5 Rows of Shelves 1.28 2.55 2.55 3.85 148 295 295 425

6 Rows of Shelves 1.53 3.06 3.06 4.62 177 354 354 510

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.19 0.26 0.38 18 23 31 45

2 Rows of Shelves 0.26 0.34 0.47 0.67 31 41 56 80

3 Rows of Shelves 0.38 0.53 0.74 1.11 45 63 89 133

4 Rows of Shelves 0.47 0.68 0.93 1.40 56 82 112 168

5 Rows of Shelves 0.57 0.83 1.13 1.69 68 99 136 203

6 Rows of Shelves 0.67 0.96 1.33 2.00 80 115 160 240

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

4 of 9 C6X-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

C6X-LE

Meat, Produce, Dairy &

Delicatessen

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 600 (272) 1000 (454) 1200 (544) 1900 (862) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 9P/N 0473388_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

C6X-LE

Meat, Produce, Dairy &

Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 12.74 ft3/ft (1.18 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 10.12 ft3 /ft (0.94 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 5.25 ft2/ft (1.60 m2 /m)

Shelf Area 4(Sq Ft/Ft) 11.73 ft2/ft (3.58 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (5) rows of 22-inch shelves.eparately from

fans.

C6X-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 9

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

2, 4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

455

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

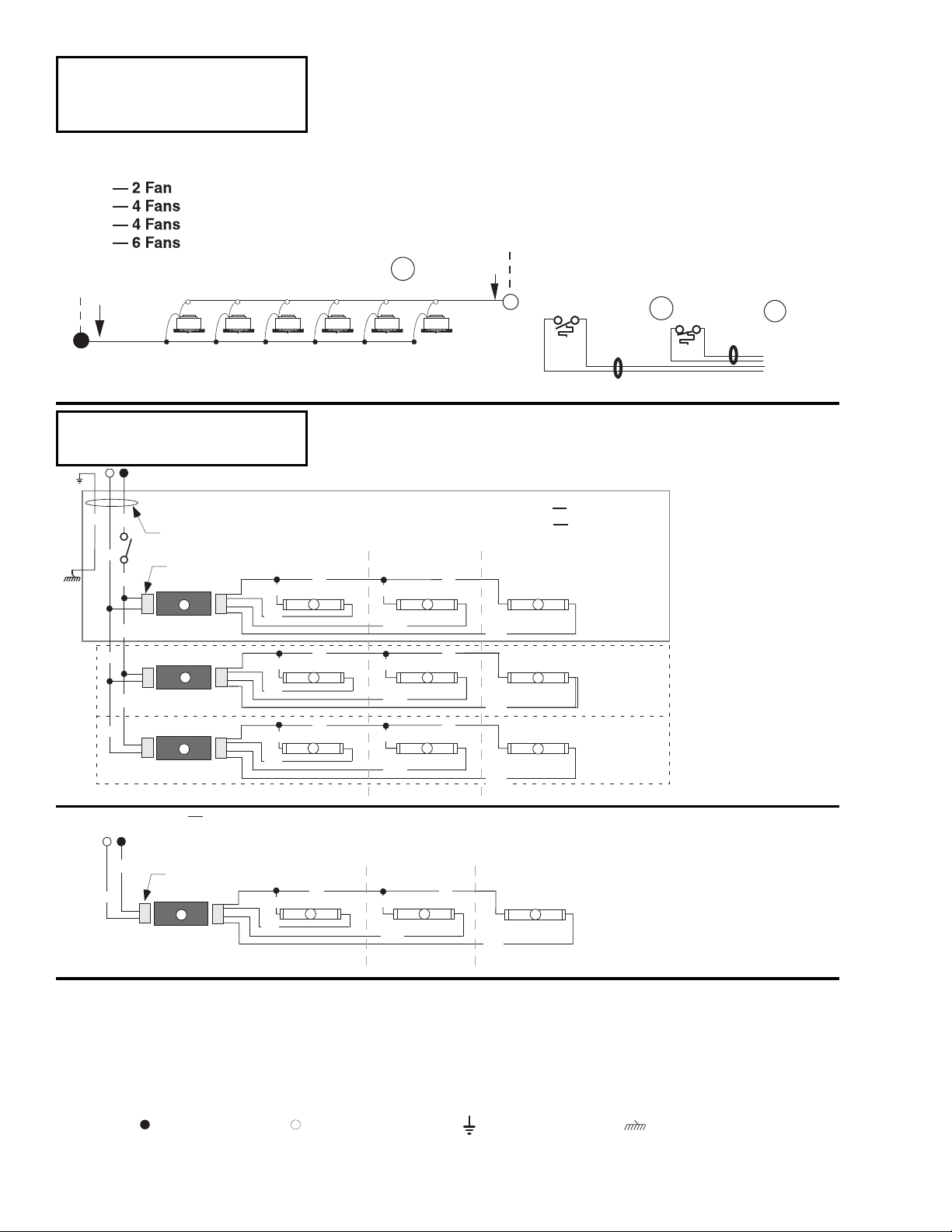

Fan Wiring

Offtime Defrost

Light Circuits

7 of 9P/N 0473388_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and Light Circuits for

Six Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

C6X-LE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 9

4 ft case

6 ft or 8 ft case

12 ft case

BL 7

RBL

Connector

BL 7

RBL

(TYP)

Shelf Light

Plug & Receptacle

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

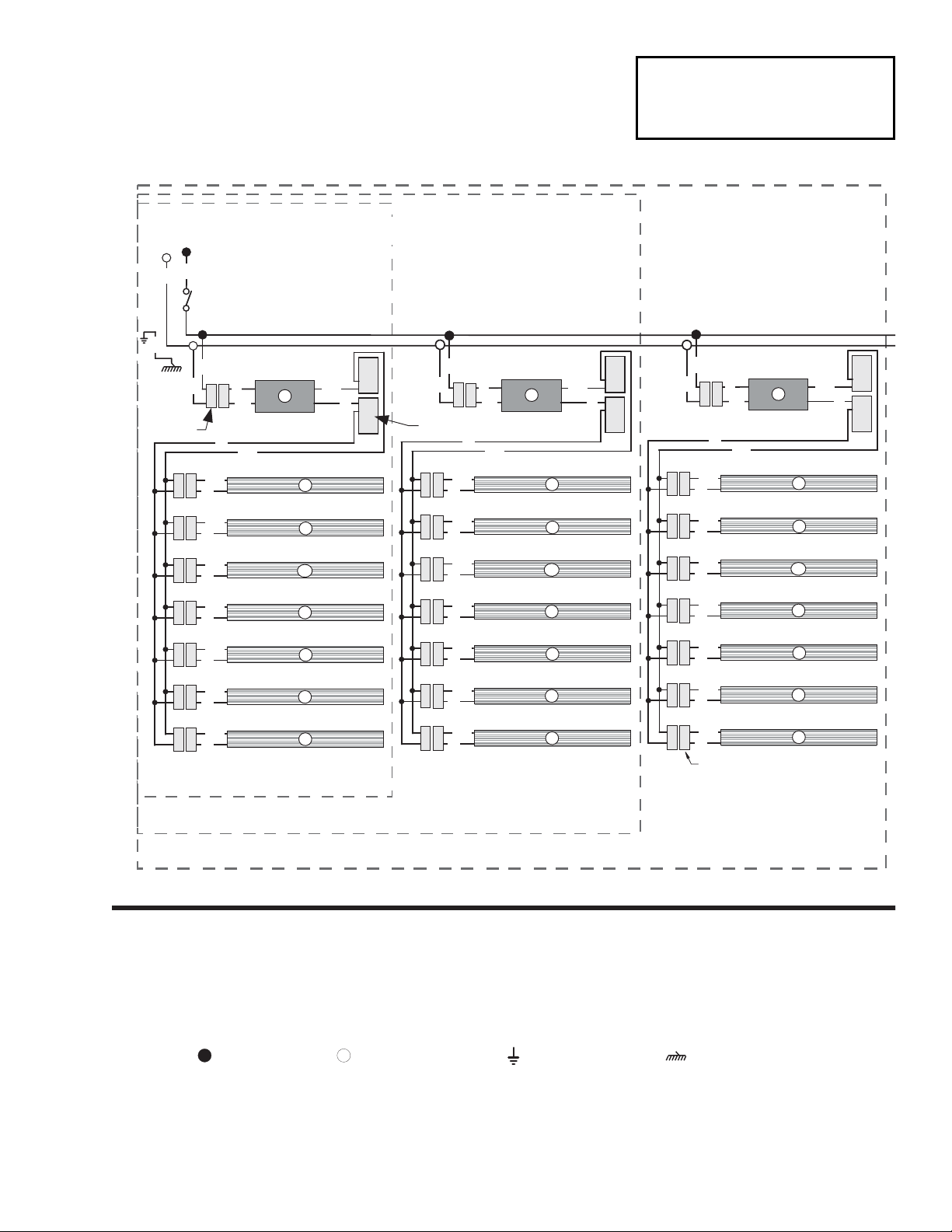

Optional Shelf Harness and LED Light Circuits for

Two Rows of Shelves

Optional Shelf Lighting

LED Fixtures

9 of 9P/N 0473388_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

BL 7

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 7

RBL

BL 7

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Tabla de contenidos

Otros manuales de Comerciante de Hussmann

Hussmann

Hussmann FN Manual de instrucciones

Hussmann

Hussmann IMPACT RLNIE Manual de instrucciones

Hussmann

Hussmann Impact C6E Manual de usuario

Hussmann

Hussmann M3NX-GEP Manual de instrucciones

Hussmann

Hussmann Specialty Products CR3-H Manual de instrucciones

Hussmann

Hussmann IMPACT CW2U-XGE Manual de instrucciones

Hussmann

Hussmann Impact C1CWCEI Manual de instrucciones

Hussmann

Hussmann impact Excel C2X-LGE Manual de instrucciones

Hussmann

Hussmann IMPACT M1CIMP-4B Manual de usuario

Hussmann

Hussmann impact Excel C2X-LEP Manual de instrucciones

Hussmann

Hussmann IMPACT D5NLE Manual de usuario

Hussmann

Hussmann Specialty Products CR3M-F Manual de instrucciones

Hussmann

Hussmann R3 Instrucciones de funcionamiento

Hussmann

Hussmann SGB Instrucciones de funcionamiento

Hussmann

Hussmann Q3-BC Manual de instrucciones

Hussmann

Hussmann P2NX-EP Manual de instrucciones

Hussmann

Hussmann microSC MDN-BA Manual de usuario

Hussmann

Hussmann IMPACT RL Manual de usuario

Hussmann

Hussmann MWGE Manual de usuario

Hussmann

Hussmann Impact Excel M3X-GEP Manual de instrucciones

Hussmann

Hussmann Q3-DC Instrucciones de funcionamiento

Hussmann

Hussmann impact C5-LE Manual de instrucciones

Hussmann

Hussmann ESGMVS Manual de instrucciones

Hussmann

Hussmann IMPACT Excel C2NX-LE Manual de instrucciones

Manuales populares de Comerciante de otras marcas

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manual de usuario

EPTA

EPTA COSTAN RHINO MULTI Manual de usuario

CASCO

CASCO Nano Cube Manual de usuario

True

True GDIM-26 Manual de usuario

Structural Concepts

Structural Concepts Oasis Mobile Series Instrucciones de instalación

Haussmann

Haussmann RL Manual de usuario

Howard McCray

Howard McCray R-CDS32E-4 Manual de usuario

EPTA

EPTA iarp Cool Emotions Delight Lite Manual de usuario

VALERA

VALERA BC 85 Manual de usuario

HL Display

HL Display 3eBin Manual de usuario

Dixie Narco

Dixie Narco DNCB 501E Manual de usuario

APW Wyott

APW Wyott Racer DMXD-30H Manual de usuario

Hoshizaki

Hoshizaki KD-90C Manual de usuario

Summit

Summit SCR1006 Manual de usuario

Delfield

Delfield Shelleyspeed SPM-28E Manual de usuario

EPTA

EPTA iarp Cool Emotions GLEE 40 Manual de usuario

Kysor/Warren

Kysor/Warren GranBering KW Guía

Crane

Crane BevMAX Refresh 6 Media Manual de usuario
