Hussmann Impact D5EE Manual de usuario

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0407200A.

Merchandisers

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0315470 Fan Blade

embossing toward motor

B. 0404551 Fan,Ambient (2)

C. 0411744 Standard Non-adjustable (3)

Defrost Thermostat

D. 0137880 Optional Adjustable (4)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

E. 0376409 Ballast, Electronic, 2 lamps (5)

F. Fluorescent Lamp (6)

Replace with like fixtures

D5ELE / D5EE

Data Sheet Set

P/N 0407200A

NSF®Certified

May, 2003

2 of 6 D5ELE / D5EE Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views

Multi-deck Dairy &

Delicatessen

End Case

D5EE / D5ELE

General

Case Length . . . . . . . . . . . . . . . . 93 5/8(2378)

Maximum O/S dimension of case

back to front (includes bumper) . . .46 1/2(1181)

Back of case to

front of splashguard . . . . . . . . . 37 3/4(959)

Back of case to O/S edge of

front base rail . . . . . . . . . . . . . 28 1/2 (724)

Width of base rail . . . . . . . . . . . . . 2 1/8 (54)

Front of splashguard to O/S

edge of front base rail . . . . . . . . 8 1/2 (216)

Stub-up area between front

base rail and splashguard . . . . . 7 5/8(194)

Electrical Service

(Electrical Field Wiring connection point)

LH End of case to

center of first knockout . . . . . . . 6 3/4 (171)

Back O/S edge of case

to nearest knockout . . . . . . . . . 33 1/2 (851)

Length of electrical raceway . . . . 35 5/8 (903)

Waste Outlet

Back O/S of case to

center of waste outlet . . . . . . . 26 3/8 (670)

LH End of case to center of

waste outlet . . . . . . . . . . . . . . . . . . 51 (1295)

Water Seal

Edge of water seal to center of

waste outlet . . . . . . . . . . . . . . . . . . 11 (279)

Outside diameter of the drip pipe . 1 1/2 (38)

Refrigeration Outlet

Back of case to center of

refrigeration outlet . . . . . . . . . 31 5/8 (803)

LH end of case to center of

refrigeration outlet . . . . . . . . . 70 9/16 (1792)

84 3/8

(2142)

(483)

81 1/4

(2062)

Front View

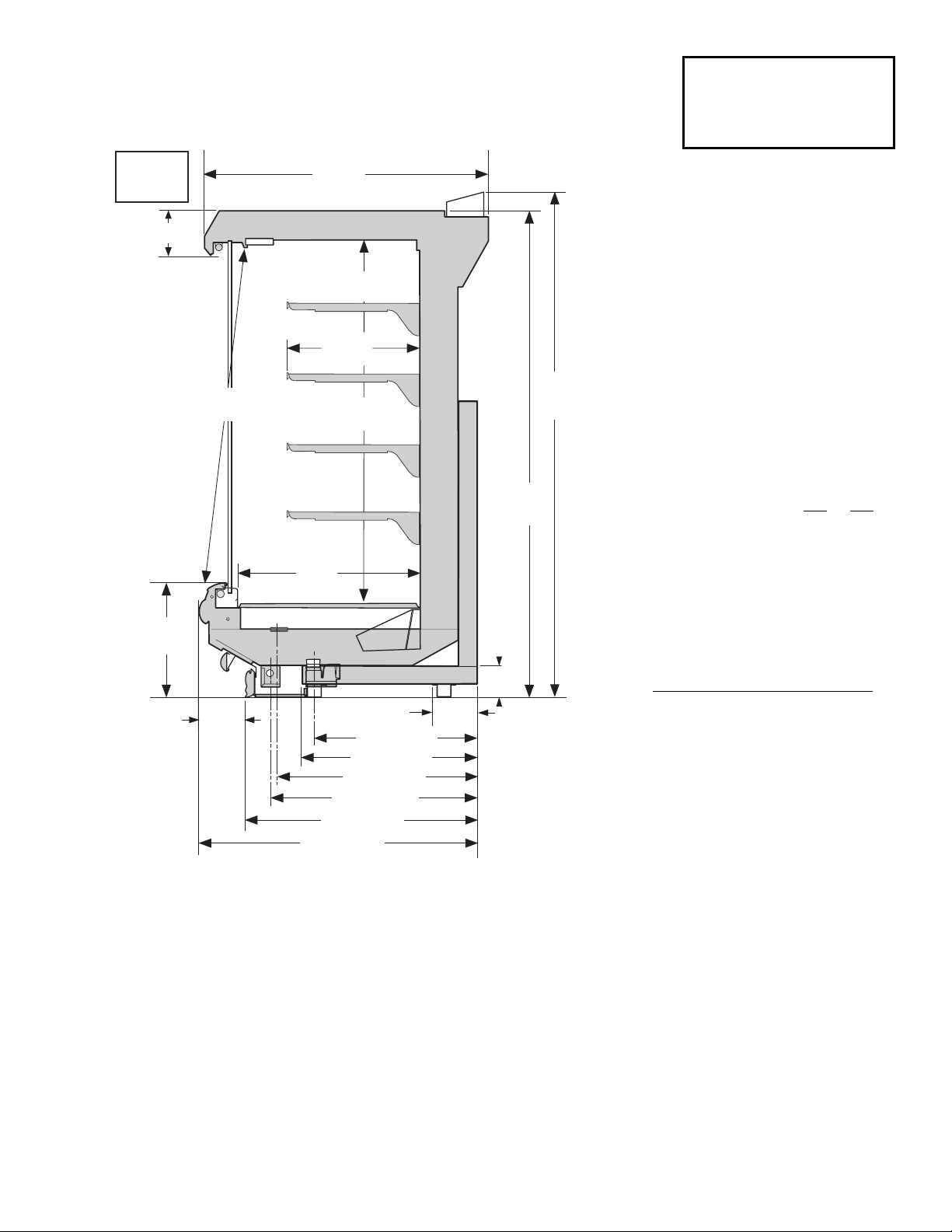

D5ELE

D5EE

04-2003

Access Area

(Gray

)

Waste

Outlet

3/8

(670

)

Electrical

Refrigeration

Outlet

(1981)

(991)

5/8

(2378

)

Front

31 1/2

(802)

(1295)

3/8

(746

)

1/8

(714

)

1/2

(851

)

3/8

(1153)

46 1/2

(1182)

Dimensions shown as in. and (mm).

3 of 6

P/N 0407200A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

D5ELE

D5EE

FAN

46 1/2(1181)

47 1/2

(1207)

61/8

(201)

37 3/4(959)

Refrigeration

Outlet

29 1/2(749)

31 5/8(803)

26 1/2(672)

75/8

(194)

33 1/2(851)

(483)

7 1/2(191)

81 1/8

(2062)

56 1/4

(1429) 61

(1549)

51/2

(139)

30 3/8

(772)

(559)

Lighted Shelf

(Optional)

84 3/8

(2142)

Impact

D5ELE / D5EE

Dairy & Delicatessen

Dimensions shown as in. and (mm).

NOTE: The bumpers are 4 in. (102 mm) wide. The center of the top bumper is

14 1/4in. (368 mm) from the floor and the center of the lower bumper

is 6 1/8in. (155 mm) from the floor.

Multi-deck, 5 Display Levels

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

D5ELE D5EE

Discharge Air (°F) 32 32

Evaporator (°F) 24 24

Unit Sizing (°F) 22 22

Btu/hr/case* D5ELE D5EE

Parallel 10,700 10,170

Conventional 11,400 10,830

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

D5ELE D5EE

Frequency (hr) 66

Defrost Water (lb/ft/day) 10.5 10.5

(± 15% based on case configuration and

product loading).

OFFTIME D5ELE D5EE

Temp Term (°F) 48°48°

Failsafe (minutes) 35 35

GAS OR ELECTRIC Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

D5ELE D5EE

CI/CO (Temp °F)** 17°/ 7° 17°/ 7°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)**

Not Recommended

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)***

D5ELE 2.4

D5EE 2.4

***This is an average for all refrigerant

types. Actual refrigerant charge may vary

by approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

4 of 6 D5ELE / D5EE Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

Number of Fans D5ELE D5EE

Refrigeration – 9W 2 2

Ambient Air Wipe – 15W 1 1

Export – 9W 2 2

Amperes Watts

Merchandiser D5ELE D5EE D5ELE D5EE

Fans (Refrigeration)

Standard (120V 60Hz) 1.40 1.40 110 110

Energy Efficient (120V 60Hz) 0.76 0.76 50 50

Export (230V 50Hz) 0.76 0.76 114 114

Fans (Ambient Air Wipe)

Standard (120V 60Hz) 0.25 0.25 22 22

Energy Efficient (120V 60Hz) NA NA NA NA

Export (230V 50Hz) 0.15 0.15 25 25

Constant On Anti-sweat Heaters NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.60 1.60

With Energy Efficient Fans (120V 60Hz) 0.96 0.96

With Export Fans (230V 50Hz) 0.47 0.47

Maximum Over Circuit Protection

Standard 120V 20 20

Export (230V 50Hz) 15 15

Electric Defrost Heaters (208V 1ΦΦ)NA NA NA NA

Standard Lighting

1 Row Canopy 0.51 0.51 59 59

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.02 118 118

2 Rows Canopy 1.02 1.02 118 118

2 Rows Canopy and 1 Row Rail 1.53 1.53 177 177

Optional Shelf Lighting

1 Row of Shelves 0.51 0.51 59 59

2 Rows of Shelves 1.02 1.02 118 118

3 Rows of Shelves 1.53 1.53 177 177

4 Rows of Shelves 2.04 2.04 236 236

Impact

D5ELE / D5EE

Dairy & Delicatessen

5 of 6P/N 0407200A HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue To

Condensing

Unit

}

Light Blue

Fan Wiring

Offtime Defrost

2 Fans 120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

WGB

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

6 of 6 D5ELE / D5EE Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

BWBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Standard Lighting 1 Row Canopy or Optio nal 1 Row Rail

Light Circuits

Optional Lig hting 2 Ro ws Cano py

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
