Hunter Set & Save 44377W Manual de usuario
Form# 44045-01
20100224
©2010 Hunter Fan Co.
Set & $aveSet & $aveSet & $ave
Installation and
Operation Manual
Model
44377W
Programmable
Thermostat
English
2
3
Table of Contents
important information ............................................................................................................................ 5
tools................................................................................................................................................................................ 6
uninstalling the existing unit............................................................................................................. 9
wire labels................................................................................................................................................................10
installing the thermostat.....................................................................................................................13
settings .......................................................................................................................................................................23
methods of operation................................................................................................................................27
default programs Chart..........................................................................................................................36
iCons and features..........................................................................................................................................43
important features........................................................................................................................................54
wiring diagrams................................................................................................................................................55
troubleshooting .............................................................................................................................................58
warranty..................................................................................................................................................................61
4
Congratulations!
Thank you for choosing a Hunter programmable thermostat. Your
new Hunter thermostat will provide years of reliable service and
year-round energy savings.
Please read this manual before beginning installation and save this
booklet for complete operation instructions.
The Hunter Technical Support Group is available from 7 am to 7 pm Monday
- Friday and 8:00 to 5:00 Saturdays CST. They may be reached toll-free at
1-888-830-1326.
Set & Save
Programmable Thermostat
Model 44377W
5
This thermostat is designed to work on the following
heating and cooling systems:
Gas – Standing Pilot
Gas – Electronic Ignition
Gas – Fired Boilers
Gas – Millivolt Systems
Oil – Fired Boilers
Oil – Fired Furnace
Electric Furnace
Electric Air Conditioning
Single-Stage Heat Pumps
This thermostat is not designed for multi-stage heat pump systems
or 110/220 V baseboard heating systems.
If you are unsure what kind of heating and cooling system you
have, please contact a qualied HVAC Technician for assistance.
important information
6
This thermostat includes two #8 slotted screws and two wall
anchors for mounting.
To install your new thermostat, you will need the following supplies:
Flat-head screwdriver
.............................................................................................
Small Phillips-head screwdriver
.............................................................................................
Hammer
.............................................................................................
Electric drill and 3/16” bit
.............................................................................................
Two 1.5 Volt (AA) size alkaline batteries
.............................................................................................
tools
7

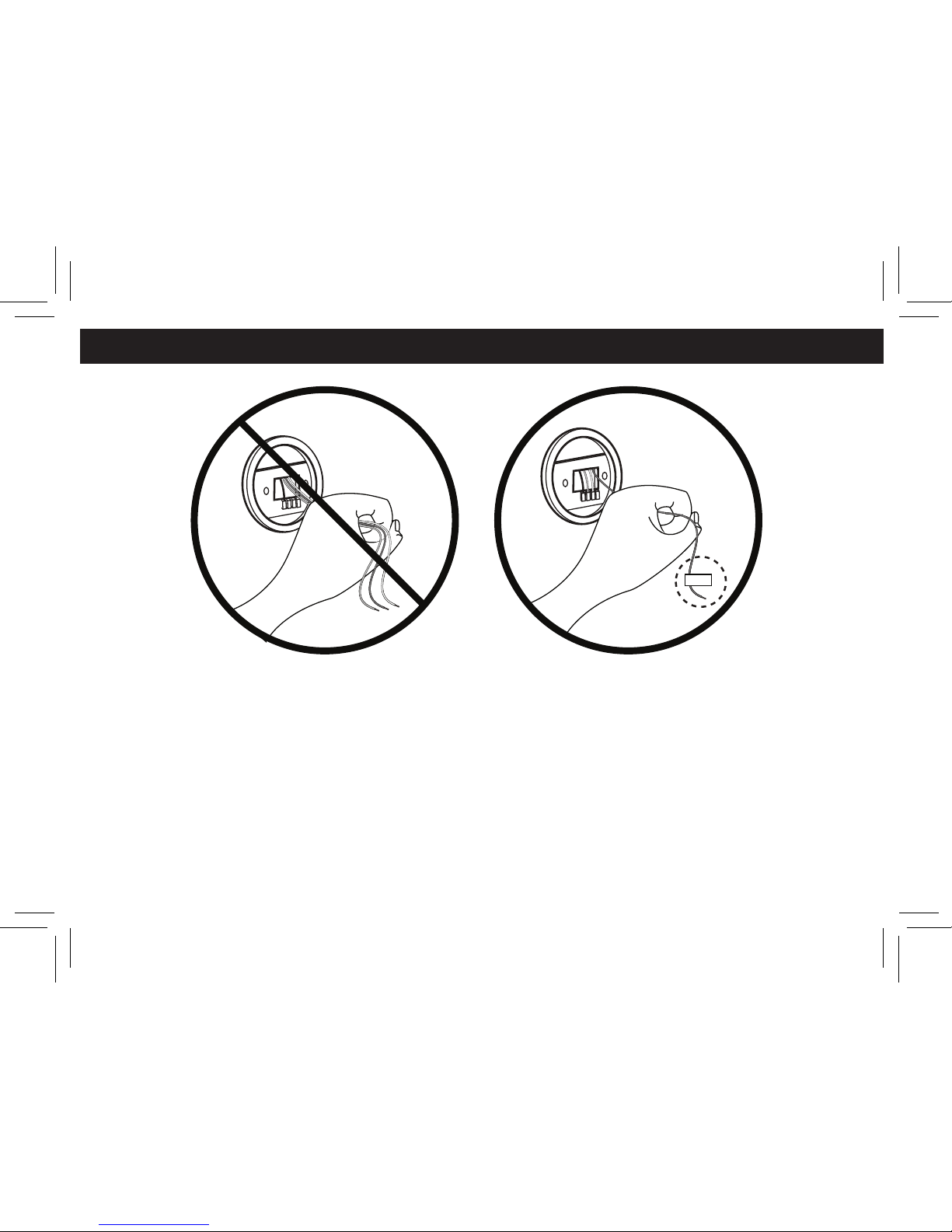

NOTICE! Do not disconnect the wires from the existing
thermostat before reading these instructions. The wires
must be labeled prior to removal to ensure proper
reconnection.
Y
RC
G
W
w
Y
RC
G
W
8
Y
RC
G
W
Y
RC
G
W
9
1. Turn the system power OFF from the existing thermostat. Turn
the power to the HVAC system OFF at the main power panel or
at the furnace.
(Failure to turn off the power to the existing thermostat before
removal could damage your system.)
2. Remove the existing thermostat cover to access the wires from
the wall.
(Some thermostats may have multiple covers, screws or other
locking devices that must be removed or disengaged. See page
8 for common examples.)
3. Locate, but do not disconnect the wires.
(If wires are not visible, they may be connected to the back
of the wall plate. Some models may have doors that open to
expose the wires and mounting screws.)
uninstalling the existing unit
10
G RC RH Y W
if your existing thermostat
is marked...
label the wire with
this sticker:
G / F
G
G
W / H / B
W/B
W/B
Y / C* / M / O
Y/0
Y/0
RC / VC
RC
RC
RH / R / VR / 4
RH
RH
24 Volt
24 Volt cool
air conditioning
compressor
heating
fan
Y1
Y1
Y1
heat pump compressor
wire labels
