Huawei UPS5000-E Series Manual de usuario

Issue: 04

Part Number: 31509985

Date: 2019-12-24

UPS5000-E-(400 kVA-600 kVA)

Quick Guide (60 kVA Power Modules)

1Overview

Model UPS5000-E-400K-FMS UPS5000-E-500K-FMS UPS5000-E-600K-FMS

Weight (full

configuration) 680 kg 800 kg 1025 kg

Dimensions (H

x W x D) 2000 mm x 1200 mm x 850 mm 2000 mm x 1400 mm x

850 mm

1. Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

2. Use insulated tools during installation and operation.

3. Only engineers certified by Huawei or its agents are allowed to install, commission, and maintain

the UPS. Otherwise, personal injury or equipment damage may occur, and the UPS faults

caused are beyond the warranty scope of Huawei.

(1)

Power modules

(2)

Control module

(3) Power distribution

module covers

(4) Maintenance bypass

switch

(5) Bypass module

(6) Main input switch

(7) Output switch

(8) Bypass input switch

UPS5000-E-400K-FMS UPS5000-E-500K-FMS

Determining the UPS Installation Position

2.1

The UPS can be installed on the channel steel or floor. Determine the mounting hole positions using a

marking-off template (unit: mm), drill holes, and install expansion sleeves based on site requirements.

2Installing the UPS

UPS5000-E-600K-FMS

(1) Power modules

(2) Control module

(3) Power distribution

module covers

(4) Maintenance

bypass switch

(5) Bypass module

(6) Main input switch

(7) Output switch

(8) Bypass input switch

UPS5000-E-400K-SMS, UPS5000-E-500K-SMS, and UPS5000-E-600K-F600-SMS are models in

standard configuration. A UPS in standard configuration has no mains input switch, bypass input

switch, or output switch.

A: Mounting holes on the channel steel B: Mounting holes on the floor

Unit: mm 400/500K Hole dimensions

600K Hole dimensions

Unit: mm

Installing the Front, Rear, Left, and Right Anchor Baffle Plates

2.3

3Installing Cables

UPS Cable Connection Reference

3.1

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may

ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and

surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

•Ground mounting: Secure the cabinet to the ground by using eight M12x60 expansion bolts.

•Steel channel mounting: Secure the cabinet to steel channels by using eight M12x60 common

bolts.

(1)

Cabinet mounting holes (ground installation mode)

(2)

Cabinet mounting holes (channel steel installation mode)

Securing the UPS2.2

1. Open the front door of the bypass cabinet,

and remove power distribution covers

(UPS5000-E-400K-FMS is used as an

example).

Installing Cables

3.2

The cabling route is for reference only. Connect cables based on site requirements.

3.2

2. Remove the top cover from the cabinet

based on cable routes and dimensions.

Scenario 1: Routing Cables from the Top

5. Connect the mains input power cable. 6. Connect the output power cable.

3. Remove the copper bar between the mains

and bypass inputs. (Skip this step if there is

only one mains input)

4. Connect the ground cable to the UPS.

9. Connect signal cables.

The figure shows the signal cable routing and

is for reference only. Connect the cable based

on the actual situation.

Route a neutral wire from the middle of the

positive and negative battery strings.

Take a battery string consisting of 40

batteries as an example. A neutral wire

is routed from the middle of positive and

negative battery strings, each consisting of

20 batteries.

7. Connect the bypass input power cable. 8. Connect the battery cable.

(1) Switches

(2) Mains input wiring

copper bars

(3) Battery input wiring

copper bars

(4) Output wiring

copper bars

(5) Bypass input wiring

copper bars

(6) Rear of the cabinet

4Verifying the Installation

1. Check that there is no foreign matter

in the cabinet.

Scenario 2: Routing Cables from the Bottom

For the screw specifications and torque used for

connecting cables in a bottom cable routing

scenario, refer to the top cable routing scenario.

This section only shows the cable routes in the

bottom cable routing scenario.

1. Remove the cable covers from the bottom of the cabinet, drill holes in the covers, attach grommet

strips to the hole edges for protecting cables, and reinstall the cable covers.

2. Connect power cables and signal cables.

Paper

protective film

Sealing putty

5Powering On and Starting the UPS

1. Before powering on the UPS, ensure that the UPS has passed all check items in theUPS5000

Commissioning and Acceptance Report and Chapter 4.

2. Measure the voltage and frequency of the mains and bypass inputs of the UPS, or the voltage

and frequency output from the external input power distribution cabinet (PDC) to the UPS.

Ensure that the line voltage is in the range of 138–485 V AC and the frequency is in the range

of 40–70 Hz.

Dustproof

cover

3. After verifying the installation, reinstall all the covers.

4. Do not remove the dustproof cover before power-on to prevent dust from entering the UPS.

2. (Remove the paper protective film from the sealing putty.) After routing cables and verifying cable

connections, seal the gap between cables and the cabinet using sealing putty.

Sealing putty must be used as a whole and the gap can be sealed only from the top.

InitialStartup

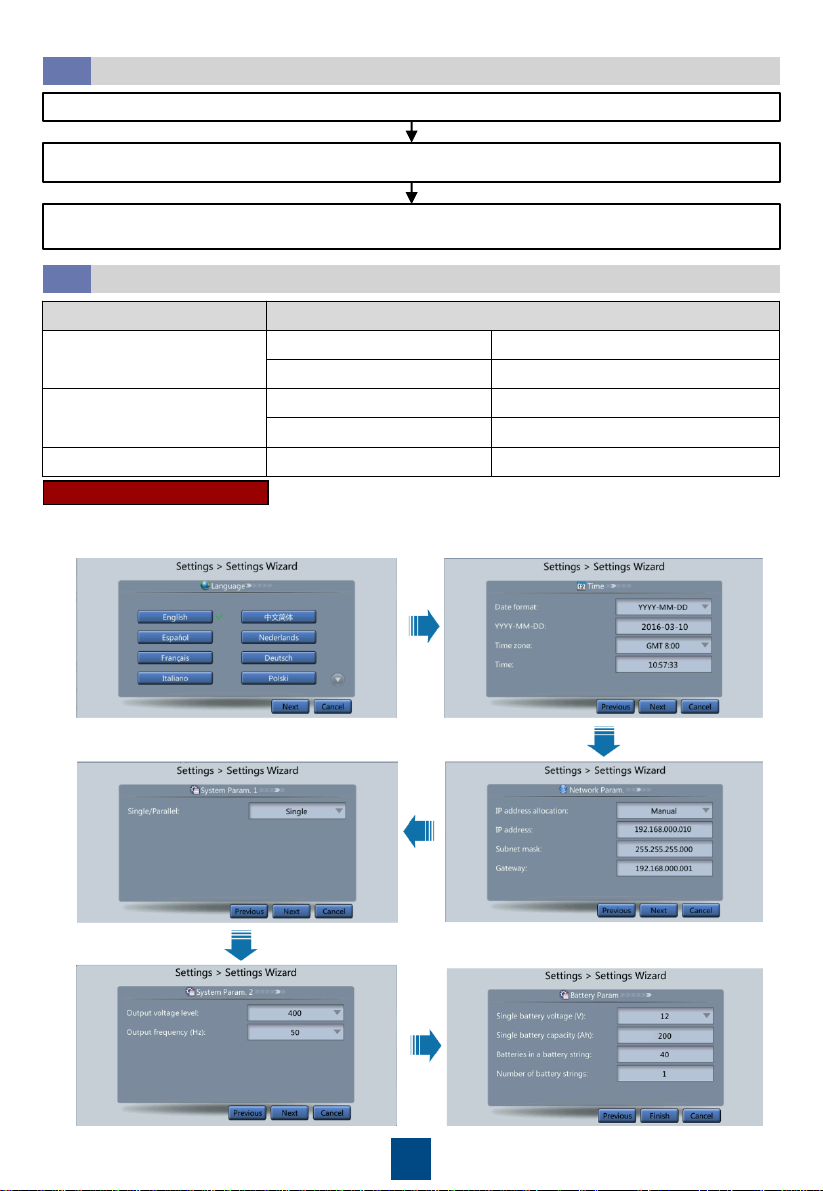

a. During the initial startup, set the language, time and date, network parameters, and system

parameters on the Settings Wizard screen.

Starting the Inverter

5.2

Default User Preset Password

admin (administrator) LCD 000001

Web Changeme

operator (common user) LCD 000001

Web Changeme

browser (browsing user) Web N/A

Powering On the UPS

5.1

Close the upstream bypass and mains input switches.

(For a UPS in full configuration )

Close the UPS bypass input switch, output switch, and mains input switch.

After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an

initialization progress bar.
