NE05E&NE08E Series Mid-End Router

Quick Installation Guide

(APM30H Cabinet)

Issue: 02

Date: 2016-06-30

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

Installation Flow

PrecautionsPage 1

Tools for InstallationPage 2

Introduction to the 1U-

height Chassis

Pages

3-4

Installation Scenarios of

NE Equipment

Page 7

Connecting and Routing

Cables

Pages

12-16

Installation Checklist

End

Start

Checking Tail Fiber

Connection

Page 20

Powering On the

Equipment

Pages

18-19

Preparation

for

installation

Page 17

Introduction to the 2U-

height Chassis

Page 5

Installing the Assemblies

Pages

8-11

Powering On the

Equipment

Pages

18-20

Introduction to the

APM30H Cabinet

Page 6

Installing the NE

Equipment in the APM30H

Cabinet

Installing the SLPU

(Optional)

Page 8

Page 9

Installing the SOU in the

APM30H Cabinet (Optional)

Installing the Heater in the

APM30H Cabinet (Optional)

Page 10

Page 11

Paint Repair

Applying Grease to the

Required Position

Page 24

Page 25

Assembling OT Terminals

Page 23

Assembling the Easy Power

Receptacle (Pressfit Type)

Connector

Page 22

Layout of the Cable Holes

Page 21

Appendixes

Pages

21-25

Connecting the Power

Cables

Connecting the Service

Cables for the Equipment

Pages

13-14

Pages

15-16

Common Cables for the

Chassis

Page 12

Cabinet Sharing

Separate Outdoor

Installation

Page 7

Connecting the PGND

Cables

Page 12

Precautions

This document provides simple and distinctive guidelines for quick hardware installation of the

NE05E&NE08E(NE05E-S2/SE/SF/SG/SH/SI/SQ&NE08E-S6/S6E).

Based on the height of a device, the NE05E-S2/SE/SF/SG/SH/SI/SQ are considered 1 U devices,

and the NE08E-S6/S6E are considered 2 U devices. 1 U = 44.45 mm (1.75 in.)

As the installation methods are similar, the fixed NE05E-SF is used as an example for the 1 U

device, and the card-inserted NE08E-S6 is used as an example for the 2 U device. The installation

differences are specially described in this document.

This document does not describe pre-delivery assembly. This document only describes procedures

for onsite installation.

Wear ESD gloves or Antistatic Wrist Strap prior to

contact with the equipment or before handling the

plug-boards, boards, and IC chips to prevent damage

to sensitive components caused by electrostatic

discharge from the human body.

Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot

exceed 250 mm.

Bundling cables

Electrostatic Discharge

Pre-Installation Check

Verify that the equipment room, power supply, ground cables and optical cables are ready for

installation. Start the installation according to the engineering design documents after confirming

that conditions are met. Refer to the Installation Guide for information about specific operational

requirements and technical specifications.

NOTE

CAUTION

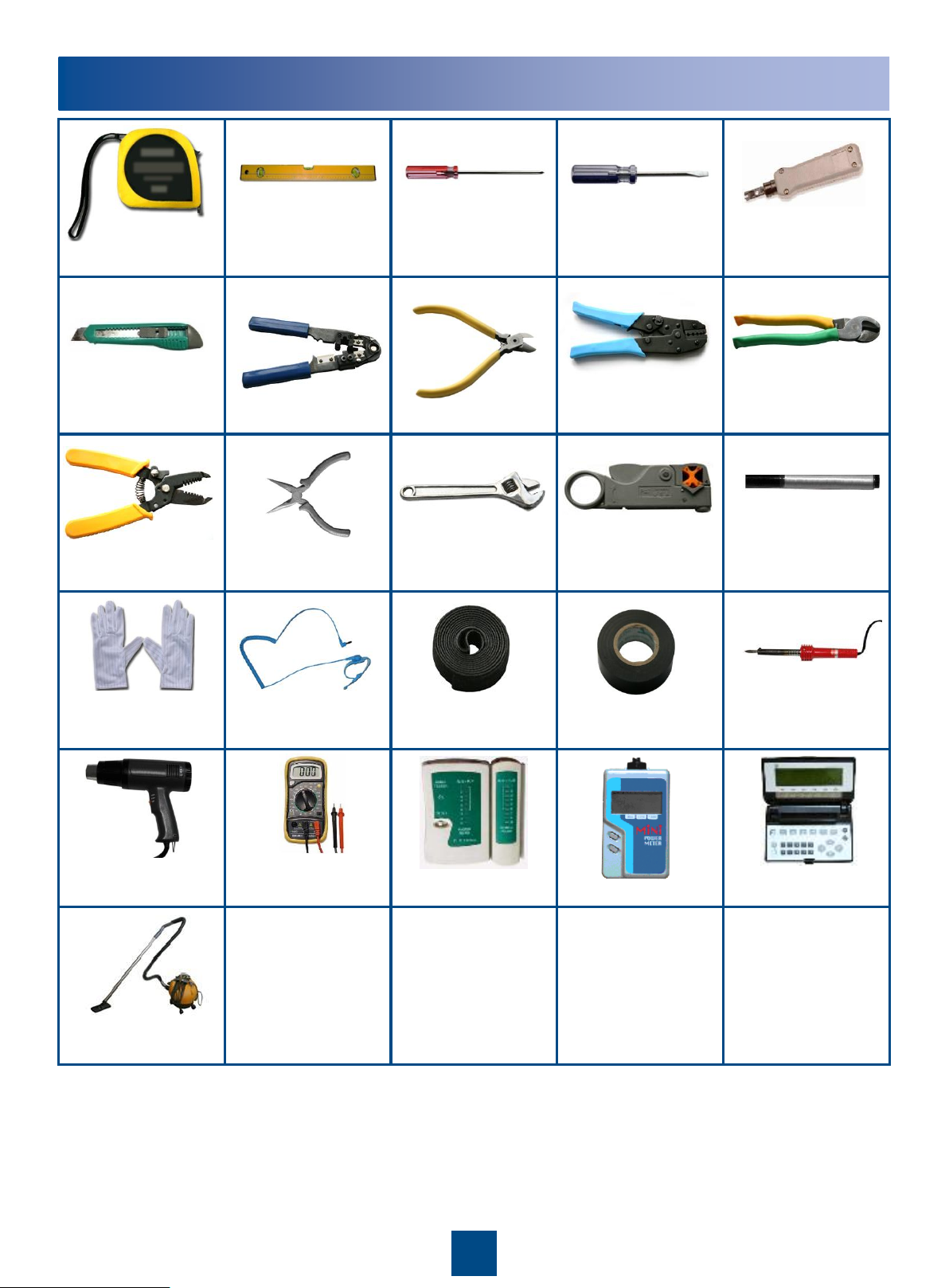

Tape Measure Philips Screwdriver

（M2-M6) Flathead Screwdriver

（M2-M6)

Adjustable Wrench

Level Bar

Ratchet Crimp Tool Cable Cutter

Wire Stripper

Network Cable

Crimping Pliers Diagonal Pliers

Sharp-nose Pliers

Paper Knife

Marker Pen

Electric Iron

Heat Gun Multimeter

ESD Gloves Binding Strap Insulation Tape

Antistatic Wrist Strap

Punching Wire pliers

Vacuum cleaner

Tools for Installation

Cable Tester Optical Power Meter BER Tester

Coax Stripper

NE05E-S2

Introduction to the 1U-height Chassis

Clock interface

Power supply interface

Time interface

NM interface

(Console interface)

Alarm interface

PGND point

FE/GE electrical interface

10GE optical interface

FE/GE optical interface

E1 interface

Alarm interface

PGND pointPower supply interface

GE optical interface

Clock and time interface

T1 interface

Antistatic jack interface

FE/GE electrical interface SHDSL interface

NE05E-SE/NE05E-SF

NM interface

(Console interface)

FE/GE optical

interface

NE05E-SG/NE05E-SH/NE05E-SI/NE05E-SQ

Clock interface

Power supply interface

Time interface

NM interface

(Console interface)

PGND point

Electrical interface

GE optical interface

Alarm interface

E1 interface

FE/GE optical interface

FE/GE optical interface FE/GE electrical interface

Power supply interface Clock interface

10GE optical interface

Antistatic jack interface

Time interface

NM interface

(Console interface) Alarm interface

For running an AC NE05E-SQ, you must turn on the switches of both AC power modules operating

in 1+1 backup mode.

NOTE

NE08E-S6

Introduction to the 2U-height Chassis

Alarm interface PGND point

Power supply interface

GE optical interface

Clock interface

Time interface

Antistatic jack interface

E1 interface

NM interface

(Console interface)

Electrical interface

NE08E-S6E

Alarm interface PGND point

Power supply interface

GE optical interface

Clock interface

Time interface

Antistatic jack interface NM interface

(Console interface)

Electrical interface

10GE optical interface

APM30H机柜介绍

Technical Specifications

•Dimensions:700 (H) x 600 (W) x 480 (D)

•Ambient temperature: -40°C to +50°C

•Sunshine radiation: 1120±10%W/m2

•Allowable heat dissipation:≤700 W

The Internal Structure of the APM30H Cabinets

Introduction to the APM30H Cabinet

View of the APM30H Cabinet

HPMI board Fan board (internal circulating) CMUA board PSU module

EPS frame PMU module Cable distribution box

ATN950B

Installation Scenarios of NE Equipment

1 Cabinet Sharing

Installing NE equipment in the APM30H cabinet together with BBU

Heater

NE05E-SF

Power supply

system

Fan unit

BBU

SLPU

2 Separate Outdoor Installation

Installing the NE equipment in the APM30H Cabinet

SOU

Heater

NE05E-SF

SLPU

Power supply

system

Fan unit

1U-height chassis 2U-height chassis

Heater

NE08E-S6

Power supply

system

Fan unit

BBU

SLPU

SOU

Heater

NE08E-S6

SLPU

Fan unit

Power supply

system

1U-height chassis 2U-height chassis

By default, the heater (optional) is installed in the lowest part of the cabinet. If cables connected to electrical

ports are led out of the cabinet, an SLPU must be installed.

NOTE

In the case of separate outdoor installation, the heater and SOU are optional. If cables connected to electrical

ports are led out of the cabinet, an SLPU must be installed.

NOTE
