Installation Instructions

Wireless ADSL2+ Router

Huawei HG530 / HG530u

APRIL 2011Please recycle

24-hour Technical Support Line

If you have any questions or need help before

and after the ADSL installation, call

(Local call rate throughout Greece)

Minimum System Requirements............................................................................................................................................. 3

Package Contents ........................................................................................................................................................................ 4

LEDs ................................................................................................................................................................................................... 5

Ports .................................................................................................................................................................................................. 6

Connecting the ADSL2+ Router ............................................................................................................................................. 7

PSTN Line ................................................................................................................................................................................ 8

ISDN Line ...............................................................................................................................................................................11

Internet Settings .........................................................................................................................................................................14

Wireless Connection ................................................................................................................................................................19

Turning the wireless network On/O /& Reset Router .................................................................................................24

Change the Username & Password for Internet access ................................................................................................25

Equipment Guarantee ..............................................................................................................................................................26

Online Security ............................................................................................................................................................................26

Connection Elements ...............................................................................................................................................................27

1 Pentium 4 Processor

2 Windows XP/Vista/7 or Mac OS 9.x

3 1 GB RAM

4 25 MB free hard disk space

5 10/100 Mbps Ethernet Network Card

Contents

Minimum System Requirements

Minimum System Requirements............................................................................................................................................. 3

Package Contents ........................................................................................................................................................................ 4

LEDs ................................................................................................................................................................................................... 5

Ports .................................................................................................................................................................................................. 6

Connecting the ADSL2+ Router ............................................................................................................................................. 7

PSTN Line ................................................................................................................................................................................ 8

ISDN Line ...............................................................................................................................................................................11

Internet Settings .........................................................................................................................................................................14

Wireless Connection ................................................................................................................................................................19

Turning the wireless network On/O /& Reset Router .................................................................................................24

Change the Username & Password for Internet access ................................................................................................25

Equipment Guarantee ..............................................................................................................................................................26

Online Security ............................................................................................................................................................................26

Connection Elements ...............................................................................................................................................................27

1 Pentium 4 Processor

2 Windows XP/Vista/7 or Mac OS 9.x

3 1 GB RAM

4 25 MB free hard disk space

5 10/100 Mbps Ethernet Network Card

Contents

Minimum System Requirements

1 ADSL2+ Wireless Router

1 Installation CD

Installation Instructions

2 Telephone Cables (RJ-11)

LED

The following LEDs are found on the front side of the ADSL2+ Router.

Review the meaning of each LED below (Figure 1).

Color Status

On

Figure 1

O

Blinking

On

O

Blinking

On

O

Blinking

On

O

Blinking

On

O

Connection established

Connection is not established

Connection being established

Connection established

Connection is not established

Data is transferred over Ethernet

Ethernet connection is established

Ethernet connection is not established

• WAN connection is established

• Data is being transferred

• WAN connection is established

• No data is transferred

WAN connection is not established

• Wireless network mode is being activated

• Data is being transferred over WLAN

• Wireless network mode is active

• No data is being transferred over WLAN

• Wireless network mode is inactive

Meaning

1 Ethernet Cable (RJ-45)

1 Power Transformer

1 Splitter

1 Filter (for PSTN)

Installation Instructions

Wireless ADSL2+ Router

Huawei HG530 / HG530u

Package Contents

LEDs

1 ADSL2+ Wireless Router

1 Installation CD

Installation Instructions

2 Telephone Cables (RJ-11)

LED

The following LEDs are found on the front side of the ADSL2+ Router.

Review the meaning of each LED below (Figure 1).

Color Status

On

Figure 1

O

Blinking

On

O

Blinking

On

O

Blinking

On

O

Blinking

On

O

Connection established

Connection is not established

Connection being established

Connection established

Connection is not established

Data is transferred over Ethernet

Ethernet connection is established

Ethernet connection is not established

• WAN connection is established

• Data is being transferred

• WAN connection is established

• No data is transferred

WAN connection is not established

• Wireless network mode is being activated

• Data is being transferred over WLAN

• Wireless network mode is active

• No data is being transferred over WLAN

• Wireless network mode is inactive

Meaning

1 Ethernet Cable (RJ-45)

1 Power Transformer

1 Splitter

1 Filter (for PSTN)

Installation Instructions

Wireless ADSL2+ Router

Huawei HG530 / HG530u

Package Contents

LEDs

The ADSL2+ Router has the following buttons and ports (Figure 2):

PORT LABEL DESCRIPTION OPERATION

POWER Power Port This port is used for

the 220V power transformer

RESETFactory setting reset button Resets factory settings

LAN 4 (STB) Ethernet Port for decoder Connects to OTE’s Cable Television

over Internet Service

LAN 1-3 Ethernet Ports

for PC connection

They allow for the connection of

up to three PCs for access to the Internet

and local network creation

ADSL Port for telephone

cable connection

Connects to the telephone socket

or the splitter

WLAN WLAN Button It turns the WLAN on/o

ON/OFFPower button It is used to power the device on/o

Figure 2

Follow the following instructions to connect the ADSL2+ Router

over a PSTN or ISDN telephone line.

Connecting the ADSL2+ Router

Ports

Connecting the ADSL2+ Router

The ADSL2+ Router has the following buttons and ports (Figure 2):

PORT LABEL DESCRIPTION OPERATION

POWER Power Port This port is used for

the 220V power transformer

RESETFactory setting reset button Resets factory settings

LAN 4 (STB) Ethernet Port for decoder Connects to OTE’s Cable Television

over Internet Service

LAN 1-3 Ethernet Ports

for PC connection

They allow for the connection of

up to three PCs for access to the Internet

and local network creation

ADSL Port for telephone

cable connection

Connects to the telephone socket

or the splitter

WLAN WLAN Button It turns the WLAN on/o

ON/OFFPower button It is used to power the device on/o

Figure 2

Follow the following instructions to connect the ADSL2+ Router

over a PSTN or ISDN telephone line.

Connecting the ADSL2+ Router

Ports

Connecting the ADSL2+ Router

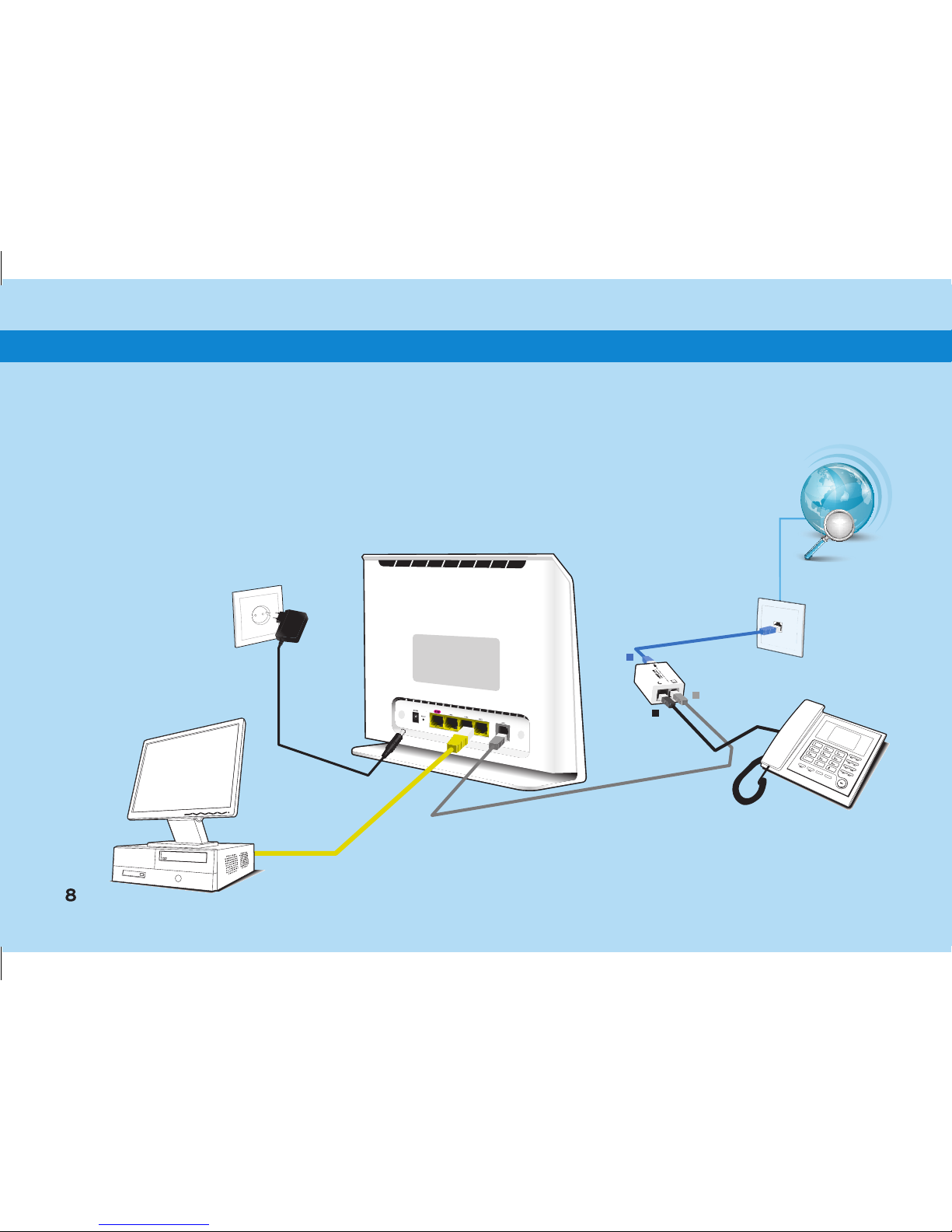

PSTN Line

If you have a PSTN

telephone line (plain analog line),

connect the ADSL2+ Router

as shown below.

Using the blue cable, connect the blue port

on the splitter to the telephone socket.

Use the yellow cable to connect the network port (ETHERNET)

of your computer to one of the three rst yellow ports on the

Conn-x equipment.

WARNING: The purple port labeled STB is used exclusively to

connect the set-top-box required to receive OTE's Cable Television

over Internet service.

A. Use the grey cable to connect the grey

port on the splitter to the grey port on

the Conn-x equipment.

B. Next, connect the cable of your telephone

device to the black port on the splitter.

If you have a telephone set connected to the telephone socket,

you must disconnect it.

PSTN Line

PSTN Line

If you have a PSTN

telephone line (plain analog line),

connect the ADSL2+ Router

as shown below.

Using the blue cable, connect the blue port

on the splitter to the telephone socket.

Use the yellow cable to connect the network port (ETHERNET)

of your computer to one of the three rst yellow ports on the

Conn-x equipment.

WARNING: The purple port labeled STB is used exclusively to

connect the set-top-box required to receive OTE's Cable Television

over Internet service.

A. Use the grey cable to connect the grey

port on the splitter to the grey port on

the Conn-x equipment.

B. Next, connect the cable of your telephone

device to the black port on the splitter.

If you have a telephone set connected to the telephone socket,

you must disconnect it.

PSTN Line

PSTN Line

ISDN Line

Connect the power transformer to the power port on the

Conn-x equipment and plug it to the mains socket.

Press the ON/OFF power button located on the side of the

equipment, to turn on your equipment.

The Power, ADSL, Internet, LΑΝ and WLAN LEDs will light.

To connect additional telephone sets to other sockets, each set

must be connected to a lter. Connect your telephone set to the

lter and the lter to the socket.

Note: If your telephone network is connected to any device

(alarm, telephone exchange, etc.), you must use an additional

ADSL lter or splitter. Please contact a specialized installer.

If you have an ISDN telephone line,

connect the ADSL2+ Router

as shown below.
