eAN3810A

V100R001C00

Deployment Guide

Issue

Date

2017-04-30

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

support@huawei.com

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

1 eAN3810A Deployment Guide

About This Chapter

Overview

This document describes how to use the CME and U2000 to configure data for eAN3810A

and to commission and verify configured eAN3810A based on design requirements. This

document applies to the initial stage of cellular network deployment.

Product Version

Unless otherwise stated, "eNodeB", "Pico", "eAN", and "AirNode" in this document refer to the 3810

series AirNode.

The 3810 seriesAirNode is a base station that provides communications services in Huawei

OneAir solution. The following table lists the product name and product version related to the

3810 seriesAirNode.

Product Name

Product Version

eAN3810A

V100R001C00

Intended Audience

This document is intended for:

Network planning engineers

Network operators

System engineers

Organization

1.1 Site Deployment Overview

With site deployment, data is planned, delivered, and activated on a per eAN3810A, MicroSD

card commissioning and MMLcan be used.

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

1.2 MicroSD Card Site Deployment

1.3 MML Site Deployment

1.1 Site Deployment Overview

With site deployment, data is planned, delivered, and activated on a per eAN3810A, MicroSD

card commissioning and MMLcan be used.

Application Scenarios and Deployment Principles

Site deployment applies to outdoor coverage scenarios where operator-provided private

transport networks are used.

Scope

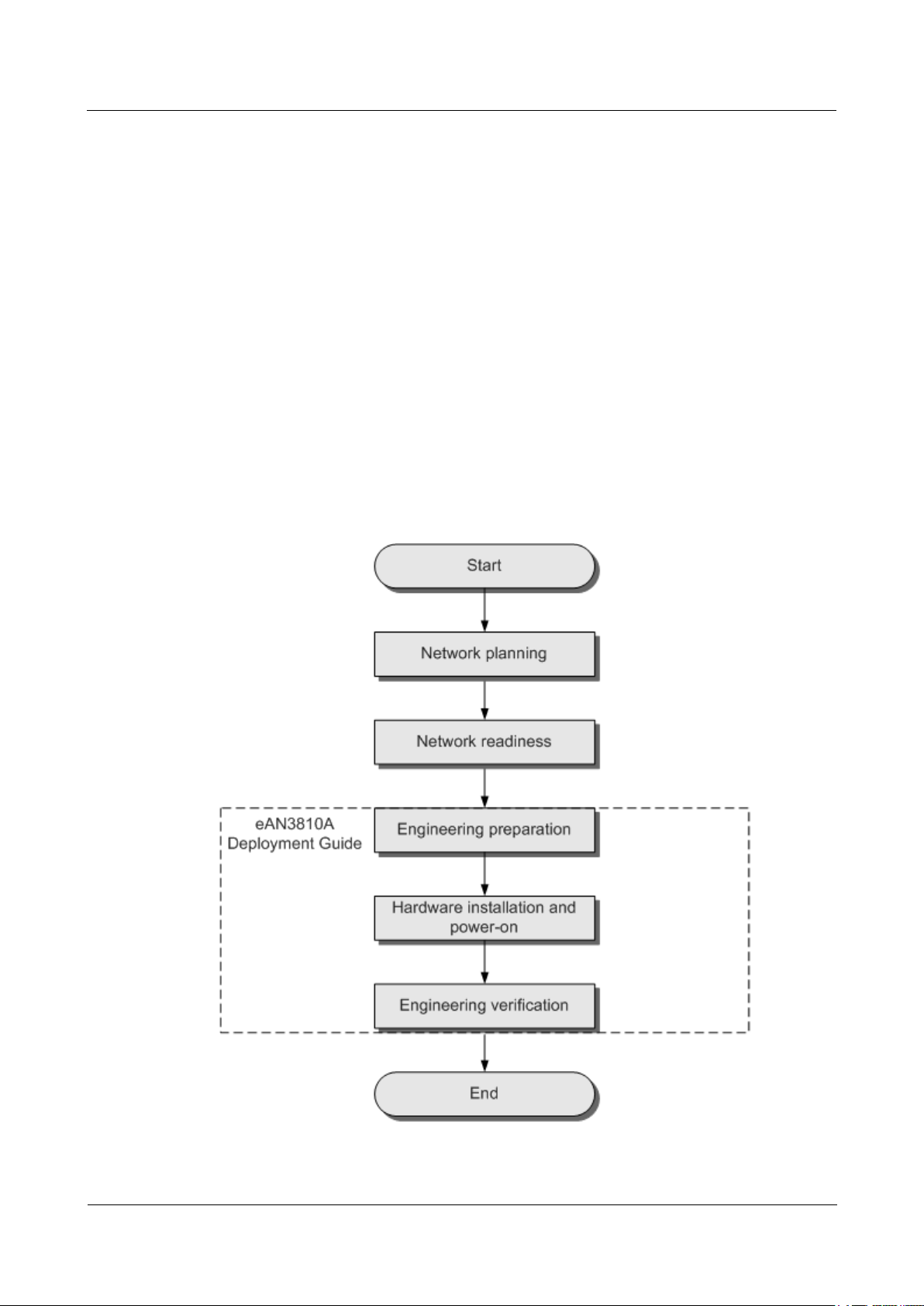

Figure 1-1 shows the procedures for site deployment in this document.

Figure 1-1 Site deployment in this document

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

1. Network planning: Plan deployment solutions based on network conditions. These

include: Networking solution, Transmission solution and Parameter planning.

2. Network readiness: This is a prerequisite to Pico deployment. Specifically, network

readiness indicates that the core network, RNC, U2000, SeGW, CA server, and clock

server have been deployed and configured, and the transport network is working

properly.

3. Engineering preparation: Use the U2000 to prepare configuration data, software

packages, and commissioning licenses based on the network plan. At the site, get ready

service dialing tools.

4. Hardware installation and power-on: At the site, install and power on the Pico and

perform checks.

5. Engineering verification: Create, query deployment results, and verify services.

1.2 MicroSD Card Site Deployment

1.2.1 Micro SD Card Deployment Process

This section describes the eAN3810Asite deployment process.

Site deployment requires cooperation of engineers at sites and the OMC, who must master the

deployment process shown in Figure 1 in advance of the deployment.

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Figure 1-2 Site deployment process

1.2.2 Deployment Preparation

This section describes the data and files to be prepared for eAN3810Adeployment.

Preparing Common Base Station Deployment Data Files on the CME

This section describes how to prepare, verify, and export common base station deployment

data files on the CME.

Data Configuration Process

This section describes the data configuration process. Before configuring data, you are

advised to learn the initial base station configuration process on the CME.

Figure 1-3 shows the data configuration process.

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Figure 1-3 Data configuration process

Configuration methods are described as follows.

Base Station Creation

Method

Scenario

Remarks

Wizard-based single base

station creation

No base station has been

deployed on the live

network or only a small

number of base stations

need to be deployed.

You can create base stations

using the base station

creation wizard on the

CME.

Batch base station creation

using the tool for

customizing a summary data

file

A large number of base

stations need to be

deployed, and their planned

data differs greatly from

data of existing base

You can obtain ranges of

MOs and parameters in the

summary data file by

specifying MOCs in the

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Base Station Creation

Method

Scenario

Remarks

stations.

MOC list.

Batch base station creation

using the MOC Export

function to generate a

summary data file

A large number of base

stations need to be

deployed, and their planned

data is similar to data of

existing base stations.

You can obtain ranges of

MOs and parameters in the

summary data file by

customizing MOs and

parameters using the tool for

customizing a summary data

file.

Data Preparation

Before starting configuration, prepare data for each eAN3810Abased on the network plan.

The data to be prepared includes basic data, device data, transport data, and radio data.

Select data preparation tables by scenario and prepare the data in the tables. Table 1-1

describes scenario-specific data preparation tables .

Table 1-1 Scenario-specific data preparation tables

Scenario

Data Preparation Table (on the

eAN3810A Side)

Non-secure transmission networking

Click Data Preparation in Non-secure

Transmission Networking to download the

table.

Data to be prepared on the eAN3810A side

for enabling cellular services includes

device data, common transport data, LTE

radio data.

Creating a Work Area

The CME provides one current data area and allows users to create multiple planned data

areas. The current data area is used for synchronizing and saving configuration data on the

live network, and you can only view data in the current data area. A planned data area is used

for configuring data. Therefore, you need to create a planned data area before configuring

data.

Context

CME functions can be started in the following modes. Table 1-2describes the modes. The

navigation paths for starting CME functions are different in CME client mode and U2000

client mode. For example, to enable the function of customizing a summary data file on the

CME, choose Advanced > Customize Summary Data File (CME client mode) or CME >

Advanced > Customize Summary Data File (U2000 client mode) on the menu bar.

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Table 1-2 Startup modes

Startup Mode

Description

CME client

mode

This mode applies when the CME functions are used. In this mode,

only the CME functions are started, and the U2000 functions are not

started, such as fault management, topology management, and

performance management.

In this mode, the CME functions can be started using either of the

following methods:

Start CME functions on the U2000 client in application mode.

Start the CME client directly.

U2000 client

mode

This mode applies when both the CME and U2000 functions are used.

In this mode, both the CME functions and U2000 functions (such as

fault management, topology management, and performance

management) are started. For detailed operations, see Start CME

functions on the U2000 client in traditional mode.

Procedure

1. Start the CME.

−Start CME functions on the U2000 client in application mode.

On the Windows desktop, choose Start > All Programs > iManager U2000 MBB

Client.

eAN3810A

Deployment Guide

1 eAN3810A Deployment Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

−Start the CME client directly.

On the Windows desktop, choose Start > All Programs > iManager U2000 MBB

Client.

−Start CME functions on the U2000 client in traditional mode.

On the Windows desktop, choose Start > All Programs > iManager U2000 MBB

Client.
