Huawei eSight V200R003C00 Manual
HUAWEI TECHNOLOGIES Co., Ltd.
Huawei eSight
V200R003C00
Hardware Installation Guide (N610E)
Issue: 01
Date: 2012-12-31
1
Installation Process
Start
Preparation for Installation
Page 2
to 3 Hardware Configuration Introduction to Devices
Page 4
to 5 Page 6
Installing the Cabinet
Installing the Signal
Cables
Installing Components
Inside the Cabinet
Installing the Power
Cables
Checking the Installation
End
Page 8
Page 9
to 10
Page 11
to 15
Page 16
to 22
Page 23
to 25
2
Preparation for Installation
Notice
1
This document describes how to install the hardware components, how to connect the power cables and signal
cables, and how to check the connections when the IBM X3650M4, and IBM X3850X5 server act as the server
of eSight.
The cabinet configuration, power cable connection, and signal cable connection that are detailed in this
document are written according to the standard configuration. If the actual on-site installation requirements are
inconsistent with this document, handle the requirements according to the actual situation. Unless otherwise
specified, the slide rails installed in the cabinet are used for the corresponding devices. The models of the
corresponding floating nuts and panel screws are M6.
Document Preparation
2
The following document must be prepared before the installation:
N610E Cabinet Installation Guide (V2.0)
This document is delivered with the cabinet.
3
Tools
Measuring Tape Phillips Screwdriver Flat-head Screwdriver
Torque Wrench Hydraulic Pliers
COAX Crimping Tool Cable Cutter Wire Stripper
Diagonal Pliers RJ45 Crimping Tool Multimeter
Network Cable Tester ESD Gloves
ESD Wrist Strap
Socket Wrench
3
Hardware Configuration
4

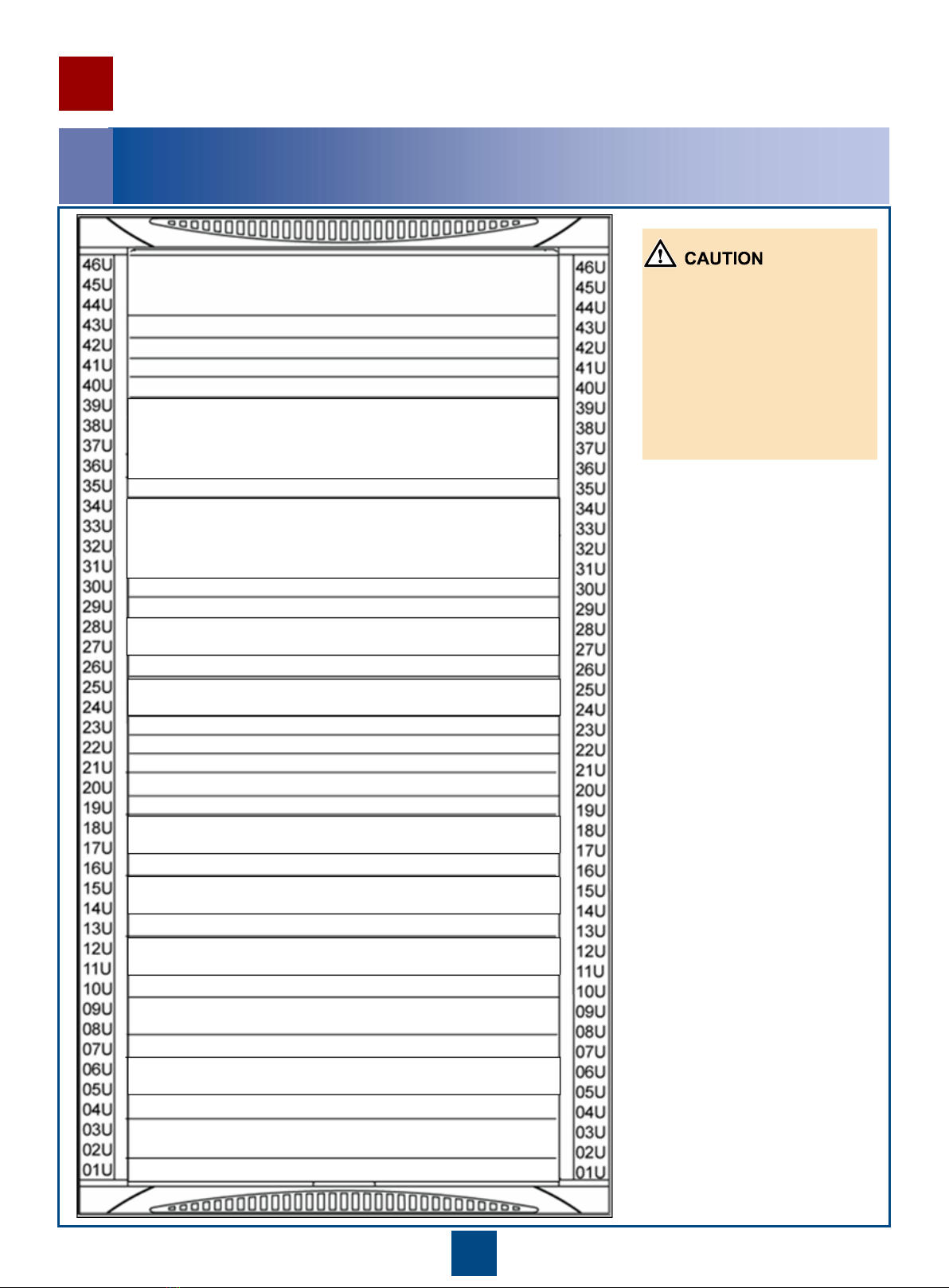

Standard layout of the cabinet when IBM X3650M4 is installed
1
The cabinet configuration has
passed the strict verification,
and can meet the
requirements for the power
consumption and heat
dissipation. Install the X3650
M4 server by strictly complying
with the left installation
flowchart.
X3650 M4 - 4 (2U )
X3650 M4 - 3 (2U )
KVM (1U )
X3650 M4 - 2 (2U )
X3650 M4 - 1 (2U )
Power Distribution Box (3U)
LAN Switch - 2 (1U )
Filler panel (4U )
KVM Switch (1U )
Nonstandard Filler panel (1U )
Filler panel (4U )
Filler panel (2U )
Nonstandard Filler panel (1U)
Filler panel (2U)
Nonstandard Filler panel (1U)
Nonstandard Filler panel (1U)
Filler panel (2U )
Nonstandard Filler panel (1U )
Nonstandard Filler panel (1U )
Nonstandard Filler panel (1U )
Nonstandard Filler panel (1U )
Nonstandard Filler panel (1U )
Filler panel (2U )
Nonstandard Filler panel (1U)
Nonstandard Filler panel (1U)
LAN Switch - 1 (1U )
Cabling trough (1U )
Cabling trough (1U )
Cabling trough (1U )
Cabling trough (1U )
5
Standard layout of the cabinet when IBM X3850X5 is installed
2
The cabinet configuration has
passed the strict verification,
and can meet the
requirements for the power
consumption and heat
dissipation. Install the X3850
X5 server by strictly complying
with the left installation
flowchart.
LAN Switch - 2 (1U )
LAN Switch -1 (1U )
X3850 X5 - 4 (4U )
X3850 X5 - 3 (4U )
KVM (1U )
X3850 X5 - 2 (4U )
X3850 X5 - 1 (4U )
Power Distribution Box (3U)
Filler panel (1U )
Filler panel (1U )
Cabling trough (1U )
Cabling trough (1U )
Filler panel (1U )
Filler panel (1U )
Filler panel (1U )
KVM Switch (1U )
Nonstandard filler panel (1U)
Nonstandard filler panel (1U)
Filler panel (1U )
Filler panel (1U )
Filler panel (2U )
Filler panel (1U )
Filler panel (3U )
Nonstandard filler panel (1U)
Nonstandard filler panel (1U)
Filler panel (1U )
Nonstandard filler panel (1U)
Nonstandard filler panel (1U)
Filler panel (1U )
6
6
Introduction to Devices
The eSight components include the server, KVM, and LAN Switch. The following table shows the
specifications of each equipment. For details about the equipment parameters, see the associated
manuals delivered with the equipment.
Component
Height (U)
Weight (kg) Power
Consumption (W) Input Voltage (V)
PC server
(IBM X3650 M4) 2 30 750 100 to 132/200 to 240
PC server
(IBM X3850 X5 ) 4 37.6 1440 100 to 132/200 to 240
Switch 1 3 30 100 to 240
KVM 1 13 56 90 to 264
If you install both IBM X3650 M4 and IBM X3850 X5 in the cabinet, adjust their positions based on the
configuration diagram and actual requirements.
7
7
Taking Antistatic Measures
Scenario 1
Wearing an ESD-preventive wrist strap (with metallic clip).
After wearing the ESD-preventive wrist strap, insert the wrist strap into the ESD plug of the cabinet. You
can clip the ESD-preventive wrist strap with metallic clip to the cabinet directly.
Wearing an Antistatic Wrist Strap
1
Wearing Antistatic Clothes
2 Wearing Antistatic Gloves
3
Wearing an ESD-preventive wrist strap (plugged).
Scenario 2
8
8
Installing the Cabinet
Cabinet Type Available Height
Inside the Cabinet Dimensions
(W ×D ×H)
N610E-22 46 U 600 mm x 1000
mm x 2200 mm
24 inch x 39 inch
x 87 inch
For cabinet installation, refer to the N610E Cabinet Installation Guide (V2.0)
N610E-22 Cabinet
Introduction to the N610E-22 cabinet:
N610E-22 cabinets are classified into single-door
cabinets and double-door cabinets. The left figure shows
the appearance of a double-door cabinet. The
appearance of an actually delivered cabinet may be
different.
The N610E-22 cabinet complies with the requirement of
the dimensions of mechanical structures of the 482.6
mm (19 inch) series (IEC 60297-1 standard).
9
9
Insert a flat-head screwdriver through the square hole and place the end of the screwdriver onto the upper tab
of the captive nut.
Installing the Components Inside the Cabinet
1 Flowchart of installing the components inside the cabinet
The procedure for installing the captive nut is as follows:
Insert the lower tab of the captive nut into the square hole and hold the captive nut in position.
1
Start
Remove the filler panels
Install captive nuts
Install component
End
Determine the position
Use the screwdriver as a lever, and gently but firmly bend the upper tab of the captive nut downwards when
pushing it through the square hole.
Remove the flat-head screwdriver to allow the upper tab to spring into position and release your hand. The
assembly is complete.
12
43
Take care not to stab fingers with screwdriver.
