Huawei WiMAX CPE Manual de usuario

WiMAX CPE

Quick Start

Huawei Technologies Co., Ltd.

Huawei Industrial Base, Bantian, Longgang

Shenzhen 518129

People’s Republic of China

www.huawei.com

No part of this document may be reproduced or transmitted in any form or by any means

without prior written consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei

Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce,

distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign,

or sublicense the said software, unless such restrictions are prohibited by applicable laws or

such actions are approved by respective copyright holders under licenses.

Trademarks and Permissions

, , and are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of their

respective owners.

Notice

Some features of the product and its accessories described herein rely on the software

installed, capacities and settings of local network, and may not be activated or may be

limited by local network operators or network service providers. Thus the descriptions herein

may not exactly match the product or its accessories you purchase.

Huawei Technologies Co., Ltd. reserves the right to change or modify any information or

specifications contained in this manual without prior notice or obligation.

NO WARRANTY



BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN

RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL

HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL,

INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,

REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and will

obtain all necessary governmental permits and licenses in order to export, re-export or

import the product mentioned in this manual including the software and technical data

therein.

Contents

Getting to Know Your CPE ............................................................................................................ 1

Preparing for Installation................................................................................................................ 4

Logging in to the Web-Based Utility ............................................................................................. 6

Troubleshooting .............................................................................................................................. 7

Specifications .................................................................................................................................. 9

Warnings and Precautions .......................................................................................................... 10

Thank you for purchasing WiMAX CPE!

Getting to Know Your CPE

The supported functions and actual appearance of the CPE may vary with the product you

purchase. The following pictures are provided for illustration purpose only.

Front Panel

Indicator

Status

Description

WiMAX

The indicators indicate the signal strength of the WiMAX

network. When all the indicators are on, it indicates that the

signal strength is at the highest level.

Blink

The biggest bar of the indicator is blinking steadily when

the CPE is in idle.

The indicator bars are blinking in sequence from top to

bottom when the upgrade file is being downloaded.

The indicator bars are blinking in incremental sequence

from bottom to top when the CPE is being upgraded.

The entire indicator bars are blinking simultaneously and

steadily when the software of the CPE is exceptional but

can be restored or upgraded.

The indicator bars may be blinking randomly when the

software or hardware of the CPE is damaged.

Off

There is no WiMAX network signal.

POWER

The CPE is powered on.

Off

The CPE is powered off.

LAN

The LAN port is being used.

Blink

The data is being transmitted.

Off

The LAN port is unused.

TEL

The telephone is registered.

Blink

The telephone is being used or the telephone is registering.

Off

The telephone is unregistered.

NOTE:

WiMAX: Worldwide Interoperability for Microwave Access

CPE: Customer Premises Equipment

LAN: Local Area Network

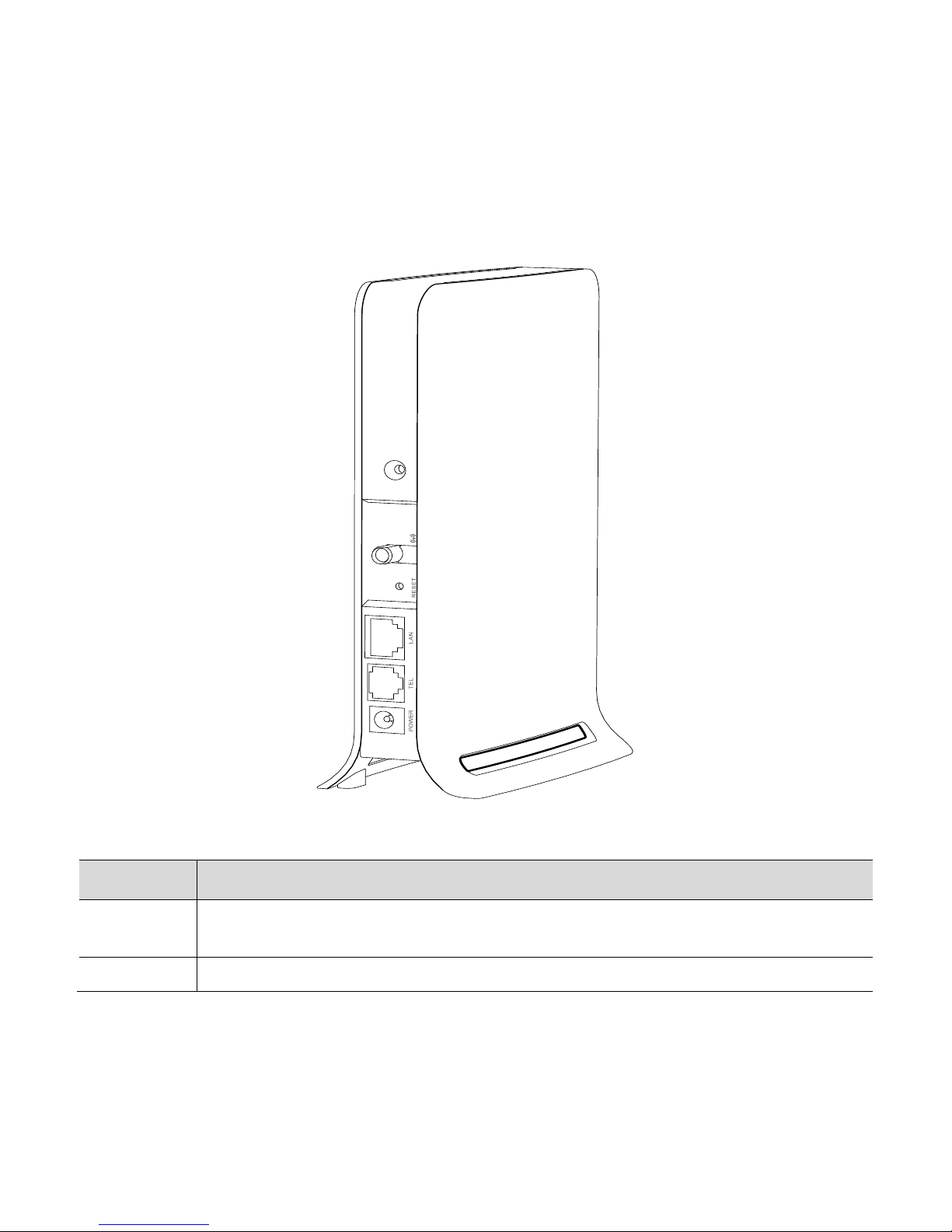

Rear Panel

Interface

Description

POWER

The interface is used to connect to the output interface of the power

adapter.

TEL

The interface is used to connect a telephone line.

Interface

Description

LAN

The interface is used to connect the CPE to the computer.

RESET

Press and hold the button for one to eight seconds to restart the CPE.

Press and hold the button for over eight seconds to restore the default

settings of the CPE.

Once you restore the default settings, all the customized data will be

lost. Use this function with caution.

The port is used to connect a compatible external antenna (optional

accessory and sold separately). For details about how to install a

compatible external antenna and enable it, refer to the online help in the

Web-based utility.

CAUTION:

Do not touch the port.

Preparing for Installation

Selecting a Proper Installation Position

Obstacles such as concrete or wooden walls may affect the transmission of WiMAX

network signals. Therefore, install the CPE in an open space.

Keep the CPE away from any household appliance that produces a strong electric or


