Huawei Broadband E219 Manual de usuario

Enquiries:

201283-M

Ltd.

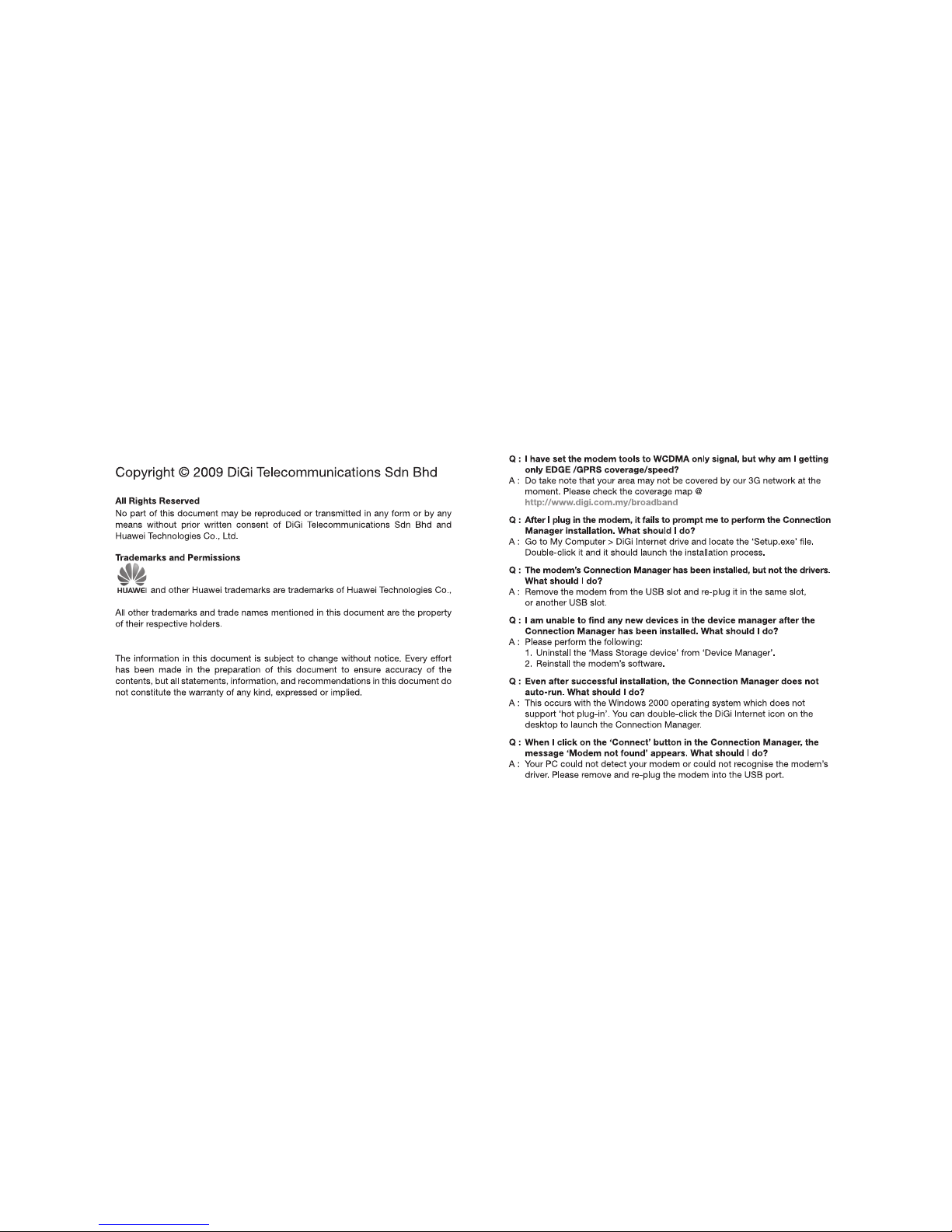

Notice

1. Indicator

It indicates the status of the E219.

oit

nife

Sru

Green Blinking (on for 100ms and The E219 is powered on

off for 100ms; then on for

100ms and off for 2700ms)

Green Blinking (on for 100ms The E219 is registered to a GPRS

and off for 2900ms) (GSM/GPRS/EDGE) network

Blue Blinking (on for 100ms The E219 is registered to a

and off for 2900ms) UMTS (WCDMA/HSDPA) network

krowte

aotd

tce

noc

si91

TnOneerG

krowtenAMDCWaotdetcennocsi912EehTnO

ulB

krowten

si91

TnO

ayC

rfd

TffO

2. Mini-USB interface

It connects the E219 with a computer through a USB data cable.

Q : How do I know that I am connected via the DiGi 3G connection?

A : Please refer to the signal bar icon at the bottom left of the Connection

Manager window. It indicates whether it is connected to a GPRS,

EDGE or UMTS/WCDMA/HSDPA network.

Q : Can I unplug the modem without first removing it from the operating

system menu?

A : The modem supports hot plug-in/unplug, however we would recommend

that you remove the device via the operating system first.

3. SIM/USIM Card Slot

Holds the Subscriber Identity Module/UMTS subscriber identity module

(SIM/USIM) card.

Preparing the E219

Requirements for the Computer

To use the E219, the computer must meet the following requirements:

• USB Type A Receptacle, Compatible with USB 2.0 Full Speed

• Windows 2000 SP4, Windows XP SP2, Windows Vista, Mac OS

• Your computer’s hardware system should meet or exceed the recommended

system requirements for the installed version of OS

• Resolution for the display: 800 × 600 or above

Installing the USIM/SIM Card

1. Remove the UMTS subscriber identity module/subscriber identity module

(USIM/SIM) card slot from the E219.

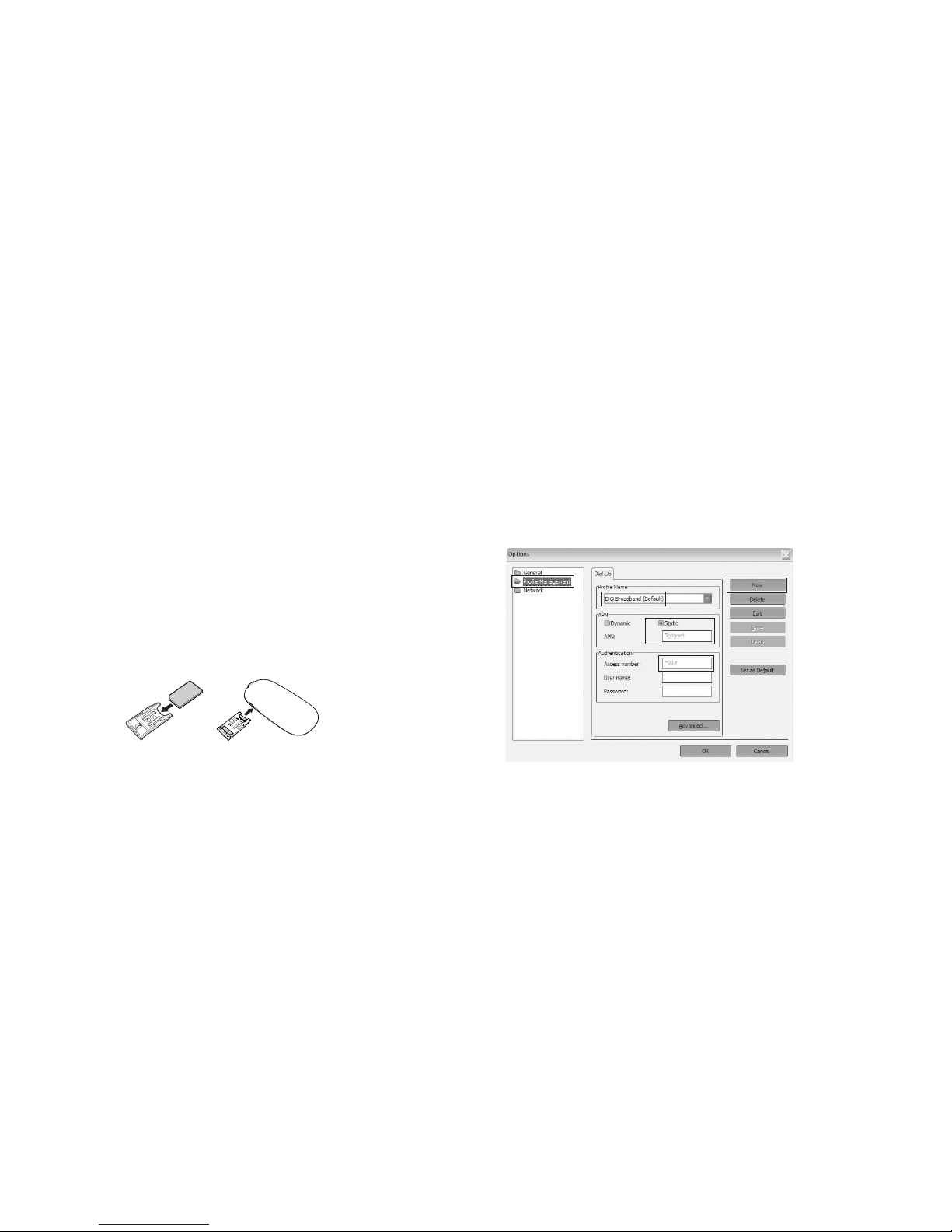

2. Then insert the USIM/SIM card into the card slot.

3. Make sure that the USIM/SIM card is fully in place.

4. Insert the card slot into the E219.

1. Launch the DiGi Internet Connection Manager.

2. Go to ‘Tools’ > ‘Options’ > ‘Profile Management’

3. In the ‘Profile Management’ window, perform the setup as below:

• APN: 3gdgnet

• Dial-up Number: *99#

Connecting the E219 with a PC

Note:

First, power on the computer. Then connect the E219 with the computer.

Otherwise, the E219 cannot be installed normally.

The following figure is the sketch map of the data cable.

1Auxiliary USB data cable

2Main USB data cable

3Mini-USB connector

1. Plug the mini-universal series bus

(USB) connector into the E219.

2. Plug the connectors of the main

USB data cable and the auxiliary

USB data cable into the USB interfaces of the computer.

3. The OS automatically detects and recognises new hardware and starts the

installation wizard. If the installation wizard does not respond, double-click the

AutoRun.exe file in the driver path to manually install the E219 Manager.

4. Follow the prompts of the installation wizard.

5. After the program is installed, a shortcut icon for the E219 management

program is displayed on the desktop.

Q : How do I configure the settings to DiGi’s settings to enable me

to connect?

A : The built-in driver and client should already have DiGi’s settings. However,

in case you need to alter the settings, please follow the steps below:

Q : What does the blinking LED on the modem indicate?

A :

LED

Indicator n

sutat

Blinking (on for 100ms and

off for 100ms; then on for

100ms and off for 2700ms)

Blinking (on for 100ms and

off for 2900ms)

Blinking (on for 100ms and

off for 2900ms)

The modem is powered on

The modem is registered to a GPRS

(GSM/GPRS/EDGE) network

The modem is registered to a

UMTS (WCDMA/HSDPA) network

The modem is removed

The modem is connected to

a GPRS network

The modem is connected to

a WCDMA network

The modem is connected to

a HSDPA network

Off

Green

Blue

Green

Blue

Sky Blue

No Colour

Launching the Management Program

After the E219 is installed, the management program is launched automatically.

Then every time the E219 is connected to the PC, the management program is

launched automatically.

You can also double-click the shortcut icon on the desktop to launch the

management program.

Removing the E219

Click ‘Safely Remove Hardware’ icon at the taskbar and follow the on-screen

instruction to remove the modem.

Uninstalling the Management Program

1. Click Start Menu

2. Click Control Panel

3. Click Add/Remove Program to remove the management program of the E219

Q : What are the laptop/PC requirements for this modem to function?

A : The USB modem will operate on both a laptop or desktop PC with the

minimum requirements below:

• Laptop/PC hardware must meet or exceed the recommended system

requirements for the installed version of the operating system

• Hard Disk: 50MB free disk space

• Operating System: Windows XP/Windows 2000/Windows Vista/

Mac OS X version 10.4.3

• USB Modem Interface: USB 2.0

• Display Resolution: 800 x 600 pixels or above

(1024 x 768 pixels recommended)

Q : How do I install the modem?

A : Please follow the steps below:

1. Plug-in the modem into the USB slot available on your laptop/PC.

2. Your laptop/PC should detect the modem and install the driver of the

modem automatically.

3. Your laptop/PC will then prompt you to install the DiGi Internet

Connection Manager.

4. Follow the on-screen instructions to complete the installation.

Safety Information

Read the safety information carefully to ensure the correct and safe use of your

wireless device.

Interference

Do not use your wireless device if using the device is prohibited or when it cause

danger or interference with electric devices.

Medical Device

• Do not use your wireless device and follow the rules and regulations set

forth by hospitals and healthcare facilities.

• Some wireless devices may affect the performance of hearing aids.

For any such problems, consult your service provider.

• If you are using an electronic medical device, consult the doctor or device

manufacturer to confirm whether the radio waves affect the operation of

this device.

Area with Inflammables and Explosives

To prevent explosions and fires in areas that are stored with inflammable and

explosive devices, do not use your wireless device and observe the rules. Areas

stored with inflammables and explosives include but are not limited to the following:

• Petrol station

• Fuel depot (such as the bunk below the deck of a ship)

• Container/Vehicle for storing or transporting fuels or chemical products

• Area where the air contains chemical substances and particles (such as granule,

dust, or metal powder)

DiGi Internet

Modem FAQ
