HUANUO HNCM16 Manual de usuario
Monitor Desk Mount Instruction Manual
V2.0
Model: HNCM16
Thank you for choosing this HUANUO product! At HUANUO
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.huanuoav.com/reviews if you
are satisfied. Should you have any issues, please don't
hesitate to contact us.
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US/CA)
Website:
www.huanuoav.com
IMPORTANT SAFETY INSTRUCTIONS
•Check package contents against Supplied Parts and Hardware List to assure that all
components were received undamaged. Do not use damaged or defective parts. lf you
require replacement parts, contact customer service at [email protected]
•Carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact customer
•This product may contain moving parts. Use with caution.
•Do not use this product for any purpose that is not explicitly specified in this manual.
Do not exceed weight capacity. We cannot be liable for damage or injury caused by
improper mounting, incorrect assembly or inappropriate use.

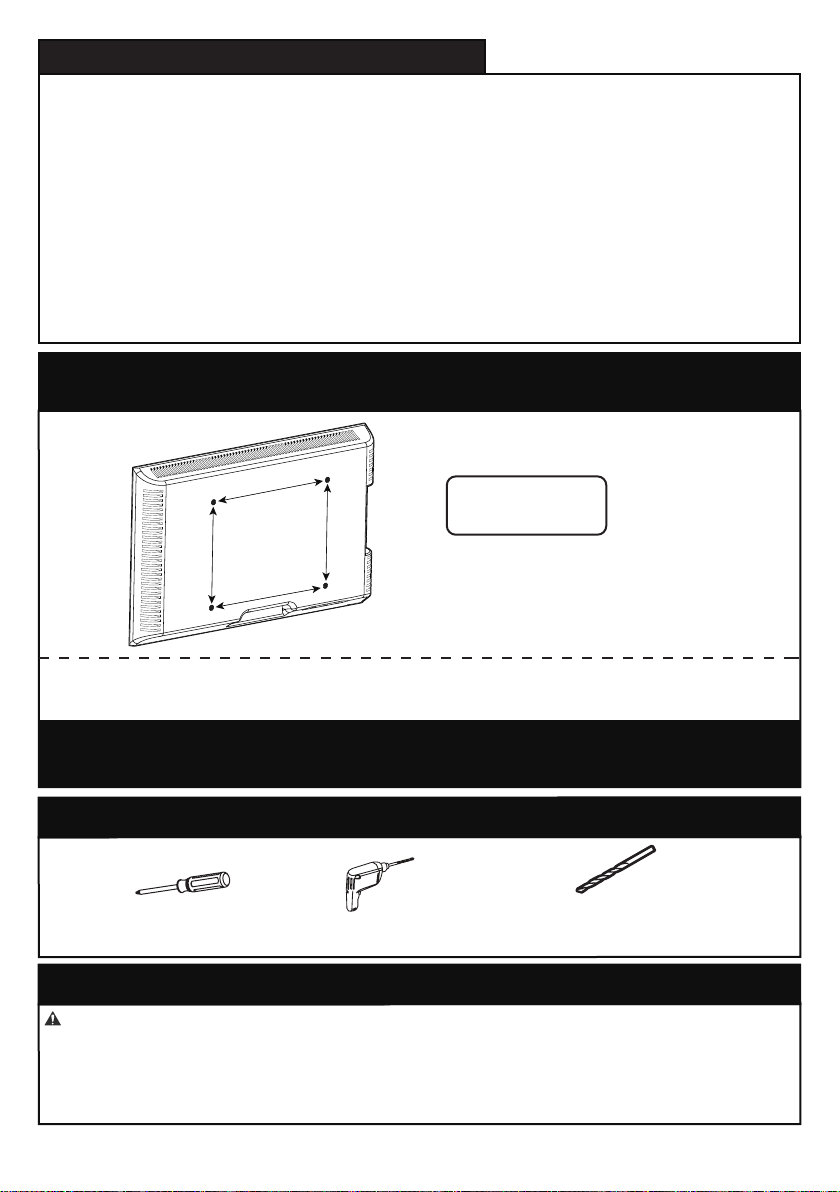

Check the VESA Pattern of Your Monitor beforeYouBegin the
Installation
If this desk mount is NOT compatible, please contact customer service
at [email protected] to find a compatible product.
If your Monitor VESA is greater than 100x100 mm/4x4 in. or less than
VESA 75x75mm/3x3in., this mount is NOT compatible.
75 mm ≈ 3 in.
100 mm ≈ 4 in.
Minimum VESA pattern:
75mm/3 in.(W)x75mm/3 in.(H)
MAX:100
mm/4 in.
MAX:100
mm/4 in.
MAX:100
mm/4 in.
Tool Need（Not Included）
Warning: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use damaged or
defective parts. lf you require replacement parts, contact our Product Support line at
• Please note: Not all hardware included in this package will be used.

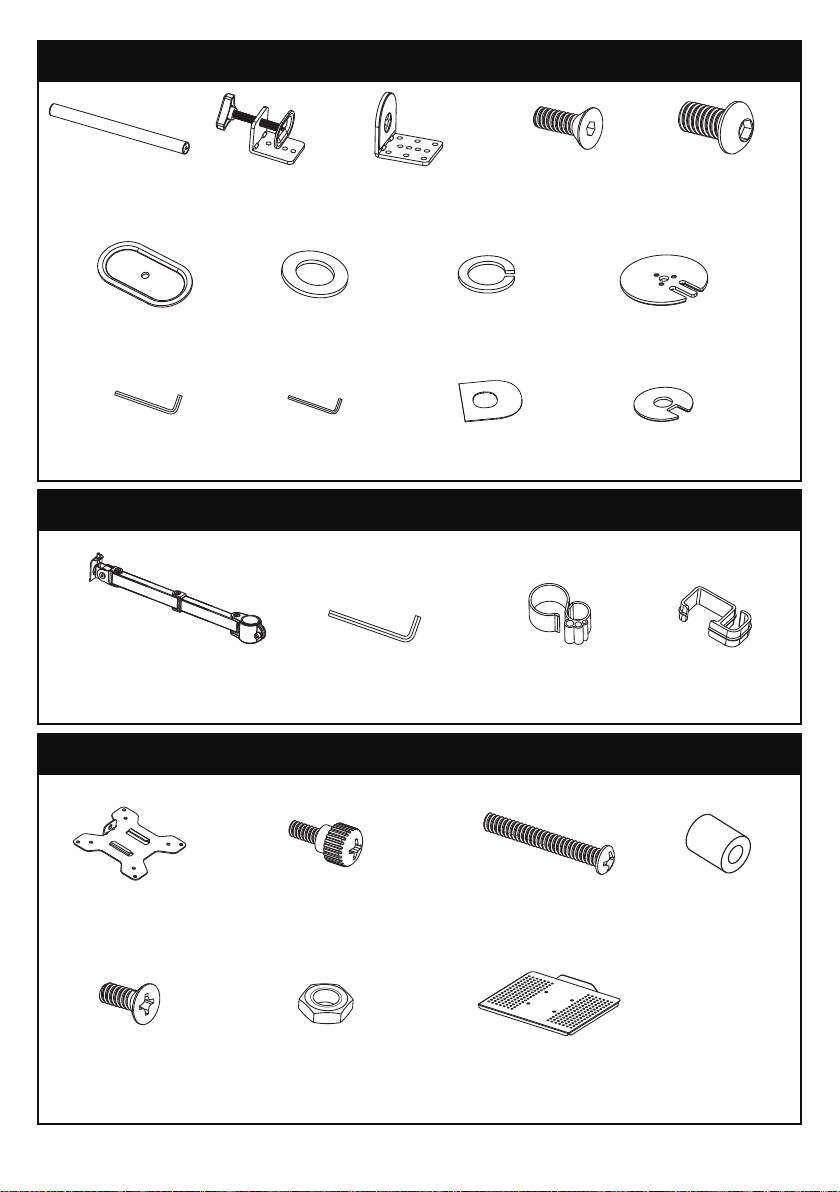

Supplied Parts and Hardware
Phillips Screwdriver Drill(Optional) 1/2 in.(13mm) - 1 in.(25mm)
Drill Bit(Optional)
01 02 03 04 05 06
Swivel Arm
d (x1)
Large Allen Key
o (x1)
Wire Clip
n1 (x1)
Wire Clip
n2 (x2)
Supplied Parts and Hardware for Step 2
VESA Plate
e (x1)
M4x12mm Thumb Bolt
q (x4)
M4 Spacer
s (x4)
M4x30mm Bolt
r (x4)
Laptop Tray
t (x1)
M4x10mm Bolt
u (x4)
M4 Nut
v (x4)
Supplied Parts and Hardware for Step 3
Pole
a (x1)
C Clamp Plate
b (x1)
C Clamp Plate
c (x1)
M5x14mm Bolt
f (x3)
M8x12mm Bolt
g (x2)
Medium Allen Key
o (x1)
Small Allen Key
o (x1)
Bottom Pad
w2 (x1)
Grommet Plate
m (x1)
Locking Plate
j(x1)
Spring Washer
l(x1)
M10 Washer
k(x1)
Supplied Parts and Hardware for Step 1
Bottom Pad
w1 (x1)
01 02 03 04 05 06

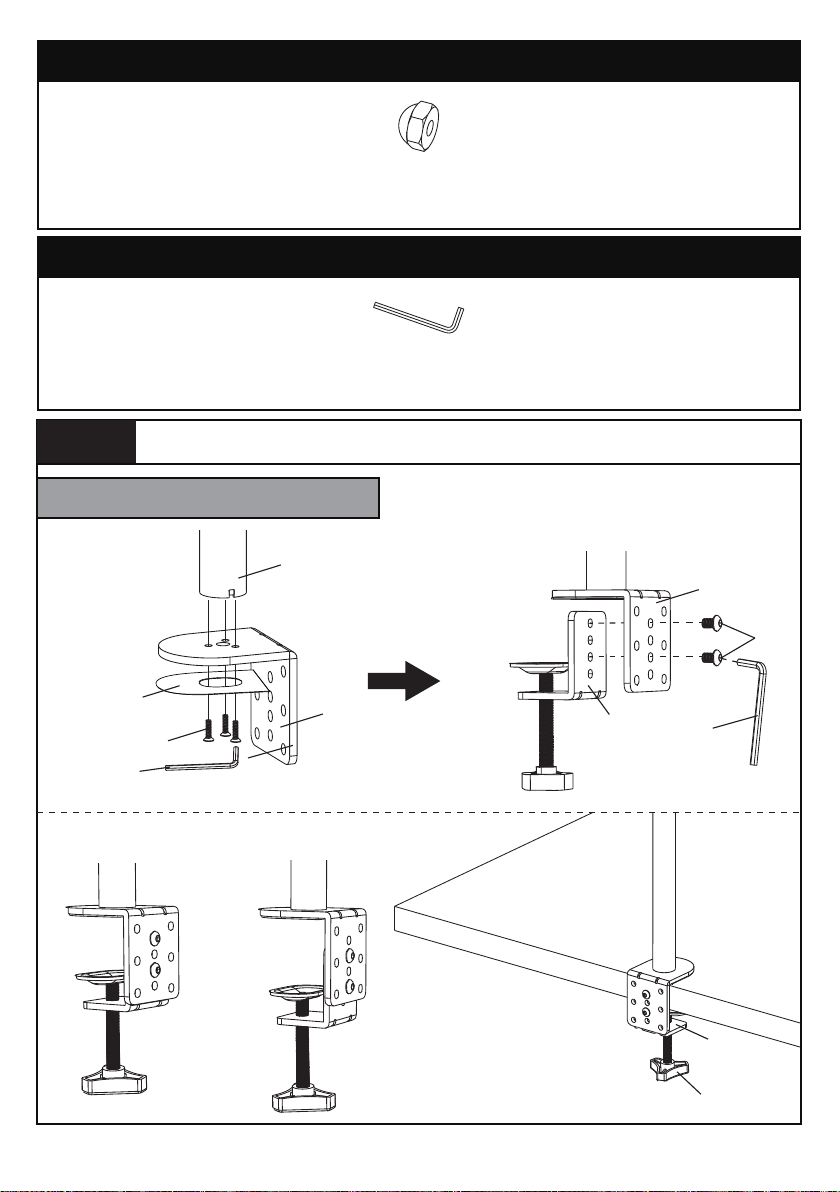

Step 1 Install the Pole to the Desktop
Option A: Desk Clamp Assembly
1A-1
1A-2
Nut
h (x1)
Supplied Hardware for Step 4
Supplied Hardware for Step 5
Medium Allen Key
o (x1)
c
b
g
o
Medium
Allen Key
OR
b
Plastic Knob
a
c
f
w1
o
Small Allen Key
01 02 03 04 05 06
Step 2 Install Swivel Arm to the Pole
Install swivel arm (d) to the pole (a). Fasten the bolt with supplied Allen key (o). Attach
the wire clip (n1,n2) to the pole (a) and swivel arm (d).
d
n1
n2
o
Large
Allen Key

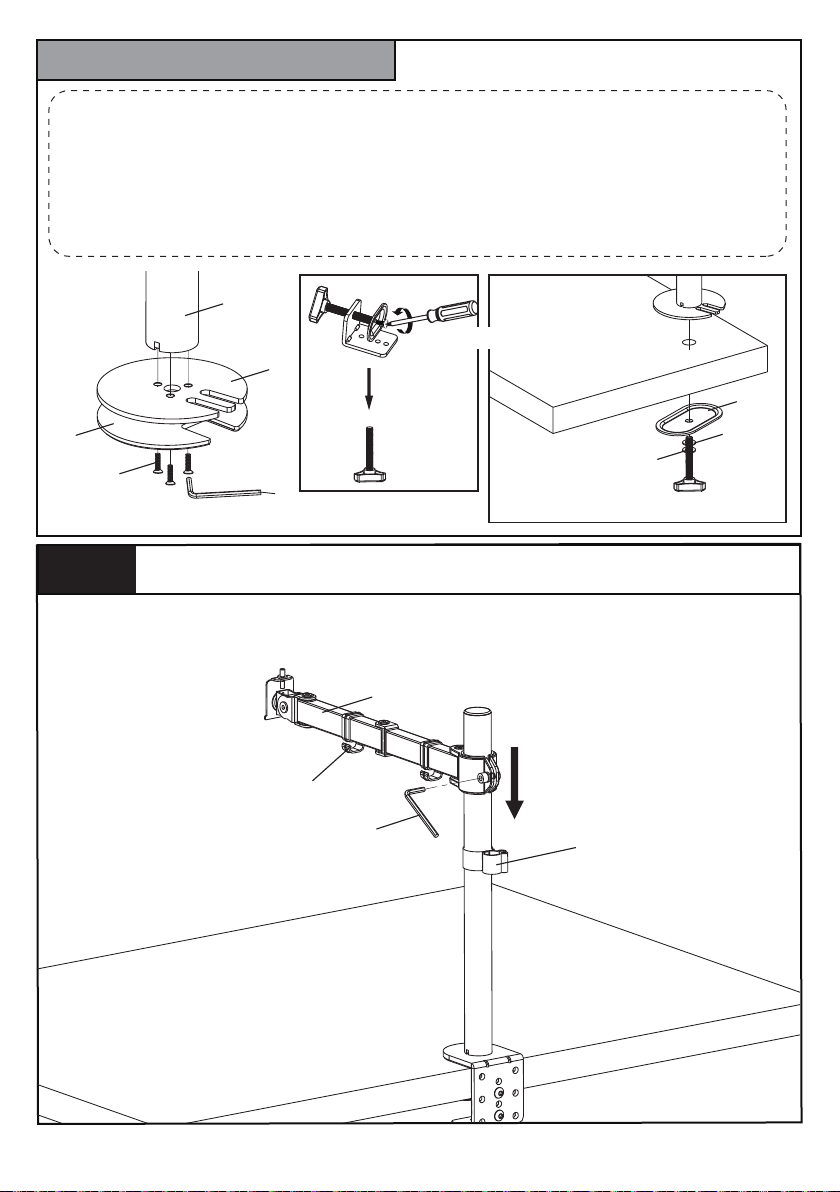

Option B: Grommet Base Assembly
1. If the existing grommet hole comes with a plastic protector, remove it to ensure
a flat surface before installing the desk mount.
2. If there is no grommet hole on your desk, position the Pole (a) on the mounting
surface and mark the hole. Drill a hole at the marked position through the mounting
surface.
Note:
a
f
m
w2
o
Small Allen Key
01 02 03 04 05 06
j
k
l
Phillips Screwdriver
e

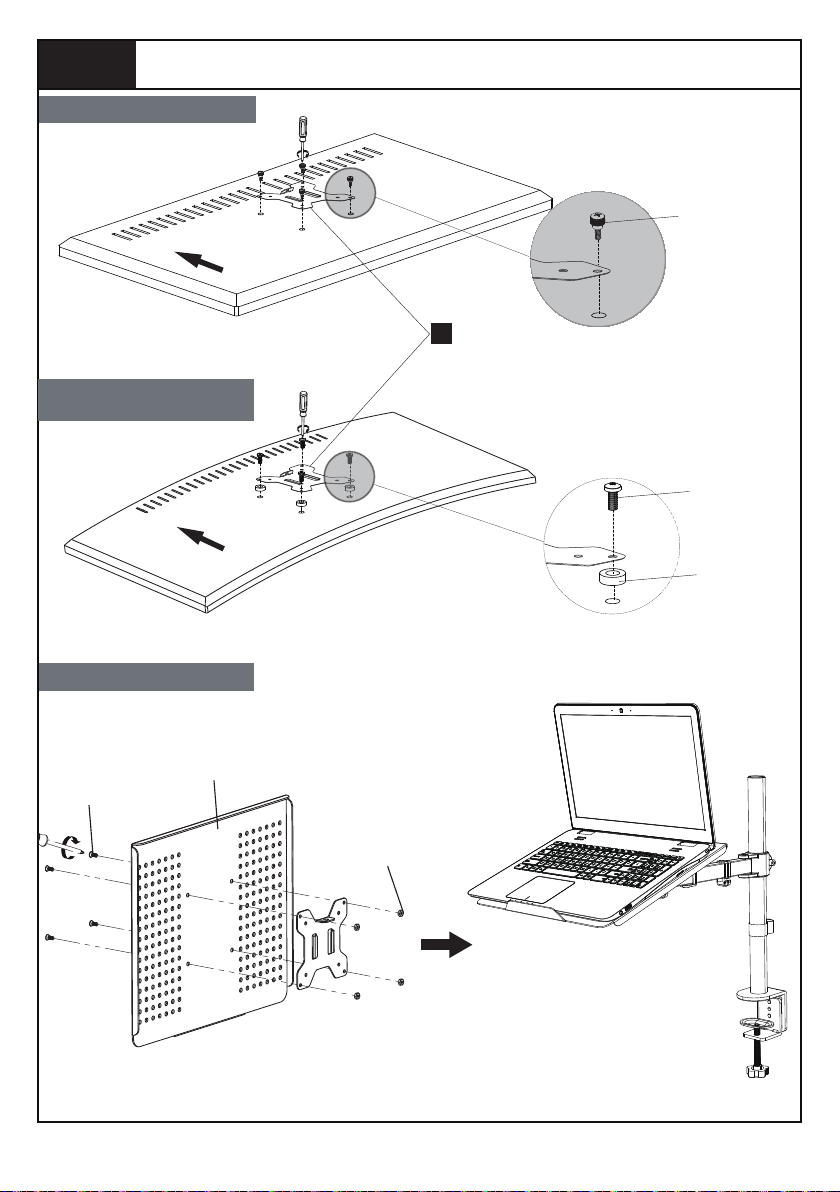

Step 3 Attach the VESA Plate to the Laptop Tray or Monitor
q
For Laptop
For Monitor with Flat Back
For Monitor with Curved
or Recessed Back
FLAT BACK MONITOR
(UNIVERSAL MONITOR PLATE)
CURVED BACK MONITOR
(UNIVERSAL MONITOR PLATE)
t
u
v
r
s
01 02 03 04 05 06

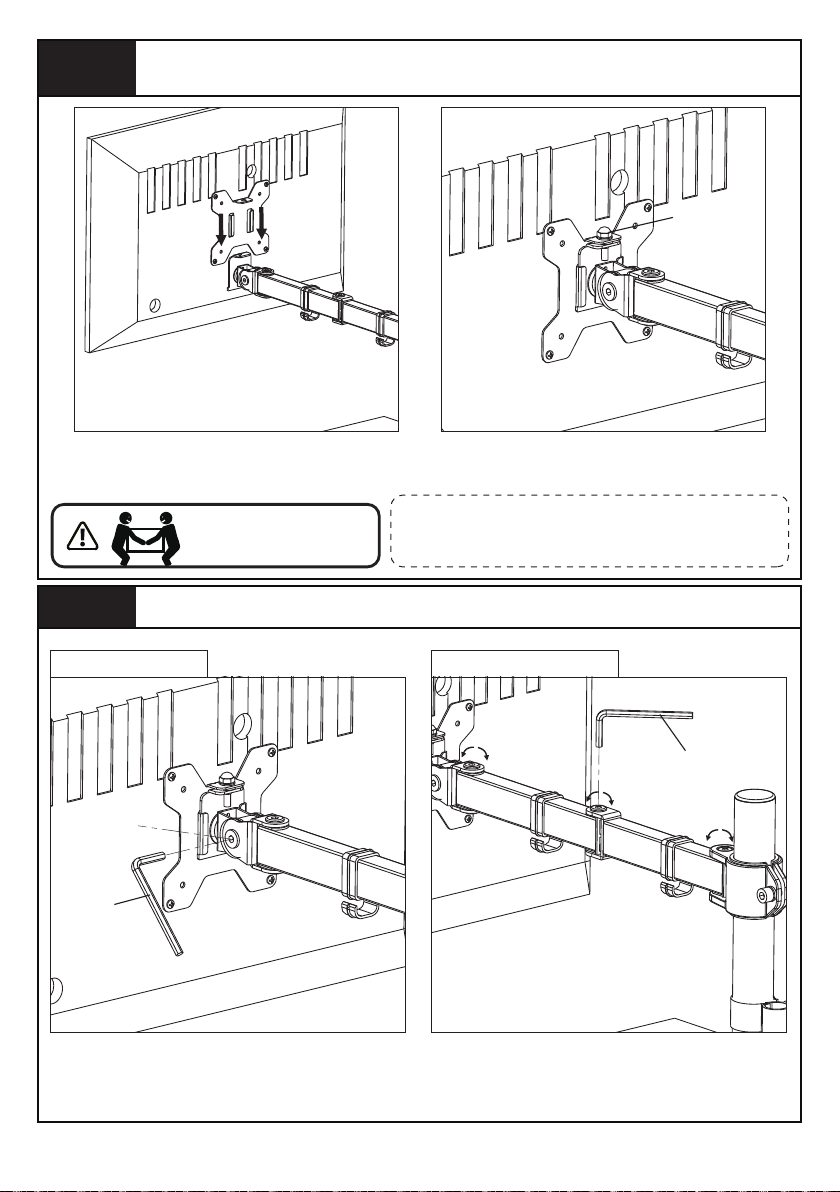

Step 4 Secure the Monitor or Laptop Tray onto the Head of Swivel
Arm
h
4-1 Slide the monitor onto the head of
Swivel Arm (d) as shown in the above
diagram.
4-2 Secure the Nut (h). Make sure the nut
is installed before you rotate the monitor.
Note: Please refer the procedures 4-1 and 4-2
to install the laptop tray [t] with VESA plate [e]
onto the head of swivel arm
HEAVY! You may need
assistance with this step.
Step 5 Adjust the Tilt and Swivel Angle
T
1. Loosen the bolt [T] on the swivel arm.
2. Tilt your monitor.
3. Retighten bolt [T] to hold monitor in place.
Tilt Adjustment
1. Loosen the bolt [S] on the swivel arm.
2. Swivel your monitor to your desred position.
3. Retighten bolt [S] to hold monitor in place.
Swivel Adjustment
o
Medium
Allen Key
o
Medium
Allen Key
01 02 03 04 05 05 06

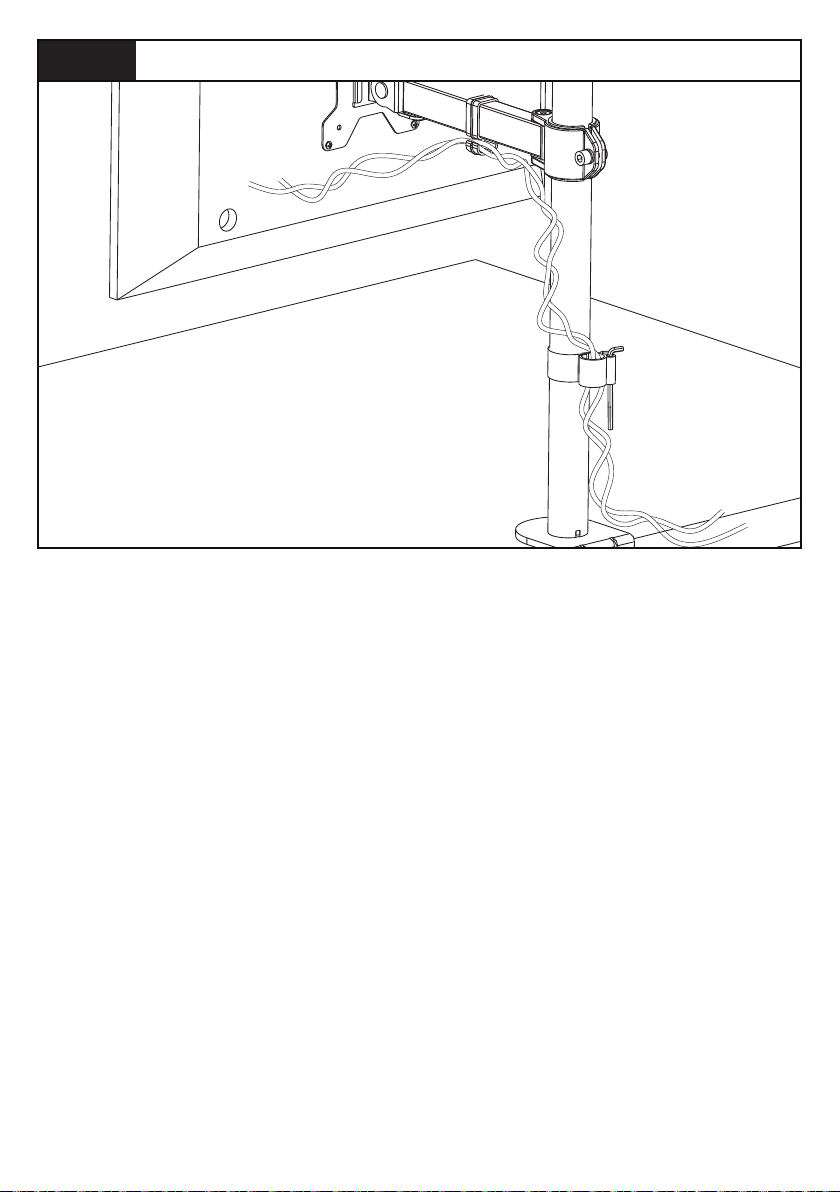

Step 6 Manage the Wires and Store the Allen Keys on Wire Clip
01 02 03 04 05 06
