HP 1810-8 Manual de usuario

HP 1810 Switch Series

Installation and Getting Started Guide

HP 1810-8 Switch (J9800A)

HP 1810-24 Switch (J9801A)

HP 1810-8G Switch (J9802A)

HP 1810-24G Switch (J9803A)

Power over Ethernet PD

HP 1810 Switch Series

Installation and Getting Started Guide

The information contained herein is subject to change without notice.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied,

reproduced, or translated into another language without prior written consent of Hewlett-Packard.

Manual Part Number

5998-3207

December 2012

Applicable Products

HP 1810-8 Switch (J9800A)

HP 1810-24 Switch (J9801A)

HP 1810-8G Switch (J9802A)

HP 1810-24G Switch (J9803A)

Safety

Before installing and operating this product, please read the “Installation Precautions” in Chapter 2, “Installing the Switch”, and the safety

statements in General Safety and Regulatory Information booklet included with the product.

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and

services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors

or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warranty

For the latest license and warranty information, visit www.hp.com/networking/support.

A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP

Sales and Service Office or authorized dealer.

Contents

1 Switch Overview

Switch Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-13

5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

6. Installing or Removing SFPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

3 Configuring the Switch

Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Changing the PC’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

4 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Diagnostic Tips: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Restoring to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

A Specifications

Switch Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Cabling and Technology Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Cabling Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Technology Distance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Straight-through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . A-10

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . A-11

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

B EMC Regulatory Statements

Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Index

1-1

Switch Overview

The HP 1810-8, 1810-24, 1810-8G, and 1810-24G Switches are multiport

switches that can be used to build high-performance switched workgroup

networks. These switches are store-and-forward devices that offer low latency

for high-speed networking.

Throughout this manual, these switches will be referred to as the 1810-8

Switch, 1810-24 Switch, 1810-8G Switch, and the 1810-24G Switch.

■The 1810-8 Switch has 7 auto-sensing 10/100BASE-TX RJ-45 ports and one

10/100/1000BASE-T RJ-45 port (port 8).

■The 1810-24 Switch has 22 auto-sensing 10/100BASE-TX RJ-45 ports, two

10/100/1000BASE-T RJ-45 ports (ports 23 and 24), and two Small Form

Factor Pluggable (SFP) slots for supported HP SFP (mini-GBIC) fiber-

optic transceivers (ports 25 and 26).

■The 1810-8G Switch has 8 auto-sensing 10/100/1000BASE-T RJ-45 ports.

Port 1 is a Power over Ethernet Powered Device (PoE PD) port. The

switch can be powered by a network connection to port 1 from PoE power

sourcing equipment (PSE), such as a PoE switch.

■The 1810-24G Switch has 24 auto-sensing 10/100/1000BASE-T RJ-45 ports

and two SFP slots for supported HP SFP fiber-optic transceivers (ports

25 and 26).

These switches can be directly connected to computers, printers, and servers

to provide dedicated bandwidth to those devices, and you can build a switched

network infrastructure by connecting the switch to hubs, other switches, or

routers. In addition, these switches offer network management capabilities.

1-2

Switch Overview

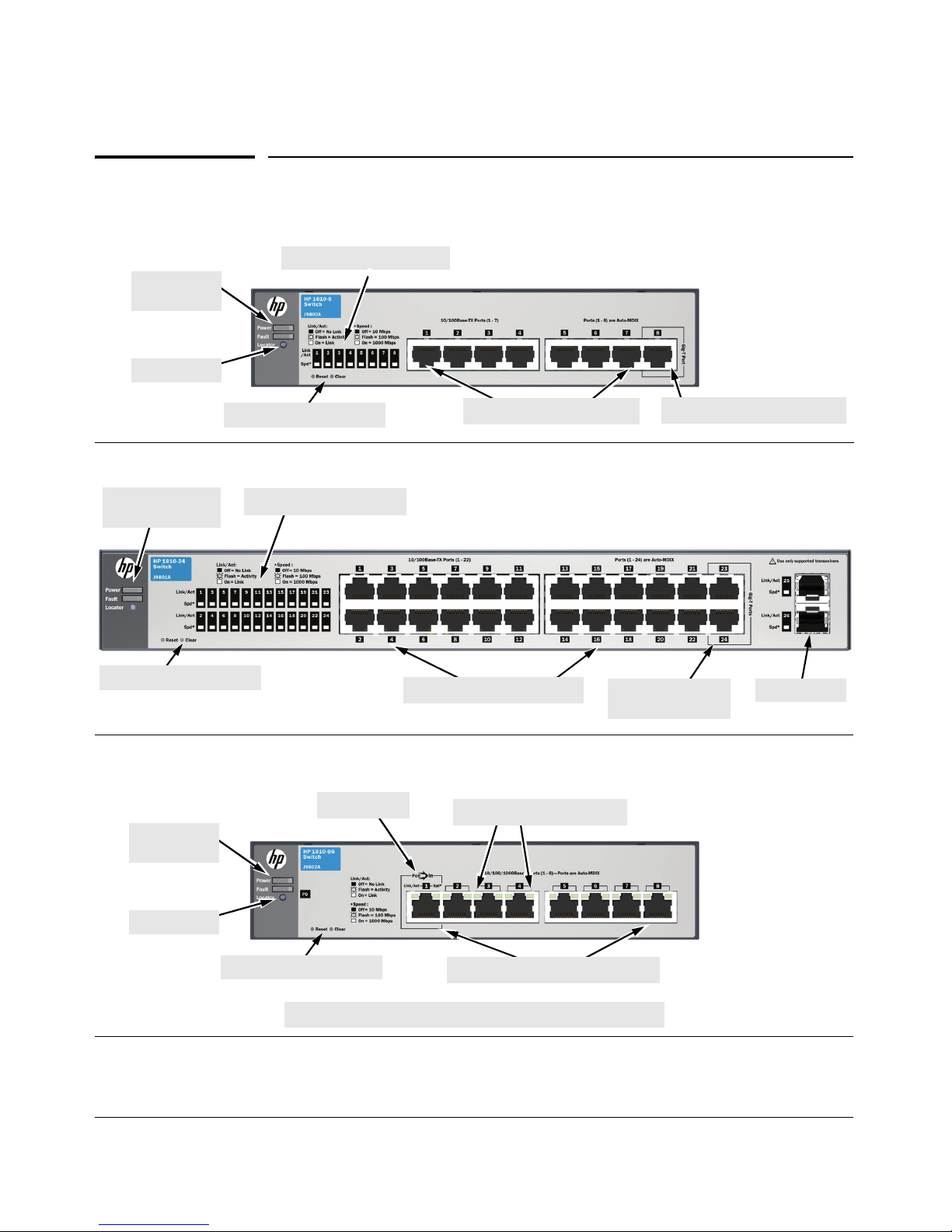

Switch Hardware Features

HP 1810-8 Switch (J9800A)

Power and

Fault LEDs

Link/Act and Speed LEDs

10/100BASE-TX RJ-45 ports110/100/1000BASE-T RJ-45 port1

Locator LED

Reset and Clear buttons

HP 1810-24 Switch (J9801A)

Power, Fault, and

Locator LEDs

Link/Act and Speed LEDs

10/100BASE-TX RJ-45 ports110/100/1000BASE-T

RJ-45 ports1

Reset and Clear buttons SFP slots

HP 1810-8G Switch (J9802A)

Link/Act and Speed LEDs

10/100/1000BASE-T RJ-45 ports1

Power and

Fault LEDs

Locator LED

Reset and Clear buttons

PoE PD port

1 All RJ-45 ports have the Auto-MDIX feature.

1-3

Switch Overview

Switch Hardware Features

Network Ports

■Auto-sensing 10/100BASE-TX ports.

All these ports have the “Auto-MDIX” feature, which means that you can

use either straight-through or crossover twisted-pair cables to connect

any network devices to the switch.

■Auto-sensing 10/100/1000BASE-T ports.

All these ports have the “Auto-MDIX” feature, which means that you can

use either straight-through or crossover twisted-pair cables to connect

any network devices to the switch.

■PoE PD port (1810-8G Switch only)

A network connection to the PoE PD port from a PoE PSE device powers

on the switch.

■SFP slots for fiber or copper uplinks.

This product supports optional network connectivity as follows:

1 All RJ-45 ports have the Auto-MDIX feature.

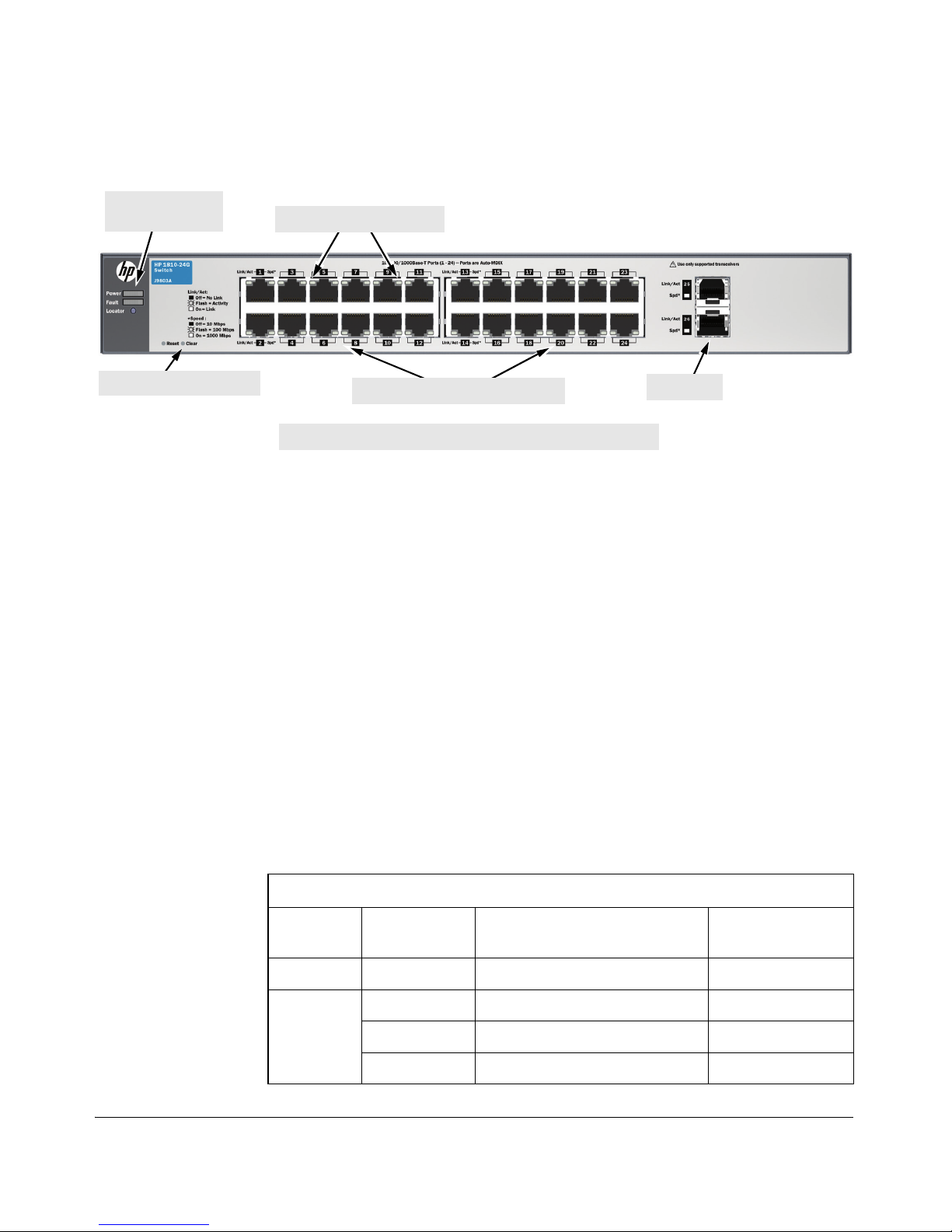

HP 1810-24G Switch (J9803A)

Link/Act and Speed LEDs

10/100/1000BASE-T RJ-45 ports1SFP slots

Power, Fault, and

Locator LEDs

Reset and Clear buttons

Optional Network Connectivity, Speeds and Technologies

Speed Technology Cabling SFP ("mini-GBIC")

Connector1

100 Mbps 100-FX Fiber (multimode) LC

1 Gbps

1000-T Copper (twisted-pair) RJ-45

1000-SX Fiber (multimode) LC

1000-LX Fiber (multimode or single mode) LC

1-4

Switch Overview

Switch Hardware Features

LEDs

The front panel of the switch provides status LEDs for system monitoring. The

following table details the functions of the various indicators.

1For supported transceivers, visit www.hp.com/networking/support.

– In the first textbox, type J4858 (for 100-Mb and Gigabit information).

– Select any of the products that display in the dropdown list. Click the Display selected

button.

– Select Product support information. Then click Manuals and find the Transceiver

Support Matrix.

For technical details of cabling and technologies see "Cabling and Technology Information"

in Appendix A.

LED State Meaning

Power

(green)

On The switch is receiving power.

Off The switch is NOT receiving power.

Fault

(orange)

On On briefly after the switch is powered on or reset, at the beginning of switch self

test. If the LED remains on, it indicates a detected hardware failure during the self

test.

Blinking* A fault has occurred on the switch or one of the switch ports. The Link LED for the

port with the fault will blink simultaneously.

Off The normal state; indicates that there are no fault conditions on the switch.

Locator

(blue)

Blinking** The Locator LED is used to locate a specific switch in an area full of switches. The

LED blinks for 30 minutes when activated through the switch software.

Off The Locator LED is disabled by default.

(green)

1810-8G Switch

only

On Power is available on the PoE In port (Port 1).

Blinking* Power is no longer available on the PoE In port. The switch is powered from the

external power adapter. The LED continues to blink until power is restored on the

PoE In port or the switch reset.

Off No power is available on the PoE In port.

Link/Act

(green)

On The port is enabled and receiving a link indication from the connected device.

Off One of these condition exists:

• no active network cable is connected to the port

• the port is not receiving link beat or sufficient light

• Green Mode has been enabled.

Blinking* Indicates that there is network activity on the port.

Otros manuales para 1810-8

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de HP

HP 6125XLG Manual de usuario

HP ProCurve 1600M Manual de usuario

HP SN3000B Manual de usuario

HP AK241A - StorageWorks 8Gb Simple SAN... Manual de usuario

HP 409054-003 Manual de usuario

HP J3128A AdvanceStack 10Base-T Hub-8E Manual de usuario

HP procurve switch xl modules Manual de usuario

HP ProCurve 1410-8G Manual de usuario

HP ProCurve 6120G/XG Manual de usuario

HP Aruba Instant On 1930 Instrucciones de montaje

HP StorageWorks 1606 - Extension SAN Switch Manual de operación y mantenimiento

HP 438031-B21 - 1:10Gb Ethernet BL-c Switch Guía del usuario

HP A5120 Series Manual de instrucciones

HP ProCurve Switch 2650 Manual de usuario

HP 445860-B21 - 10Gb Ethernet BL-c Switch Manual de funcionamiento

HP 8/20q Manual de instalación y funcionamiento

HP 263924-002 Manual de usuario

HP 6125XLG Manual de usuario

HP ProCurve 1700-8 Manual de usuario

HP 3100 v2 Series Manual de instalación

HP pocurve switch 408 Manual de usuario

HP A5800-48G Instrucciones de uso

HP A5500 HI Series Manual de usuario

HP 10GbE Pass-Thru Module Instrucciones de uso

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
