HP StoreEasy 3830 Manual de usuario

HP StoreEasy 3830 Gateway

Storage Blade Quick Start

Guide

Microsoft® and Windows® are U.S. registered trademarks of Microsoft

Corporation.

*B7D88-96076*

HP Part Number: B7D88-96076

Published: June 2013

Edition: 2

Overview

Installation of the HP StoreEasy 3830 Gateway

Storage Blade requires the following steps:

1. Install and configure an HP BladeSystem c-Class

enclosure.

2. Install interconnect modules in the enclosure.

3. Connect the interconnect modules to the network.

4. Install the blade(s).

5. Complete the blade solution configuration.

IMPORTANT: The HP System Recovery DVD

is included with the 3830 Gateway Storage

Blade. This DVD is used to restore the system to

factory defaults. Keep this DVD in a safe place.

Record network information

It is critical to have the correct networking information

available before proceeding with the system

installation and configuration. It may be necessary to

pre-stage DNS information. Contact your system

administrator to clarify network configuration

requirements.

IMPORTANT: Before joining the StoreEasy

system nodes to the Active Directory domain,

ensure that there is network connectivity between

each node and the domain controller.

The StoreEasy 3830 requires a minimum of 2 IP

addresses. These addresses may be statically assigned

or assigned by a DHCP server or both. If you are using

static addressing or a DHCP server that does not

automatically update DNS, ensure that both forward

and reverse DNS information (A and PTR records) is

pre-staged in the DNS server.

Use Table 1 (page 1) to document your network

information before proceeding with system setup.

Table 1 Network information

IP address

Fully qualified DNS

name (FQDN)Network device

System

iLO

Restrictive Active Directory environments

If the StoreEasy system is placed in a restrictive Active

Directory environment, it may require pre-staging

Active Directory objects or certain administrative

Page 1

permissions. See the following Microsoft articles for

more information:

•How to Create a Cluster in a Restrictive Active

Directory environment

•Failover Cluster Step-by-Step Guide: Configuring

Accounts in Active Directory

Validate network information

Confirm that the IP address and names are not already

in use.

Complete the tests in Table 2 (page 2) to verify

network connectivity. Consult with your network

administrator to confirm test results.

Table 2 Validation tests

Successful?

(Y/N)Command(s) to executeTest

ping <system address>Ping the IP address

of the StoreEasy

system from

another system on

the same network.

ping <system address>Ping the IP address

of some other

system on the

same network form

the StoreEasy

system.

ping <node1 name>

ping <node1 fqdn>

Ping the name of

the StoreEasy

system from

another system on

the same network.

ping <node1 name>

ping <node1 fqdn>

Ping the name of

some other system

on the same

network form the

StoreEasy system.

If you will be adding the StoreEasy system to an Active Directory

domain, some additional tests include:

ping <domain controller

address>

ping <domain controller

name>

Ping the domain

controller from the

StoreEasy system.

pingpath <domain

controller address>

pingpath <domain

controller name>

Verify the network

path to the domain

controller and

DNS servers is

correct.

pingpath <DNS server

address> (Repeat for each

DNS server)

Table 2 Validation tests (continued)

Successful?

(Y/N)Command(s) to executeTest

pingpath <DNS server

name> (Repeat for each DNS

server)

Additionally, verify that the DNS information is valid

for the cluster and file server. HP recommends that you

also verify the iLO and Enclosure Manager IP

address/name resolution; however, this is not critical

to support the cluster and file server.

Installing an HP BladeSystem c-Class

enclosure

Before performing any blade-specific procedures,

install an HP BladeSystem c-Class enclosure.

The most current documentation for blades and other

HP BladeSystem components is available on the

documentation CD that ships with the enclosure and

at the following HP website:

http://www.hp.com/go/bladesystem/documentation

Installing blade options

Before installing and initializing the blades, install any

blade options, such as an additional mezzanine card.

For blade options installation information, see the HP

ProLiant BL460c Gen8 Server Blade User Guide on

the documentation CD that ships with the enclosure

and at the following HP website:

http://www.hp.com/go/bladesystem/documentation

Installing interconnect modules

For specific steps to install interconnect modules, see

the documentation that ships with the interconnect

module.

To support network connections for specific signals,

install an interconnect module in the bay corresponding

to the embedded NIC or mezzanine signals.

Page 2

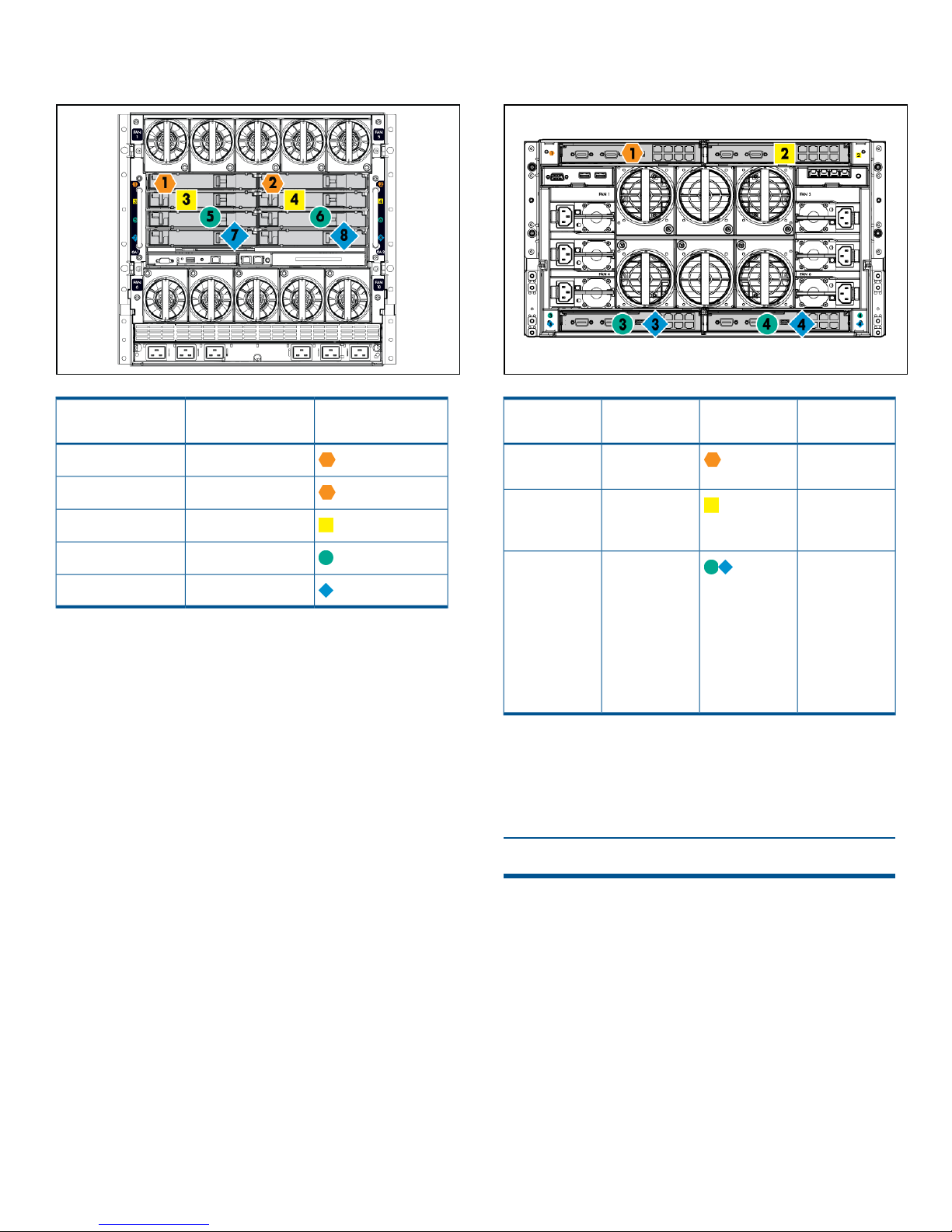

Figure 1 Interconnect bay numbering and device

mapping (c7000 enclosure)

Interconnect bay

label

Interconnect bayBlade signal

1NIC 1 (embedded)

2NIC 2 (embedded)

3 and 4Mezzanine 1

5 and 6Mezzanine 2

7 and 8

Figure 2 Interconnect bay numbering and device

mapping (c3000 enclosure)

NotesInterconnect

bay label

Interconnect

bay

Blade signal

1NICs 1 and 2

(embedded)

Four port

cards connect

to bay 2

2Mezzanine 1

3, 4Mezzanine 2 •Four port

cards

•Ports 1 and

3 connect

to bay 3

•Ports 2 and

4 connect

to bay 4

For detailed port mapping information, see the HP

BladeSystem enclosure installation poster or the HP

BladeSystem enclosure setup and installation guide

on the following HP website:

http://www.hp.com/go/bladesystem/documentation

Connecting to the network

To connect the HP BladeSystem to a network, each

enclosure must be configured with network interconnect

devices to manage signals between the blades and

the external network.

Two types of interconnect modules are available for

HP BladeSystem c-Class enclosures:

•Pass-thru modules

•Switch modules

For more information about interconnect module

options, see the following HP website:

Page 3

http://www.hp.com/go/bladesystem/interconnects

Installing the HP 3830 Gateway Storage

Blade

IMPORTANT: If your product is

factory-integrated, the blades are pre-installed

in the enclosure.

CAUTION: To prevent improper cooling and

thermal damage, do not operate the blade or

the enclosure unless all hard drive and device

bays are populated with either a component or

a blank.

Installation procedure

1. Remove the blank.

2. Remove the enclosure connector cover.

3. Install the HP 3830 Gateway Storage Blade.

Powering on the server blade

If the enclosure is powered on, the server blade begins

its power on sequence as soon as it is installed. If the

default Onboard Administrator setting has been

changed and the server blade does not power on,

press and release the power button on the server blade

or use a virtual power button via iLO.

You must access the server console to complete the

setup.

Accessing the server console

For initial setup, there are two ways to access the

server console:

•Using iLO

•Attaching the provided SUV cable to the front of

the server blade and then attaching a monitor,

keyboard, and mouse.

Once the server blade has been configured and IP

addresses assigned, you may also connect to the

server blade using a remote desktop connection.

For iLO access, use the enclosure Onboard

Administrator to identify the iLO IP address of the

server blade, then connect a remote web browser to

that address. The factory assigned iLO DNS name and

iLO Administrator password are provided on a pull-out

tab at the front of the server blade. In the browser, log

on to iLO as Administrator, then open a remote console

to the server blade.

Page 4

Completing the Windows configuration

When prompted, enter the default Windows

Administrator password (HPinvent!). Then, the Setup

Windows wizard is displayed, in which you select

language and regional settings and accept the license

agreement. After installing some additional software,

the server blade reboots.

After the reboot, log on as the local administrator. The

Initial Configuration Tasks (ICT) window starts

automatically. Complete the tasks in sequential order

to complete the configuration of the system. For more

information on any task, click the help icon for the

appropriate task group in the ICT window.

Creating a Windows failover cluster

(optional)

Multiple HP 3830 Gateway Storage Blades are often

deployed as a Windows failover cluster to offer highly

available file services for SAN storage. If you are

deploying a cluster, install and configure each server

blade using the instructions in this document. Then,

see the HP StoreEasy 3000 Online Help for additional

information about creating the cluster.

IMPORTANT: HP strongly recommends that

you validate your configuration when using

clusters. Whether you create a cluster through

the ICT or the Failover Cluster Manager, one of

the first steps is validating your configuration

using the Microsoft cluster validation tool. If you

choose to skip the validation step, you can still

validate the cluster after it is created.

Supporting documentation

For administration, service, and maintenance

information, see the following documentation:

•HP ProLiant BL460c Gen8 Server Blade

Maintenance and Service Guide

•HP StoreEasy 3000 Storage Online Help

•HP StoreEasy 3000 Storage User Guide

BladeSystem documentation is available at:

http://www.hp.com/go/bladesystem/documentation

General HP StoreEasy 3000 documentation is

available at:

http://www.hp.com/support/manuals

Under storage, select NAS Systems and then select HP

StoreEasy 3000 Storage under File Services.

Regulatory information

For important safety, environmental, and regulatory

information, see Safety and Compliance Information

for Server, Storage, Power, Networking, and Rack

Products, available at http://www.hp.com/support/

Safety-Compliance-EnterpriseProducts.

Documentation feedback

Send any errors, suggestions, or comments to

Documentation Feedback ([email protected]).

Page 5

Tabla de contenidos

Otros manuales de Almacenamiento de HP

HP StorageWorks 4000/6000/8000 - Enterprise Virtual... Manual de instrucciones

HP P5389A - Intel Pentium III-S 1.4 GHz Processor... Manual de usuario

HP StorageWorks EVA4000 Guía

HP LaserJet P2050 Series Manual de usuario

HP StorageWorks SSL1016 Instrucciones de uso

HP StorageWorks DLT 80 Instrucciones de uso

HP StorageWorks 600 - Modular Disk System Manual de usuario

HP Surestore 6164 - Switch Manual de usuario

HP Surestore 160ex - Optical Jukebox Manual de usuario

HP 201723-B21 - HP StorageWorks Modular SAN Array 1000 Hard... Guía

HP D2D Manual del operador

HP StoreEver MSL4048 Manual de usuario

HP Surestore 6164 - Switch Manual de usuario

HP StorageWorks Ultrium 215i Manual de usuario

HP 6400/8400 Manual de usuario

HP R/T2200 G4 ERM Instrucciones de instalación

HP STORAGEWORKS XP24000 Manual de usuario

HP Surestore 40fx - Optical Jukebox Manual de usuario

HP Model 744 - VME Workstation Guía de referencia

HP AJ765A - StorageWorks RDX Removable Disk Backup... Manual de instrucciones

HP AH164A - StorageWorks 1/8 G2 Tape Autoloader Ultrium... Instrucciones de instalación y funcionamiento

HP StorageWorks AF204A Instrucciones de uso

HP ProLiant SB460c - SAN Gateway Storage Server Manual de instrucciones

HP STOREEVER LTO 4 Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario

CFI

CFI TERA STOR SATA RAID IV Manual de usuario
