HPE StoreEasy 1X60 Storage Quick Start
Guide
*P05633-001*
Part Number: P05633-001
Published: March 2018
Edition: 1
Abstract
This document provides system administrators step-by-step instructions for setting up an HPE
StoreEasy 1X60 Storage system for the first time. After deployment of the system, HPE
recommends you to read the StoreEasy 1X60 Administration Guide to learn how to configure and
maintain all models of HPE StoreEasy 1X60 Storage.
© Copyright 2018 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett Packard
Enterprise products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett
Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise
website.
Acknowledgments
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
Product Models
The installation instructions provided in this document apply to the StoreEasy 1X60 Storage system which
covers the following HPE StoreEasy 1000 Storage models:
• HPE StoreEasy 1660 Storage
• HPE StoreEasy 1860 Storage
• HPE StoreEasy 1460 Storage
• HPE StoreEasy 1560 Storage
1. Unpack the HPE StoreEasy 1X60 Storage system
Before you begin, ensure that you have the following items in the shipping box:
•Hardware Components
◦ HPE StoreEasy 1X60 Storage system
◦ Power cords
◦ Rail kit for installing the system in a rack
◦ Any other hardware options purchased
•Documentation and Media
◦ HPE StoreEasy 1X60 Read This First document
◦ HPE StoreEasy 1X60 Storage Quick Start Guide
◦ Windows Storage Server 2016 (WSS2016) Certificate of Authenticity (COA) label (affixed to the
product)
◦ An envelope containing HPE Integrated Lights-Out (iLO) Advanced Security license key and document
◦ HPE StoreEasy 1X60 System Recovery DVD (if ordered)
If any of the above-mentioned items are missing, contact Hewlett Packard Enterprise
(https://www.hpe.com/us/en/contact-hpe.html) for assistance.
IMPORTANT:
For support purposes, you must know how to locate or have a copy of the StoreEasy 1X60 Storage
system serial number, the Product ID key from WSS2016 COA, and the iLO Advanced Security license
key.
HPE personnel uses the system serial number to verify the StoreEasy model and warranty information. It is
located in the following places on the system:
3
• On a label (1) affixed outside the HPE StoreEasy 1X60 Storage shipping box
1
• Top (1) of the HPE StoreEasy 1X60 Storage chassis (some models)
1
• Inside (1) of the HPE StoreEasy 1X60 Storage chassis (some models)
4
1
• Pull out serial number tab (1) on the product
1
5
1
The COA label Product ID key is required when:
• The WSS2016 operating system has been reinstalled.
• The motherboard of StoreEasy 1X60 product is replaced.
• The original factory-installed operating system is upgraded to a newer version of WSS operating system.
The iLO Advanced Security license key is required when:
• The motherboard of StoreEasy 1X60 product is replaced.
• The iLO license key must be reinstalled.
2. Installing the rail kits and mounting the system in a rack
Important safety information
CAUTION:
Electrostatic Discharge (ESD) can damage the electronic components. Ensure that you are properly
grounded (earthed) before beginning any installation procedure.
Installation Guidelines
This installation must be performed by qualified individuals having knowledge of the procedures, precautions,
and equipment hazards that contains hazardous electrical circuits.
6 2. Installing the rail kits and mounting the system in a rack
WARNING:
• The rail kits, when installed, form only a shelf for the StoreEasy 1X60 to rest on. The StoreEasy
1X60 is not attached to the rail by any other means. Use extreme caution when pulling the
StoreEasy 1X60 out from the rack. The storage system can slip and fall, which may cause damage
or injury to the StoreEasy 1X60 Storage. HPE is not responsible for any damage or injury caused by
mishandling of StoreEasy 1X60.
• Ensure that the rack is leveled and stable before working on the rack. The leveling jacks (feet) must
extend to the floor and the full weight of the rack must rest firmly on the floor.
• Ensure that the rack has anti-tip measures such as, floor-bolting, anti-tip feet, ballast, or a
combination of the measures, as specified by the rack manufacturer and applicable codes in place.
• Ensure that sufficient personnel are available to support one or more products during the installation
process. HPE recommends you to use an appropriate lifting device as an installation aid.
• Ensure that the rack is loaded from bottom to top, with the heaviest appliances at the bottom to make
the rack steady.
• Avoid overloading the branch circuit that provides power to the rack. The total rack load must not
exceed 80 percent of the branch circuit rating.
Installation
1. Install the rail kits.
For detailed instructions on installing the HPE rack rails into square and round hole racks for HPE 2U
Storage system, refer HPE Rack Rail Kit installation instructions document, that is part of the shipped rail
kit.

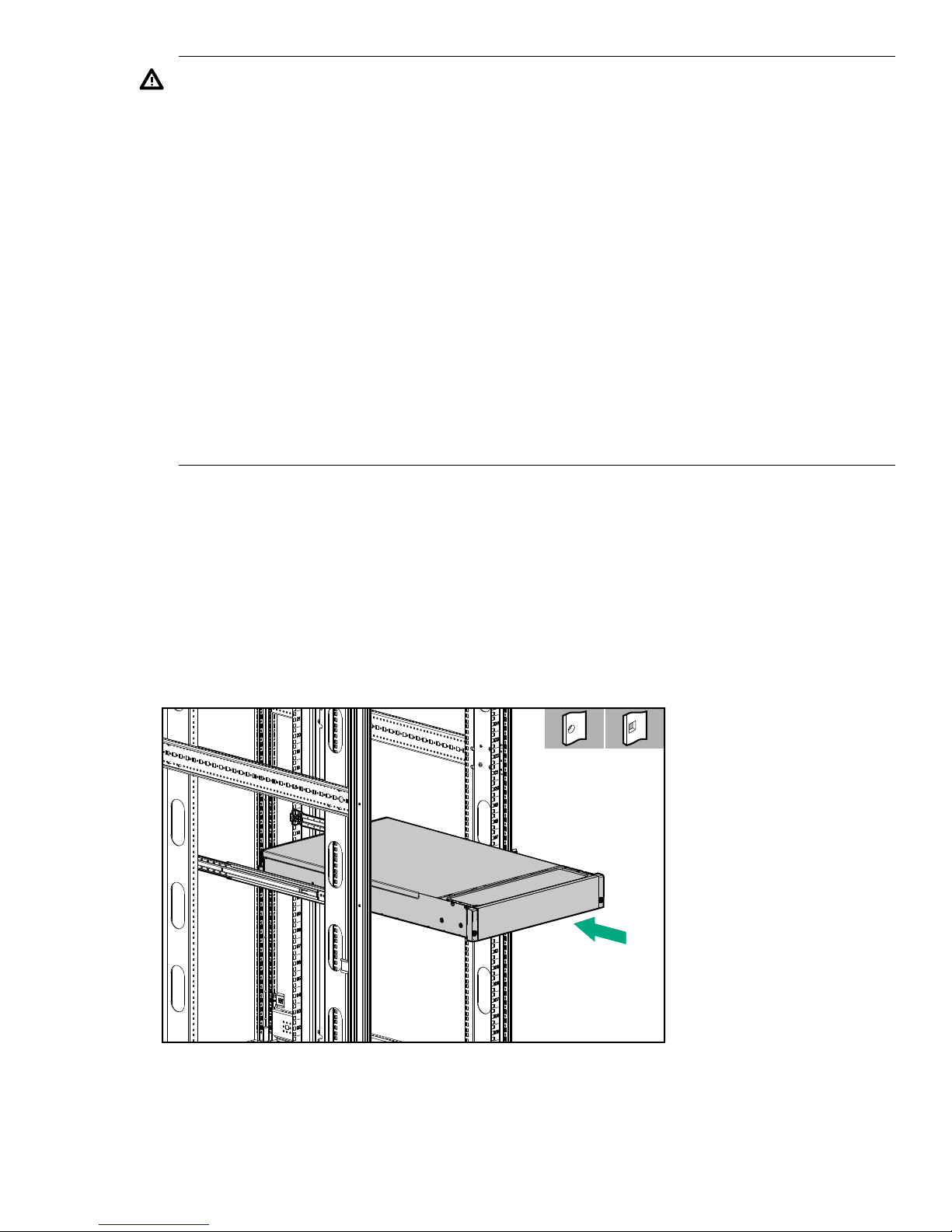

2. Slide the StoreEasy 1X60 into the position on the rails as shown in Figure 1.
Figure 1: StoreEasy 1X60 insertion into the rack
7
3. To secure the StoreEasy 1X60 to the rails, the Configure-to-Order (CTO) bracket at the rear ends of the
rails must overlap the chassis tab as shown in Figure 2.
1
2
Figure 2: CTO bracket location
4. Secure the StoreEasy 1X60 to the rack rails using thumbscrews on the front bezel as shown in Figure 3.
1
2
Figure 3: Secure StoreEasy 1X60 to the rack
5. Using the holes provided in the rear rack rails, install the tie wraps and route external cables as required
as shown in Figure 4.
8
Figure 4: Cable management with tie wraps
6. Connect all power cords to the facility power source.
3. Cabling the StoreEasy system to the network
The iLO network port is used to remotely manage the StoreEasy 1X60 hardware and allows administrators to
launch a remote console session to the system. HPE recommends that you connect the iLO port to your
management network. The iLO port is preconfigured to obtain an IP address through DHCP. If your
environment does not support DHCP, use a KVM and configure iLO to use a static IP address. For
instructions, see HPE StoreEasy 1X60 Storage System Administrator Guide available at
https://support.hpe.com/hpesc/public/home/documentHome?sp4ts.oid=1008632547.
The 4 x 1GbE network ports are used for the storage network and to connect the system to infrastructure
services such as, Active Directory, DNS, NTP, etc. The ports can be configured as segregated network ports
or a network team. Ensure that your switch is prepared for either configuration.
12
Figure 5: Rear view of the StoreEasy 1660 and StoreEasy 1860 Storage system
1Network Ports
2iLO Port
If you have purchased additional interface cards for your StoreEasy 1X60, the following table guides you on
where to install them. The numerical values indicate the order of installation.
3. Cabling the StoreEasy system to the network 9
Description PCIe Slot 1
(x8)
PCIe Slot 2
(x16)
PCIe Slot 3
(x8)
FlexLOM
Slot
PCIe Slot
4 (x8)1
PCIe Slot
5 (x16)1
PCIe Slot
6 (x8)1
Primary Riser Secondary Riser 1
HPE M.2 Kit
with 2 x M.2
SSDs
Slot Not
Available
Slot Not
Available
X Slot Not
Available
Slot Not
Available
Slot Not
Available
Slot Not
Available
FlexLOM Slot Not
Available
1
PCIe x1621 Slot Not
Available
1
PCIe x8 or less 1 2 1 2 3
1 Slots for Secondary Riser require that the second processor is installed before they are available for use. PCIe Slot 4 and
PCIe Slot 5 are not available when using the riser with the 2 x SFF cage.
2 PCIe x16 on Primary Riser is only available on the StoreEasy 1660 system. The StoreEasy 1860 system uses this slot for
the SAS expander card.
2 1
Figure 6: Rear view of the StoreEasy 1460 Storage system
1Network Ports
2iLO Port
Description PCIe Slot 1 (x16) PCIe Slot 2 (x8) PCIe Slot 3 (x16) FlexLOM Slot
Primary Riser Secondary Riser1
PCIe x8 2 1 3
PCIe x16 1 2
FlexLOM X
1 Slot for Secondary Riser requires the second processor to be installed.
10
